Amtrol

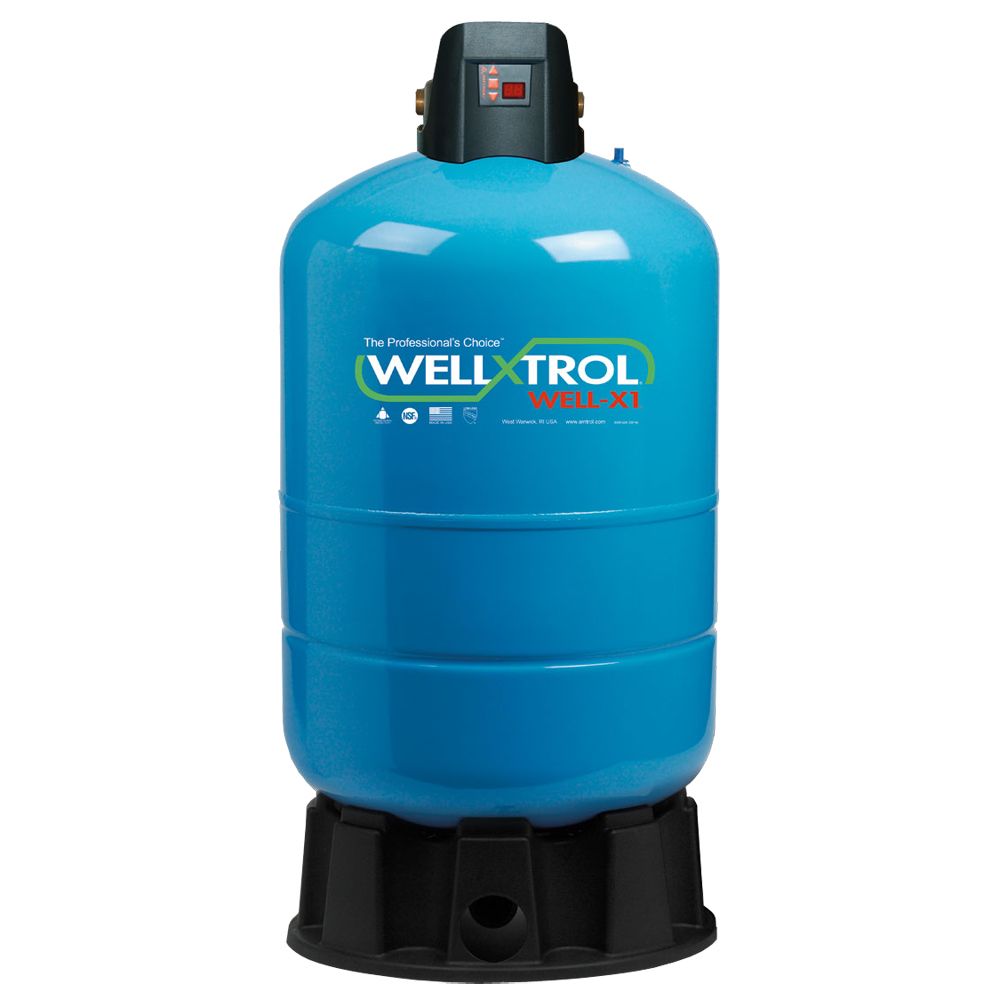

Well-X1 WX1-250 Constant Pressure Well Tank System 44 gal

Part Number: WX1-250

Alt. Part Number: 01-01414, WX1250D

In Stock

out of stock

In Stock

$1,035.48

The Amtrol Well-X1 WX1-250 Constant Pressure System gives you city-like water pressure utilizing your existing well pump. Designed to be an alternative to expensive and difficult to install variable speed drive (VFD) systems the WX1-250 is pre-assembled and ready to install making it the ultimate combination of quality, savings, and performance.

Features:
  • Maintains 10 psig differential for smooth, consistent flow
  • Saves Energy; Pump does not run constantly
  • Includes 62 gallon Well-X-Trol Well Tank:
    • Tank features Tuf-Kote indoor/outdoor coating
    • Includes DuraBase composite tank base
    • 7 Year Warranty
  • Controlled by Amtrol Guardian CP Digital Control:
    • Digital Pressure Gauge
    • Adjustable up to 80 psi
    • Real Time System Diagnostics
    • 2 Year Warranty
  • Installation is fast and easy:
    • Simple 4-wire setup
    • Compatible with 115 or 230 VAC setups
    • Remains idle if wired improperly
    • Pre-assembled
Well-X1 WX1-250 Constant Pressure Well Tank System Comes Pre- Assembled With:
  • Guardian CP Control
  • Decorative Cap
  • Mounting Bracket
  • Brass Tank Tee
  • Copper Tubing
  • Compression Fittings
  • Relief Valve
  • Drain Assembly
  • Press Sleeves
"



Weight & Dimensions

Height W/ Stand

44"

Height (inches)

22.5

Length (inches)

47

Weight (lbs)

78

Width (inches)

22.5

Details

Air Valve Stem Location

Top

Application

Pressure Pump Tank

Diaphragm Materials

Butyl Rubber

Drawdown Volume

15 Gallons @ 30/50 Setting

Inlet/Outlet Connection

1" FPT, 1-1/4" MPT

Material Of Construction

Stainless Steel

Max Pressure (Psi)

150

Max Temp (°F)

200

Size

1", 1-1/4"

Tank Pre-Charge

38 PSI

Volume

44 Gallons

Connection Type

Female (FPT), Male (MPT)

Diameter

22"

Origin

USA

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

Tank: 7 Years Controller: 2 Years


Well-X1

Well-X1




The Amtrol Well-X1 WX1-250 Constant Pressure System gives you city-like water pressure utilizing your existing well pump. Designed to be an alternative to expensive and difficult to install variable speed drive (VFD) systems the WX1-250 is pre-assembled and ready to install making it the ultimate combination of quality, savings, and performance.

Features:
  • Maintains 10 psig differential for smooth, consistent flow
  • Saves Energy; Pump does not run constantly
  • Includes 62 gallon Well-X-Trol Well Tank:
    • Tank features Tuf-Kote indoor/outdoor coating
    • Includes DuraBase composite tank base
    • 7 Year Warranty
  • Controlled by Amtrol Guardian CP Digital Control:
    • Digital Pressure Gauge
    • Adjustable up to 80 psi
    • Real Time System Diagnostics
    • 2 Year Warranty
  • Installation is fast and easy:
    • Simple 4-wire setup
    • Compatible with 115 or 230 VAC setups
    • Remains idle if wired improperly
    • Pre-assembled
Well-X1 WX1-250 Constant Pressure Well Tank System Comes Pre- Assembled With:
  • Guardian CP Control
  • Decorative Cap
  • Mounting Bracket
  • Brass Tank Tee
  • Copper Tubing
  • Compression Fittings
  • Relief Valve
  • Drain Assembly
  • Press Sleeves
"


Weight & Dimensions

Height W/ Stand

44"

Height (inches)

22.5

Length (inches)

47

Weight (lbs)

78

Width (inches)

22.5

Details

Air Valve Stem Location

Top

Application

Pressure Pump Tank

Diaphragm Materials

Butyl Rubber

Drawdown Volume

15 Gallons @ 30/50 Setting

Inlet/Outlet Connection

1" FPT, 1-1/4" MPT

Material Of Construction

Stainless Steel

Max Pressure (Psi)

150

Max Temp (°F)

200

Size

1", 1-1/4"

Tank Pre-Charge

38 PSI

Volume

44 Gallons

Connection Type

Female (FPT), Male (MPT)

Diameter

22"

Origin

USA

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

Tank: 7 Years Controller: 2 Years
