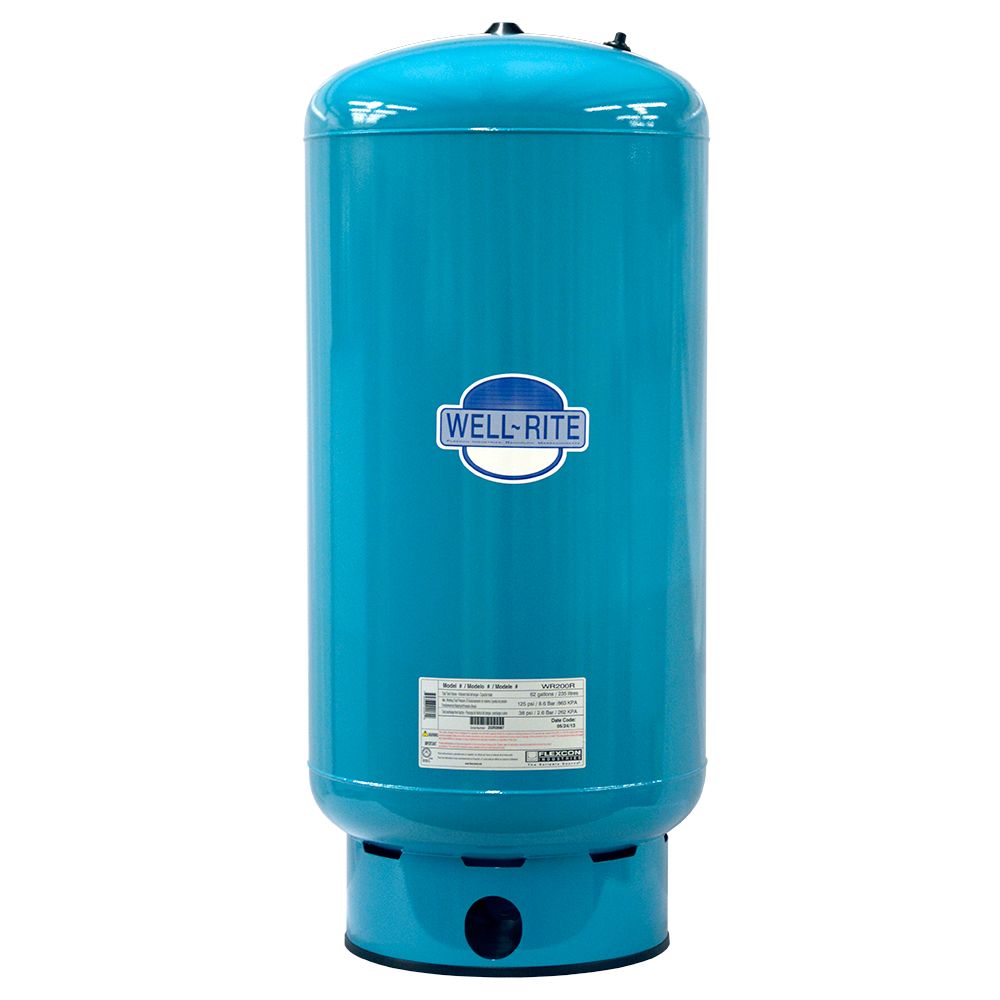

Well-Rite WR-260 Well Pressure Tank 85 Gallon Steel

Part Number: WR-260

Alt. Part Number: WR-260R, FWR-260

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Amtrol Well-X-Trol WX-302 Well Pressure Tank 86 gal as a substitute.


The Well-Rite WR-260 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-140 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Features:
  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown 30/50 Setting: 29 gallons
  • 5 year warranty
  • NSF Standard 61 listed
Well-Rite WR-260 is compatible with the following tanks:
  • Well-X-Trol WX-302
  • Wel-Flo WF260
  • Sta-Rite PSP220-T52
  • Sta-Rite PS85-T52
  • Sta-Rite PSP85-T52
  • Flex2Pro H2P-85
  • Champion CH17002
  • How 2 Tank HT86
  • Goulds V260
  • A.O. Smith SSB-85, PM-86
  • Flex2Pro WWT-85

The Well-Rite WR-260 85 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.





Weight & Dimensions

Approx Weight

121 Lbs

Height W/ Stand

44-1/2"

Details

Drawdown Volume

34.3 Gallons @ 20/40 Setting, 29 Gallons @ 30/50 Setting, 25.1 Gallons @ 40/60 Setting

Application

RO Water Storage, Pressure Pump Tank

Diameter

26"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Drawn Steel w/ Epoxy Finish

Max Operating Pressure

125 PSI

Max Operating Temperature

140 °F

Origin

USA

Size

1-1/4"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

85 Gallons

Inlet/Outlet Connection

1-1/4" FPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years




The Well-Rite WR-260 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-140 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Features:
  • Stainless steel system connection
  • Brass Air Valve with o-ring seal
  • Controlled Action Diaphragm maximizes drawdown
  • Heavy duty butyl diaphragm
  • Appliance quality urethane paint for indoor or outdoor installation
  • Drawdown 30/50 Setting: 29 gallons
  • 5 year warranty
  • NSF Standard 61 listed
Well-Rite WR-260 is compatible with the following tanks:
  • Well-X-Trol WX-302
  • Wel-Flo WF260
  • Sta-Rite PSP220-T52
  • Sta-Rite PS85-T52
  • Sta-Rite PSP85-T52
  • Flex2Pro H2P-85
  • Champion CH17002
  • How 2 Tank HT86
  • Goulds V260
  • A.O. Smith SSB-85, PM-86
  • Flex2Pro WWT-85

The Well-Rite WR-260 85 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.




NOTE: This item is discontinued. We recommend the Amtrol Well-X-Trol WX-302 Well Pressure Tank 86 gal as a substitute.

Weight & Dimensions

Approx Weight

121 Lbs

Height W/ Stand

44-1/2"

Details

Drawdown Volume

34.3 Gallons @ 20/40 Setting, 29 Gallons @ 30/50 Setting, 25.1 Gallons @ 40/60 Setting

Application

RO Water Storage, Pressure Pump Tank

Diameter

26"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Drawn Steel w/ Epoxy Finish

Max Operating Pressure

125 PSI

Max Operating Temperature

140 °F

Origin

USA

Size

1-1/4"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre Charge

38 PSI

Volume

85 Gallons

Inlet/Outlet Connection

1-1/4" FPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years
