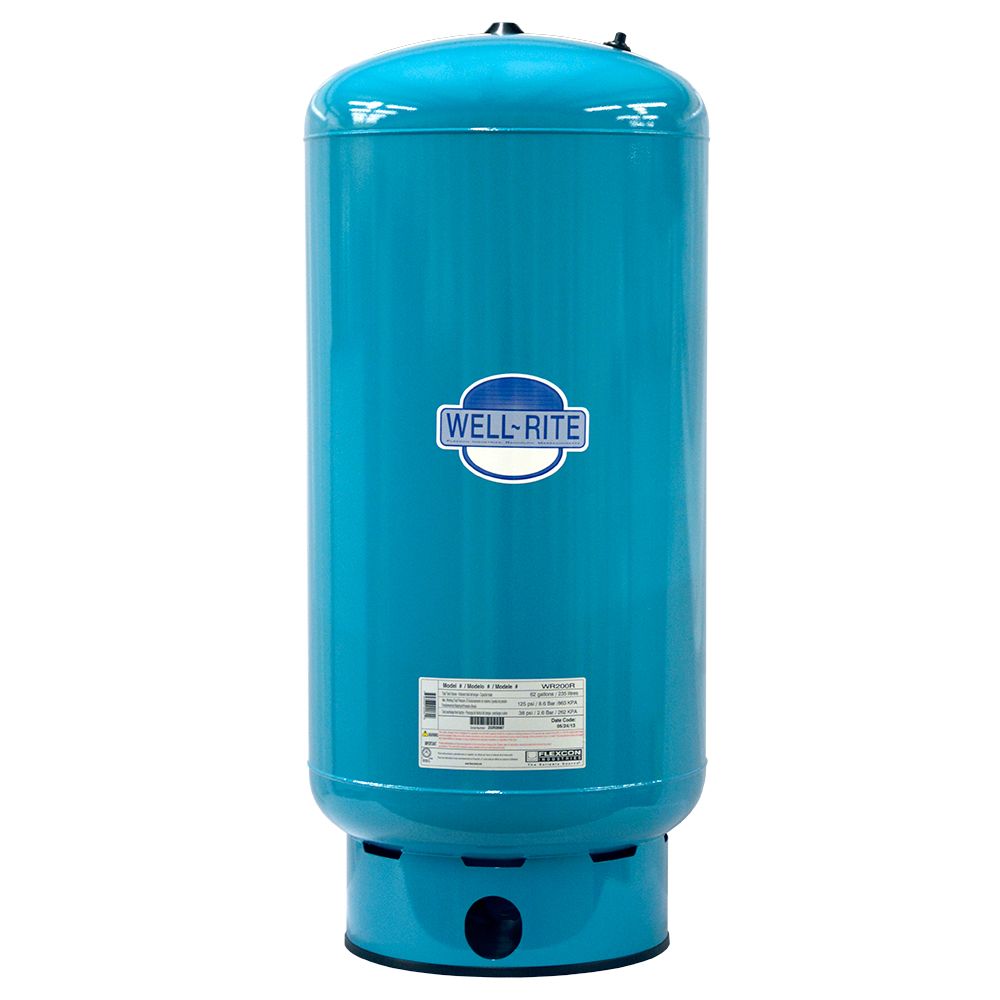

Well-Rite WR-200 Well Pressure Storage Tank Steel 62 Gal

Part Number: WR-200

Alt. Part Number: WR-200R, FWR-200

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

The Well-Rite WR-200 Well Pressure Tank is a diaphragm type pre-charged hydro-pneumatic tank designed for residential and commercial water well, pressure booster, irrigation and reverse osmosis systems. The unique design of the WR-140 well water storage tank prevents tank corrosion and reduces wear and tear on your well pump.

Specifications:
  • 5 year warranty
  • NSF Standard 61 listed
  • Heavy duty butyl diaphragm
  • Brass Air Valve with o-ring seal
  • Stainless steel system connection
  • Drawdown 30/50 Setting: 21.1 gallons
  • Controlled Action Diaphragm maximizes drawdown
  • Appliance quality urethane paint for indoor or outdoor installation
Compatible with the following tanks:
  • Well-X-Trol WX-251
  • Wel-Flo WF200
  • Sta-Rite PSP200-T51
  • Sta-Rite PS62-T51
  • Sta-Rite PSP62-T51
  • Champion CH12051
  • Goulds V200
  • A.O. Smith PM65
  • Flex2Pro WWT-65
  • Flex2Pro H2P-65


Reverse Osmosis Tank Maintenance and Accessories:
For optimal performance, it is necessary to keep a pre-charge of approximately 7 psi in your tank. Most automotive tire pressure gauges either do not read below 10 psi, or are not very accurate at pressures this low. 54846 Tank Pressure Gauge reads pressures between 0 and 20 psi, making it perfect for RO tank maintenance.
The RO tank should be sanitized before initial use and during every filter change. The Reverse Osmosis Sanitizing Maintenance Kit features Sani-System, an EPA & NSF certified sanitizer, making it a great alternative to using chlorine bleach. The kit also includes a syringe for application of the sanitizer.

NOTE: The Well-Rite WR-200 62 gallon storage tank can be used for reverse osmosis or well pressure tank applications. The stainless steel connection and fully enclosed polypropylene & butyl water reservoir avoids leaching issues. The air pre-charge is factory set at 38 psi for well tank applications and should be reduced to 7 PSI for RO applications.




Weight & Dimensions

Weight (lbs)

123

Height W/ Stand

48"

Details

Max Temp (°F)

140

Max Pressure (Psi)

125

Drawdown Volume

25 Gallons @ 20/40 Setting, 21.1 Gallons @ 30/50 Setting, 18.3 Gallons @ 40/60 Setting

Application

RO Water Storage, Pressure Pump Tank

Diameter

21"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Drawn Steel w/ Epoxy Finish

Origin

USA

Size

1-1/4"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre-Charge

38 PSI

Volume

62 Gallons

Inlet/Outlet Connection

1-1/4" FPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years


Well-Rite

Well-Rite

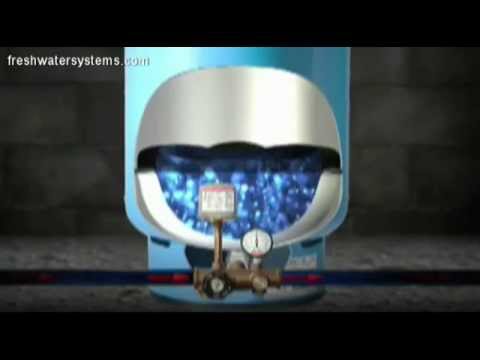

Product Videos
