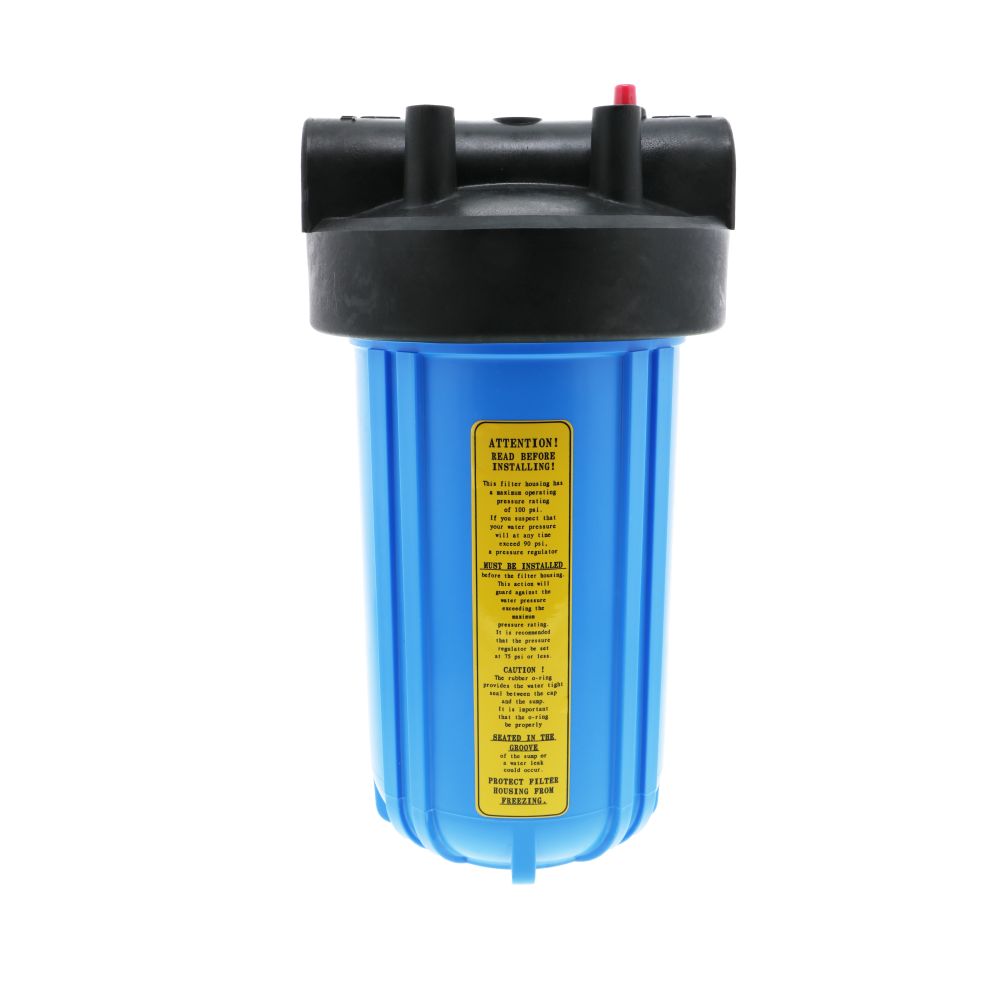

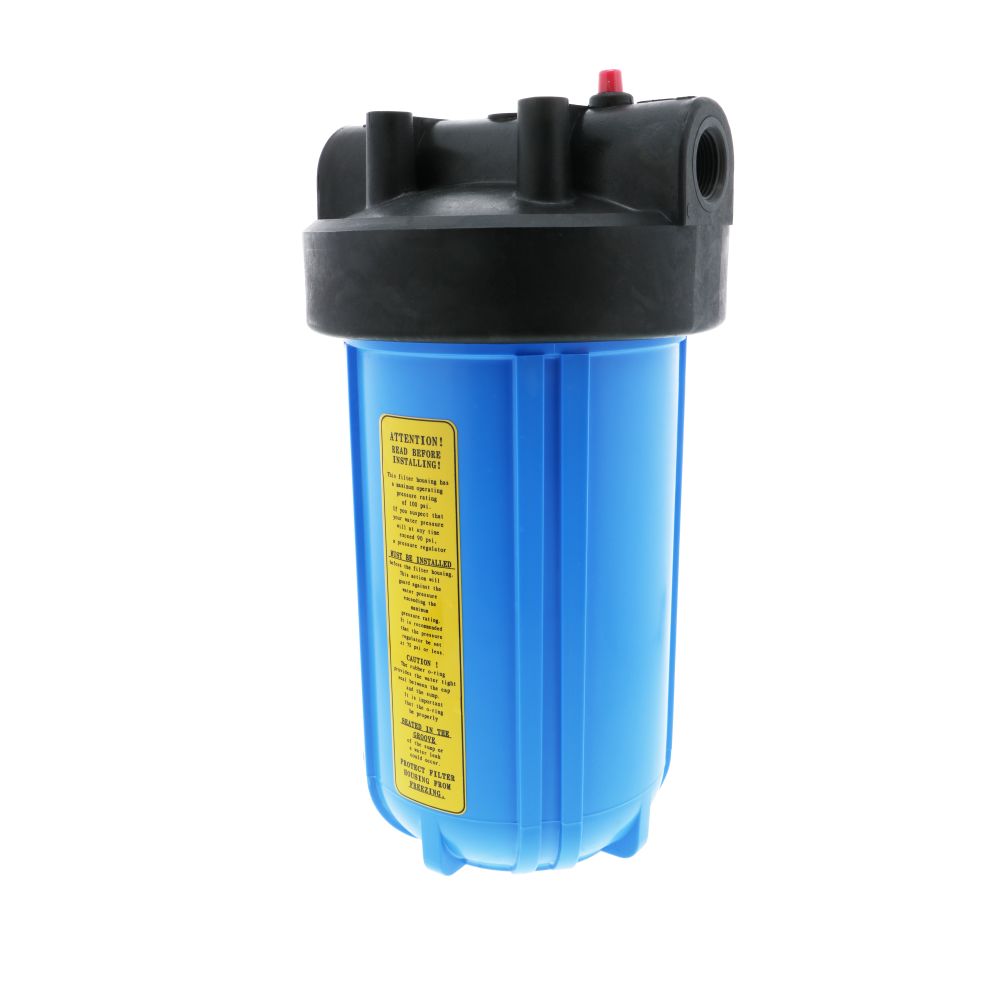

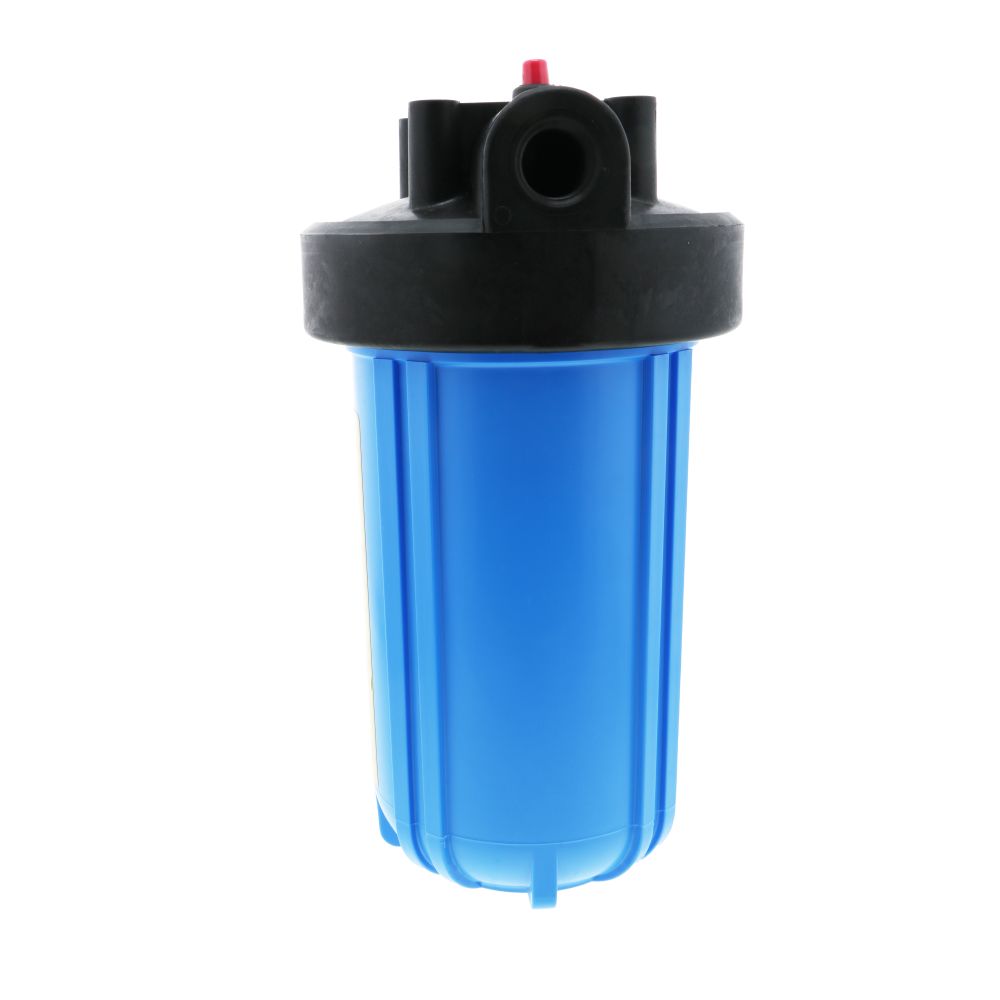

Watts Flowmatic 10" Full Flow Water Filter Housing Black/White W/ PR - 3/4" FPT

Part Number: FH5000WB34PR

In Stock

out of stock

In Stock

$39.45


Watts Flowmatic 10" Full Flow Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Full Flow filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Full Flow Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Features:
  • Made of FDA grade polypropylene
  • Buttress thread design for superior sealing
  • Thick side walls with heavy duty ribs for greater strength
  • EPDM o-ring
  • Max Temperature: 125°F
  • Max Pressure: 90 psi (6.3 bar)




Weight & Dimensions

Weight (lbs)

5

Approx Height (Inches)

13-1/8"

Approx Width (Inches)

7-1/4"

Details

Max Temp (°F)

125

Max Pressure (Psi)

90

Body Material

Reinforced Polypropylene

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

White

Features

Pressure Relief

Housing Material

Polypropylene

Material Of Construction

Polypropylene

Mounting Options

Mounting Bosses

O-Rings

EPDM

Size

3/4"

Inlet/Outlet Connection

3/4" FPT


Watts





Watts Flowmatic 10" Full Flow Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Full Flow filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Full Flow Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Features:
  • Made of FDA grade polypropylene
  • Buttress thread design for superior sealing
  • Thick side walls with heavy duty ribs for greater strength
  • EPDM o-ring
  • Max Temperature: 125°F
  • Max Pressure: 90 psi (6.3 bar)



Weight & Dimensions

Weight (lbs)

5

Approx Height (Inches)

13-1/8"

Approx Width (Inches)

7-1/4"

Details

Max Temp (°F)

125

Max Pressure (Psi)

90

Body Material

Reinforced Polypropylene

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

White

Features

Pressure Relief

Housing Material

Polypropylene

Material Of Construction

Polypropylene

Mounting Options

Mounting Bosses

O-Rings

EPDM

Size

3/4"

Inlet/Outlet Connection

3/4" FPT
