Watts AquaLock/SeaTech

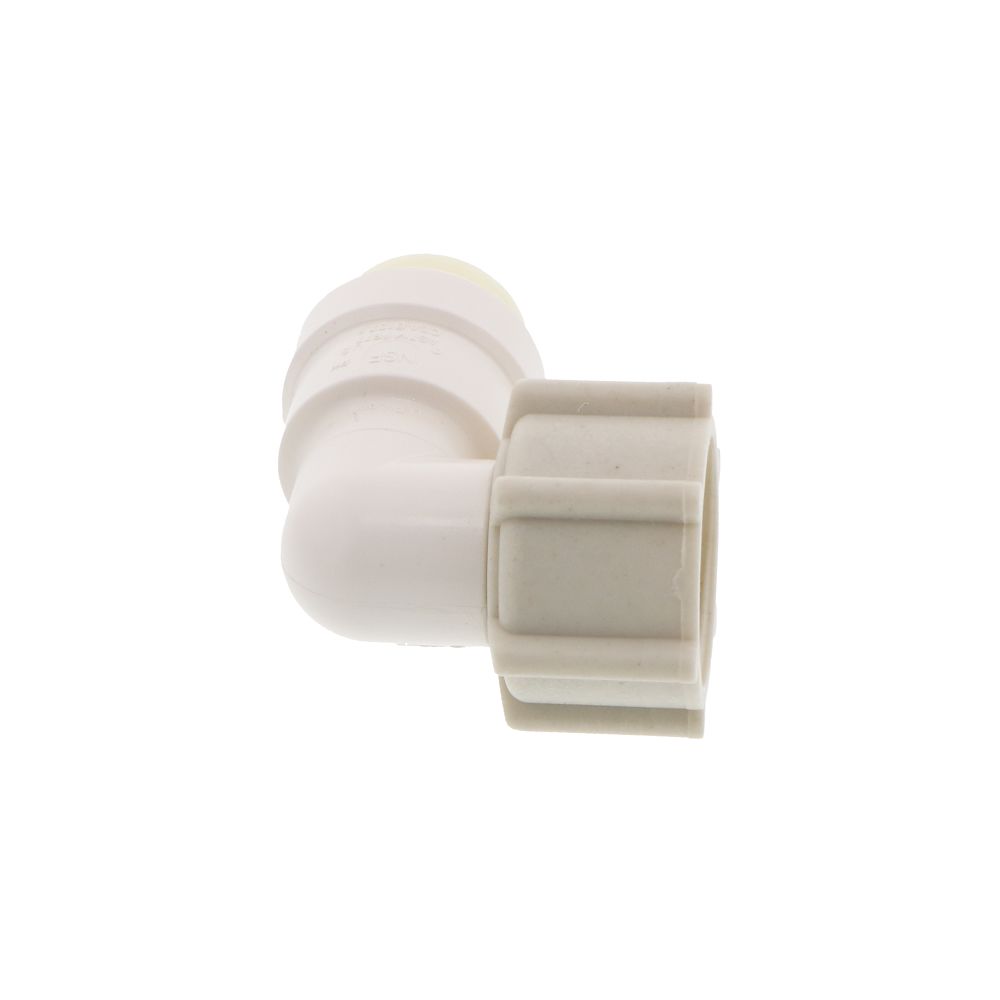

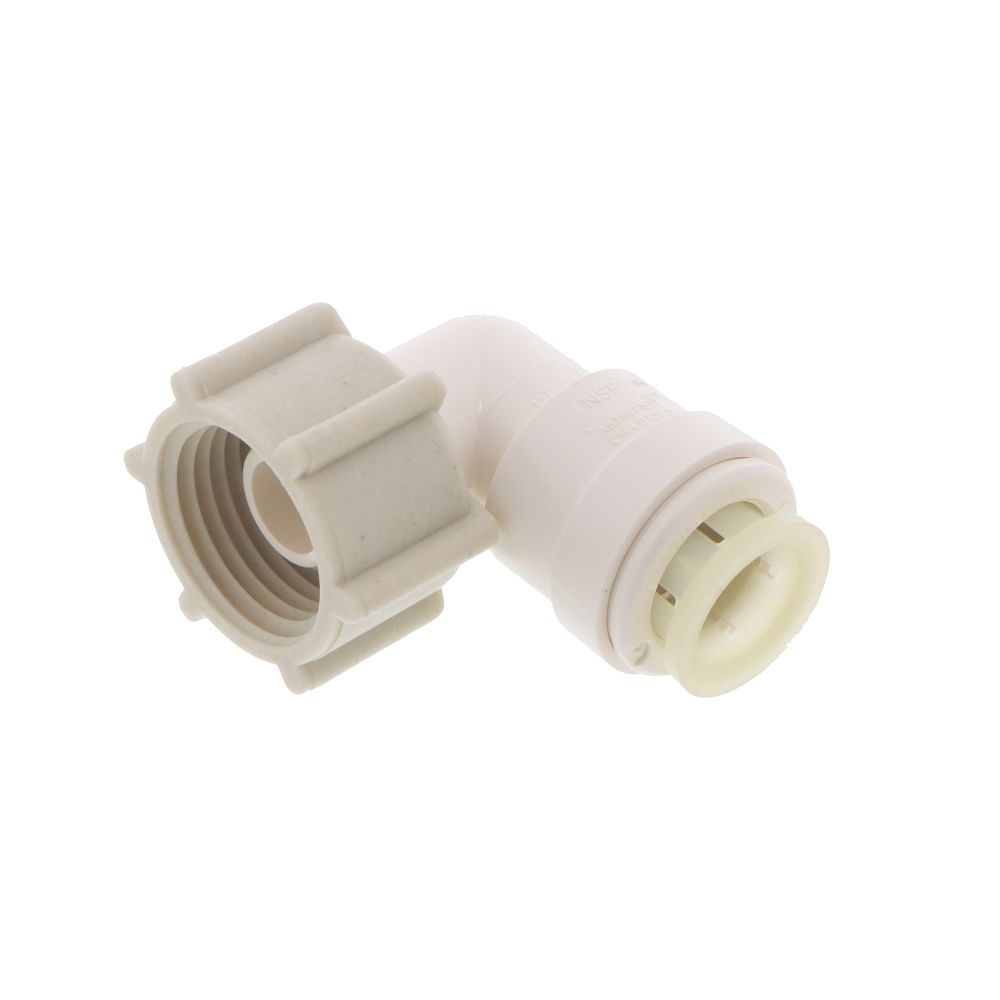

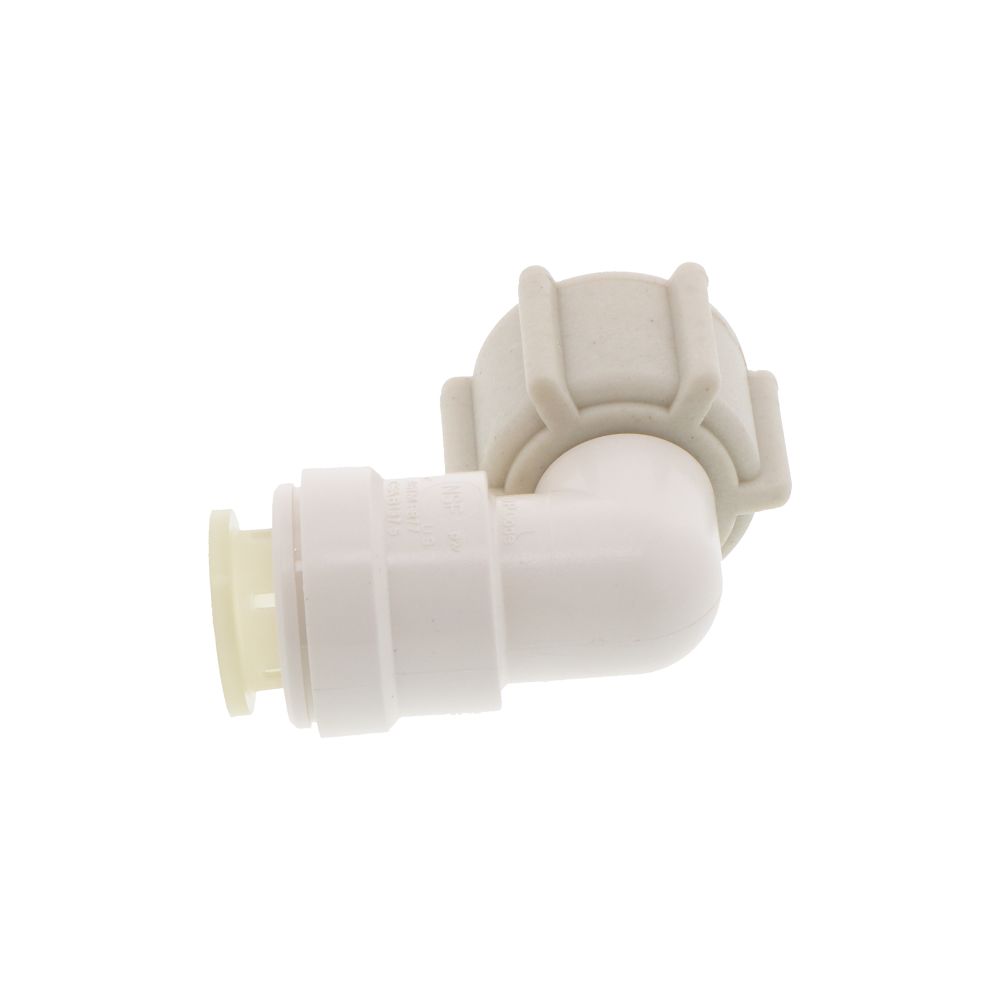

Watts AquaLock/SeaTech - Female Swivel Elbow - 3/8 CTS x 1/2 NPS
Watts has rebranded SeaTech to Watts AquaLock
Features:
- Manufactured in white polysulfone
- EPDM O-ring
- Certified to NSF-61, NSF-14,
- CSA B137.5, ASTM F877, IGC 188-04C
- Recognized by the Uniform Plumbing Code
- Max Temp: 180ºF@100psi/75ºF@250psi
Details
Application | Water |
Body Material | Polysulfone |
Inlet/Outlet Connection | 1/2" NPS |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Thread |
Push-In Size | 1/2" OD |
Seal Material | EPDM |
Series | 35 Series |
Size | 1/2" |
Color / Finish | White |
Connection Type | NPS |
Sub-Type | Female Swivel Elbow |
Type | Elbow |
Warranty & Certifications
Certifications | NSF 61; NSF 14; FDA Approved; IAPMO ASSE 1061-2006 |
Note: Watts has rebranded SeaTech to Watts AquaLock. This rebrand does not affect the part numbers. However, during the transition the product and packaging that you order may be branded as SeaTech or Watts AquaLock. The color will also vary. The size and specs of the products as well as the part numbers will remain the same.
Features:
- Manufactured in white polysulfone
- EPDM O-ring
- Certified to NSF-61, NSF-14,
- CSA B137.5, ASTM F877, IGC 188-04C
- Recognized by the Uniform Plumbing Code
- Max Temp: 180ºF@100psi/75ºF@250psi
NOTE: Watts has rebranded SeaTech to Watts AquaLock
Details
Application | Water |
Body Material | Polysulfone |
Inlet/Outlet Connection | 1/2" NPS |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Thread |
Push-In Size | 1/2" OD |
Seal Material | EPDM |
Series | 35 Series |
Size | 1/2" |
Color / Finish | White |
Connection Type | NPS |
Sub-Type | Female Swivel Elbow |
Type | Elbow |
Warranty & Certifications
Certifications | NSF 61; NSF 14; FDA Approved; IAPMO ASSE 1061-2006 |
