Watts AquaLock/SeaTech

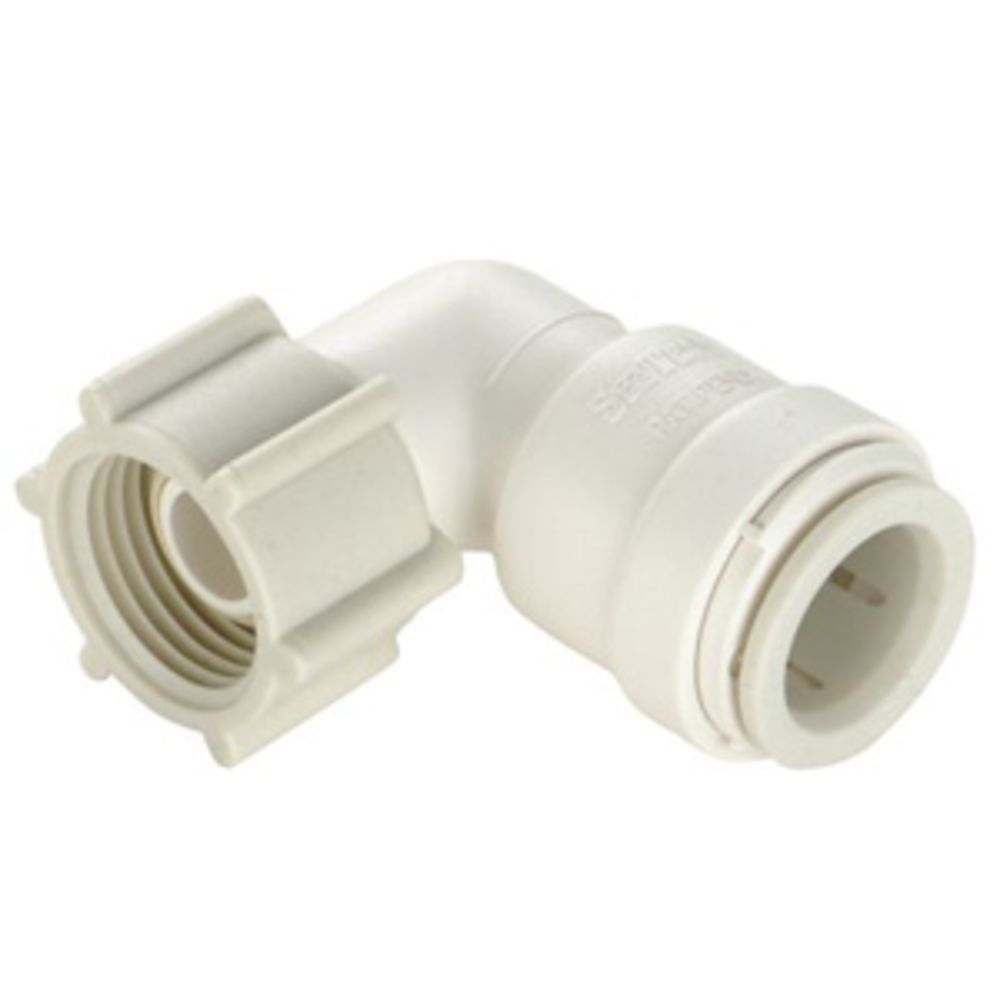

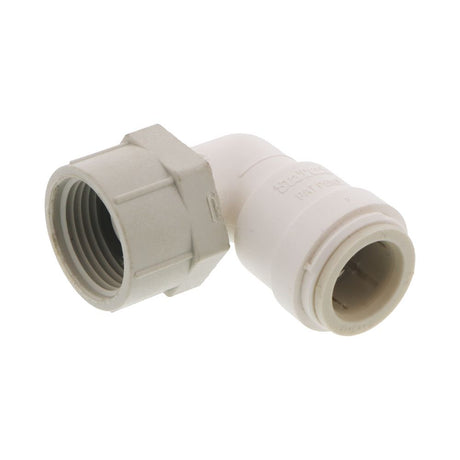

Watts AquaLock/SeaTech - 2420-1013 Female Swivel Elbow Fitting 1/2 CTS x 3/4 Closet

Part Number: 2420-1013

In Stock

out of stock

In Stock

Watts has rebranded SeaTech to Watts AquaLock

Note: Watts has rebranded SeaTech to Watts AquaLock. This rebrand does not affect the part numbers. However, during the transition the product and packaging that you order may be branded as SeaTech or Watts AquaLock. The color will also vary. The size and specs of the products as well as the part numbers will remain the same.

Intended Use:

Watts AquaLock/SeaTech 24 Series quick connect fittings are produced from FDA approved materials and are certified to NSF standard 61 making them suitable for contact with drinking water. 24 Series fittings are manufactured in a bright white thermal plastic and are suitable for many applications such as water plumbing, car wash, water filtration and aquariums. Watts AquaLock/SeaTech 24 Series fittings can directly connect to a variety of plastic, copper and CPVC piping and can be interconnected with Watts AquaLock/SeaTech 35 Series fittings.

Specifications:
  • Material: Acetal
  • O-ring: EPDM
  • Max operating pressure: 250 psi vacuum
  • Max temperature: 140°F @ 100 psi / 75°F @ 250 psi
  • Connection: 1/2" CTS (5/8" OD) x 3/4" Closet
Also Known As: Watts 81902795





Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

3/4" MPT

Max Pressure (Psi)

250

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

Mounting Options

Thread

Push-In Size

5/8" OD

Seal Material

EPDM

Series

24 Series

Size

3/4"

Color / Finish

white

Connection Type

Male (MPT)

Diameter

5/8"

Sub-Type

Reducer Elbow

Type

Elbow

Warranty & Certifications

Certifications

NSF 61


Watts

Watts




Note: Watts has rebranded SeaTech to Watts AquaLock. This rebrand does not affect the part numbers. However, during the transition the product and packaging that you order may be branded as SeaTech or Watts AquaLock. The color will also vary. The size and specs of the products as well as the part numbers will remain the same.

Intended Use:

Watts AquaLock/SeaTech 24 Series quick connect fittings are produced from FDA approved materials and are certified to NSF standard 61 making them suitable for contact with drinking water. 24 Series fittings are manufactured in a bright white thermal plastic and are suitable for many applications such as water plumbing, car wash, water filtration and aquariums. Watts AquaLock/SeaTech 24 Series fittings can directly connect to a variety of plastic, copper and CPVC piping and can be interconnected with Watts AquaLock/SeaTech 35 Series fittings.

Specifications:
  • Material: Acetal
  • O-ring: EPDM
  • Max operating pressure: 250 psi vacuum
  • Max temperature: 140°F @ 100 psi / 75°F @ 250 psi
  • Connection: 1/2" CTS (5/8" OD) x 3/4" Closet
Also Known As: Watts 81902795




NOTE: Watts has rebranded SeaTech to Watts AquaLock

Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

3/4" MPT

Max Pressure (Psi)

250

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

Mounting Options

Thread

Push-In Size

5/8" OD

Seal Material

EPDM

Series

24 Series

Size

3/4"

Color / Finish

white

Connection Type

Male (MPT)

Diameter

5/8"

Sub-Type

Reducer Elbow

Type

Elbow

Warranty & Certifications

Certifications

NSF 61
