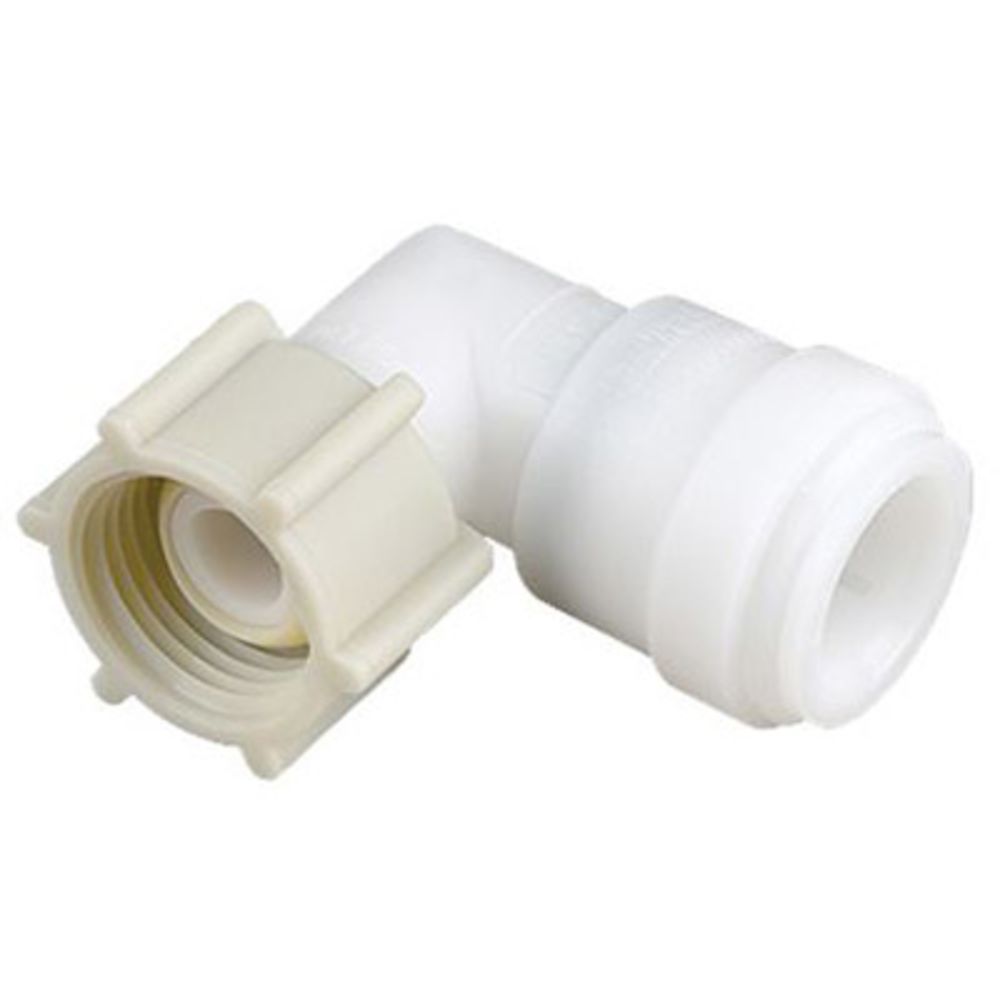

Watts AquaLock/SeaTech - 2420-1008 Female Swivel Elbow Fitting 1/2 CTS x 1/2 NPS
Part Number: 2420-1008
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Watts AquaLock/SeaTech 24 Series quick connect fittings are produced from FDA approved materials and are certified to NSF standard 61 making them suitable for contact with drinking water. 24 Series fittings are manufactured in a bright white thermal plastic and are suitable for many applications such as water plumbing, car wash, water filtration and aquariums. Watts AquaLock/SeaTech 24 Series fittings can directly connect to a variety of plastic, copper and CPVC piping and can be interconnected with Watts AquaLock/SeaTech 35 Series fittings.
Specifications:
- Material: Acetal
- O-ring: EPDM
- Max operating pressure: 250 psi vacuum
- Max temperature: 140°F @ 100 psi / 75°F @ 250 psi
- Connection: 1/2" CTS (5/8" OD) x 1/2" NPS
Product Details | |
---|---|
Application | Water |
Body Material | Acetal Copolymer |
Inlet Connection | 1/2" NPS |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Thread |
Outlet Connection | 1/2" NPS |
Push-In Size | 5/8" OD |
Seal Material | EPDM |
Series | 24 Series |
Shape | 90 |
Size | 1/2" |
Color / Finish | White |
Connection Type | NPS |
Sub-Type | Female Swivel Elbow |
Type | Elbow |
Warranty & Certifications | |
Certifications | NSF 61 |
Watts AquaLock/SeaTech 24 Series quick connect fittings are produced from FDA approved materials and are certified to NSF standard 61 making them suitable for contact with drinking water. 24 Series fittings are manufactured in a bright white thermal plastic and are suitable for many applications such as water plumbing, car wash, water filtration and aquariums. Watts AquaLock/SeaTech 24 Series fittings can directly connect to a variety of plastic, copper and CPVC piping and can be interconnected with Watts AquaLock/SeaTech 35 Series fittings.
Specifications:
- Material: Acetal
- O-ring: EPDM
- Max operating pressure: 250 psi vacuum
- Max temperature: 140°F @ 100 psi / 75°F @ 250 psi
- Connection: 1/2" CTS (5/8" OD) x 1/2" NPS
Product Details | |
---|---|
Application | Water |
Body Material | Acetal Copolymer |
Inlet Connection | 1/2" NPS |
Max Pressure (Psi) | 250 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Thread |
Outlet Connection | 1/2" NPS |
Push-In Size | 5/8" OD |
Seal Material | EPDM |
Series | 24 Series |
Shape | 90 |
Size | 1/2" |
Color / Finish | White |
Connection Type | NPS |
Sub-Type | Female Swivel Elbow |
Type | Elbow |
Warranty & Certifications | |
Certifications | NSF 61 |
