Flowmatic

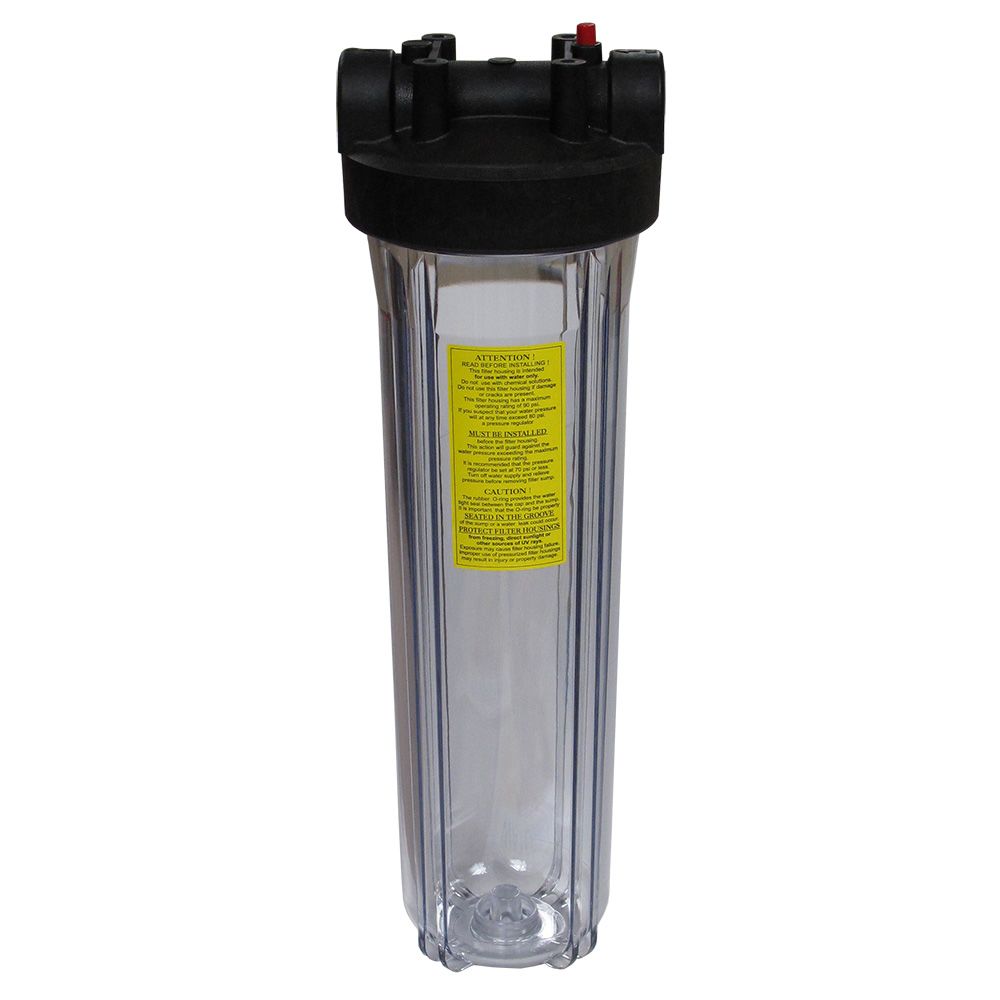

Watts 20" Full Flow Water Filter Housing Black/Clear w/ PR - 1" FPT

Part Number: W20FFPH1CBPR

Alt. Part Number: 166201

In Stock

out of stock

In Stock

$96.95


Full Flow Clear Housings for 20" x 4-1/2" cartridges are ideal substitutes for costly low pressure stainless steel vessels. Full Flow Clear filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Full Flow Clear Housings are compatible with a broad range of chemicals. Reinforced Styrene-Acrylonitrile housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:
  • Straight thread design on sump
  • EPDM O-ring
  • Max Pressure: 90 psi (6.3 bar)
  • Max Temperature: 125°F
Note: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.


Weight & Dimensions

Approx Height (Inches)

23-2/8 Inches

Approx Width (Inches)

7-1/4 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Clear

Features

Pressure Relief

Flow Rate

up to 35 GPM @ 60 PSI

Housing Material

Styrene Acrylonitrile

Inlet/Outlet Size

1"

Max Operating Pressure

90 PSI

Max Operating Temperature

125 Degrees Fahrenheit

Mounting Options

Mounting Bosses

O Rings

EPDM

Origin

Taiwan

Type

Big Blue

Button Assembly

300 series stainless steel, EPDM, Polyproylene


Watts





Full Flow Clear Housings for 20" x 4-1/2" cartridges are ideal substitutes for costly low pressure stainless steel vessels. Full Flow Clear filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Full Flow Clear Housings are compatible with a broad range of chemicals. Reinforced Styrene-Acrylonitrile housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:
  • Straight thread design on sump
  • EPDM O-ring
  • Max Pressure: 90 psi (6.3 bar)
  • Max Temperature: 125°F
Note: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.

Weight & Dimensions

Approx Height (Inches)

23-2/8 Inches

Approx Width (Inches)

7-1/4 Inches

Details

Cap Color

Black

Cap Material

Polypropylene

Color / Finish

Clear

Features

Pressure Relief

Flow Rate

up to 35 GPM @ 60 PSI

Housing Material

Styrene Acrylonitrile

Inlet/Outlet Size

1"

Max Operating Pressure

90 PSI

Max Operating Temperature

125 Degrees Fahrenheit

Mounting Options

Mounting Bosses

O Rings

EPDM

Origin

Taiwan

Type

Big Blue

Button Assembly

300 series stainless steel, EPDM, Polyproylene
