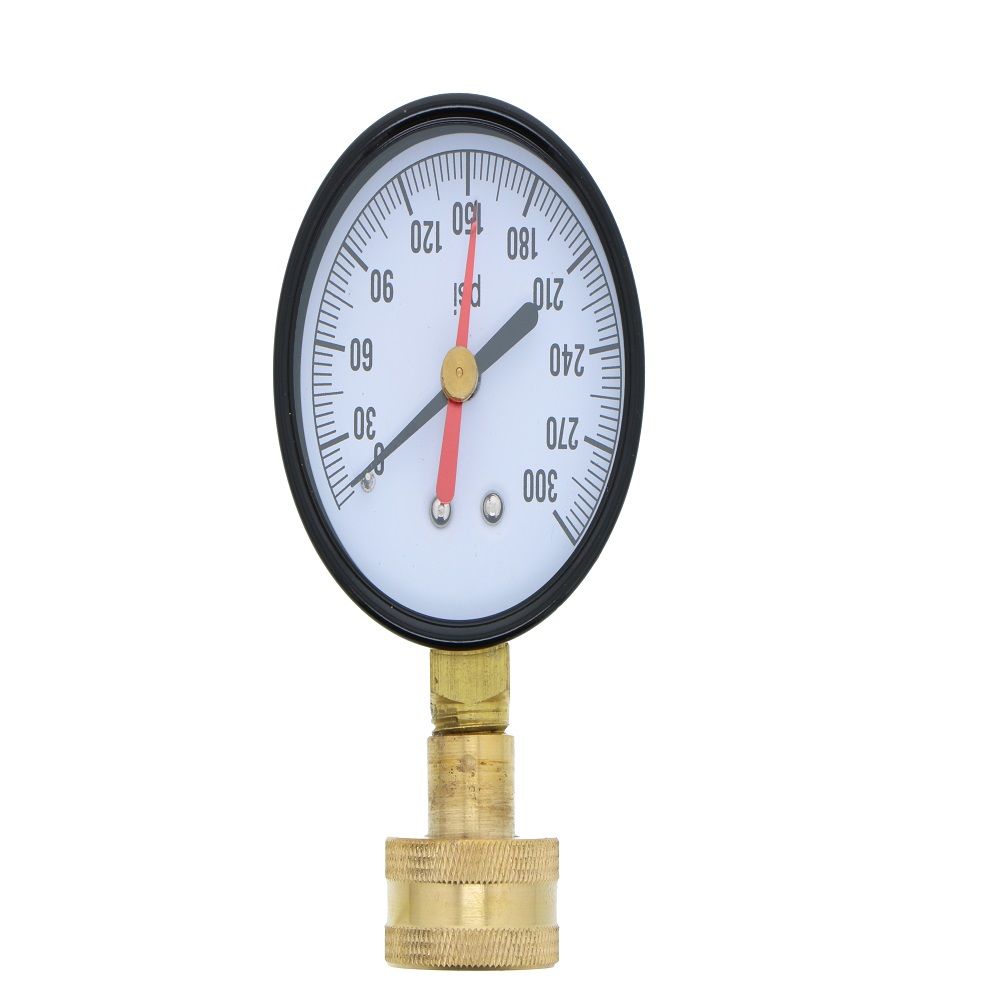

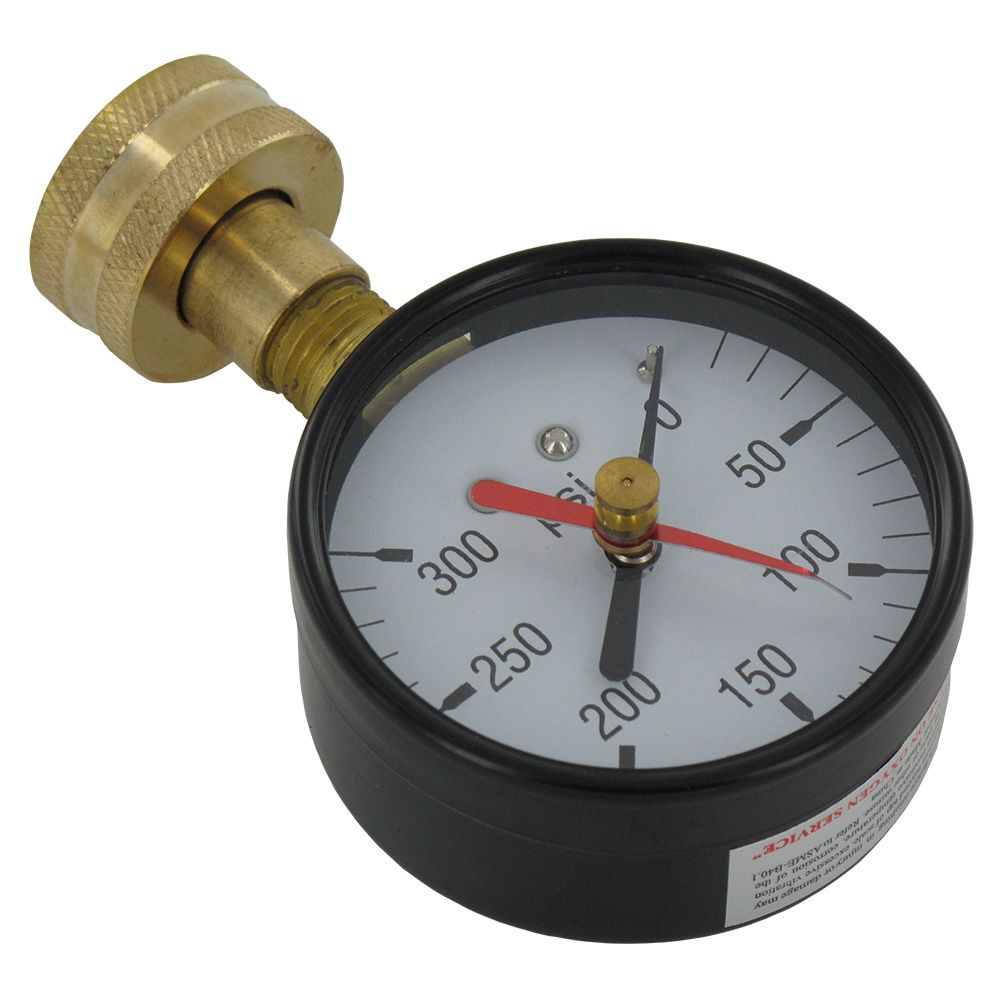

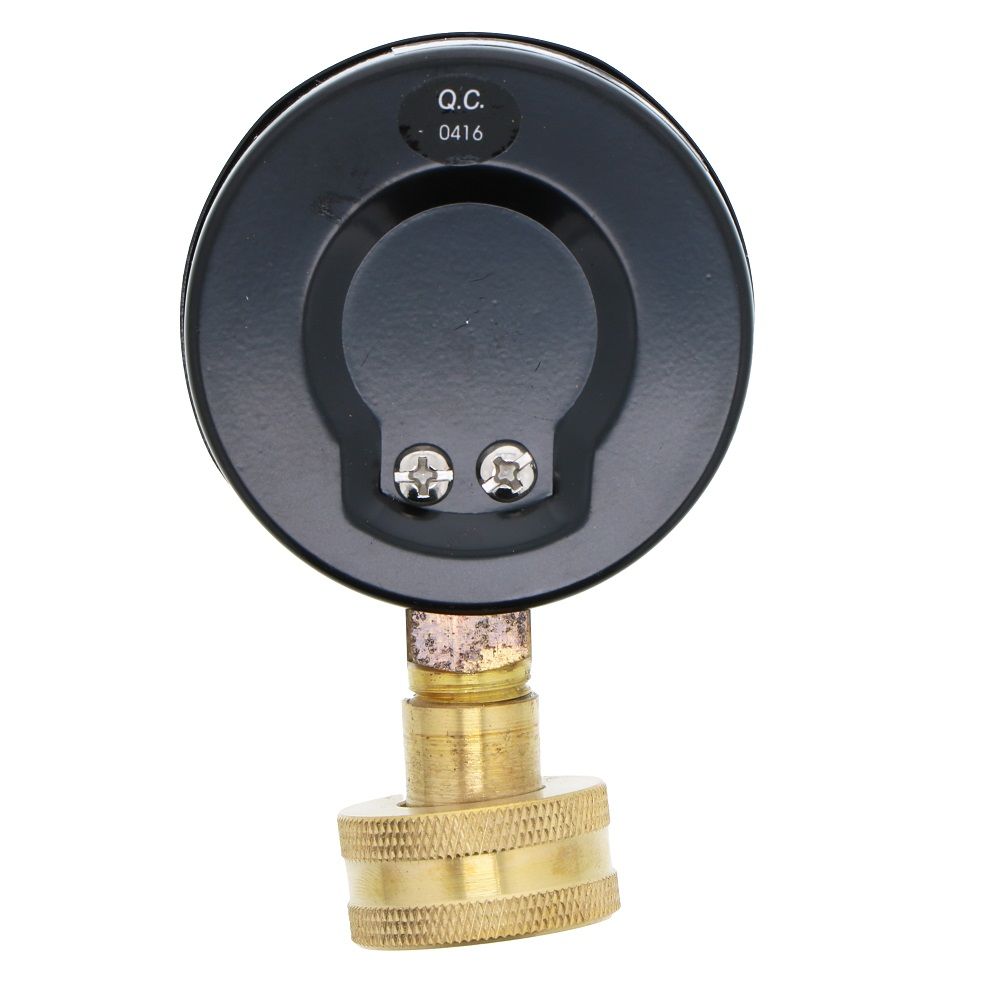

Water Pressure Gauge with Hose Connection 0-300 PSI with Red Max Indicator

Part Number: PG25300-MIP

Alt. Part Number: 276H300, 0069721, PG-300-P

In Stock

out of stock

In Stock

$10.91

Water pressure gauges with garden hose connections are used to test water supply pressures within a distribution system. Its red indicator hand holds at the highest reading registered for detection of thermal expansion pressure surges. It features a black enamel steel case, acrylic lens and 3/4" garden hose connection. Available up to 300 PSI (21 bar) pressure rating scale.

Specifications:
  • Dry
  • Stem: Brass
  • Lens: Clear acrylic
  • Face Diameter: 2.5"
  • Connection: 3/4" Female Swivel Hose Thread
  • Mount Type: Lower bottom
  • Pressure Rating: 0 - 300 PSI
  • Case: Black enamel steel case
  • Temperature Rating: 40 - 140º F
NOTE:Also Known As: Tattle-Tale or Tell Tale Pressure Gauge



Weight & Dimensions

Weight (lbs)

0.4

Details

Bezel

Black Painted Steel

Dial Size

2-1/2" (63 mm)

Face

White Aluminum with Black Print

Housing Material

Black Steel

Lens

Glass

Max Pressure (Psi)

400

Min Pressure (Psi)

0

Mounting Options

Lower Bottom

Pointer

Aluminum - Black

Units Of Measure (Psi, Bars, Hgvac)

PSI

Wetted Materials

Brass


Water




Water pressure gauges with garden hose connections are used to test water supply pressures within a distribution system. Its red indicator hand holds at the highest reading registered for detection of thermal expansion pressure surges. It features a black enamel steel case, acrylic lens and 3/4" garden hose connection. Available up to 300 PSI (21 bar) pressure rating scale.

Specifications:
  • Dry
  • Stem: Brass
  • Lens: Clear acrylic
  • Face Diameter: 2.5"
  • Connection: 3/4" Female Swivel Hose Thread
  • Mount Type: Lower bottom
  • Pressure Rating: 0 - 300 PSI
  • Case: Black enamel steel case
  • Temperature Rating: 40 - 140º F
NOTE:Also Known As: Tattle-Tale or Tell Tale Pressure Gauge


Weight & Dimensions

Weight (lbs)

0.4

Details

Bezel

Black Painted Steel

Dial Size

2-1/2" (63 mm)

Face

White Aluminum with Black Print

Housing Material

Black Steel

Lens

Glass

Max Pressure (Psi)

400

Min Pressure (Psi)

0

Mounting Options

Lower Bottom

Pointer

Aluminum - Black

Units Of Measure (Psi, Bars, Hgvac)

PSI

Wetted Materials

Brass
