Fresh Water Systems

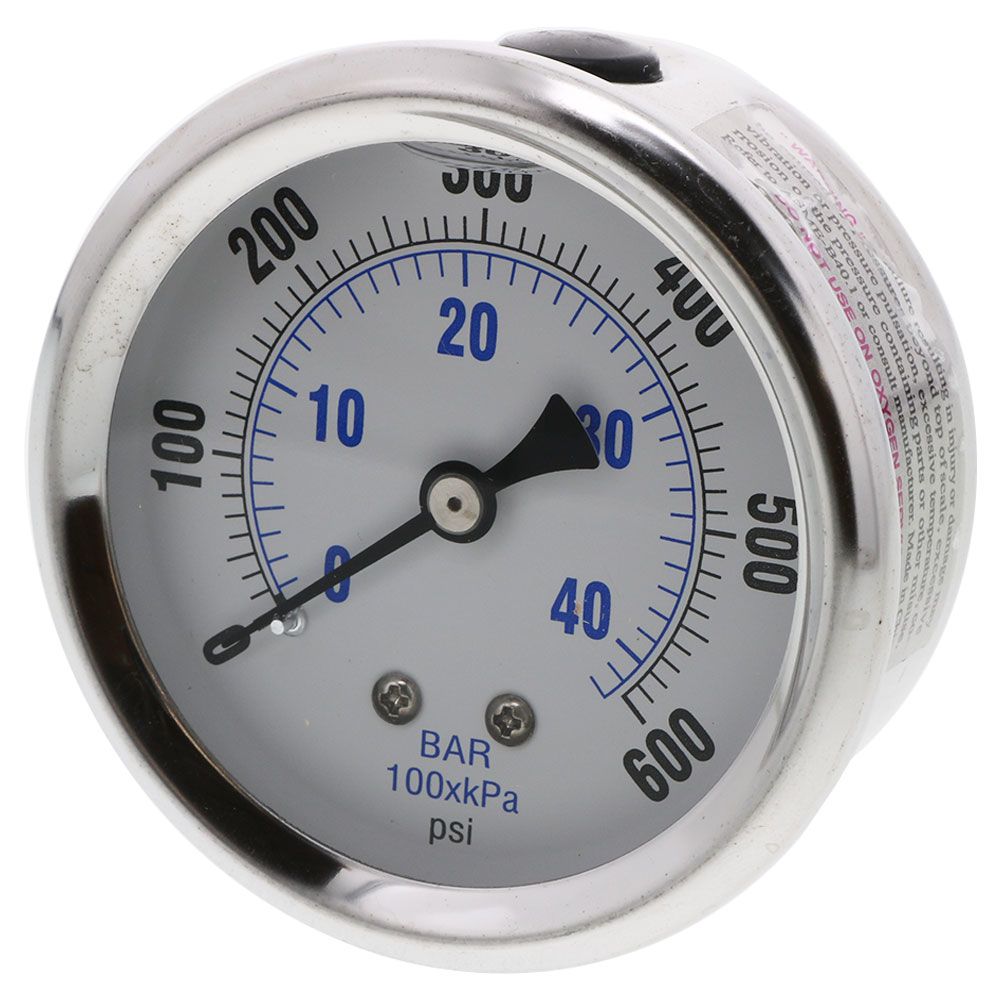

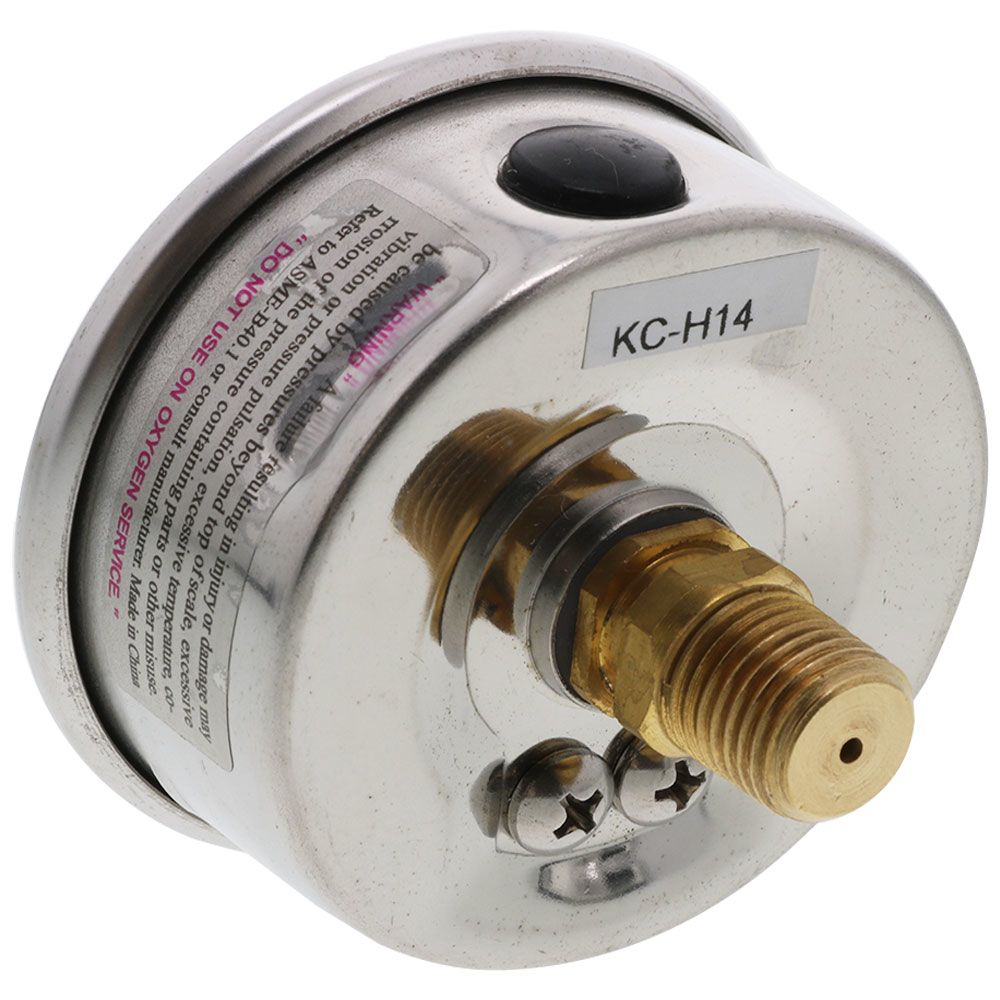

Water Pressure Gauge 600 PSI, 1/4" MPT, 2.5" Plastic Dial, Center Mount, SS Case

Part Number: 91A25-C4-43B-600P

Alt. Part Number: SEC-202L-254K

In Stock

out of stock

In Stock

$14.99


The 91A25-C4-43B-600P is a center mount pressure gauge that features a stainless steel case with copper alloy internals. This stainless steel gauge is glycerine filled with a polycarbonate lens. This easy-to-read utility gauge is designed for commercial and industrial applications where vibration or pulsation is present.

Specifications:
  • Glycerine filled
  • Lens: polycarbonate
  • Case: stainless steel
  • Pointer: black aluminum
  • Bezel: stainless steel, fixed
  • Wetted Parts: copper alloy
  • Connection: center mount
  • Scale: Standard psi/BAR (x100 = kPa)
  • Ambient Temperature: 30º F to 160º F
  • Meets or exceeds ASME B40.100 pressure gauge standard

Compatible with: AXEON/RO Ultratec | 205100


Details

Bezel

Stainless Steel, fixed

Dial Size

2.5" (63 mm)

Face

White Aluminum with Black/Blue Print

Housing Material

Stainless Steel

Internal Component Material

Brass

Lens

Polycarbonate

Material Of Construction

Brass

Mounting Options

Center Back

Operating Pressure Range

0 - 600 psi

Operating Temperature Range

30°F to 160°F

Pointer

Aluminum - Black

Accuracy

B (3-2-3%)

Wetted Materials

Brass, Copper Alloy

Fluid

Glycerine and water

Units Of Measure (Psi, Bars, Hgvac)

PSI/Bars


Water





The 91A25-C4-43B-600P is a center mount pressure gauge that features a stainless steel case with copper alloy internals. This stainless steel gauge is glycerine filled with a polycarbonate lens. This easy-to-read utility gauge is designed for commercial and industrial applications where vibration or pulsation is present.

Specifications:
  • Glycerine filled
  • Lens: polycarbonate
  • Case: stainless steel
  • Pointer: black aluminum
  • Bezel: stainless steel, fixed
  • Wetted Parts: copper alloy
  • Connection: center mount
  • Scale: Standard psi/BAR (x100 = kPa)
  • Ambient Temperature: 30º F to 160º F
  • Meets or exceeds ASME B40.100 pressure gauge standard

Compatible with: AXEON/RO Ultratec | 205100

Details

Bezel

Stainless Steel, fixed

Dial Size

2.5" (63 mm)

Face

White Aluminum with Black/Blue Print

Housing Material

Stainless Steel

Internal Component Material

Brass

Lens

Polycarbonate

Material Of Construction

Brass

Mounting Options

Center Back

Operating Pressure Range

0 - 600 psi

Operating Temperature Range

30°F to 160°F

Pointer

Aluminum - Black

Accuracy

B (3-2-3%)

Wetted Materials

Brass, Copper Alloy

Fluid

Glycerine and water

Units Of Measure (Psi, Bars, Hgvac)

PSI/Bars
