Water Pressure Gauge 300 PSI, 1/4" MPT, 2.5" Plastic Dial, Center Back Uclamp, SS Case

Part Number: 91B25-CU4-43SS-300P

Alt. Part Number: PG25300B

In Stock

out of stock

In Stock

$14.99

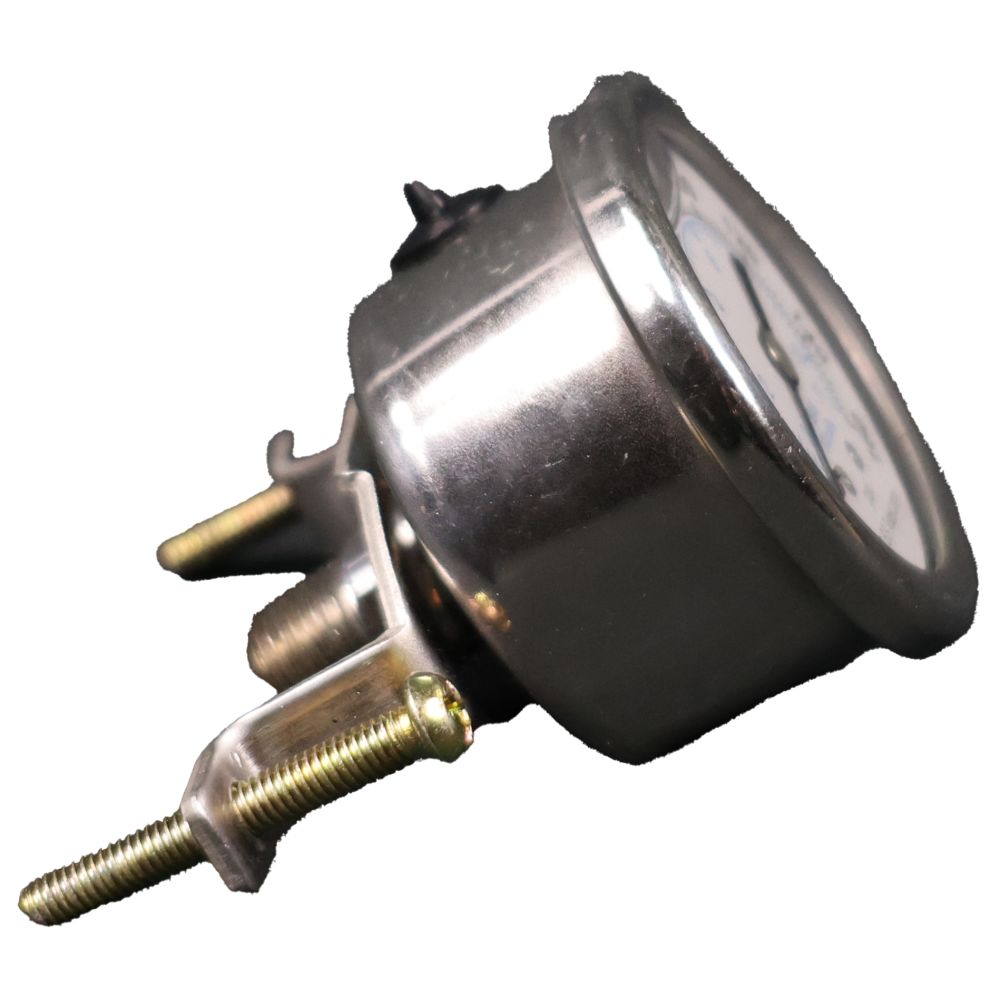

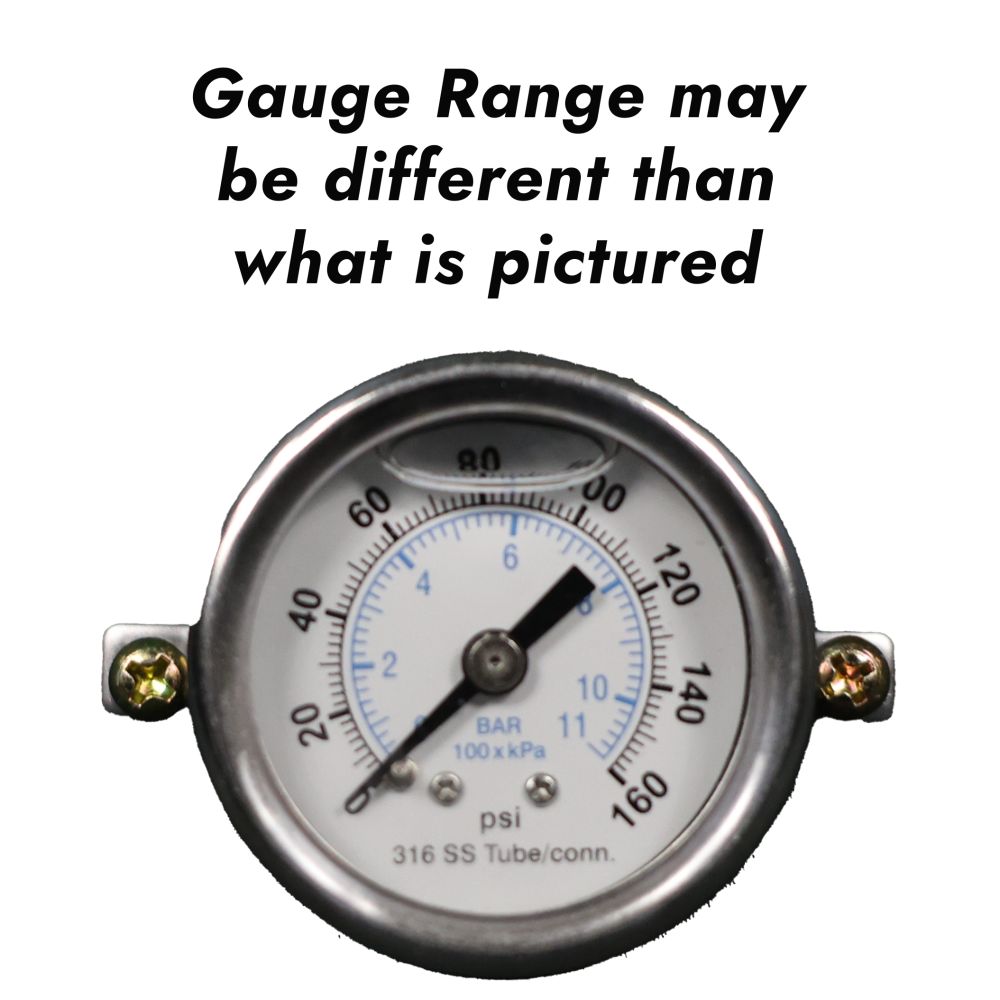

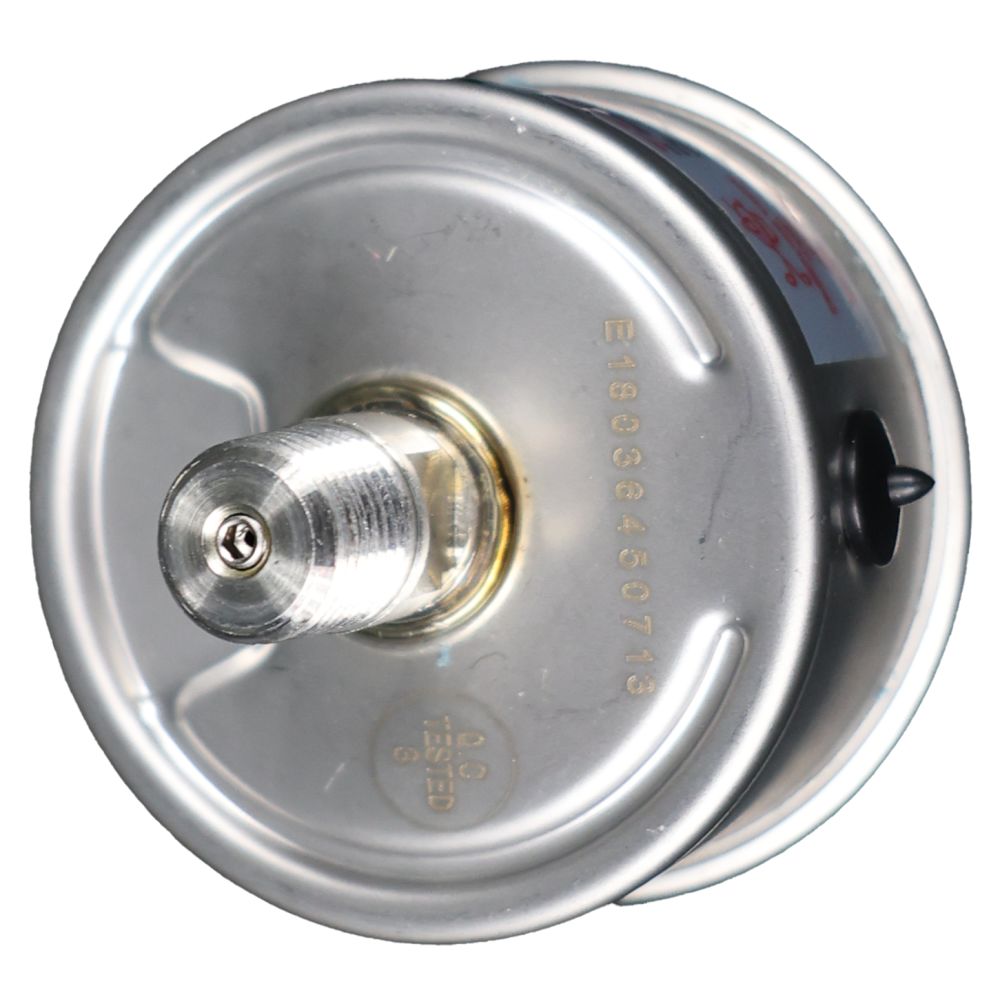

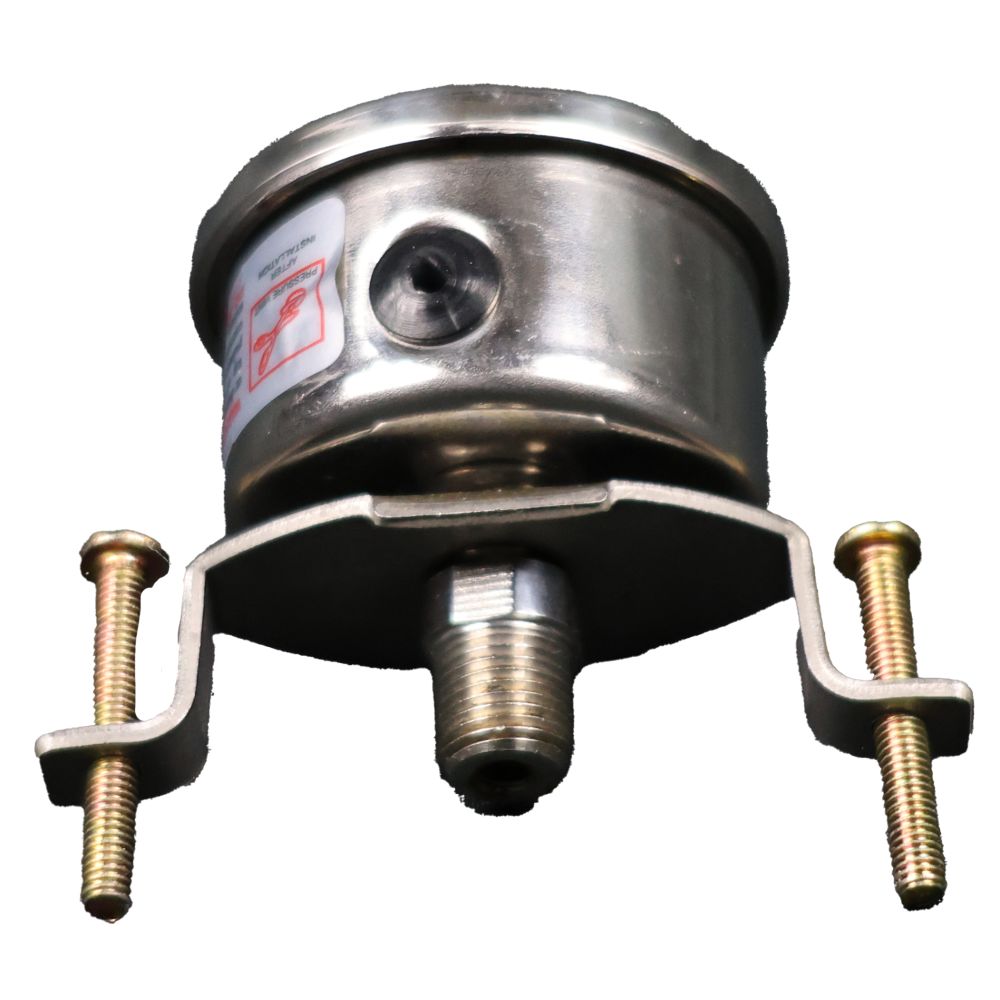

The 91B25-CU4-43SS-300P is a center mount pressure gauge that features a stainless steel case with copper alloy internals. This stainless steel gauge is glycerine filled with a polycarbonate lens. This easy-to-read utility gauge is designed for commercial and industrial applications where vibration or pulsation is present.

Specifications:
  • Glycerine filled
  • Lens: polycarbonate
  • Case: stainless steel
  • Pointer: black aluminum
  • Bezel: stainless steel, fixed
  • Connection: center back mount
  • Scale: Standard psi/BAR (x100 = kPa)
  • Ambient Temperature: 30º F to 160º F
  • Accuracy: 2-1-2% ASME B40.1 Grade A


Details

Bezel

Stainless Steel, fixed

Connections

1/4" MPT

Dial Size

2.5" (63 mm)

Face

White Aluminum with Black/Blue Print

Housing Material

Stainless Steel

Internal Component Material

316 Stainless Steel

Lens

Polycarbonate

Material Of Construction

Chrome Plated Brass

Mounting Options

Center Back

Operating Pressure Range

0 - 300 psi

Pointer

Aluminum - Black

Accuracy

A (2-1-2%)

Wetted Materials

Stainless Steel

Fluid

Glycerine and water

Units Of Measure (Psi, Bars, Hgvac)

PSI/Bars


Water





The 91B25-CU4-43SS-300P is a center mount pressure gauge that features a stainless steel case with copper alloy internals. This stainless steel gauge is glycerine filled with a polycarbonate lens. This easy-to-read utility gauge is designed for commercial and industrial applications where vibration or pulsation is present.

Specifications:
  • Glycerine filled
  • Lens: polycarbonate
  • Case: stainless steel
  • Pointer: black aluminum
  • Bezel: stainless steel, fixed
  • Connection: center back mount
  • Scale: Standard psi/BAR (x100 = kPa)
  • Ambient Temperature: 30º F to 160º F
  • Accuracy: 2-1-2% ASME B40.1 Grade A

Details

Bezel

Stainless Steel, fixed

Connections

1/4" MPT

Dial Size

2.5" (63 mm)

Face

White Aluminum with Black/Blue Print

Housing Material

Stainless Steel

Internal Component Material

316 Stainless Steel

Lens

Polycarbonate

Material Of Construction

Chrome Plated Brass

Mounting Options

Center Back

Operating Pressure Range

0 - 300 psi

Pointer

Aluminum - Black

Accuracy

A (2-1-2%)

Wetted Materials

Stainless Steel

Fluid

Glycerine and water

Units Of Measure (Psi, Bars, Hgvac)

PSI/Bars
