Fresh Water Systems

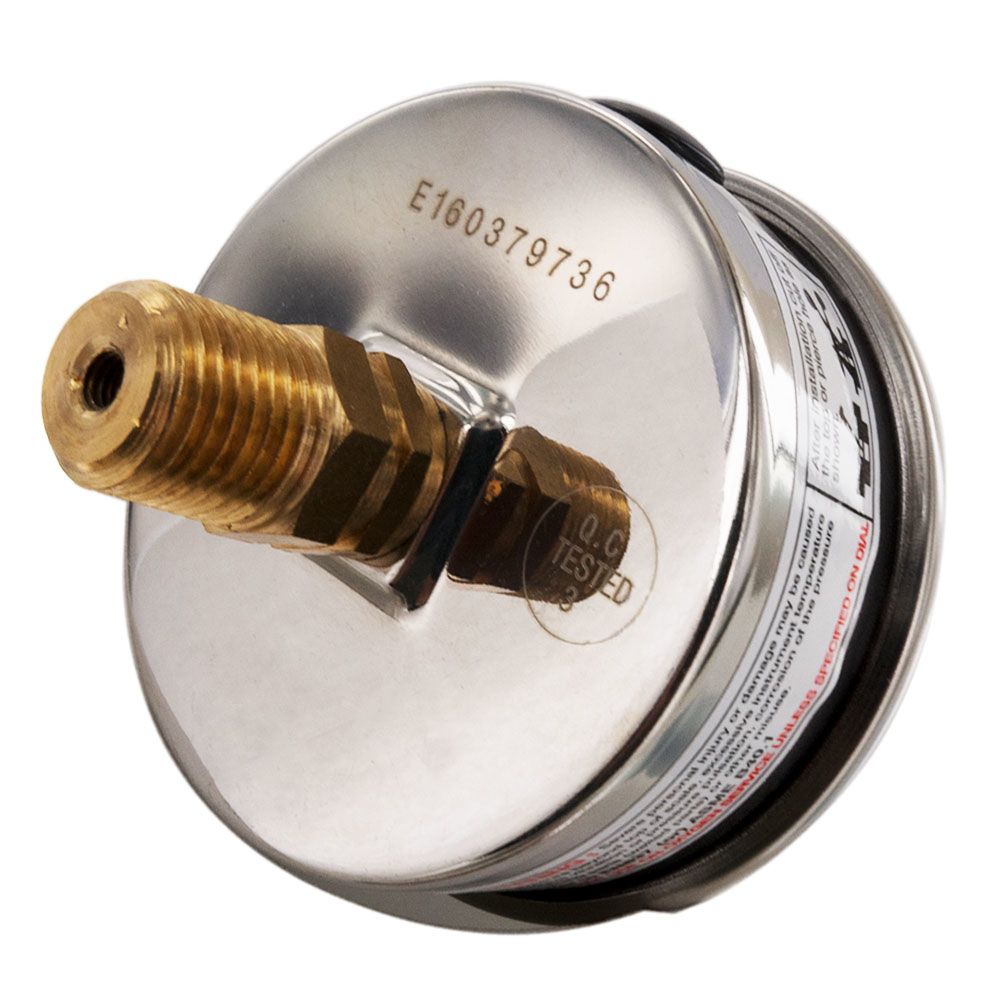

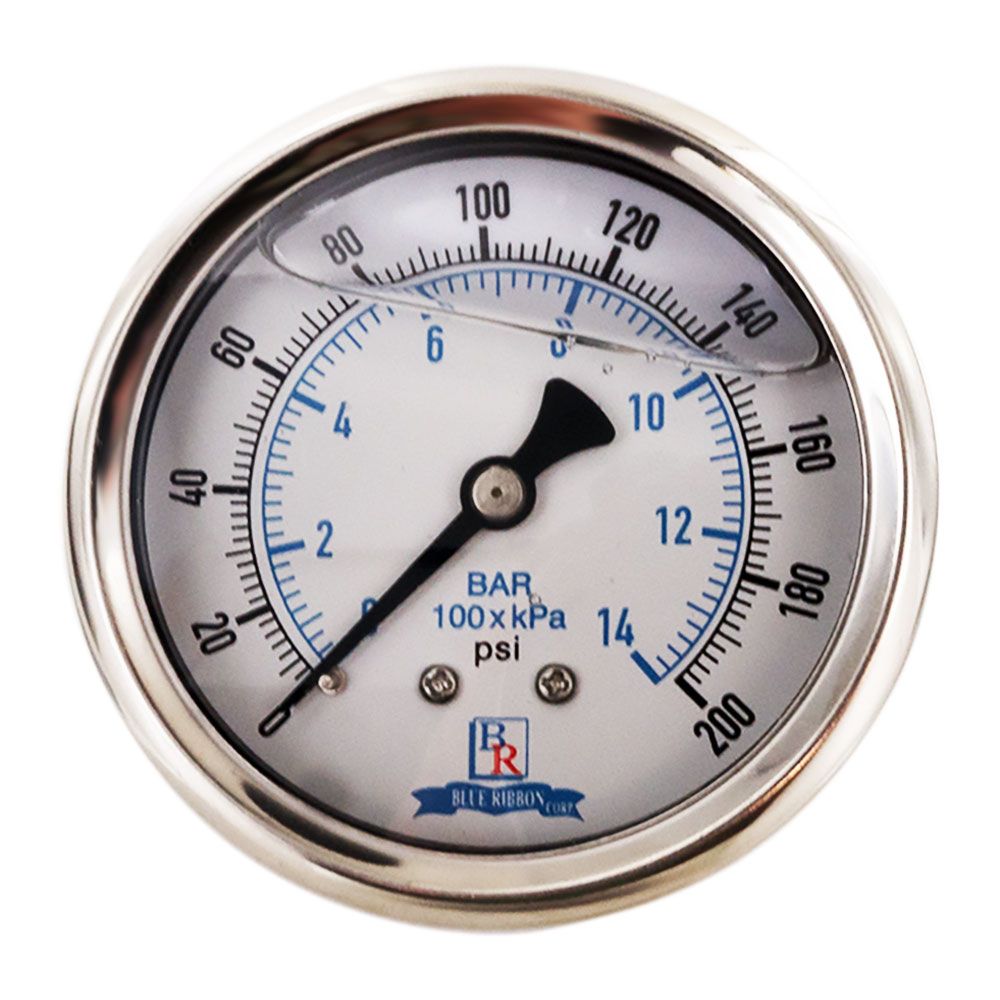

Water Pressure Gauge 200 PSI, 1/4" MPT, 2.5" Plastic Dial, Center Mount, SS Case

Part Number: 91A25-C4-43B-200P

Alt. Part Number: BR202L-254G

In Stock

out of stock

In Stock

$9.89

This Lead Free Water Pressure Gauge 0-200 PSI is designed to be used with air or water. It's precision made Glycerine - Filled tube movements are rugged enough to assure maximum accuracy even under adverse field conditions.

Specifications:
  • 2.5" Dial 0 to 200 psi Scale
  • Black Steel Case
  • Mar-resistant Glass Lens
  • 1/4" NPT connection
  • Use with air or water only




Weight & Dimensions

Weight (lbs)

0.4

Details

Accuracy

A (2-1-2%)

Dial Size

2" (50 mm)

Face

White Aluminum with Black Print

Fluid

Glycerine and water

Housing Material

Black Steel

Internal Component Material

Brass

Lens

Glass

Material Of Construction

Brass

Max Pressure (Psi)

200

Max Temp (°F)

160

Min Pressure (Psi)

0

Min Temp (°F)

30

Mounting Options

Center Mount

Pointer

Aluminum - Black

Units Of Measure (Psi, Bars, Hgvac)

PSI/Bars

Wetted Materials

Brass; Phosphor Bronze


Water




This Lead Free Water Pressure Gauge 0-200 PSI is designed to be used with air or water. It's precision made Glycerine - Filled tube movements are rugged enough to assure maximum accuracy even under adverse field conditions.

Specifications:
  • 2.5" Dial 0 to 200 psi Scale
  • Black Steel Case
  • Mar-resistant Glass Lens
  • 1/4" NPT connection
  • Use with air or water only



Weight & Dimensions

Weight (lbs)

0.4

Details

Accuracy

A (2-1-2%)

Dial Size

2" (50 mm)

Face

White Aluminum with Black Print

Fluid

Glycerine and water

Housing Material

Black Steel

Internal Component Material

Brass

Lens

Glass

Material Of Construction

Brass

Max Pressure (Psi)

200

Max Temp (°F)

160

Min Pressure (Psi)

0

Min Temp (°F)

30

Mounting Options

Center Mount

Pointer

Aluminum - Black

Units Of Measure (Psi, Bars, Hgvac)

PSI/Bars

Wetted Materials

Brass; Phosphor Bronze

Documentation
Water
