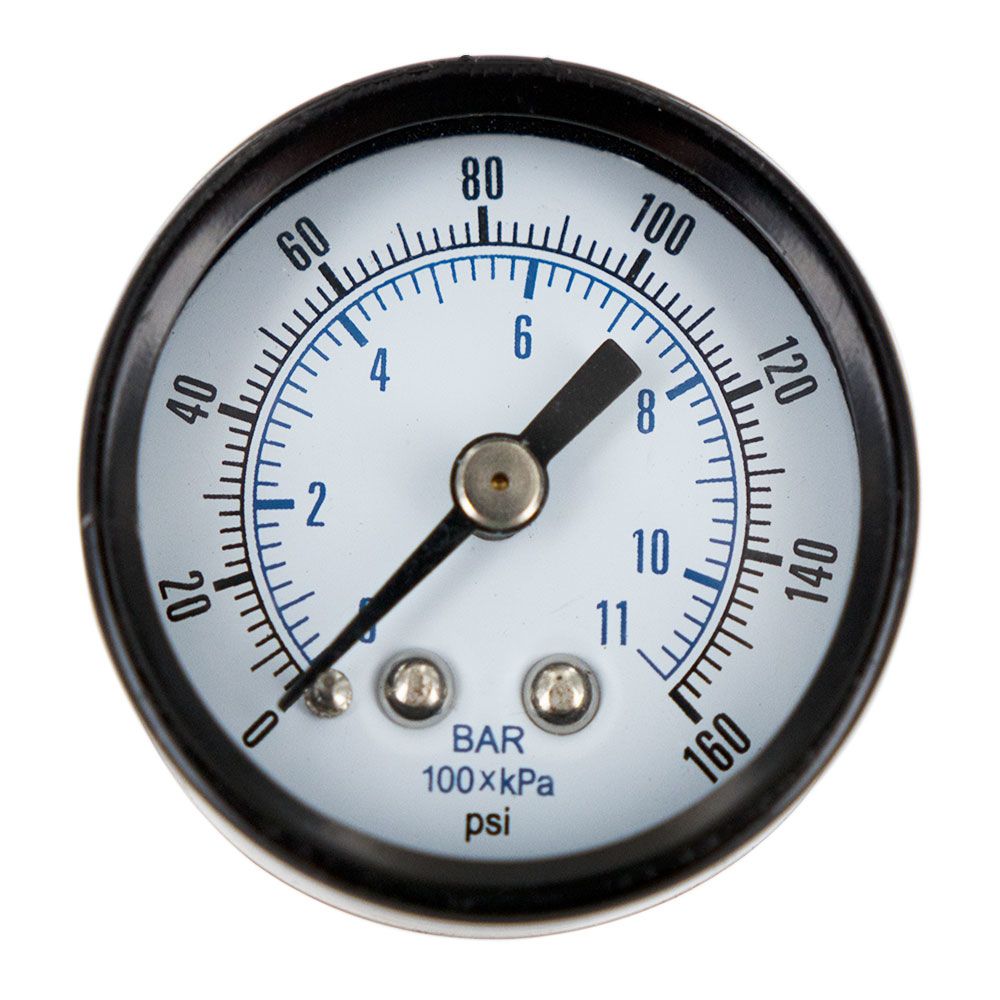

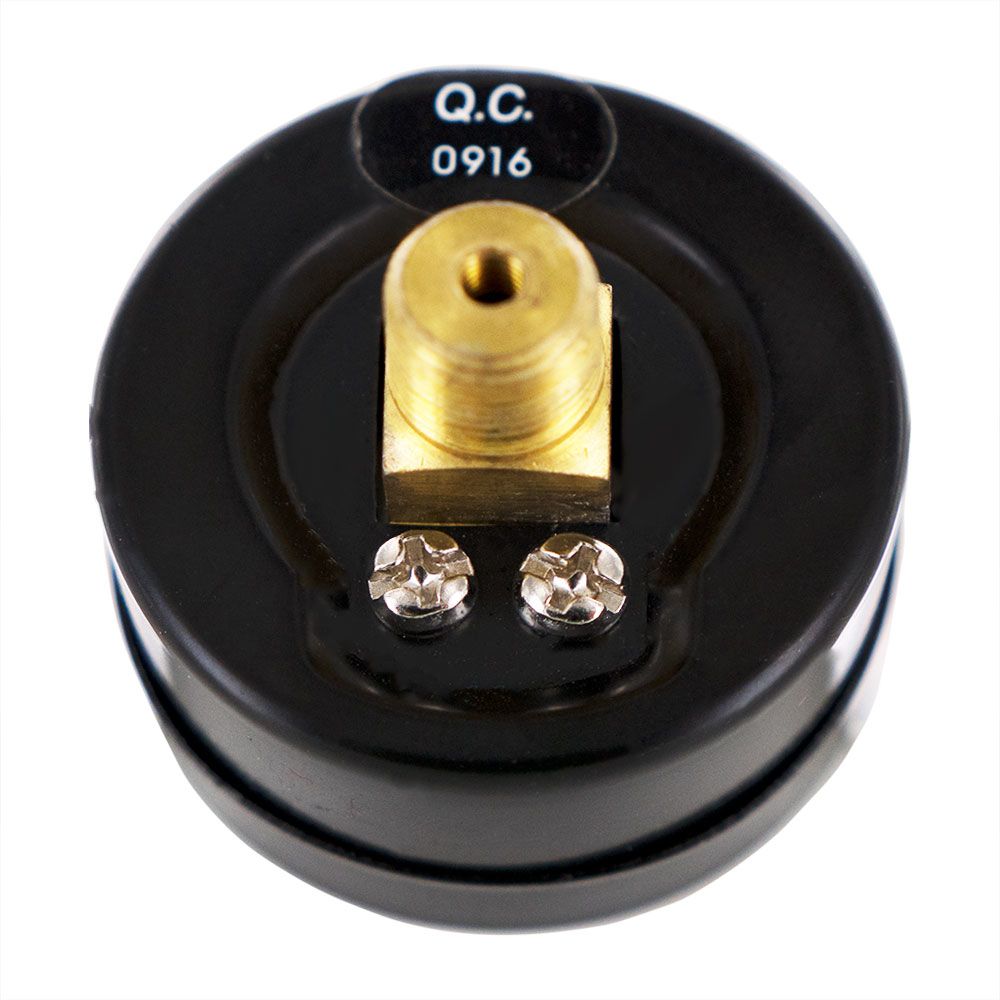

Water Pressure Gauge 160 PSI, 1/8" MPT, 1.5" Glass Dial, Center Mount, Black Steel Case

1.5" Dry Dial Pressure Gauges are extremely high quality pressure gauges. From the the special synthetic fluid they use in their liquid filled gauges, that are UV resistant and will not fade in sunlight, to our special chrome plated stems.1.5" Dry Dial Pressure Gauges have easy-to-read two-tone dials printed in bold UV resisstant ink for ease of legibility even after extensive exposure to direct sunlight. Every gauge is tested for accuracy and leakage. These pressure gauges are designed for demanding applications internationally such as Reverse Osmosis, Oil Refining, Chemical, Food Processing plants, Water Treatment, just to name a few.

Specifications:

Lens: Glass
Stem: Brass
Case: Black steel
Bezel: Black steel
Face Diameter: 1.5"
Connection: 1/8" NPT
Mount Type: Center Mount
Pressure Rating: 0 - 160 PSI
Temperature Rating: 0 - 140º F
Case: Black steel w/ black steel bezel

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Dial Size	1-1/2" (40 mm)
Face	White Aluminum with Black/Blue Print
Fluid	None - Dry
Housing Material	Black Steel
Internal Component Material	Brass
Material Of Construction	Brass
Max Pressure (Psi)	160
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	0
Pointer	Aluminum - Black
Units Of Measure (Psi, Bars, Hgvac)	PSI/Bars
Accuracy Grade	B Grade: 3-2-3%
Case Filling	Dry
Case Type	Black Painted Steel
Connection Type	1/8" MPT
Gauge Bezel	Chrome Plated Steel
Gauge Lens	Glass
Mounting Style	Center Back Mount
Pressure Rating	160 PSI
Type	Center Mount
Wetted Parts	Copper Alloy (Brass)
Shipping Dimensions
Shipping Length	1.69 in.
Shipping Width	1.66 in.
Shipping Height	1.75 in.
Product Weight & Dimensions
Product Height	1.75 in.
Product Length	1.69 in.
Product Width	1.66 in.
Product Weight (lbs)	0.22
