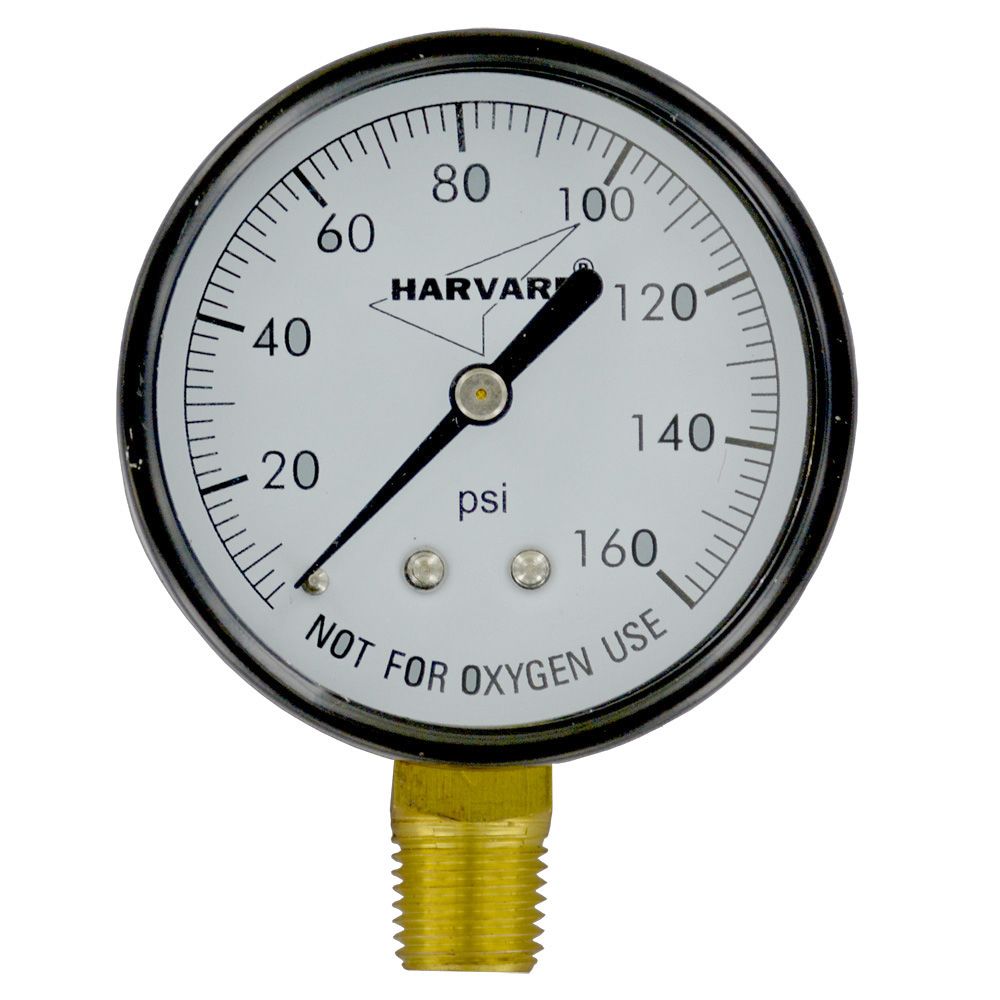

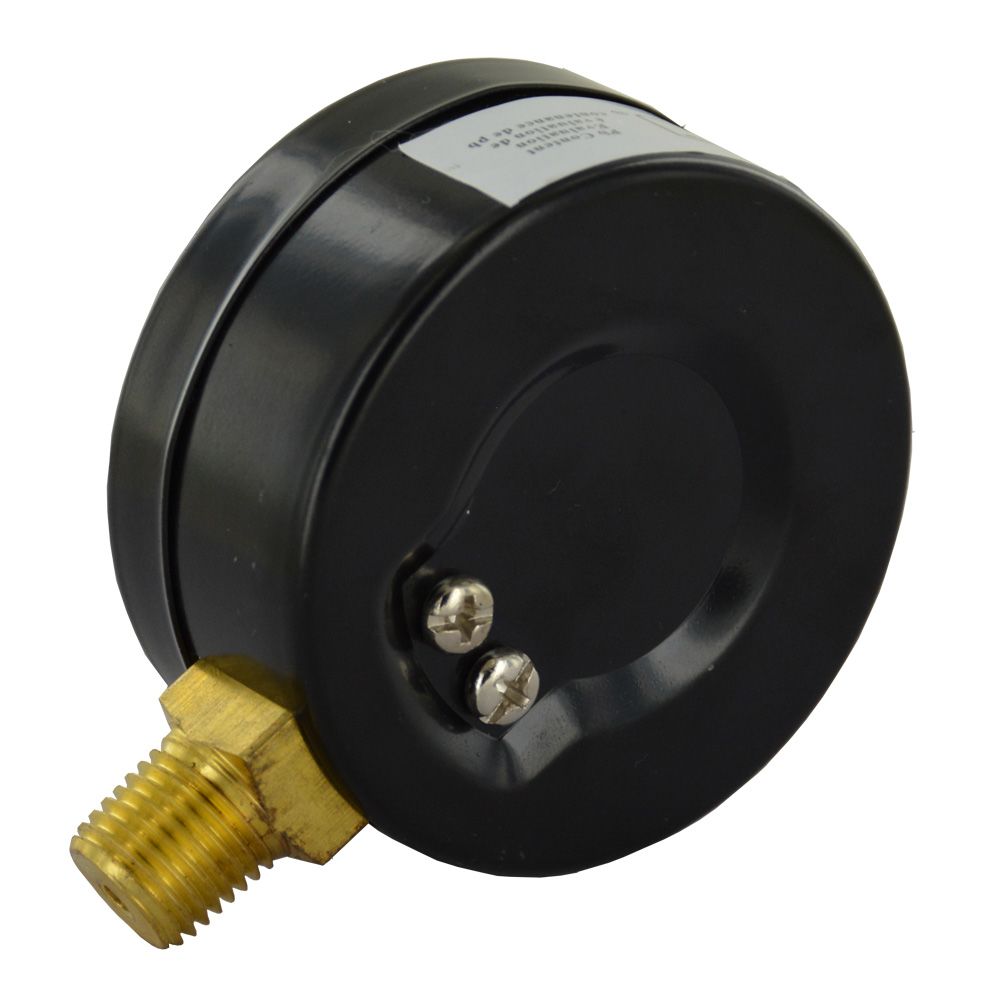

Water Pressure Gauge 160 PSI, 1/4" MPT, 2.5" Glass Dial, Lower Mount, Black Steel Case

Part Number: 90B25-L4-12NL-160G

Alt. Part Number: IPG16025-4LNL

In Stock

out of stock

In Stock

$9.99

Bottom Mount Pressure Gauges are designed with two-tone dials making them easy to read. Every gauge is tested for accuracy and leakage. This Pressure Gauges is designed for demanding applications such as reverse osmosis, oil refining, chemical, food processing plants, and water treatment.

Specifications:
  • Internals: Brass
  • Gauge Type: Dry
  • Lens: Clear acrylic
  • Face Diameter: 2.5"
  • Case: Stainless steel
  • Connection: 1/4" MPT
  • Mount Type: Lower Mount
  • Pressure Rating: 0 - 160 PSI
  • Temperature Range: 0 - 140° F
  • Stem: Brass & 316 stainless steel




Weight & Dimensions

Weight (lbs)

0.85

Details

Max Pressure (Psi)

160

Min Pressure (Psi)

0

Application

Water, Air

Bezel

Black Painted Steel

Dial Size

2-1/2" (63 mm)

Face

White Aluminum with Black Print

Housing Material

Black Steel

Internal Component Material

Brass and 316SS

Lens

Glass

Material Of Construction

Brass

Mounting Options

Lower Bottom

Pointer

Aluminum - Black

Accuracy

B (3-2-3%)

Wetted Materials

Lead-Free Brass, Phosphor Bronze

Fluid

None - Dry

Units Of Measure (Psi, Bars, Hgvac)

PSI


Water




Bottom Mount Pressure Gauges are designed with two-tone dials making them easy to read. Every gauge is tested for accuracy and leakage. This Pressure Gauges is designed for demanding applications such as reverse osmosis, oil refining, chemical, food processing plants, and water treatment.

Specifications:
  • Internals: Brass
  • Gauge Type: Dry
  • Lens: Clear acrylic
  • Face Diameter: 2.5"
  • Case: Stainless steel
  • Connection: 1/4" MPT
  • Mount Type: Lower Mount
  • Pressure Rating: 0 - 160 PSI
  • Temperature Range: 0 - 140° F
  • Stem: Brass & 316 stainless steel



Weight & Dimensions

Weight (lbs)

0.85

Details

Max Pressure (Psi)

160

Min Pressure (Psi)

0

Application

Water, Air

Bezel

Black Painted Steel

Dial Size

2-1/2" (63 mm)

Face

White Aluminum with Black Print

Housing Material

Black Steel

Internal Component Material

Brass and 316SS

Lens

Glass

Material Of Construction

Brass

Mounting Options

Lower Bottom

Pointer

Aluminum - Black

Accuracy

B (3-2-3%)

Wetted Materials

Lead-Free Brass, Phosphor Bronze

Fluid

None - Dry

Units Of Measure (Psi, Bars, Hgvac)

PSI
