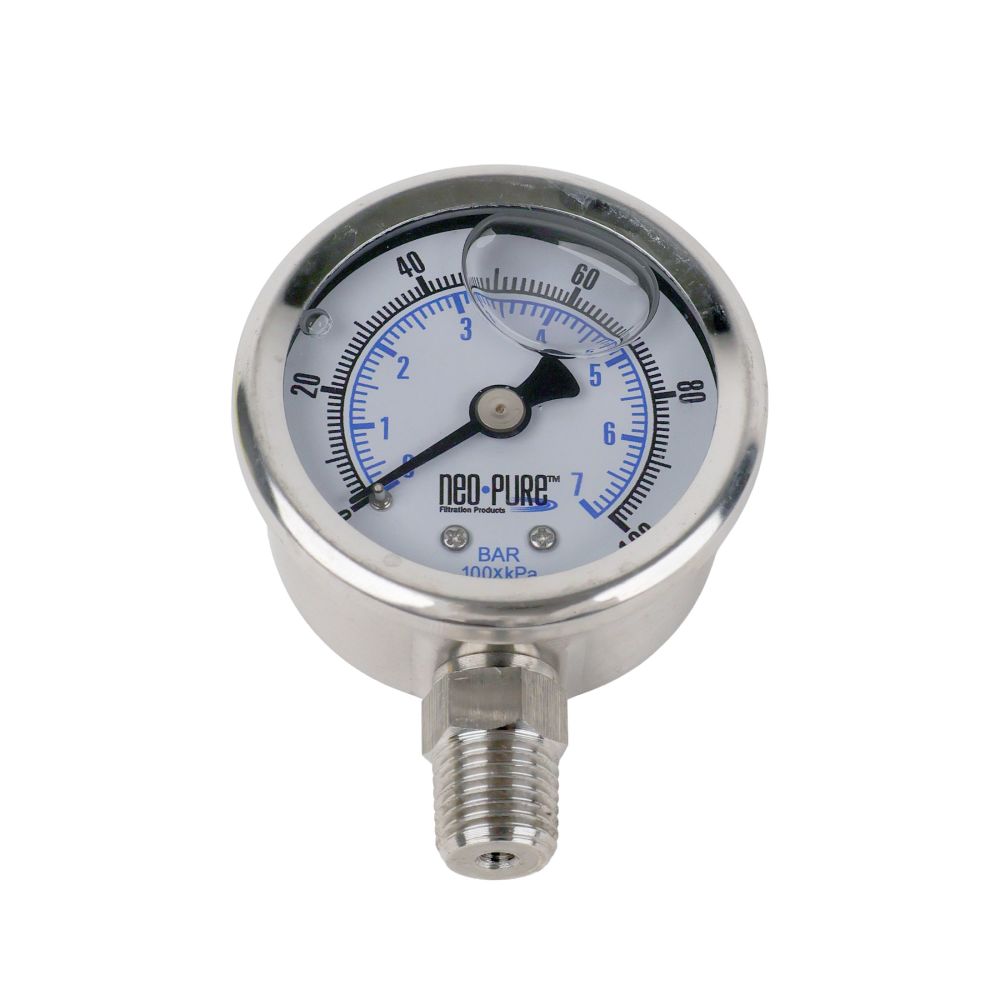

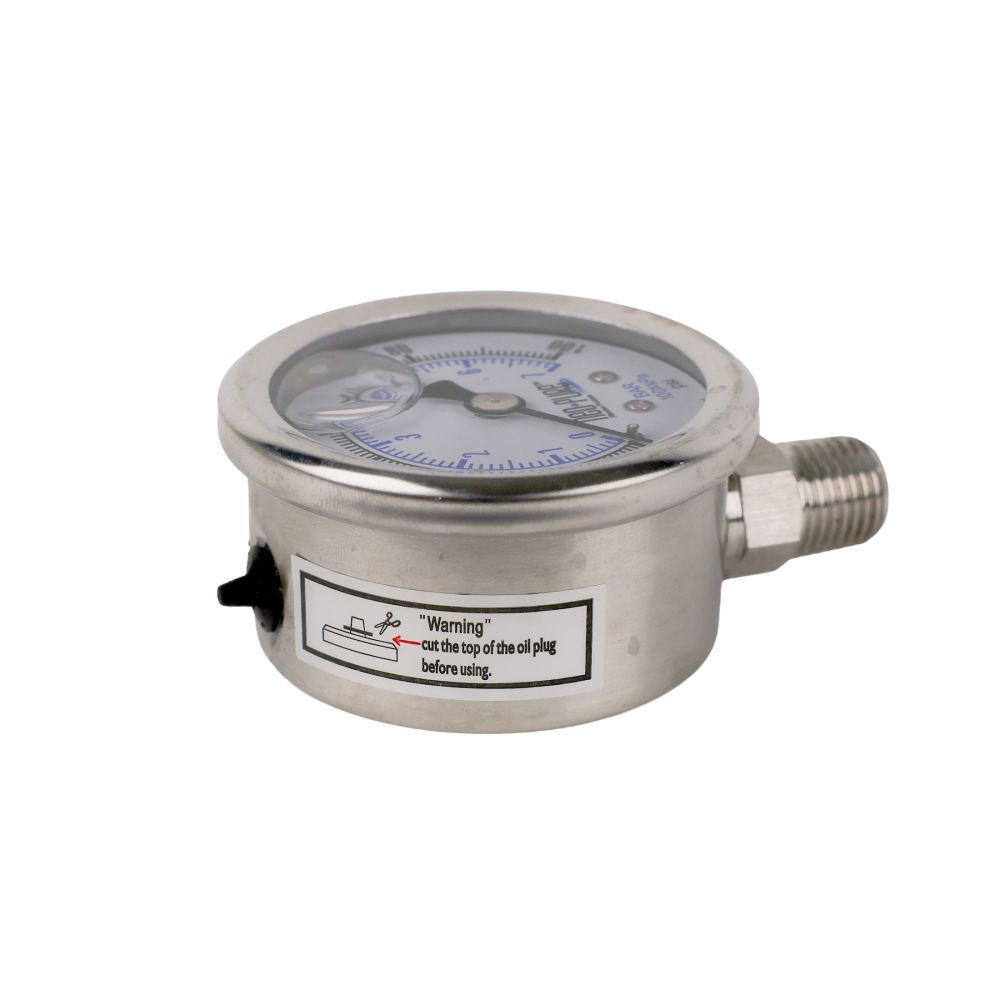

Water Pressure Gauge 100 PSI, 1/4" MPT, 2.0" Plastic Dial, Lower Mount, SS Case

Home / Parts & Accessories / O-Rings, Gaskets, & Gauges / Water Pressure Gauge 100 PSI, 1/4" MPT, 2.0" Plastic Dial, Lower Mount, SS Case

Neo-Pure

Water Pressure Gauge 100 PSI, 1/4" MPT, 2.0" Plastic Dial, Lower Mount, SS Case

Part Number: 91B20-L4-43SS-100P

Alt. Part Number: EILPG1002-4LSS316

Bottom Mount Pressure Gauges have easy-to-read two-tone dials for ease of legibility. Every gauge is tested for accuracy and leakage. Bottom Mount Pressure Gauges are designed for demanding applications internationally such as Reverse Osmosis, Oil Refining, Chemical, Food Processing plants, Water Treatment, just to name a few. California Prop 65 Warning: cancer and reproductive harm.

Liquid Filled Pressure Gauge Features:

Stainless steel or black steel case
Glycerine filled, phosphor bronze bourdon tube.
Accuracy +/- 3-2-3%.
2” or 2 1/2” Dial face with clear acrylic lens
Crimped stainless steel ring.
For use in high vibration, corrosion situations.
Third party certified to NSF/ANSI 372.
No lead brass or stainless steel sockets.
TO BE USED WITH AIR OR WATER ONLY.
Scale Standard: psi
Ambient Temp for Glycerine: 30° - 160° F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Accuracy	B (3-2-3%)
Application	Water Air
Dial Size	2" (50 mm)
Face	White Aluminum with Black/Blue Print
Fluid	Glycerine and water
Housing Material	Stainless Steel
Internal Component Material	316 Stainless Steel
Material Of Construction	316 Stainless Steel
Max Pressure (Psi)	100
Max Temp (°F)	160
Min Pressure (Psi)	0
Min Temp (°F)	30
Pointer	Aluminum - Black
Units Of Measure (Psi, Bars, Hgvac)	PSI
Accuracy Grade	B Grade: 3-2-3%
Case Filling	Glycerine
Case Type	Stainless Steel
Connection Type	1/4" MPT
Gauge Bezel	Plastic Fixed
Gauge Lens	Plastic
Mounting Style	Lower Mount
Pressure Rating	100 PSI
Type	Lower Mount
Wetted Parts	316 SS
Shipping Dimensions
Shipping Length	2.25 in.
Shipping Width	1 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Weight (lbs)	0.27
