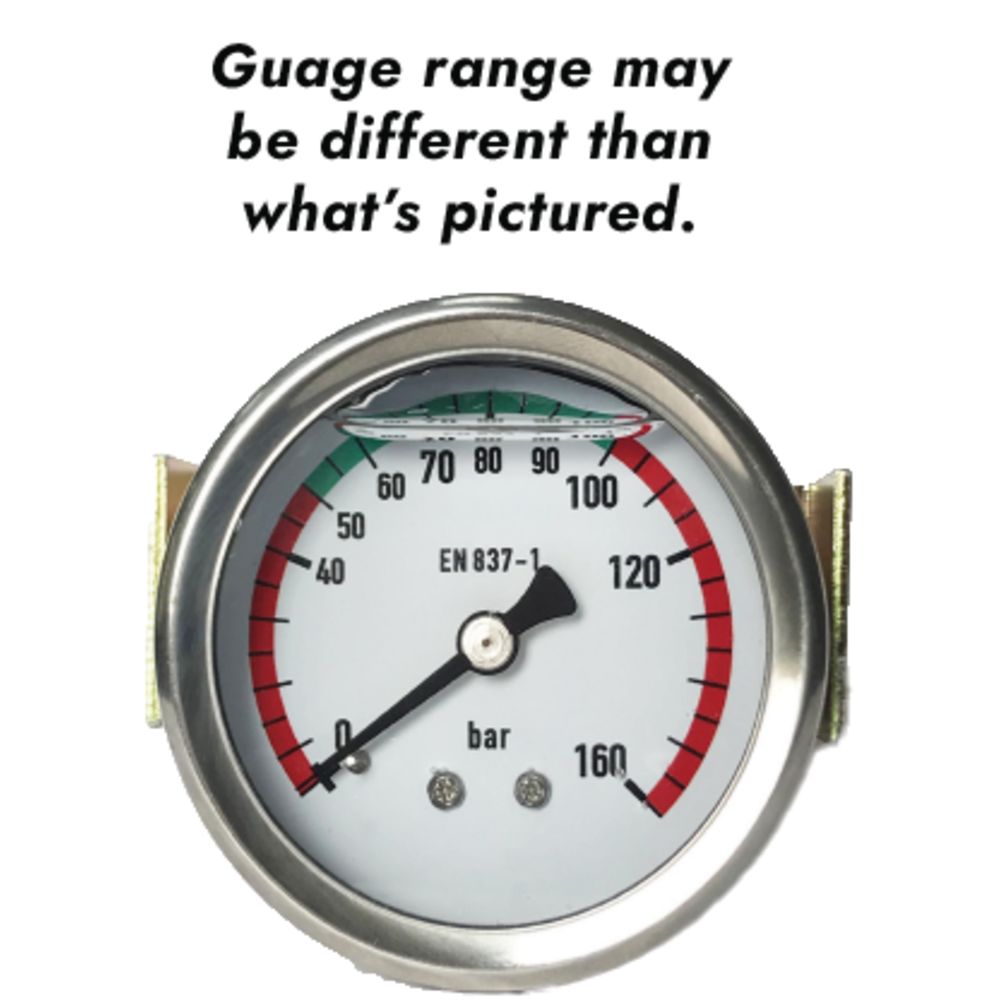

Water Pressure Gauge 100 PSI, 1/4" MPT, 2.0" Plastic Dial, Center Back

Home / Parts & Accessories / O-Rings, Gaskets, & Gauges / Water Pressure Gauge 100 PSI, 1/4" MPT, 2.0" Plastic Dial, Center Back Uclamp, SS Case

NEO

Water Pressure Gauge 100 PSI, 1/4" MPT, 2.0" Plastic Dial, Center Back Uclamp, SS Case

Part Number: 91B20-CU4-43SS-100P

Alt. Part Number: 204165

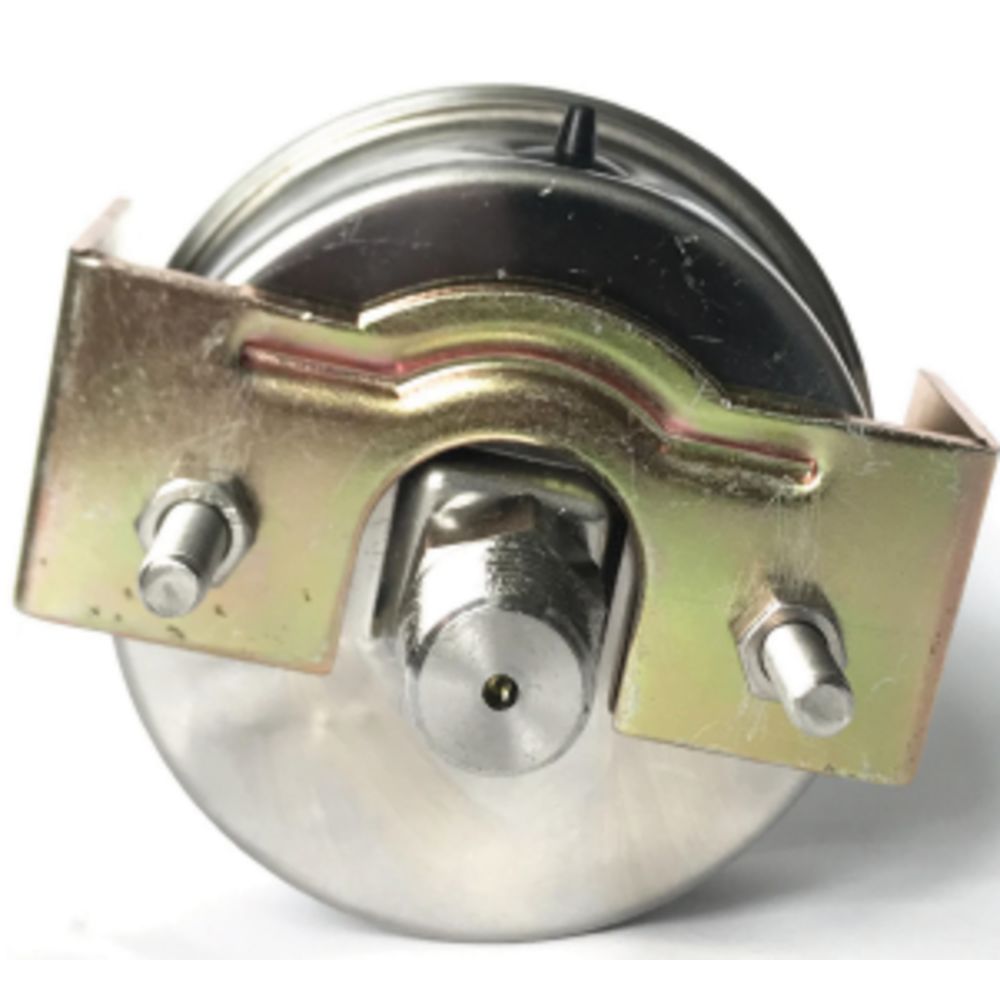

The 91B20-CU4-43SS-100P is a center mount pressure gauge that features a stainless steel case with copper alloy internals. This stainless steel gauge is glycerine filled with a polycarbonate lens. This easy-to-read utility gauge is designed for commercial and industrial applications where vibration or pulsation is present.

Specifications:

Glycerine filled
Case: Metal Enamel
Internals: Stainless Steel
Stem Materials: Brass
Pointer: black aluminum
Wetted Parts: copper alloy
Connection: center back mount
Scale: Standard psi/BAR (x100 = kPa)
Ambient Temperature: 30º F to 160º F
Accuracy: 2-1-2% ASME B40.1 Grade A

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Accuracy	A (2-1-2%)
Dial Size	2" (50 mm)
Face	White Aluminum with Black/Blue Print
Fluid	Glycerine and water
Housing Material	Stainless Steel
Internal Component Material	316 Stainless Steel
Material Of Construction	Chrome Plated Brass
Max Pressure (Psi)	100
Max Temp (°F)	160
Min Pressure (Psi)	0
Min Temp (°F)	30
Pointer	Aluminum - Black
Units Of Measure (Psi, Bars, Hgvac)	PSI/Bars
Accuracy Grade	B Grade: 3-2-3%
Case Filling	Glycerine
Case Type	Stainless Steel
Connection Type	1/4" MPT
Dial Sizes	2"
Gauge Bezel	Plastic Fixed
Gauge Lens	Plastic
Mounting Style	CU: Center Back with U Clamp
Pressure Rating	100 PSI
Wetted Parts	316 SS
Shipping Dimensions
Shipping Length	3 in.
Shipping Width	3 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Weight (lbs)	0.55
