Air Gap International

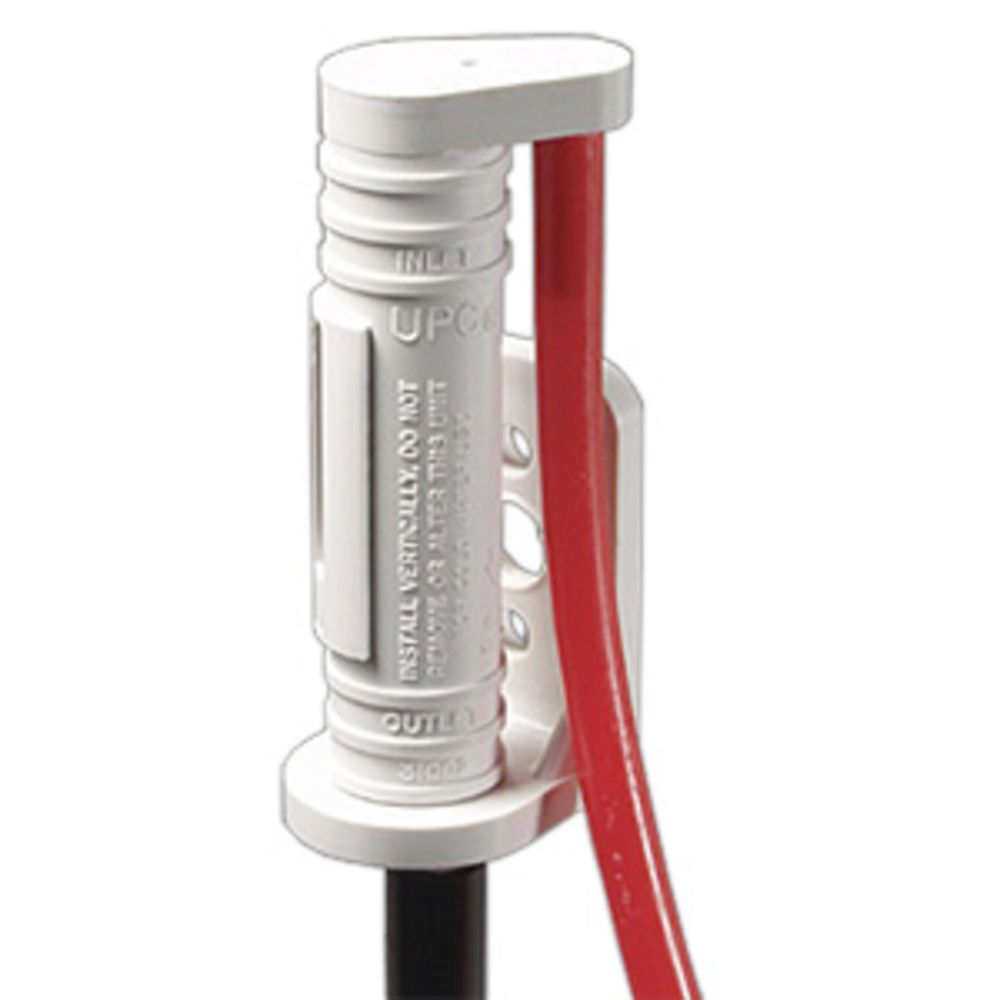

Wall Mount Air Gap NSF/UPC Listed 1/4 x 3/8

Part Number: 31-SB

In Stock

out of stock

In Stock

$21.43

Ideal for POU water cooler installations with reverse osmosis systems where hole in sink is unavailable or space is limited. This air gap can be mounted on any type of surface and is very easy to install. Simply locate the wall mounted air gap device above the RO system module and rinse water drain port.

Specifications:
  • Location: Above the RO system module and rinse water drain point
  • Water Flow: 0.5 G.P.M max
  • Inlet: Barb for 1/4 OD poly tubing
  • Outlet: Barb for 3/8 OD poly tubing
  • Length: 3" long (approximately)
  • Certifications: NSF 58 Listed and UPC Listed
Properly installed, this unit enables full backflow and backsiphon backflow protection.


Weight & Dimensions

Approx Length (Inches)

3

Details

Faucet Type

Air Gap

Max Flow Rate

0.5 Gallons Per Minute



Ideal for POU water cooler installations with reverse osmosis systems where hole in sink is unavailable or space is limited. This air gap can be mounted on any type of surface and is very easy to install. Simply locate the wall mounted air gap device above the RO system module and rinse water drain port.

Specifications:
  • Location: Above the RO system module and rinse water drain point
  • Water Flow: 0.5 G.P.M max
  • Inlet: Barb for 1/4 OD poly tubing
  • Outlet: Barb for 3/8 OD poly tubing
  • Length: 3" long (approximately)
  • Certifications: NSF 58 Listed and UPC Listed
Properly installed, this unit enables full backflow and backsiphon backflow protection.

Weight & Dimensions

Approx Length (Inches)

3

Details

Faucet Type

Air Gap

Max Flow Rate

0.5 Gallons Per Minute
