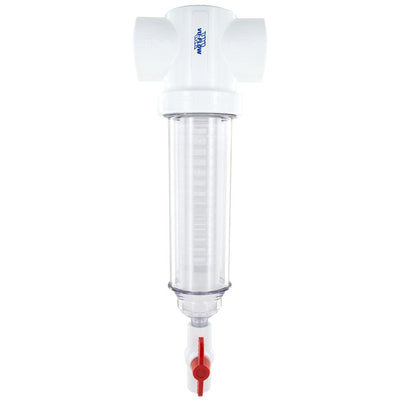

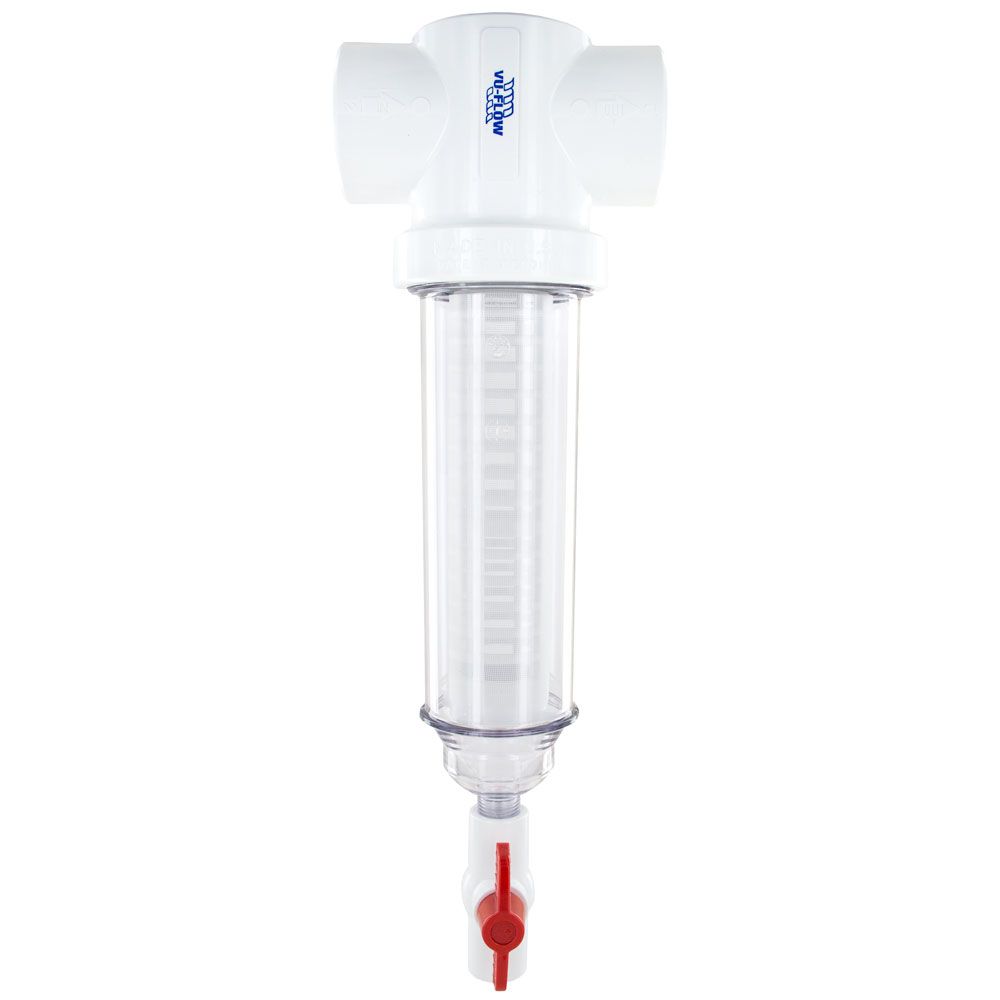

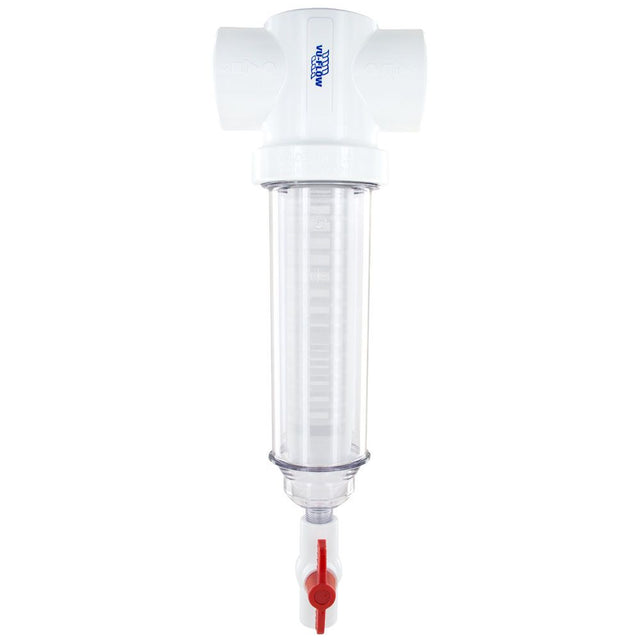

Vu-Flow Sediment Screen Filter T Style 2"

Part Number: NT-200-24-P

In Stock

out of stock

In Stock

$93.95

Vu-Flow 2" Sediment Screen Filter System makes solid particle removal simple and economical. The benefit of these systems are the ability to be cleaned and reused. The 2" Sediment Screen Filter by Vu-Flow has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.

Features:
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge type sediment separation
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • Small size takes little space
  • Screen mesh sizes can be easily changed if required
Applications:
  • Well water
  • Irrigation
  • Sand Sensitive Valves
  • Drip Irrigation
  • Faucet Aerators
  • Poultry Growers
  • Fogger nozzles
  • Pretreatment for RO




Details

Body Material

PVC

Housing Material

High Impact Polymer Resin

Inlet/Outlet Connection

2" Slip

Max Pressure (Psi)

150

Max Temp (°F)

100

Mesh Size

30, 60, 100, 140, 250, 500, 1000, 200, 24, 40

Micron Rating (Nominal)

533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 30 µm, 15 µm, 74 µm, 711 µm, 381 µm

Cartridge Style

Spin-down

Connection Type

Slip

Contaminants Reduced

Sediment/Dirt/Rust

Filter Type

Rusco Spin-Down & Sediment Traps

Flow Rate

18-100 GPM

Housing Resistance

Fresh Water Only

Micron Rating

533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 30 µm, 15 µm, 74 µm, 711 µm, 381 µm

Port Size

2"

Sub-Type

T-Style System

Type

Standard


Vu-Flow




Vu-Flow 2" Sediment Screen Filter System makes solid particle removal simple and economical. The benefit of these systems are the ability to be cleaned and reused. The 2" Sediment Screen Filter by Vu-Flow has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.

Features:
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge type sediment separation
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • Small size takes little space
  • Screen mesh sizes can be easily changed if required
Applications:
  • Well water
  • Irrigation
  • Sand Sensitive Valves
  • Drip Irrigation
  • Faucet Aerators
  • Poultry Growers
  • Fogger nozzles
  • Pretreatment for RO



Details

Body Material

PVC

Housing Material

High Impact Polymer Resin

Inlet/Outlet Connection

2" Slip

Max Pressure (Psi)

150

Max Temp (°F)

100

Mesh Size

30, 60, 100, 140, 250, 500, 1000, 200, 24, 40

Micron Rating (Nominal)

533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 30 µm, 15 µm, 74 µm, 711 µm, 381 µm

Cartridge Style

Spin-down

Connection Type

Slip

Contaminants Reduced

Sediment/Dirt/Rust

Filter Type

Rusco Spin-Down & Sediment Traps

Flow Rate

18-100 GPM

Housing Resistance

Fresh Water Only

Micron Rating

533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 30 µm, 15 µm, 74 µm, 711 µm, 381 µm

Port Size

2"

Sub-Type

T-Style System

Type

Standard
