VuFlow

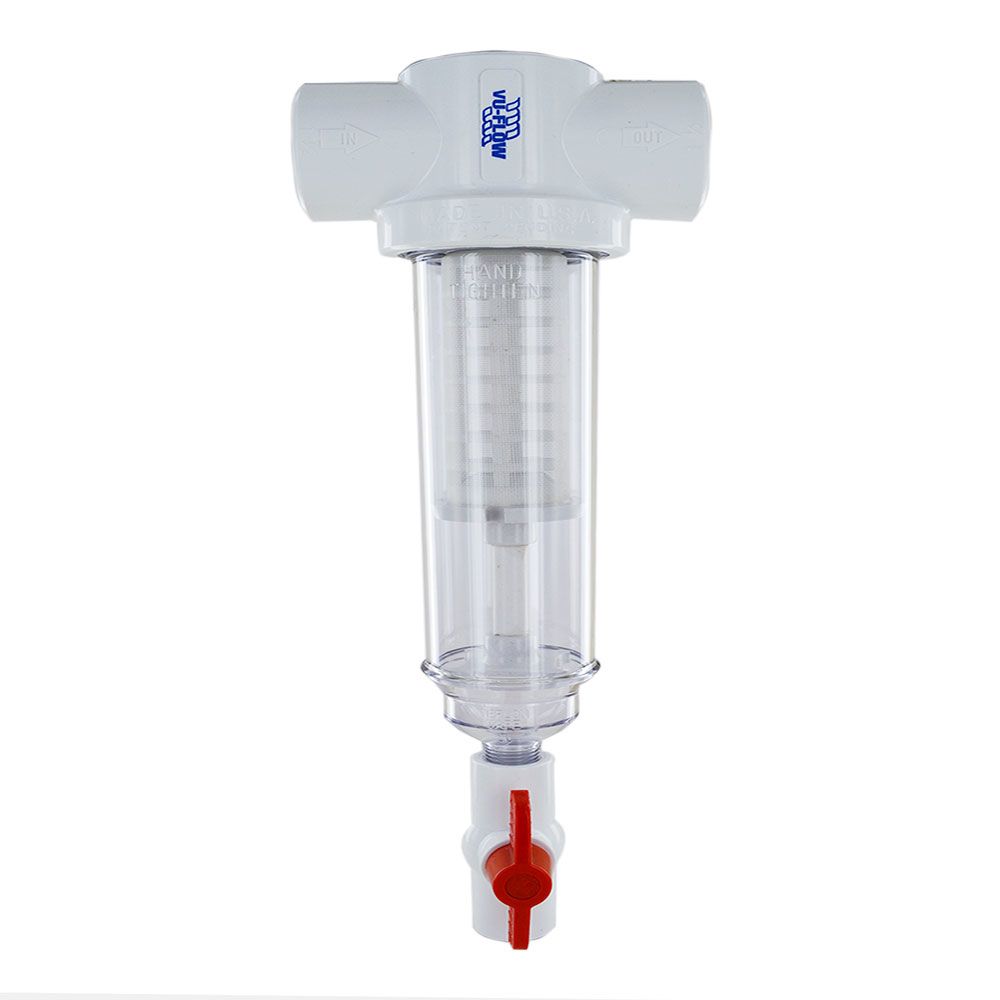

Vu-Flow Sand Separator Filter T Style 2"

Part Number: NT-2-SO-24-P

In Stock

out of stock

In Stock

$134.70


Vu-Flow 2" Sand Separator Filter System makes solid particle removal simple and economical. The benefit of these systems are the ability to be cleaned and reused, and can handle large volumes of sediment. The 2" Sand Separator Filter by Vu-Flow has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.
Features:
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge type sediment separation
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • Small size takes little space
  • Screen mesh sizes can be easily changed if required
Vu-Flow Sand Separator T Style Filter - 1.5" Uses:
  • Well water
  • Irrigation
  • Sand Sensitive Valves
  • Drip Irrigation
  • Faucet Aerators
  • Poultry Growers
  • Fogger nozzles
  • Pretreatment for RO


Details

Housing Resistance

Fresh Water Only

Body Material

PVC

Cartridge Style

Chemical Resistant

Flow Rate

18-100 GPM

Housing Material

High Impact Polymer Resin

Max Operating Pressure

150 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Mesh Size

30, 60, 100, 140, 250, 500, 1000, 200, 24, 40

Micron Rating (Nominal)

533, 254, 152, 104, 61, 30, 15, 74, 711, 381

Size

2"

Top Style

T Style

Inlet/Outlet Connection

2" | Slip
