Vu-Flow Hot Water Sediment Filter System - 1-1/2"
Part Number: 1-1/2-30-HT-P
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.

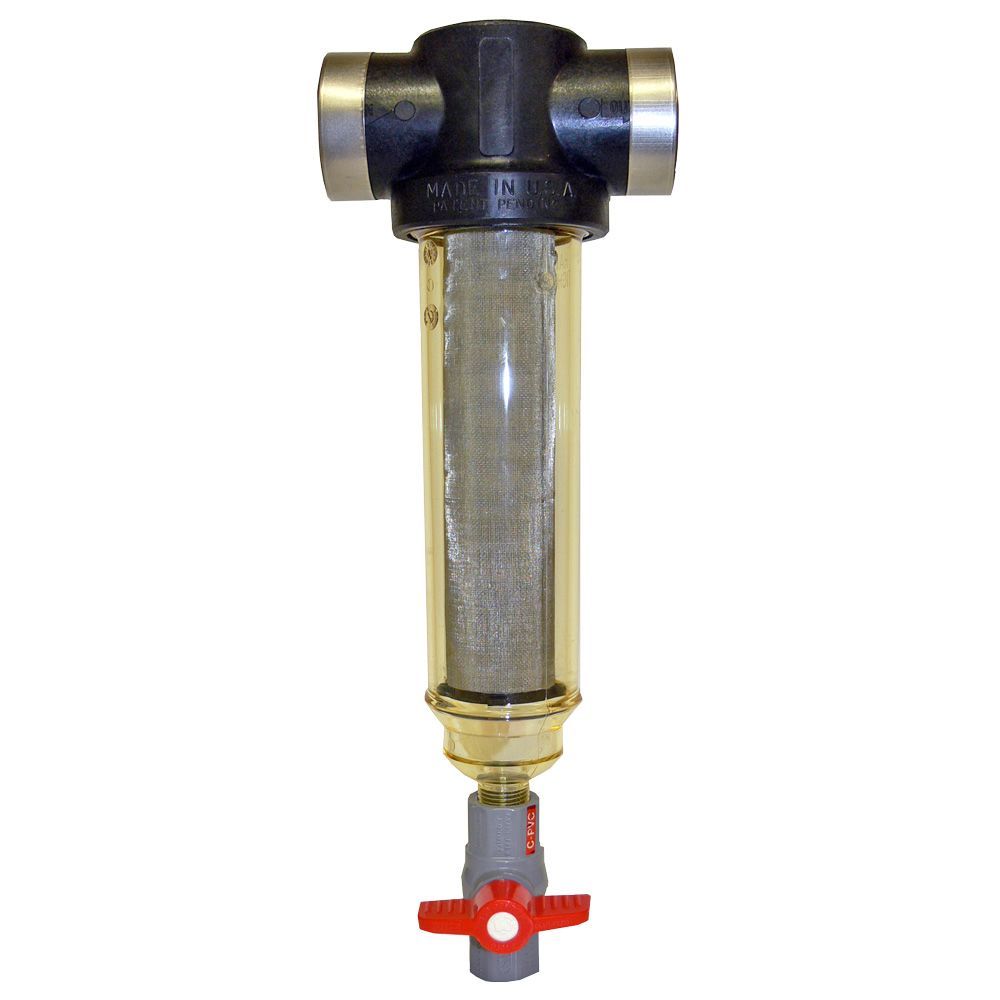

The Vu-Flow Hot Water filter systems utilize centrifugal separation technology to filter particulates from the water, which is clearly visible through the clear filter cover. The stainless steels screens can also be easily cleaned and reused over and over again.
Application:
Instead of catching all of the scale and scale flakes from your water heater with a Vu-Flow Hot Water Sediment filter, consider the HydroBlend SC-605 Scale Control System that prevents scale build up in your pipes and water heaters. Overtime HydroBlend also helps soften and remove existing mineral scale deposits.
Features:
- Capturing scale flakes from water heaters
- Hydronic heating systems
- Industrial heat exchangers
- Cooling tower make up and evaporator water
- Domestic or commercial hot water heaters
- Industrial (machine coolant and cutting fluids)
- Spas/jacuzzis
Note: Requires 2" O-ring kit (2OR)
WARNING!
| Product Details | |
|---|---|
Head Style | T-Style |
Housing Material | Chemical/Heat Resistant High Impact Polymer Resin |
Inlet Connection | 1-1/2" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Mesh Size | 30 60 100 140 200 |
Micron Rating (Nominal) | 533 µm 254 µm 152 µm 104 µm 74 µm |
Outlet Connection | 1-1/2" FPT |
Cartridge Style | Spin-down |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 18-100 GPM |
Micron Rating | 533 µm 254 µm 152 µm 104 µm 74 µm |
Port Size | 1-1/2" |
Sub-Type | T-Style System |
Top Style | T-Style |
Type | Standard |
| Shipping Dimensions | |
Shipping Length | 20 in. |
Shipping Width | 5 in. |
Shipping Height | 5 in. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 3.1 |
| Product Details | |
|---|---|
Head Style | T-Style |
Housing Material | Chemical/Heat Resistant High Impact Polymer Resin |
Inlet Connection | 1-1/2" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Mesh Size | 30 60 100 140 200 |
Micron Rating (Nominal) | 533 µm 254 µm 152 µm 104 µm 74 µm |
Outlet Connection | 1-1/2" FPT |
Cartridge Style | Spin-down |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 18-100 GPM |
Micron Rating | 533 µm 254 µm 152 µm 104 µm 74 µm |
Port Size | 1-1/2" |
Sub-Type | T-Style System |
Top Style | T-Style |
Type | Standard |
| Shipping Dimensions | |
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 2.9 |
| Product Details | |
|---|---|
Head Style | T-Style |
Housing Material | Chemical/Heat Resistant High Impact Polymer Resin |
Inlet Connection | 1-1/2" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Mesh Size | 30 60 100 140 200 |
Micron Rating (Nominal) | 533 µm 254 µm 152 µm 104 µm 74 µm |
Outlet Connection | 1-1/2" FPT |
Cartridge Style | Spin-down |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 18-100 GPM |
Micron Rating | 533 µm 254 µm 152 µm 104 µm 74 µm |
Port Size | 1-1/2" |
Sub-Type | T-Style System |
Top Style | T-Style |
Type | Standard |
| Shipping Dimensions | |
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 2.85 |
| Product Details | |
|---|---|
Head Style | T-Style |
Housing Material | Chemical/Heat Resistant High Impact Polymer Resin |
Inlet Connection | 1-1/2" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Mesh Size | 30 60 100 140 200 |
Micron Rating (Nominal) | 533 µm 254 µm 152 µm 104 µm 74 µm |
Outlet Connection | 1-1/2" FPT |
Cartridge Style | Spin-down |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 18-100 GPM |
Micron Rating | 533 µm 254 µm 152 µm 104 µm 74 µm |
Port Size | 1-1/2" |
Sub-Type | T-Style System |
Top Style | T-Style |
Type | Standard |
| Shipping Dimensions | |
Shipping Length | 20 in. |
Shipping Width | 8 in. |
Shipping Height | 4 in. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 3 |
| Product Details | |
|---|---|
Head Style | T-Style |
Housing Material | Chemical/Heat Resistant High Impact Polymer Resin |
Inlet Connection | 1-1/2" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Mesh Size | 30 60 100 140 200 |
Micron Rating (Nominal) | 533 µm 254 µm 152 µm 104 µm 74 µm |
Outlet Connection | 1-1/2" FPT |
Cartridge Style | Spin-down |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 18-100 GPM |
Micron Rating | 533 µm 254 µm 152 µm 104 µm 74 µm |
Port Size | 1-1/2" |
Sub-Type | T-Style System |
Top Style | T-Style |
Type | Standard |
| Shipping Dimensions | |
Shipping Length | 20 in. |
Shipping Width | 5 in. |
Shipping Height | 5 in. |
| Product Weight & Dimensions | |
Product Weight (lbs) | 2.8 |
The Vu-Flow Hot Water filter systems utilize centrifugal separation technology to filter particulates from the water, which is clearly visible through the clear filter cover. The stainless steels screens can also be easily cleaned and reused over and over again.
Application:
Instead of catching all of the scale and scale flakes from your water heater with a Vu-Flow Hot Water Sediment filter, consider the HydroBlend SC-605 Scale Control System that prevents scale build up in your pipes and water heaters. Overtime HydroBlend also helps soften and remove existing mineral scale deposits.
Features:
- Capturing scale flakes from water heaters
- Hydronic heating systems
- Industrial heat exchangers
- Cooling tower make up and evaporator water
- Domestic or commercial hot water heaters
- Industrial (machine coolant and cutting fluids)
- Spas/jacuzzis
Note: Requires 2" O-ring kit (2OR)
WARNING!
