Viqua

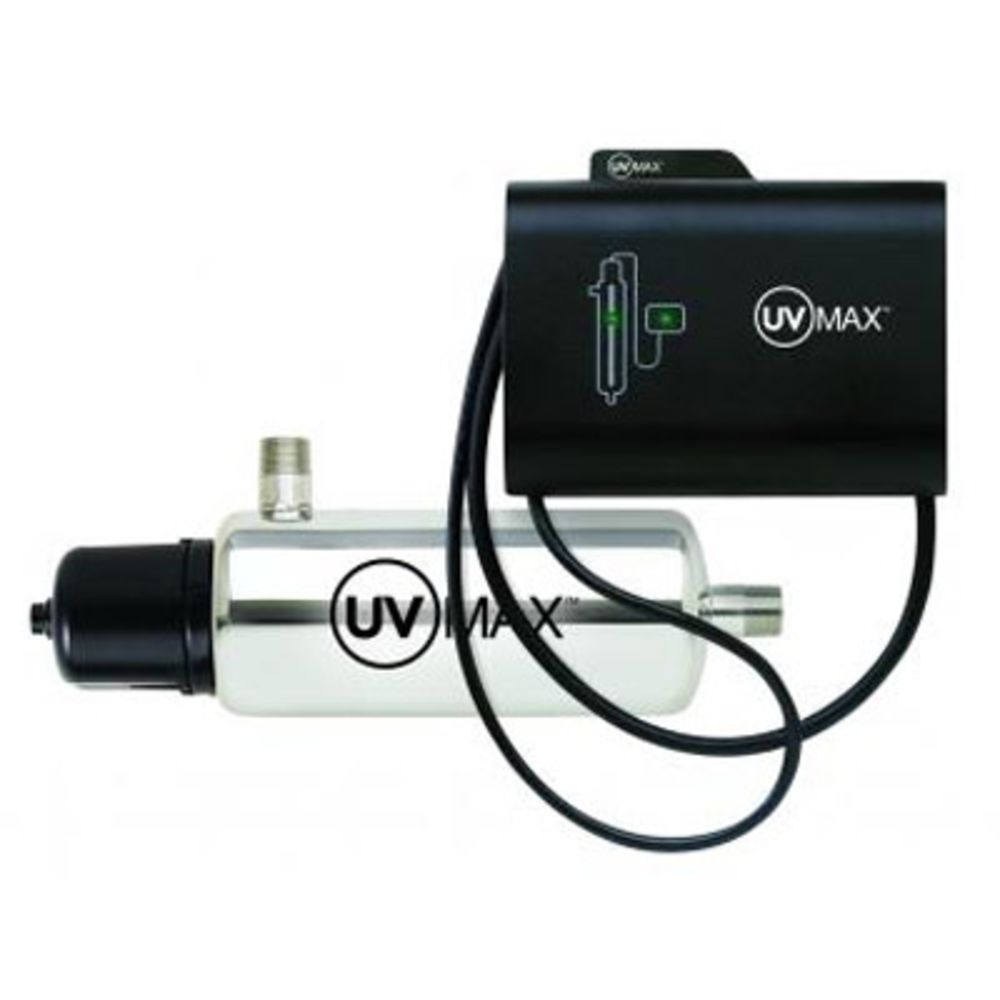

Viqua UVMax Model B4 Ultraviolet Water System 6 gpm - 230 Volt

Part Number: 650691

Alt. Part Number: 650691, 650690

In Stock

out of stock

In Stock

$404.10 Regular price $449.00 (10% Off)

Install a Viqua UV Max Model B4 Ultraviolet Water System and you no longer have to be concerned about contamination from harmful bacteria, virus, and microorganisms such as E.coli, Giardia and Cryptosporidium causing illness. Viqua UVMax B4 is a point-of-use ultraviolet disinfection water treatment system offers a 6 gpm water flow rate. The UVMax B4 Plus compact design, simple installation, and low cost of operation is ideal for point of use applications. Drink confidently with Viqua's quality and reliability from its 6 gpm high-output ultraviolet water purification system the Viqua UVMAX B4.

Features:

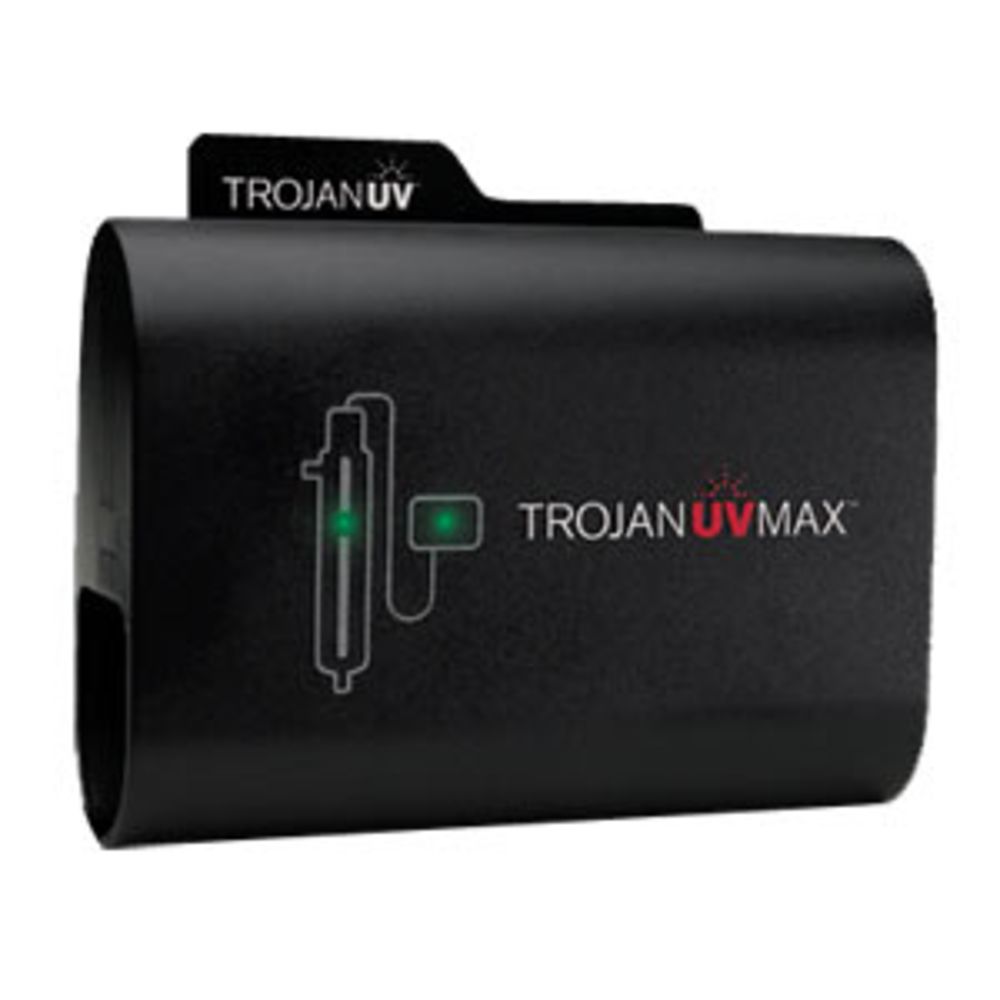

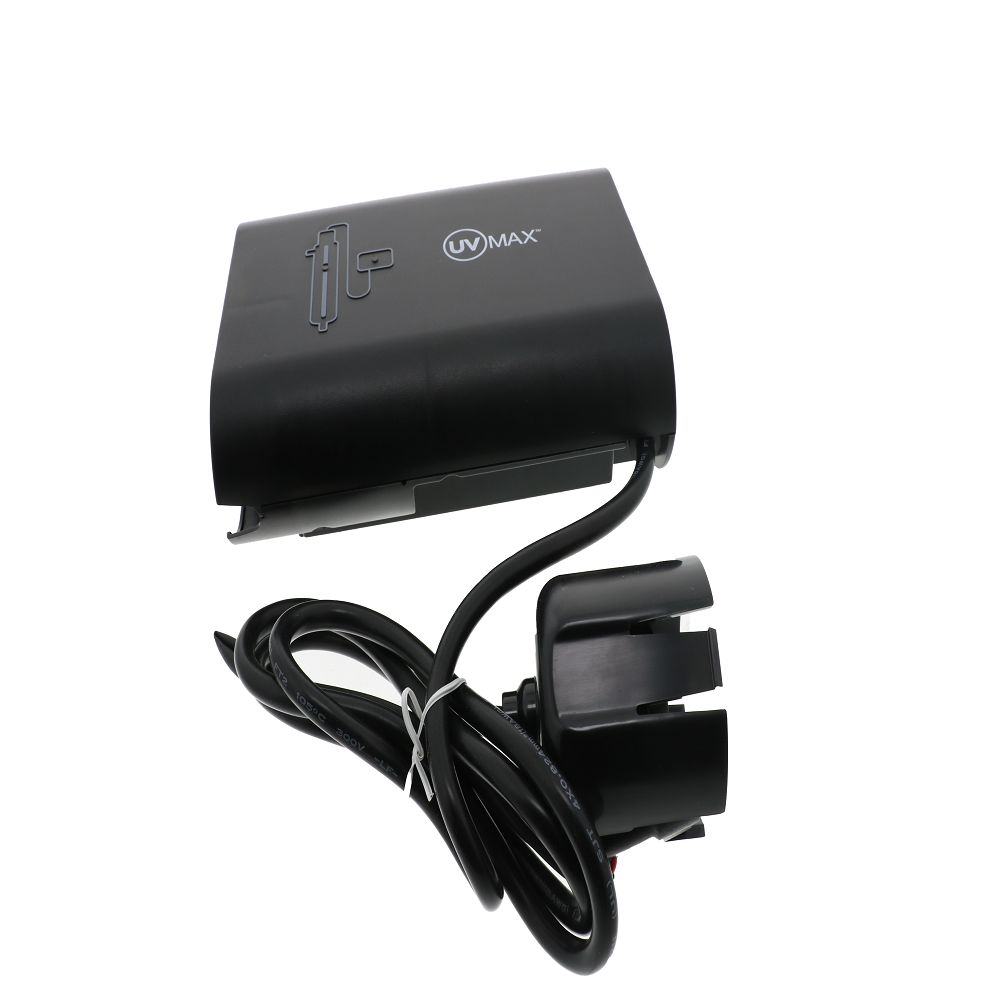

  • Viqua UVMax controller with water-resistant case
  • Indicator lights show the status of each system component

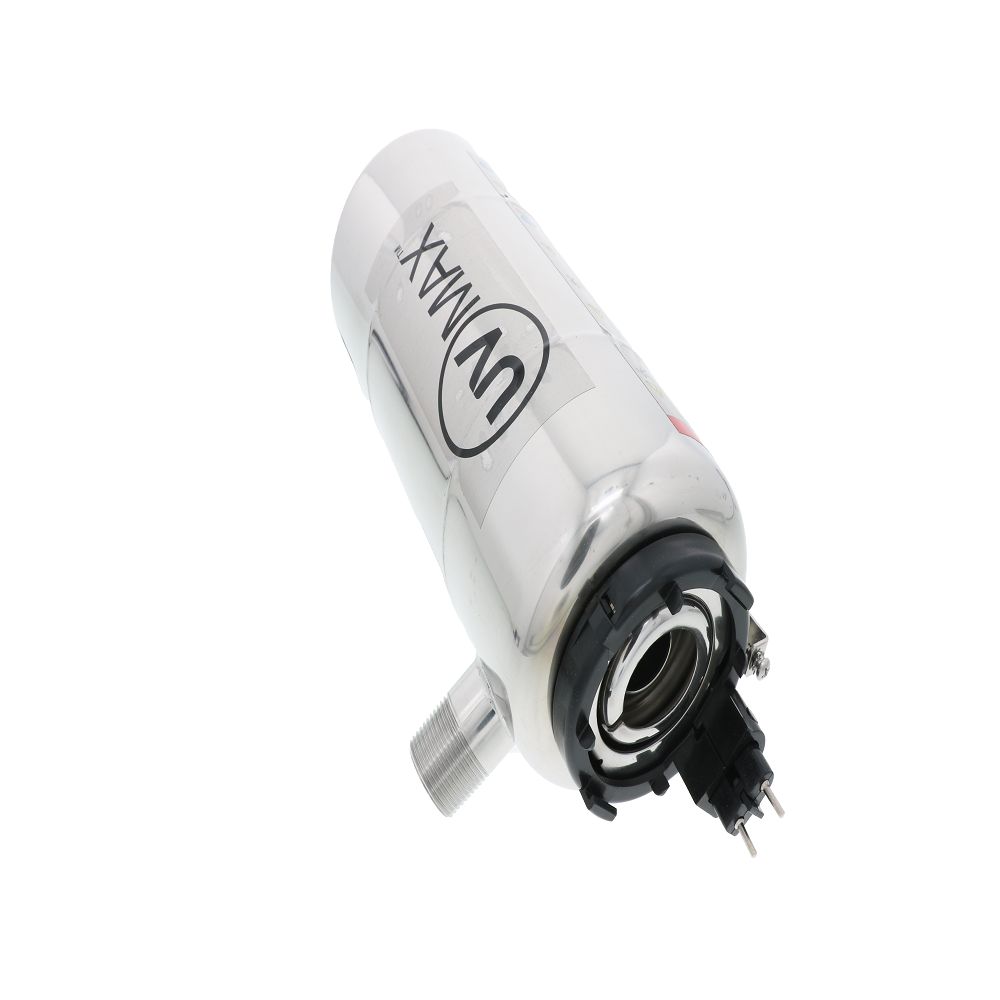

  • Stainless steel chamber with safety cap and special lamp plug
  • Universal power input

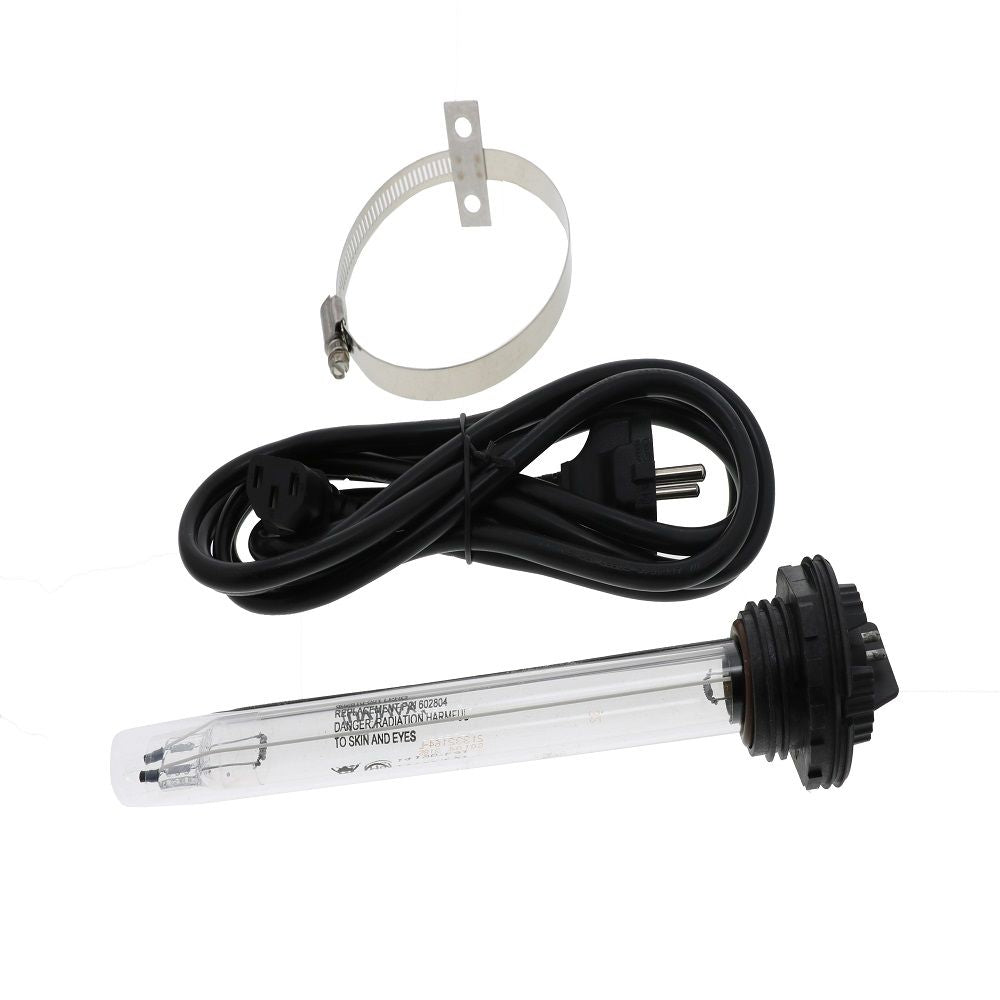

  • High-output UV lamp
  • Environmentally-friendly
  • Full 3 Year Warranty




Weight & Dimensions

Weight (lbs)

9.3

Approx Length (Inches)

14-1/2"

Power Supply Dimensions

8-1/2"x6"

Details

Max Pressure (Psi)

125

Ambient Temperature Range

32-122 °F

Body Material

304 Stainless Steel

Diameter

4", 14-1/2"

Flow Rate

11 GPM (16mJ/cm2 Dose), 6 GPM (30mJ/cm2 Dose), 4.0 GPM (30mJ/cm2 Dose), 4 GPM (40mJ/cm2 Dose), 3.0 GPM (40mJ/cm2 Dose)

Frequency

50/60 Hz

Power

36 W

Size

3/4"

Voltage

230 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

3/4" MPT

Warranty & Certifications

Certifications

NSF/ANSI Standard 55, Class A; CE Standards

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors; 3 Years


Viqua

Viqua

Viqua

Viqua

Viqua




Install a Viqua UV Max Model B4 Ultraviolet Water System and you no longer have to be concerned about contamination from harmful bacteria, virus, and microorganisms such as E.coli, Giardia and Cryptosporidium causing illness. Viqua UVMax B4 is a point-of-use ultraviolet disinfection water treatment system offers a 6 gpm water flow rate. The UVMax B4 Plus compact design, simple installation, and low cost of operation is ideal for point of use applications. Drink confidently with Viqua's quality and reliability from its 6 gpm high-output ultraviolet water purification system the Viqua UVMAX B4.

Features:
  • Viqua UVMax controller with water-resistant case
  • Indicator lights show the status of each system component
  • Stainless steel chamber with safety cap and special lamp plug
  • Universal power input
  • High-output UV lamp
  • Environmentally-friendly
  • Full 3 Year Warranty



Weight & Dimensions

Weight (lbs)

9.3

Approx Length (Inches)

14-1/2"

Power Supply Dimensions

8-1/2"x6"

Details

Max Pressure (Psi)

125

Ambient Temperature Range

32-122 °F

Body Material

304 Stainless Steel

Diameter

4", 14-1/2"

Flow Rate

11 GPM (16mJ/cm2 Dose), 6 GPM (30mJ/cm2 Dose), 4.0 GPM (30mJ/cm2 Dose), 4 GPM (40mJ/cm2 Dose), 3.0 GPM (40mJ/cm2 Dose)

Frequency

50/60 Hz

Power

36 W

Size

3/4"

Voltage

230 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

3/4" MPT

Warranty & Certifications

Certifications

NSF/ANSI Standard 55, Class A; CE Standards

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors; 3 Years
