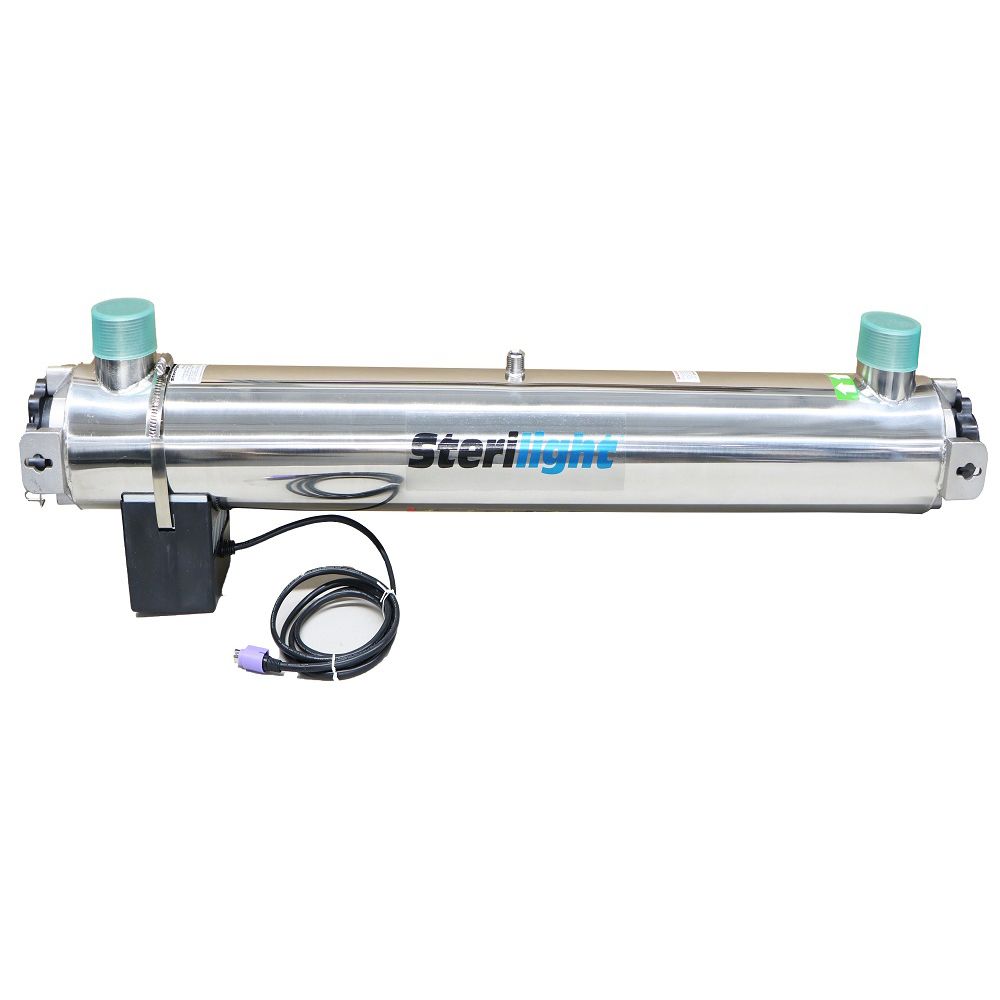

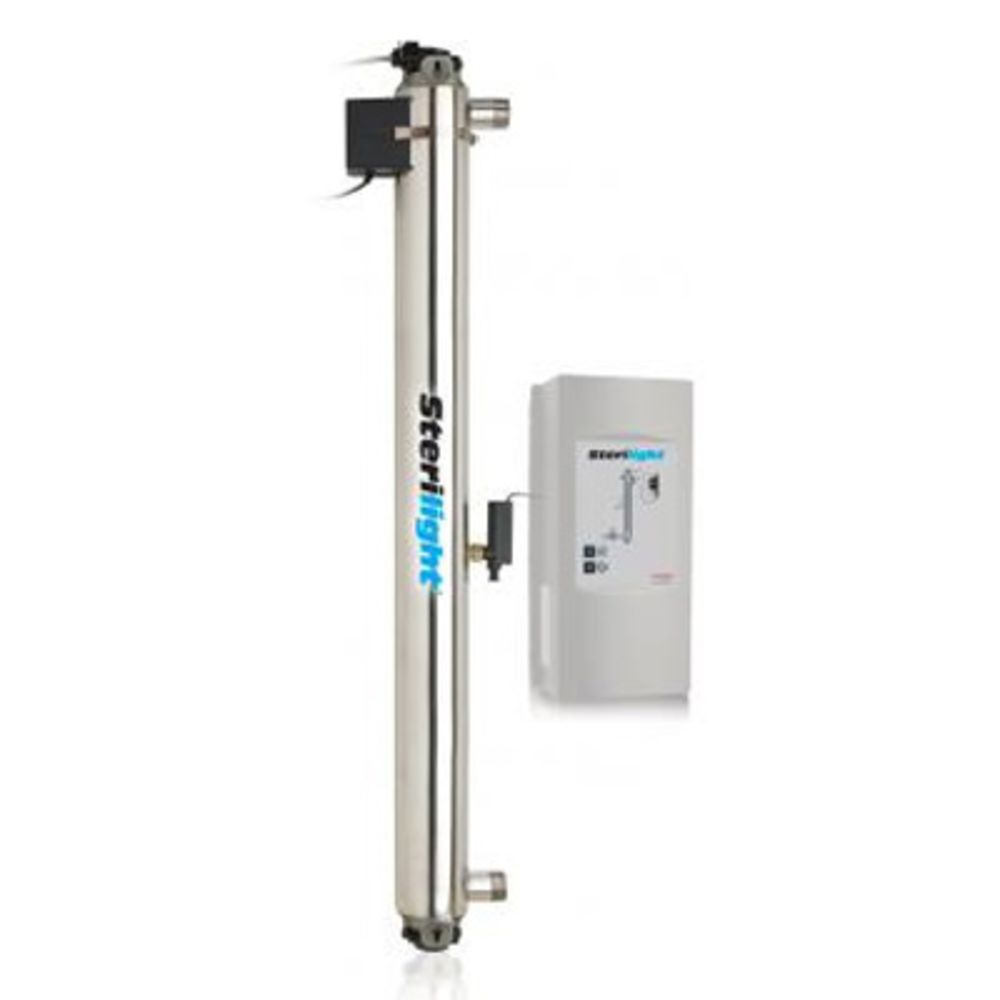

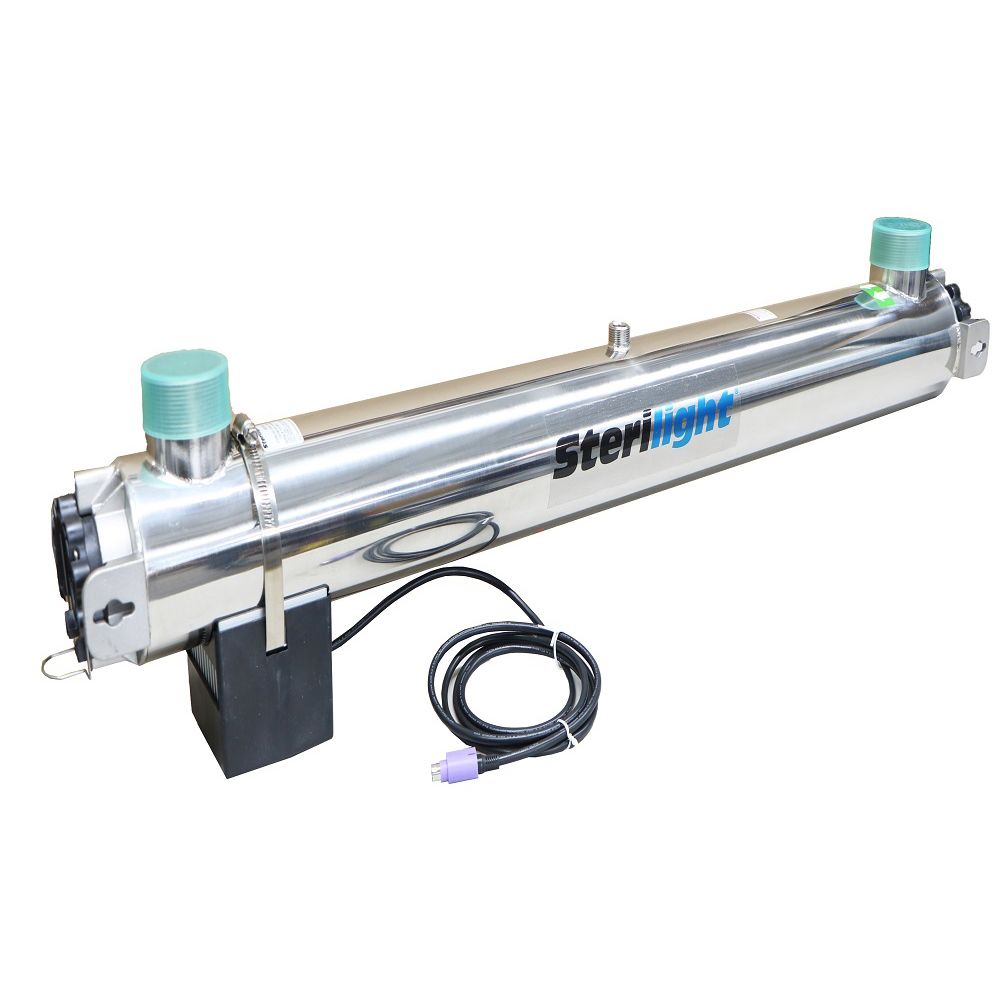

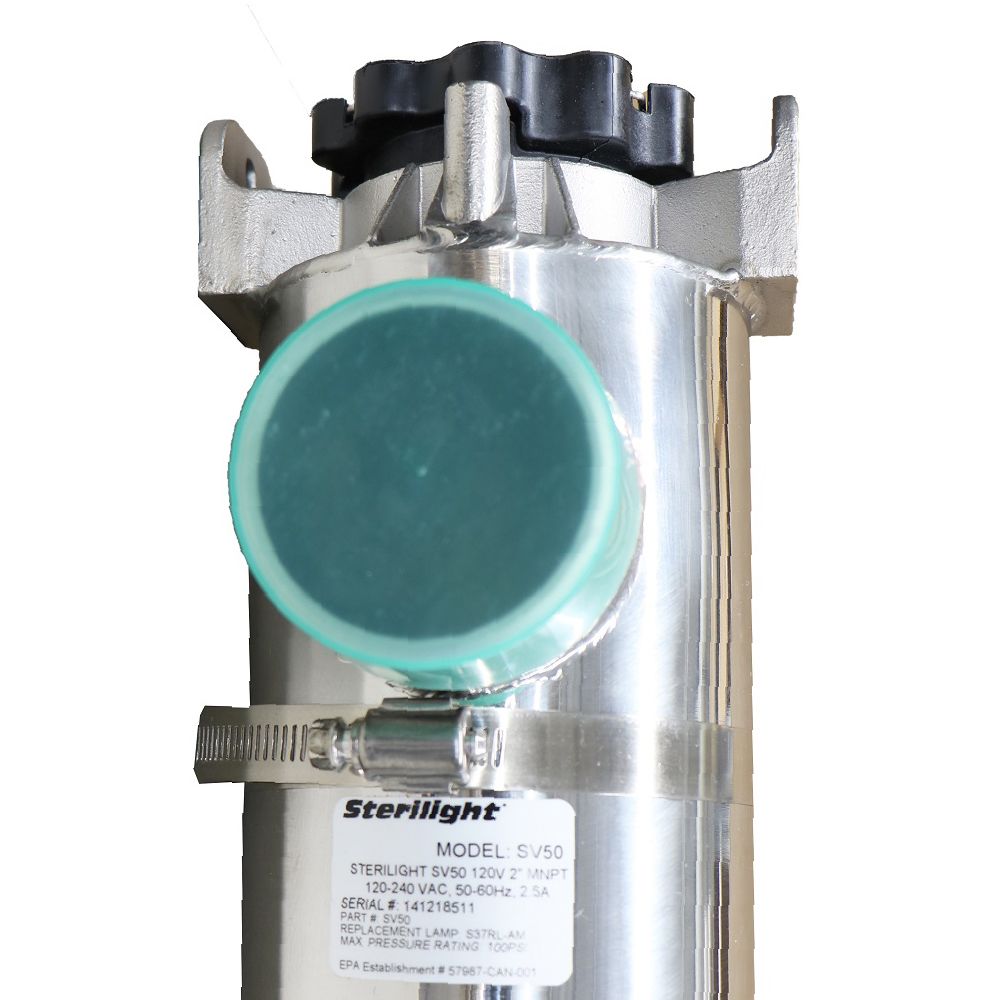

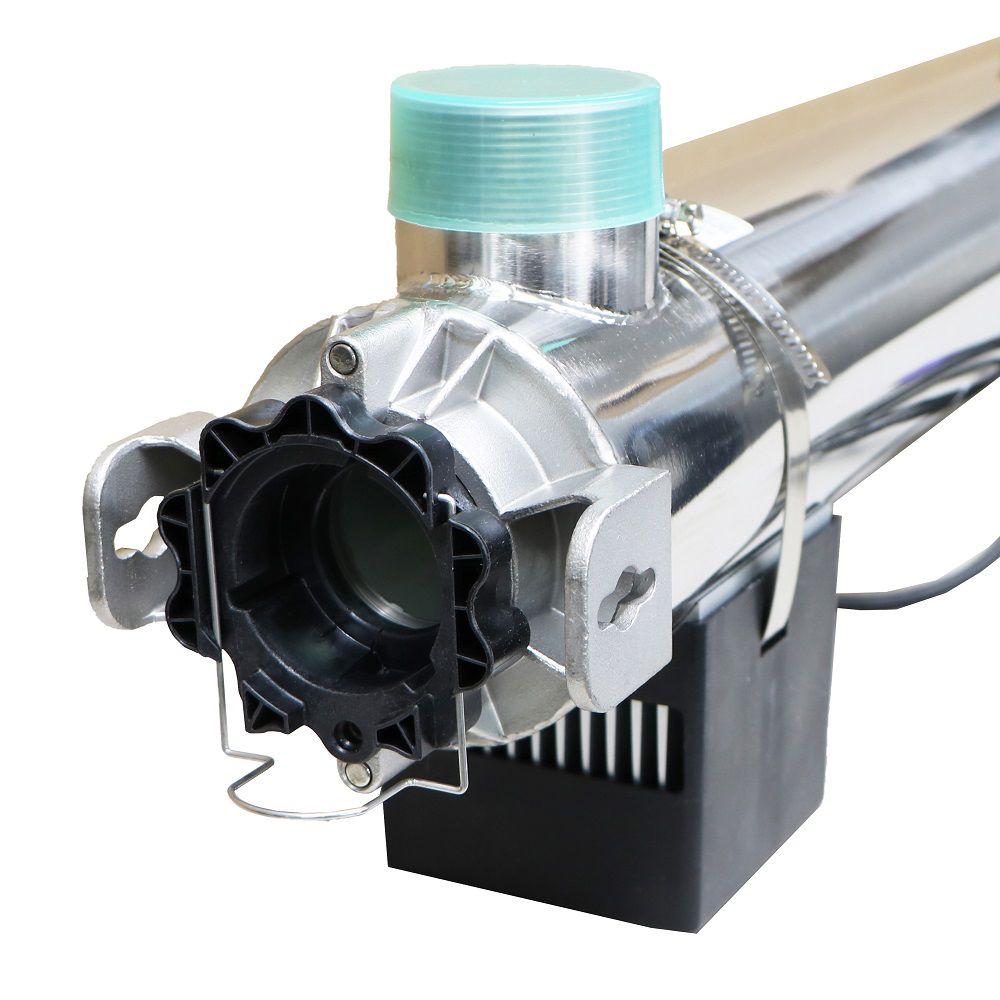

Viqua Sterilight SV50 Light Commercial UV Water Treatment System

Part Number: SV50

In Stock

out of stock

In Stock

This item is discontinued. We recommend the VIQUA UVMAX Pro50 UV Disinfection System 50 GPM 660003-R - 120 Volt as a...

The Viqua Sterilight SV50 UV System utilizes Viqua's revolutionary lamp, giving the system twice the output of current high-output systems. The system significantly reduces water temperature, and does not waste any water.

Specifications:

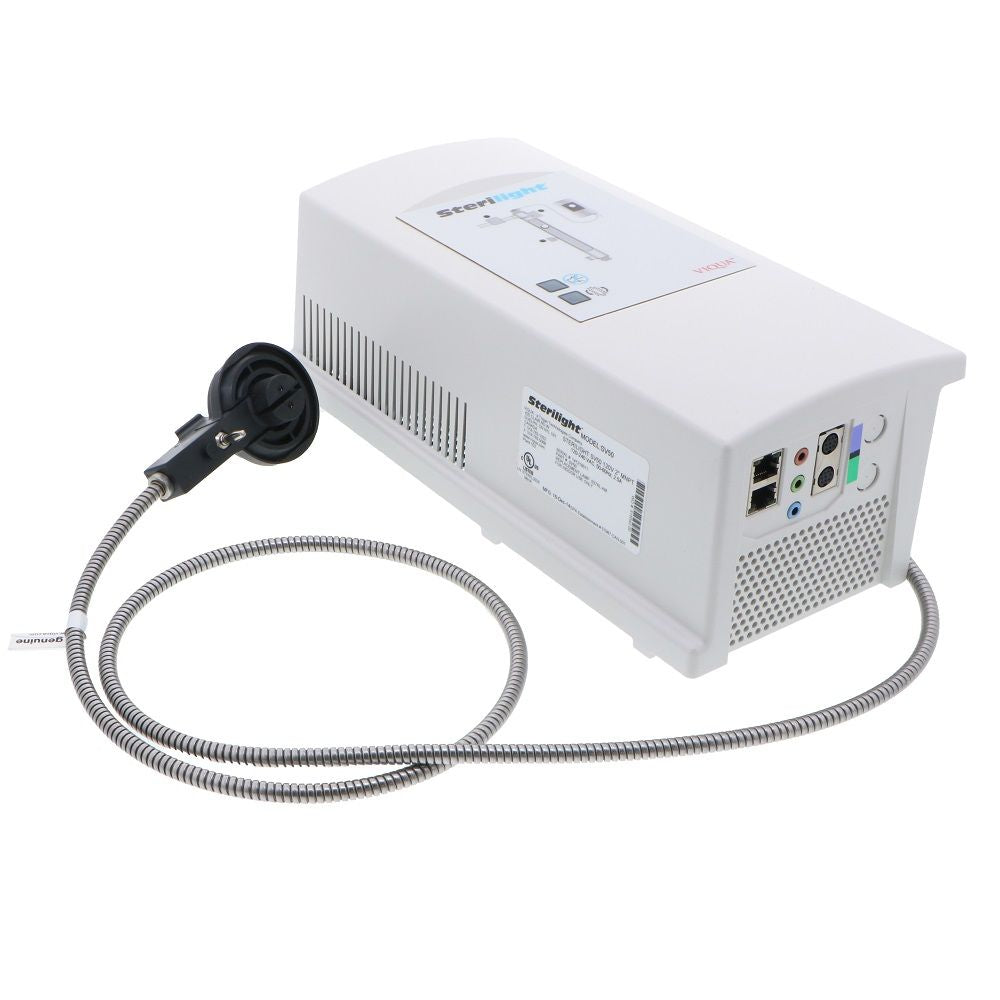

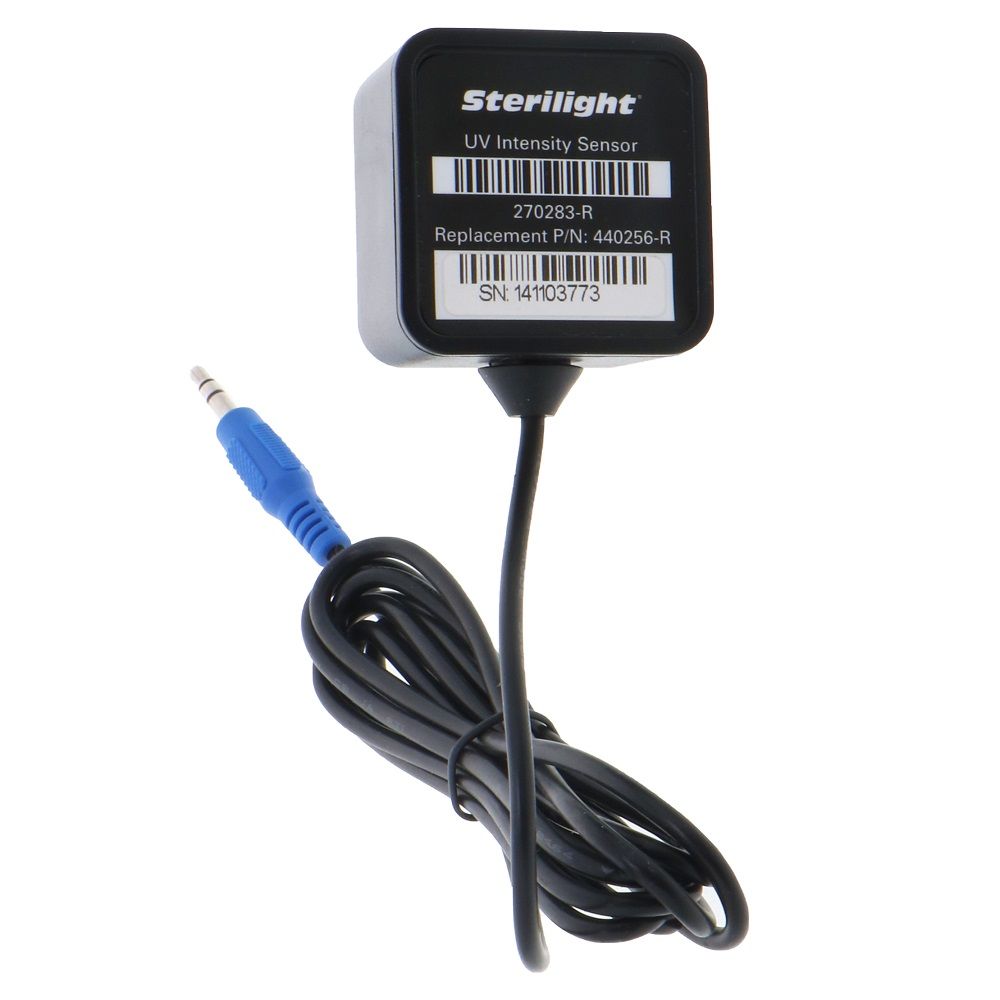

  • Controller offers intuitive interface w/alarm mute button, new lamp button, and UV intensity monitor w/diagnostic test.
  • Type 316 stainless steel reactor

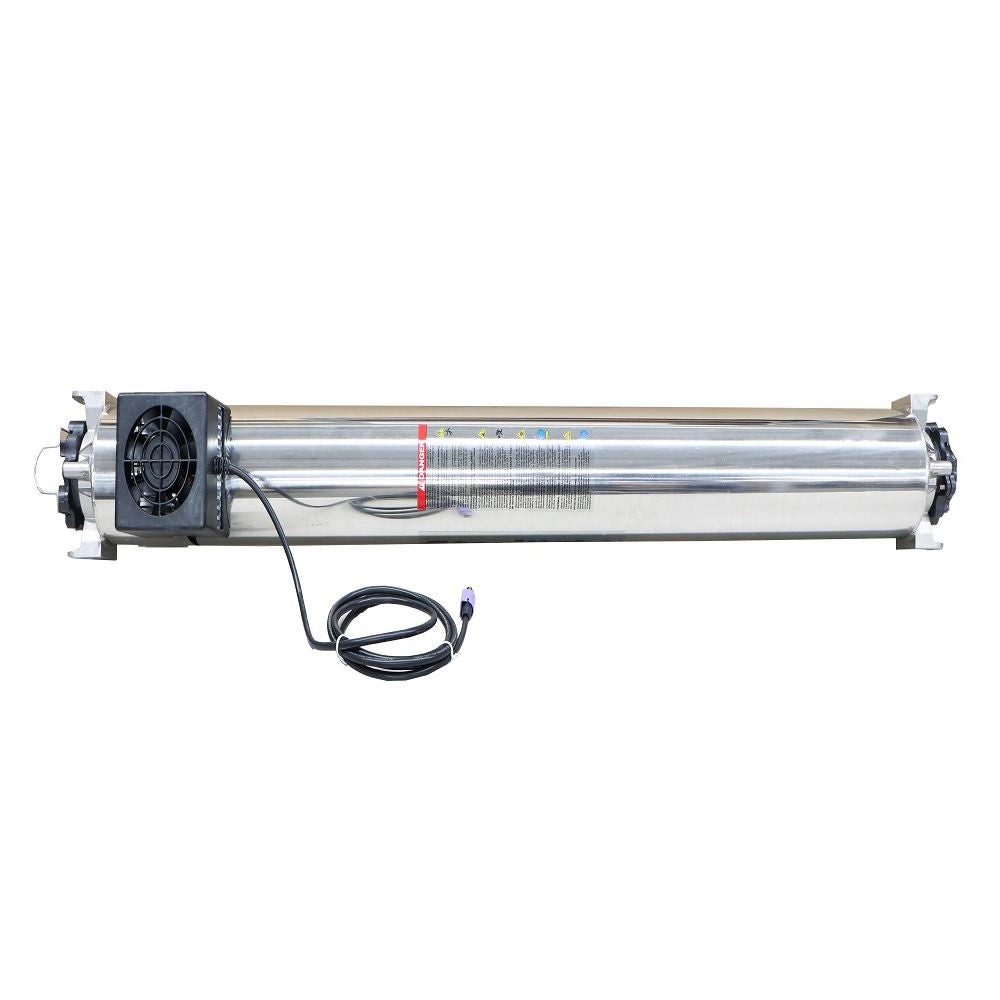

  • Cool Touch fan reduces elevated water temperatures
  • LP HO amalgam based UV lamp has a 2 year life
  • Color coded plug and play connections
  • Easy to read LED indicators for:
    • Lamp age
    • Lamp operation
    • Ballast operation
    • Solenoid operation
    • Fan operation
    • Sensor reading
This system is compatible with the S37RL-AM Sterilight Lamp and the QS-37 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SV50 includes:
  • Sterilight Lamp (1): S37RL-AM
  • Sterilight Quartz Sleeve (1): QS-37
  • Sterilight O-Ring (1): 2233




Weight & Dimensions

Weight (lbs)

16

Approx Length (Inches)

41"

Power Supply Dimensions

13" x 6-1/2"

Details

Max Pressure (Psi)

100

Min Pressure (Psi)

10

Ambient Temperature Range

36-104 °F

Body Material

316 Stainless Steel

Diameter

4"

Features

UV Intensity Monitor, Audible Lamp Failure

Flow Rate

50 GPM (40mJ/cm2 Dose)

Frequency

50/60 Hz

Number Of Lamps

1

Power

230 W

Size

2"

Voltage

120 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

2" MPT

Warranty & Certifications

Certifications

CE Standards

Warranty

10 yr for chamber, 1 yr for lamps and UV intensity monitors, 5 yr on the power supply and all electrical components


Viqua

Viqua

Viqua




The Viqua Sterilight SV50 UV System utilizes Viqua's revolutionary lamp, giving the system twice the output of current high-output systems. The system significantly reduces water temperature, and does not waste any water.

Specifications:
  • Controller offers intuitive interface w/alarm mute button, new lamp button, and UV intensity monitor w/diagnostic test.
  • Type 316 stainless steel reactor
  • Cool Touch fan reduces elevated water temperatures
  • LP HO amalgam based UV lamp has a 2 year life
  • Color coded plug and play connections
  • Easy to read LED indicators for:
    • Lamp age
    • Lamp operation
    • Ballast operation
    • Solenoid operation
    • Fan operation
    • Sensor reading
This system is compatible with the S37RL-AM Sterilight Lamp and the QS-37 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SV50 includes:
  • Sterilight Lamp (1): S37RL-AM
  • Sterilight Quartz Sleeve (1): QS-37
  • Sterilight O-Ring (1): 2233

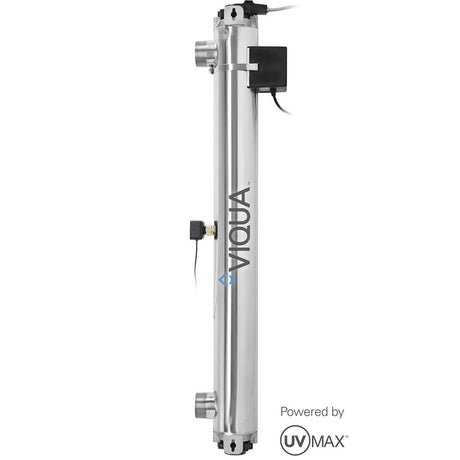

NOTE: This item is discontinued. We recommend the VIQUA UVMAX Pro50 UV Disinfection System 50 GPM 660003-R - 120 Volt as a substitute.

Weight & Dimensions

Weight (lbs)

16

Approx Length (Inches)

41"

Power Supply Dimensions

13" x 6-1/2"

Details

Max Pressure (Psi)

100

Min Pressure (Psi)

10

Ambient Temperature Range

36-104 °F

Body Material

316 Stainless Steel

Diameter

4"

Features

UV Intensity Monitor, Audible Lamp Failure

Flow Rate

50 GPM (40mJ/cm2 Dose)

Frequency

50/60 Hz

Number Of Lamps

1

Power

230 W

Size

2"

Voltage

120 V

Contaminants Reduced

Bacteria, Heavy Metals, Cysts

Inlet/Outlet Connection

2" MPT

Warranty & Certifications

Certifications

CE Standards

Warranty

10 yr for chamber, 1 yr for lamps and UV intensity monitors, 5 yr on the power supply and all electrical components
