Viqua

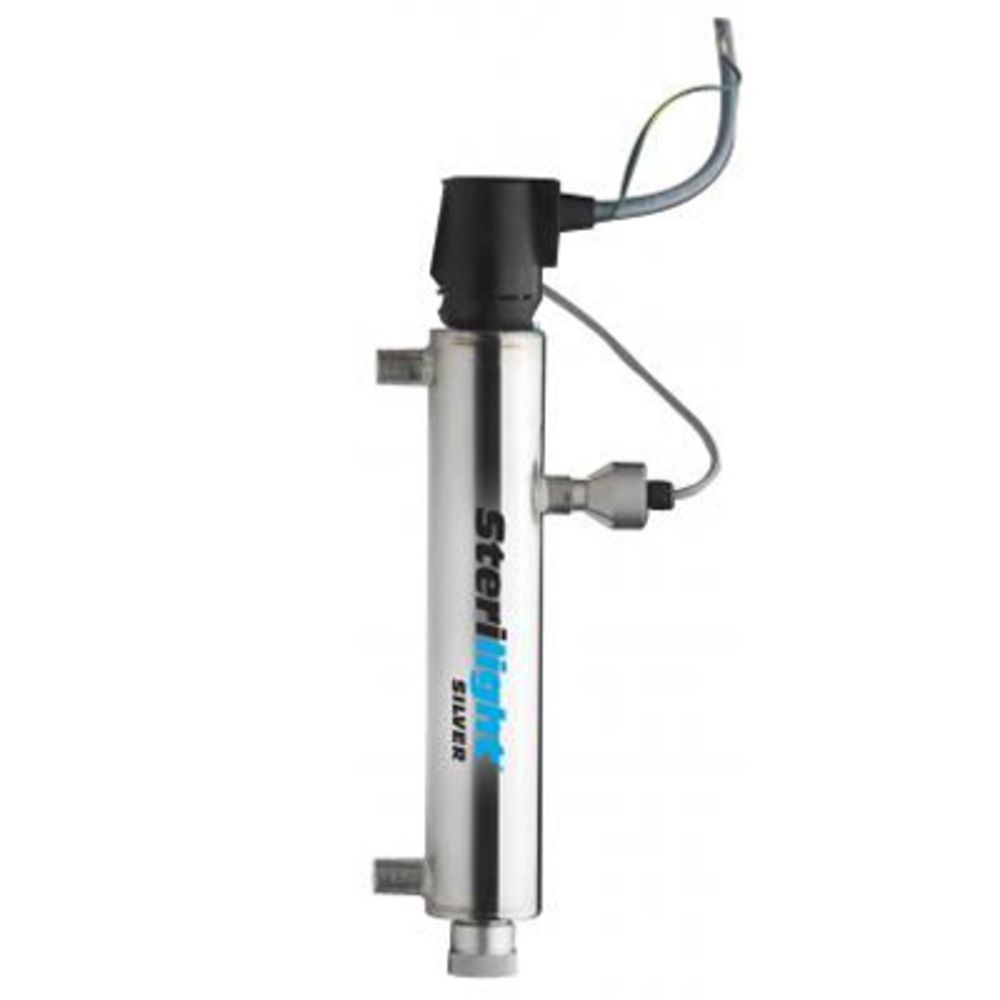

Viqua Sterilight SSM-17 Silver Plus UV System 2.9 gpm

Part Number: SSM-17

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

The Viqua Sterilight SSM-17 UV System provides point-of-use disinfection with a flow rate of 2.9 gpm. This modular system, incorporating Sterilight's new Silver Plus controller, is ideal for small POU applications such as post filtration, or as a pre or post application on a residential RO System.

Features:
  • Silver Plus controller provides constant output current and a universal power input, and also displays % UV intensity, remaining lamp life, and total days of operation
  • 254nm UV intensity monitor allows the SSM-17 to continuously monitor the system and warn you of any changes in water quality
  • A powered solenoid output allows you to hook a normally closed solenoid valve (sold separately) directly into the controller.
  • Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses
  • The SSM-17 is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with 1/4" MNPT connections
NOTE: Purchase the SSM-17 (2.9gpm) if you are looking for the SSM-14 (2.0gpm), which has been discontinued. The SSM-17 is effective for flow rates up to 2.9gpm. The reactor chamber is also 2" longer than the reactor for the SSM-14.
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.



Details

Ambient Temperature Range

36-104 °F

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Frequency

50/60 Hz

Inlet/Outlet Connection

1/2" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Power

19 W

Size

1/2"

Connection Type

Male (MPT)

Diameter

2.6"

Flow Rate

2.9 GPM (30mJ/cm2 Dose)

Type

Single UV System

Voltage

120 V

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua




The Viqua Sterilight SSM-17 UV System provides point-of-use disinfection with a flow rate of 2.9 gpm. This modular system, incorporating Sterilight's new Silver Plus controller, is ideal for small POU applications such as post filtration, or as a pre or post application on a residential RO System.

Features:
  • Silver Plus controller provides constant output current and a universal power input, and also displays % UV intensity, remaining lamp life, and total days of operation
  • 254nm UV intensity monitor allows the SSM-17 to continuously monitor the system and warn you of any changes in water quality
  • A powered solenoid output allows you to hook a normally closed solenoid valve (sold separately) directly into the controller.
  • Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses
  • The SSM-17 is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with 1/4" MNPT connections
NOTE: Purchase the SSM-17 (2.9gpm) if you are looking for the SSM-14 (2.0gpm), which has been discontinued. The SSM-17 is effective for flow rates up to 2.9gpm. The reactor chamber is also 2" longer than the reactor for the SSM-14.
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Details

Ambient Temperature Range

36-104 °F

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Frequency

50/60 Hz

Inlet/Outlet Connection

1/2" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Power

19 W

Size

1/2"

Connection Type

Male (MPT)

Diameter

2.6"

Flow Rate

2.9 GPM (30mJ/cm2 Dose)

Type

Single UV System

Voltage

120 V

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
