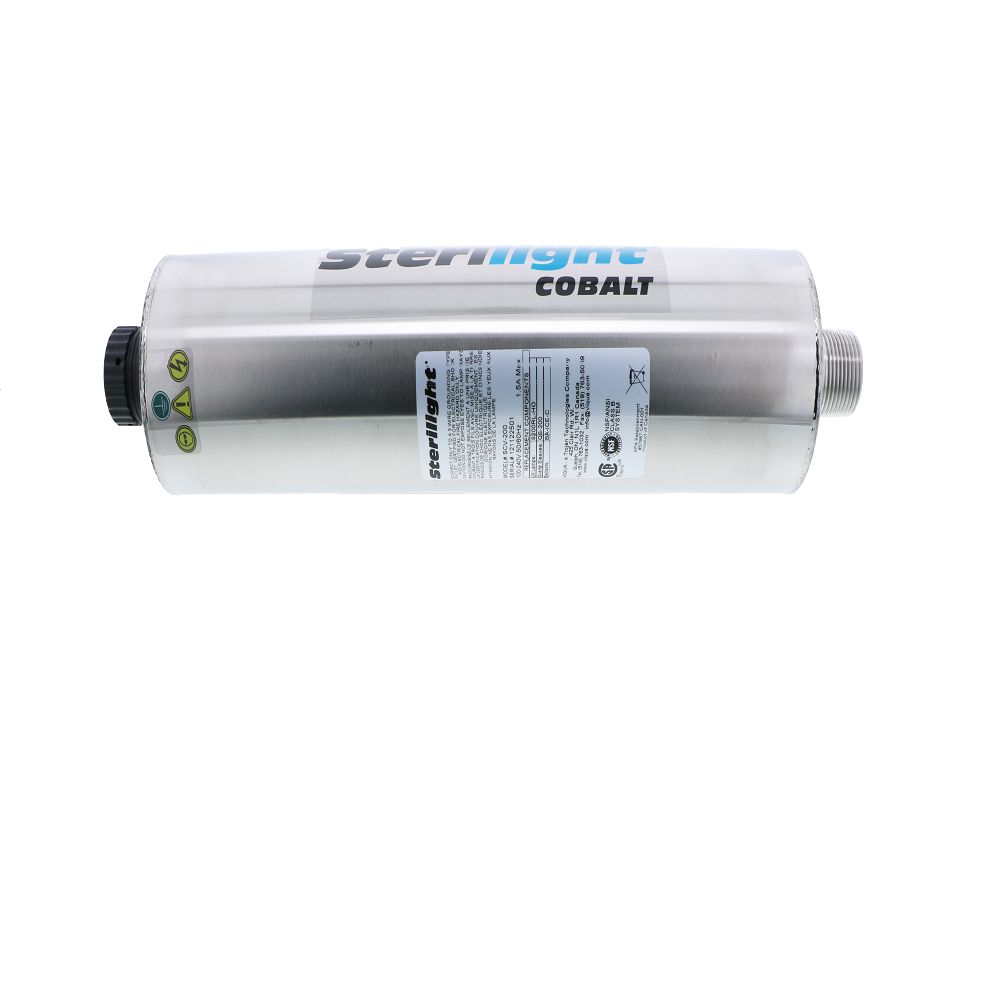

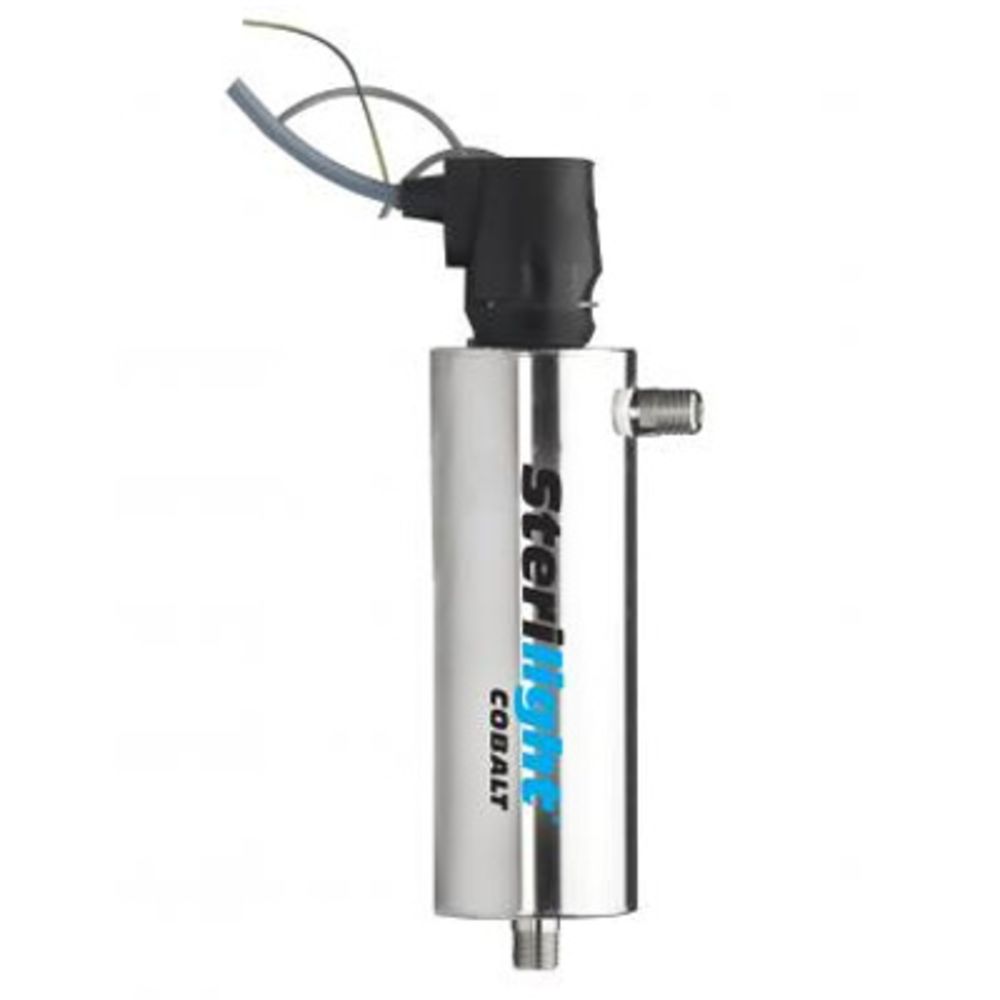

Viqua Sterilight SCV-200 Cobalt Series UV System 4.4 gpm

Part Number: SCV-200

In Stock

out of stock

In Stock

$633.25

The Viqua Sterilight SCV-200 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input.
  • Controller alerts user with alarm if UV lamp fails.
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption water flow
This system is compatible with the S200RL-HO Sterilight Lamp and the QS-200 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SCV-200 includes:

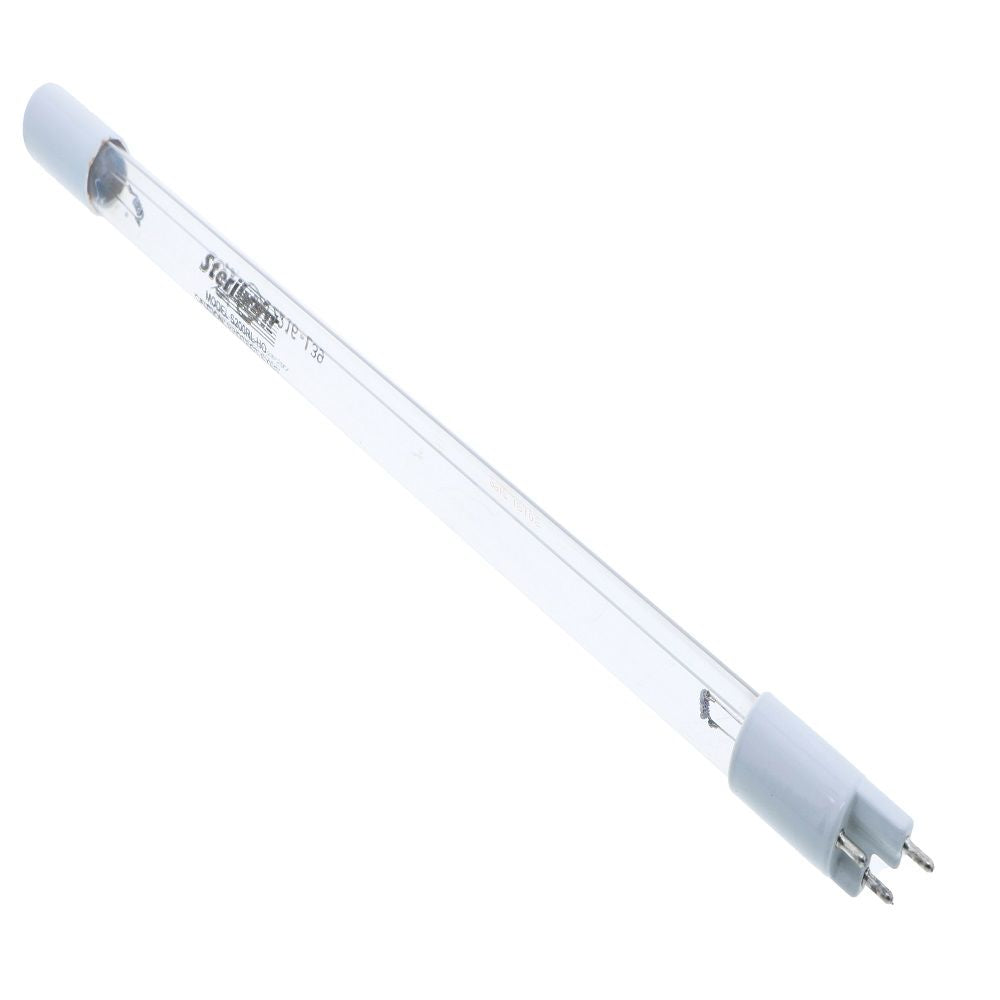

  • Sterilight Lamp (1): S200RL-HO
  • Sterilight Quartz Sleeve (1): QS-200
  • Sterilight O-Ring (1): 410867




Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

Audible Lamp Failure, Visual Power On

Flow Rate

4.4 GPM (16mJ/cm2 Dose)

Power

35 W

Size

3/4", 1"

Voltage

120 V

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
