Viqua

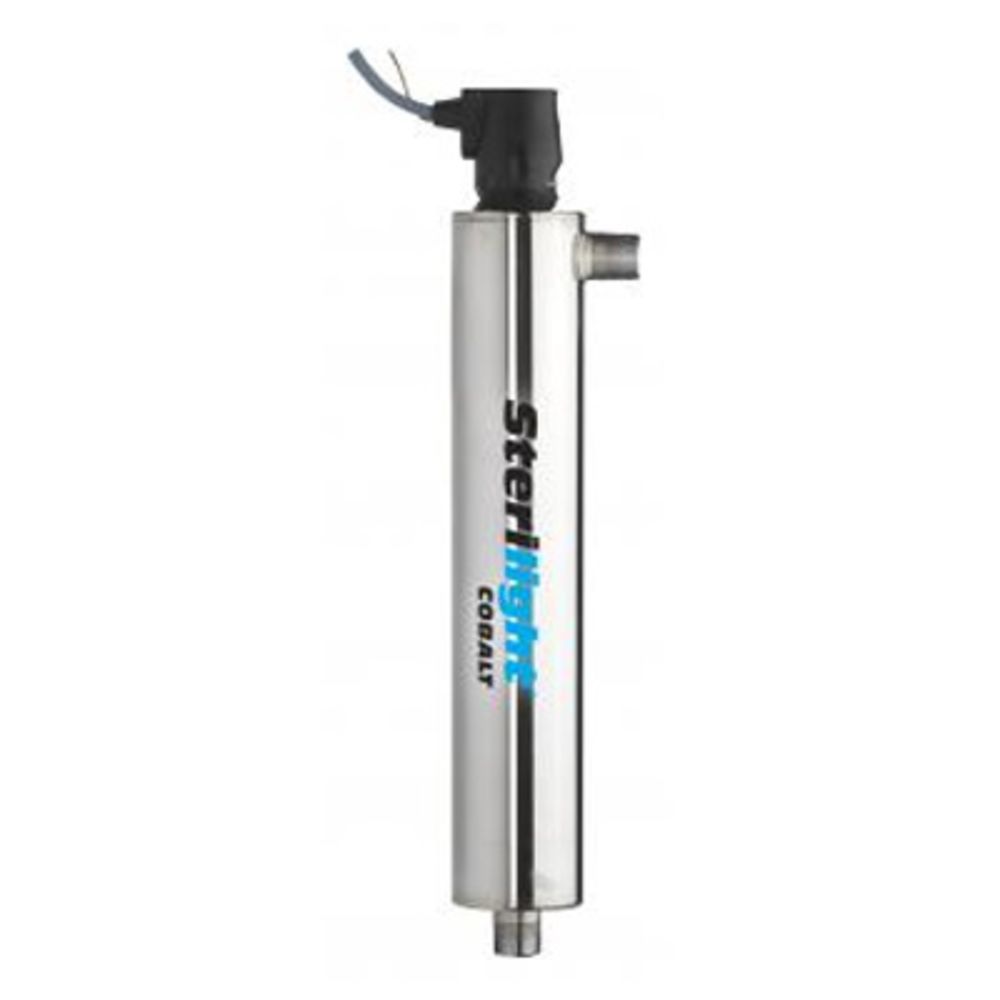

Viqua Sterilight SC-320 Cobalt Series UV System 13 gpm

Part Number: SC-320

In Stock

out of stock

In Stock

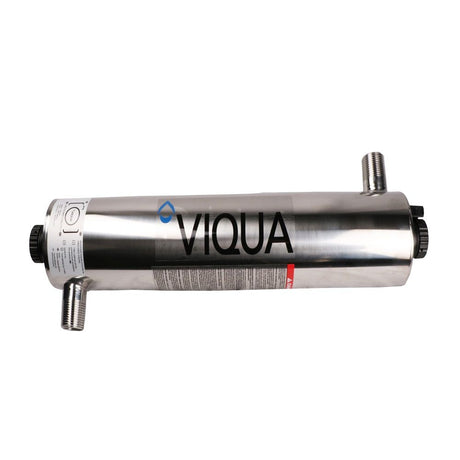

This item is discontinued. We recommend the Viqua VH410 Cobalt Series UV System Powered By Sterilight 18gpm as a substitute.

The Viqua Sterilight SC-320 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.


Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input.
  • Controller alerts user with alarm if UV lamp fails.
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space.
  • Lamp can be changed without interruption water flow.
This system is compatible with the S320RL-HO Sterilight Lamp and the QS-320 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SC-320 includes:
  • Sterilight Lamp (1): S320RL-HO
  • Sterilight Quartz Sleeve (1): QS-320
  • Sterilight O-Ring (1): 410867




Weight & Dimensions

Weight (lbs)

15

Approx Length (Inches)

22.8"

Power Supply Dimensions

9.4"x3.2"x2-1/2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

Audible Lamp Failure, Visual Power On

Flow Rate

13 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

42 W

Size

1"

Voltage

120 V

Inlet/Outlet Connection

1" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua




The Viqua Sterilight SC-320 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.


Features:
  • Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input.
  • Controller alerts user with alarm if UV lamp fails.
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space.
  • Lamp can be changed without interruption water flow.
This system is compatible with the S320RL-HO Sterilight Lamp and the QS-320 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SC-320 includes:
  • Sterilight Lamp (1): S320RL-HO
  • Sterilight Quartz Sleeve (1): QS-320
  • Sterilight O-Ring (1): 410867



NOTE: This item is discontinued. We recommend the Viqua VH410 Cobalt Series UV System Powered By Sterilight 18gpm as a substitute.

Weight & Dimensions

Weight (lbs)

15

Approx Length (Inches)

22.8"

Power Supply Dimensions

9.4"x3.2"x2-1/2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

Audible Lamp Failure, Visual Power On

Flow Rate

13 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

42 W

Size

1"

Voltage

120 V

Inlet/Outlet Connection

1" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
