Viqua

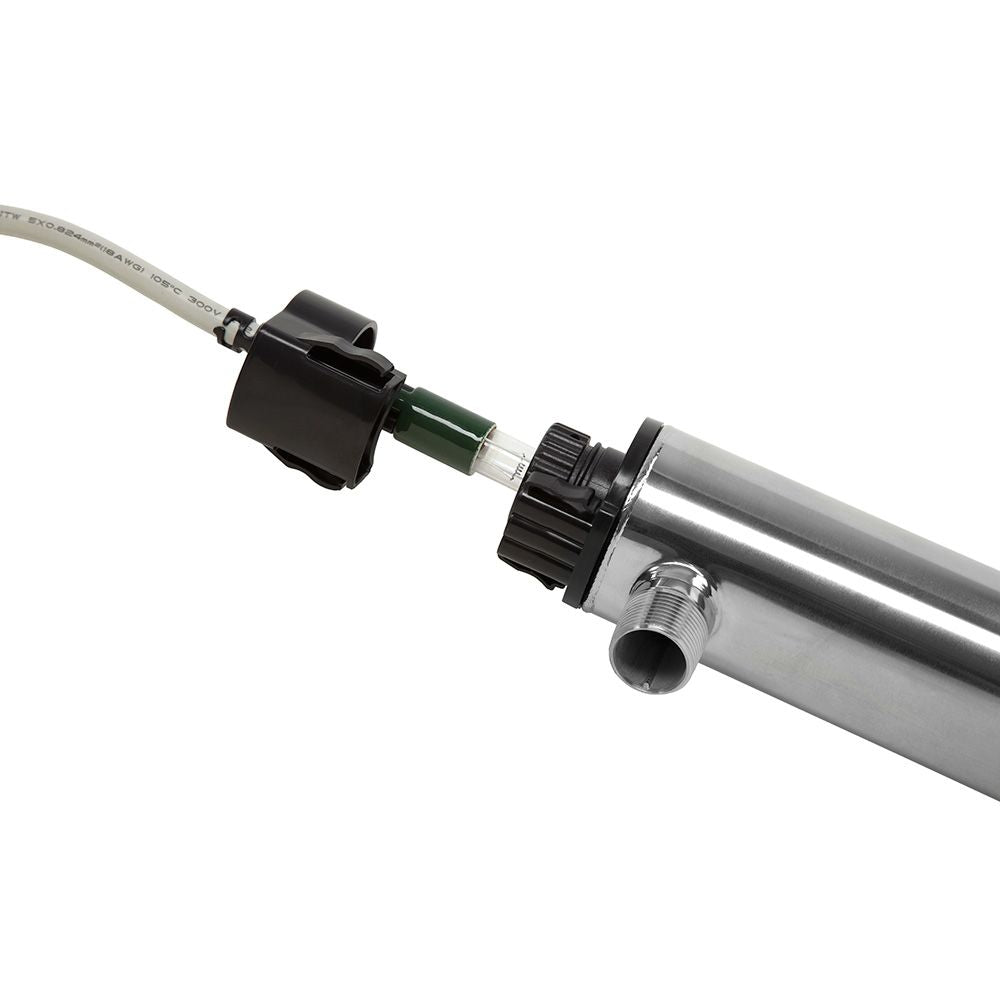

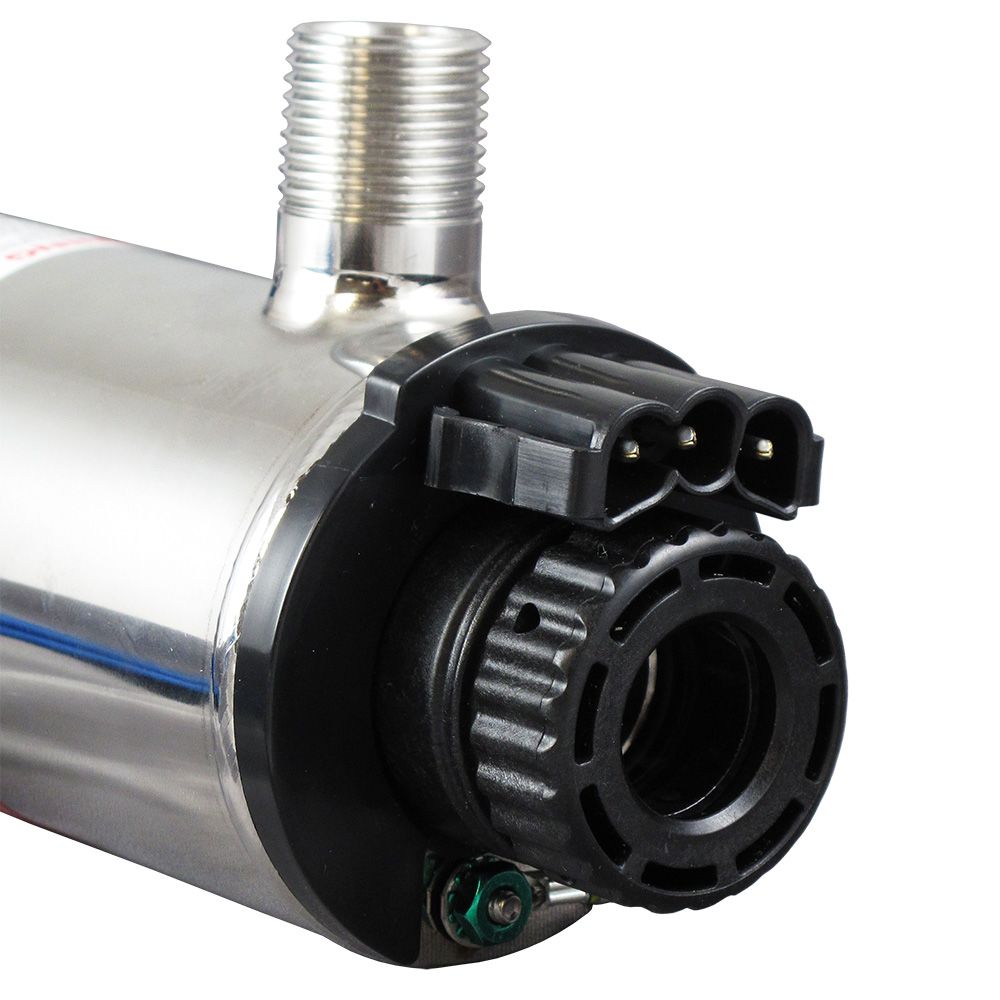

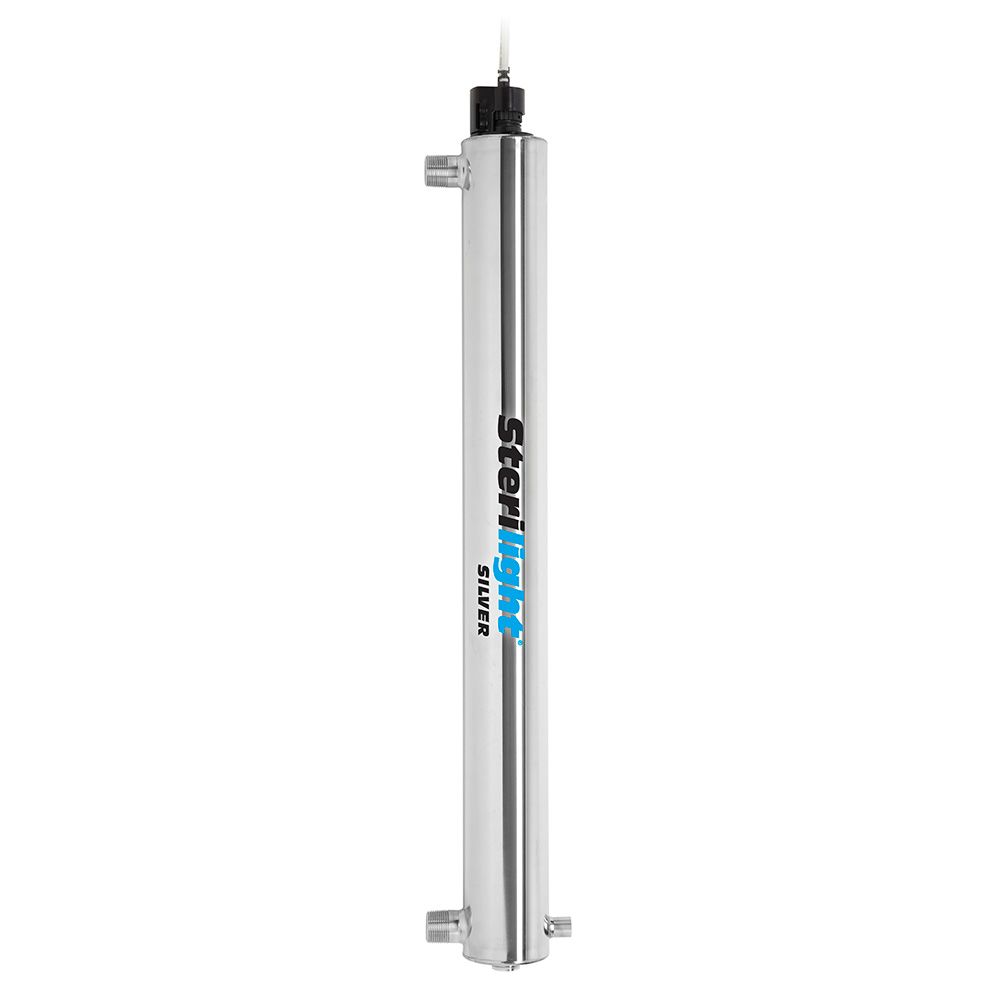

Viqua Sterilight S12Q-PA Silver Series UV System 15 gpm

Part Number: S12Q-PA

In Stock

out of stock

In Stock

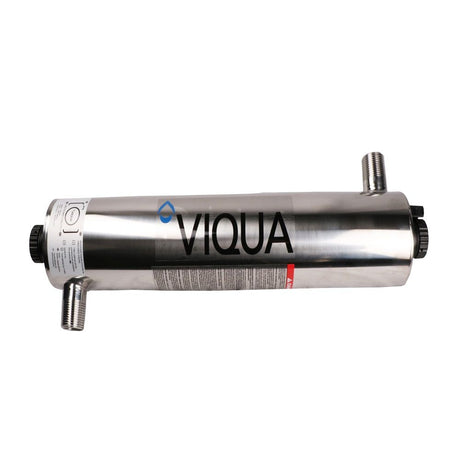

This item is discontinued. We recommend the Viqua VH410 Cobalt Series UV System Powered By Sterilight 18gpm as a substitute.

The Viqua Sterilight S12Q-PA Silver Series UV System is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water.
Features:

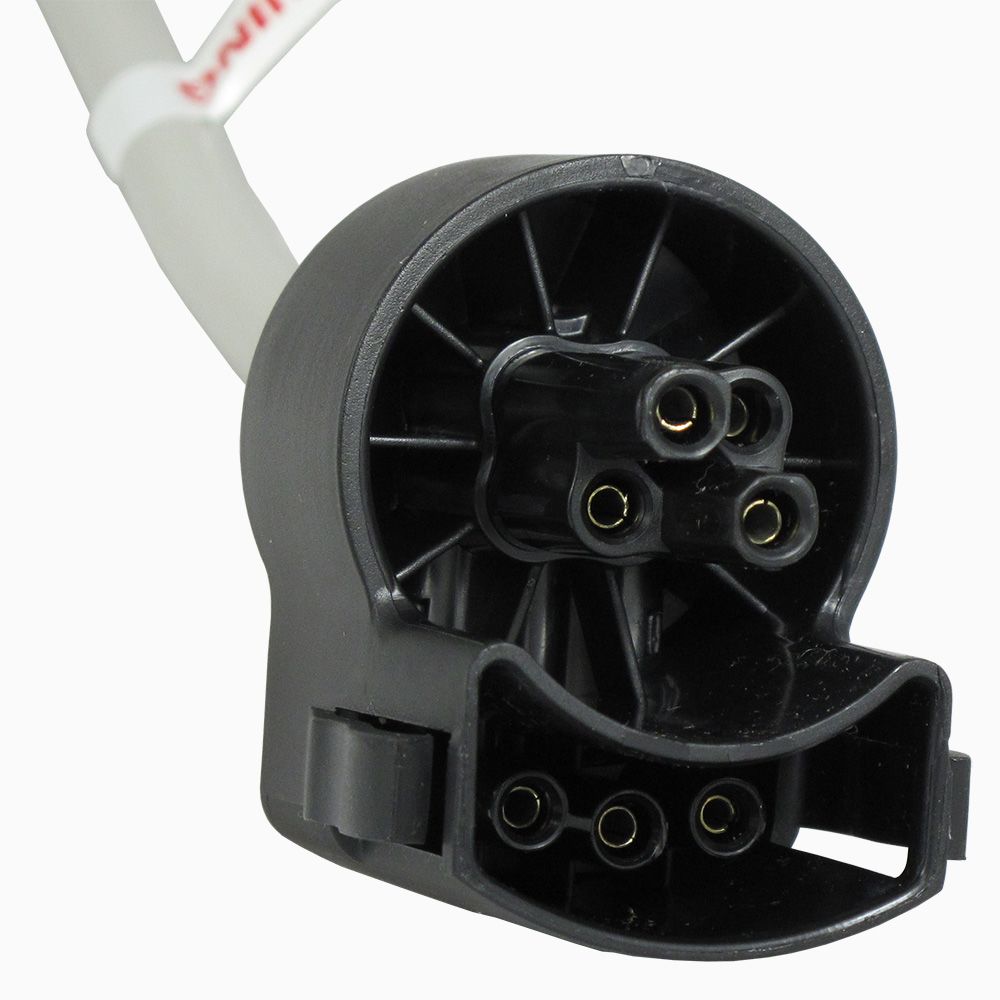

  • Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
  • Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
  • Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
  • 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
  • Hard glass, low pressure mercury vapour lamps with high isolation pin design
  • Natures way to protect your water without the addition of harmful chemicals
  • Easy servicing - no need to disconnect water flow to change UV lamp
  • Seven year warranty on reactor chamber for unparalleled protection
  • Includes mounting clamp
  • CSA and CE compliant




Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

Visual Power On

Flow Rate

15.1 GPM (30mJ/cm2 Dose), 11.1 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50/60 Hz

Power

48 W

Size

3/4", 1"

Voltage

120 V

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Viqua

Viqua




The Viqua Sterilight S12Q-PA Silver Series UV System is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water.
Features:
  • Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
  • Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
  • Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
  • 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
  • Hard glass, low pressure mercury vapour lamps with high isolation pin design
  • Natures way to protect your water without the addition of harmful chemicals
  • Easy servicing - no need to disconnect water flow to change UV lamp
  • Seven year warranty on reactor chamber for unparalleled protection
  • Includes mounting clamp
  • CSA and CE compliant



NOTE: This item is discontinued. We recommend the Viqua VH410 Cobalt Series UV System Powered By Sterilight 18gpm as a substitute.

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

Visual Power On

Flow Rate

15.1 GPM (30mJ/cm2 Dose), 11.1 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50/60 Hz

Power

48 W

Size

3/4", 1"

Voltage

120 V

Inlet/Outlet Connection

3/4" FPT, 1" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
