Viqua

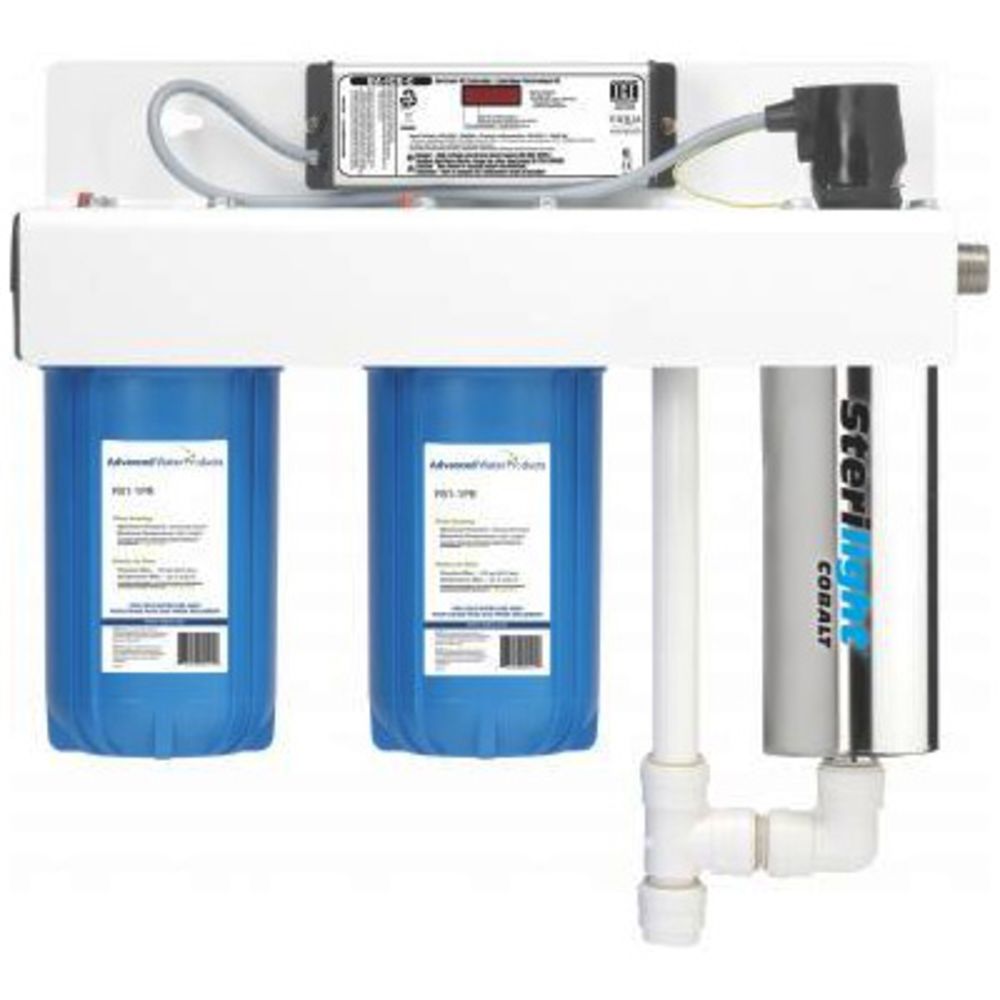

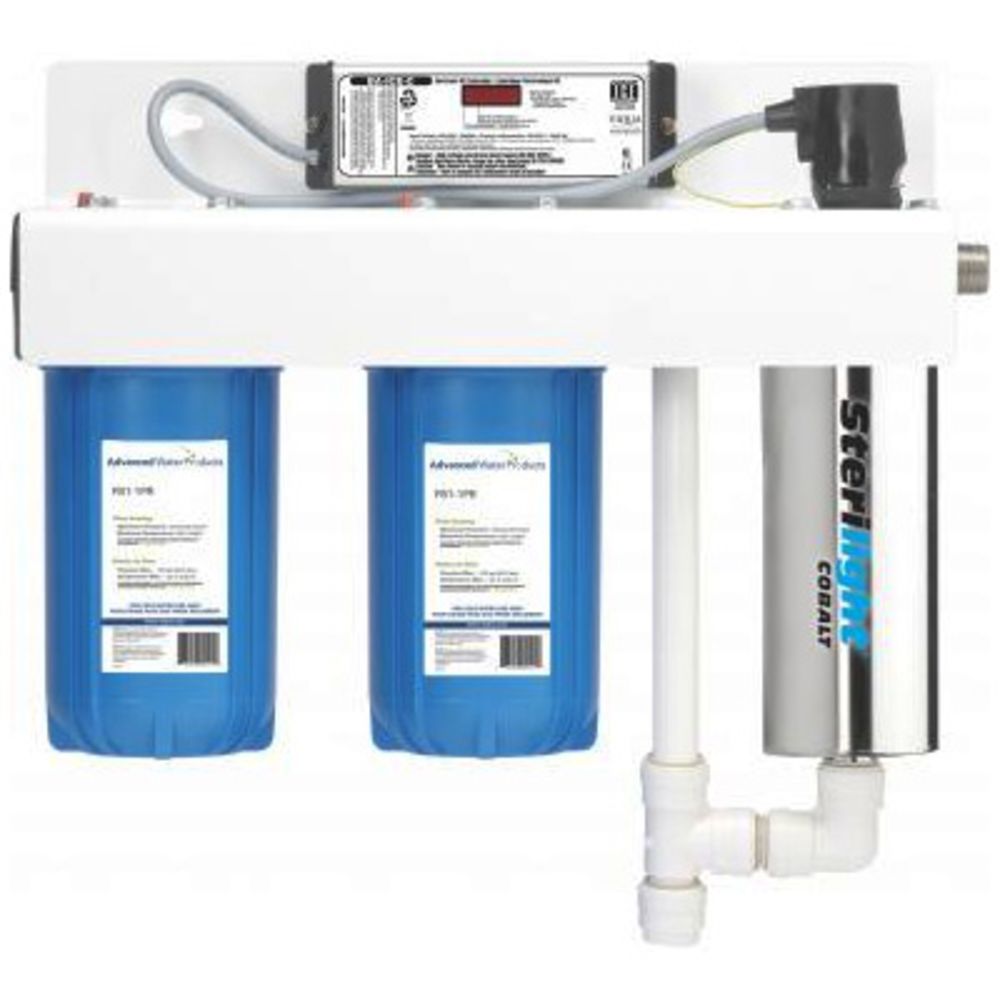

Viqua Sterilight Cobalt SC200-DWS11 Drinking Water System 8 gpm w/Basic Controller

Part Number: SC200-DWS11

In Stock

out of stock

In Stock

$738.22


The Viqua Sterilight Cobalt™ SC200-DWS11 system provides a point-of-entry water treatment system with both disinfection and filtration. The SC200-DWS11 is ideal for POE applications such as a whole home or cottage that require a high flow rate.

Features:
  • Sterilight Cobalt comes complete with a 1" FNPT inlet connection and a unique combination port (3/4" FNPT & 1" MNPT) on the outlet connection.
  • This compact unit incorporates Sterilight's Cobalt™ disinfection system and two filter housings, all on the same installation bracket.
  • The Viqua Sterilight SC-200 provides point-of-entry disinfection with a flow rate of 8 gpm (30.3 lpm) at a 30 mJ/cm² dose (6 gpm (22.7 lpm) if a dose of 40 mJ/cm² is required.)
  • This modular system, incorporating the new Cobalt™ controller, is ideal for any application requiring a high flow rate in a compact space.
  • The new Cobalt™ "PLUS" controller providing constant output current and a universal power input (100-240V./50-60Hz.), as well as visually displaying % UV output, remaining lamp life and total days of operation.
  • Sterilight Cobalt Systems are packaged in a water-tight case and come fully CSA and CE compliant.
  • The SC-200 is manufactured with a polished, 304 stainless steel axial flow reactor.
  • Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor and the overmoulded connector can be removed without any additional tools.
NOTE: This system is sold without filter cartridges. One of the two filter housings can be used for a 5 micron sediment reduction, while the second can hold a carbon filter for taste and odor reduction. The filtration portion of the SC200-DWS11 preceeds the disinfection unit.
Kit Includes:
This system is compatible with the S200RL-HO Sterilight Lamp and the QS-200 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SC200-DWS11 includes:
  • Sterilight Lamp (1): S200RL-HO
  • Sterilight Quartz Sleeve (1): QS-200
  • Sterilight O-Ring (1): 410867


Weight & Dimensions

Approx Length (Inches)

17.8 Inches

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

3.5 Inches

Features

Audible Lamp Failure; Visual Power On

Flow Rate

8 Gallons Per Minute (30mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/4" FPT, 1" MPT Combo

Number Of Lamps

1

Operating Pressure Range

14.5-125 PSI

Power

35 Watts

Type

UVC

Voltage

120 V

Warranty & Certifications

Warranty

1 year


Viqua

Viqua





The Viqua Sterilight Cobalt™ SC200-DWS11 system provides a point-of-entry water treatment system with both disinfection and filtration. The SC200-DWS11 is ideal for POE applications such as a whole home or cottage that require a high flow rate.

Features:
  • Sterilight Cobalt comes complete with a 1" FNPT inlet connection and a unique combination port (3/4" FNPT & 1" MNPT) on the outlet connection.
  • This compact unit incorporates Sterilight's Cobalt™ disinfection system and two filter housings, all on the same installation bracket.
  • The Viqua Sterilight SC-200 provides point-of-entry disinfection with a flow rate of 8 gpm (30.3 lpm) at a 30 mJ/cm² dose (6 gpm (22.7 lpm) if a dose of 40 mJ/cm² is required.)
  • This modular system, incorporating the new Cobalt™ controller, is ideal for any application requiring a high flow rate in a compact space.
  • The new Cobalt™ "PLUS" controller providing constant output current and a universal power input (100-240V./50-60Hz.), as well as visually displaying % UV output, remaining lamp life and total days of operation.
  • Sterilight Cobalt Systems are packaged in a water-tight case and come fully CSA and CE compliant.
  • The SC-200 is manufactured with a polished, 304 stainless steel axial flow reactor.
  • Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor and the overmoulded connector can be removed without any additional tools.
NOTE: This system is sold without filter cartridges. One of the two filter housings can be used for a 5 micron sediment reduction, while the second can hold a carbon filter for taste and odor reduction. The filtration portion of the SC200-DWS11 preceeds the disinfection unit.
Kit Includes:
This system is compatible with the S200RL-HO Sterilight Lamp and the QS-200 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for SC200-DWS11 includes:
  • Sterilight Lamp (1): S200RL-HO
  • Sterilight Quartz Sleeve (1): QS-200
  • Sterilight O-Ring (1): 410867

Weight & Dimensions

Approx Length (Inches)

17.8 Inches

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

3.5 Inches

Features

Audible Lamp Failure; Visual Power On

Flow Rate

8 Gallons Per Minute (30mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet/Outlet Size

3/4" FPT, 1" MPT Combo

Number Of Lamps

1

Operating Pressure Range

14.5-125 PSI

Power

35 Watts

Type

UVC

Voltage

120 V

Warranty & Certifications

Warranty

1 year
