Specifications:
- Flow Rate: 143 gpm
- Reactor Dimensions: 34" x 6" x 14"
- Controller Dimensions: 17.5" x 19.55" x 8.14"
- Separate control panel with power isolation
- Houses 4 lamps
- Lamp replacement reminder
- Visual "Power-On"
- Chamber constructed of 316SS
Notes:
* For any necessary replacements parts, this system is compatible with the SHO740/4C-RL Sterilight Lamp, the QS-012 Sterilight Quartz Sleeve and the 410867 Sterilight O-Ring.
** 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.
Details
Ambient Temperature Range | 36-104 °F |
Body Material | 316 Stainless Steel |
Features | Audible Lamp Failure, Visual Power On |
Inlet/Outlet Connection | 3" Flange |
Number Of Lamps | 4 |
Power | 350 W |
Size | 3" |
System Class | Commercial Systems |
Connection Type | Flange |
Contaminants Reduced | Bacteria, Heavy Metals, Cysts |
Flow Rate | 268 GPM (16mJ/cm2 Dose), 143 GPM (30mJ/cm2 Dose), 107 GPM (40mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 120 V |

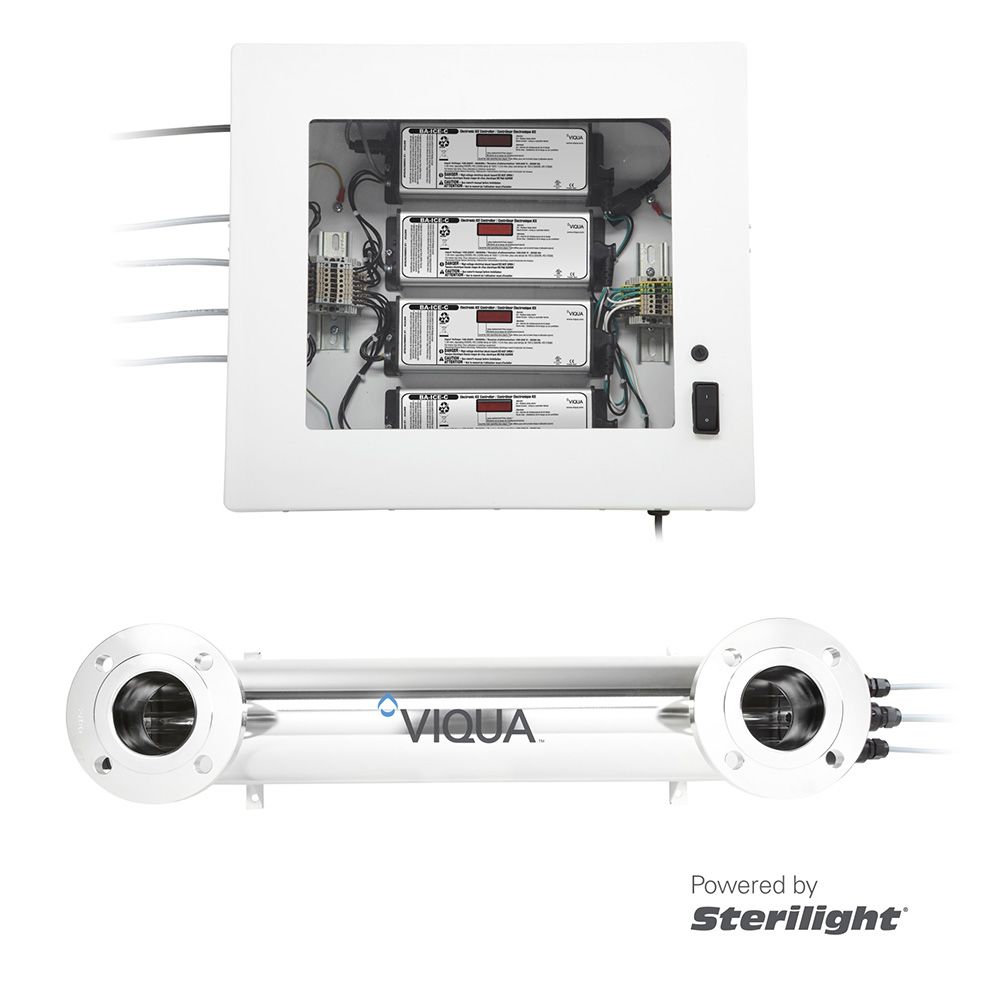

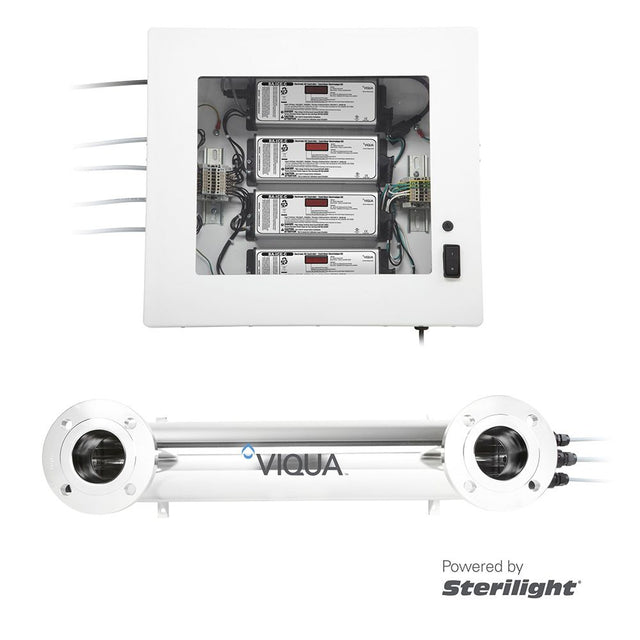

The Viqua SHF-140 HF Series High Flow UV System is designed to disinfect water at a high flow rate. The SHF-140 is manufactured with a high-quality stainless steel chamber and houses four UV lamps, which provide consistent output for the lamp life of 9000 hours. HF Series Systems come complete with a separate control panel with power isolation, and has a visual countdown display as well as audible reminders to change the lamp.
Specifications:
- Flow Rate: 143 gpm
- Reactor Dimensions: 34" x 6" x 14"
- Controller Dimensions: 17.5" x 19.55" x 8.14"
- Separate control panel with power isolation
- Houses 4 lamps
- Lamp replacement reminder
- Visual "Power-On"
- Chamber constructed of 316SS
Notes:
* For any necessary replacements parts, this system is compatible with the SHO740/4C-RL Sterilight Lamp, the QS-012 Sterilight Quartz Sleeve and the 410867 Sterilight O-Ring.
** 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.
Details
Ambient Temperature Range | 36-104 °F |
Body Material | 316 Stainless Steel |
Features | Audible Lamp Failure, Visual Power On |
Inlet/Outlet Connection | 3" Flange |
Number Of Lamps | 4 |
Power | 350 W |
Size | 3" |
System Class | Commercial Systems |
Connection Type | Flange |
Contaminants Reduced | Bacteria, Heavy Metals, Cysts |
Flow Rate | 268 GPM (16mJ/cm2 Dose), 143 GPM (30mJ/cm2 Dose), 107 GPM (40mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 120 V |
