Viqua

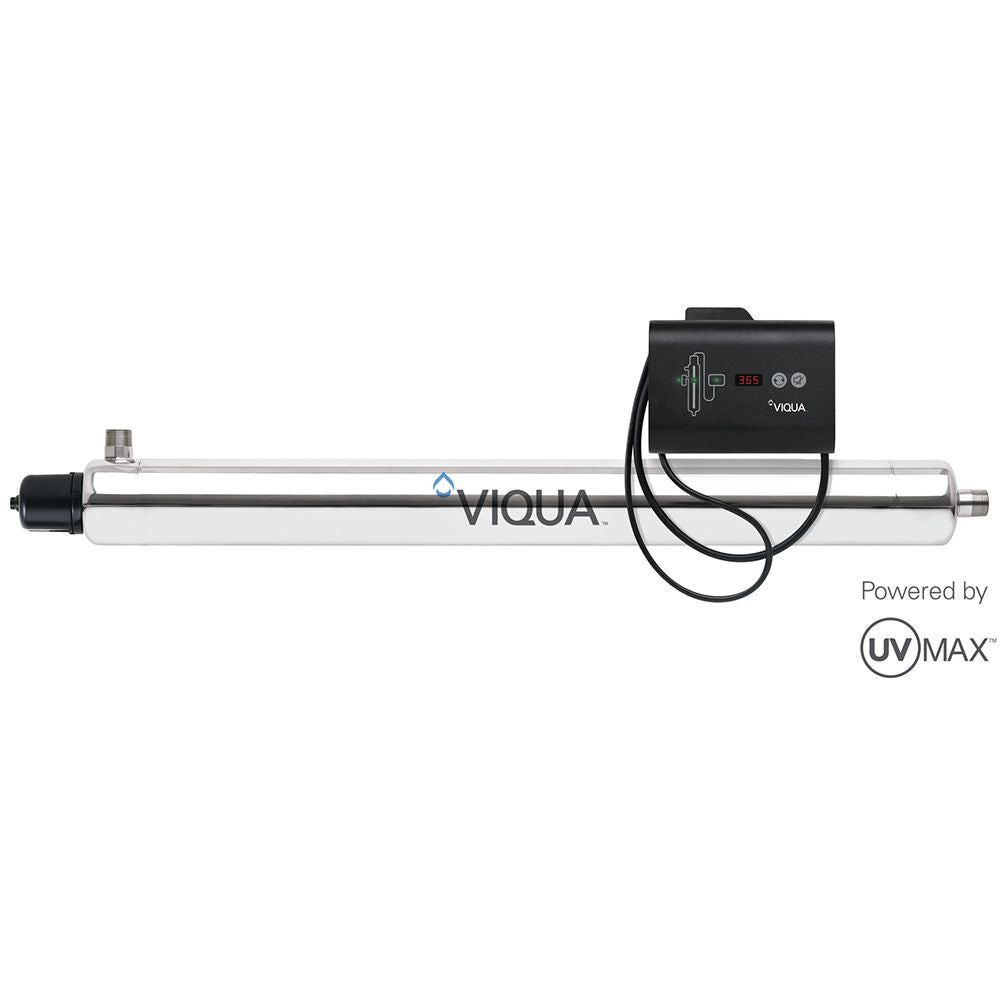

Viqua F4-V NSF Class B UV System Powered by UVMax 26 gpm

Part Number: 660041-R

In Stock

out of stock

In Stock

$1,269.00


Viqua F4-V ultraviolet water system is a whole house disinfection system with a 26 gpm flow rate. The F4-V is designed to remove harmful bacteria, virus, and microorganisms. The Viqua's simple installation, compact design, and low cost of operation is ideal for small to medium size home. Drink confidently with Viqua's quality and reliability from its 26 gpm high-output ultraviolet water purification system.

Features:
  • Viqua controller with water-resistant case
  • LED display showing lamp replacement reminder
  • Indicator lights show the status of each system component
  • Lamp timer reset button and mute button to silence audio alarm
  • Stainless steel chamber with safety cap and special lamp plug
  • Universal power input
  • High-output UV lamp
  • Three Year Warranty
  • Tested and certified by NSF International against NSF/ANSI Standard 55 for Disinfection Performance, Class B
NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications. Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
This system is compatible with the 602807 Trojan Lamp and the 602734 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for F4-V includes:
  • Trojan Lamp (1): 602807
  • Trojan Quartz Sleeve (1): 602734
  • Trojan O-Rings (2): 2045


Weight & Dimensions

Approx Length (Inches)

44.25 Inches

Details

Ambient Temperature Range

32-122 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

4 Inches

Flow Rate

26.1 Gallons Per Minute (16mJ/cm2 Dose)

Inlet/Outlet Size

1" MPT

Number Of Lamps

1

Operating Pressure Range

125 PSI

Power

130 Watts

Type

UVC

Voltage

120 V

Warranty & Certifications

Certifications

CE Standards; NSF/ANSI Standard 55, Class B

Warranty

3 yr on power supply and electrical compnents, 10 yrs on UV chamber, 1 yr on lamps and sensors
