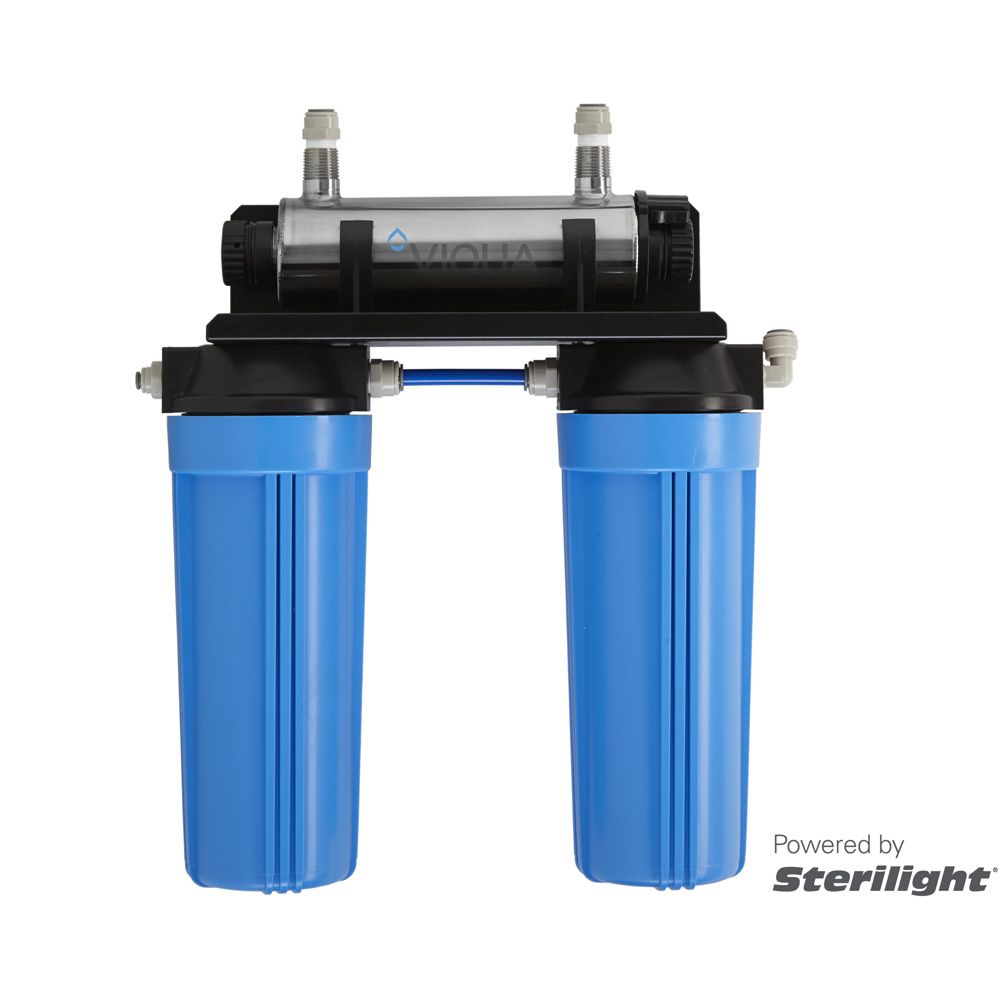

Viqua Copper Series VT1-DWS UV Drinking Water System Powered By Sterilight 1 gpm

Part Number: VT1-DWS

In Stock

out of stock

In Stock

$319.00


The Viqua Copper Series VT1-DWS Ultraviolet Drinking Water System provides a point-of-use water treatment system with both disinfection and filtration. The VT1-DWS is ideal for point of use applications such as under the sink, in a basement or other locations, depending on available space.
Specifications:
  • Inlet Connection: 1/4" quick connect
  • Outlet Connection: 3/8" quick connect
  • This compact unit incorporates Viqua Copper disinfection system and two filter housings, all on the same installation bracket
  • The Viqua VT1 provides point-of-use disinfection with a flow rate of 1 gpm at a 30 mJ/cm² dose (0.7 gpm if a dose of 40 mJ/cm² is required.)
  • This modular system, incorporating the new Copper controller, is ideal for any application requiring a high flow rate in a compact space
  • The VT-1 is manufactured with a polished, 304 stainless steel axial flow reactor
  • Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor and the  connector can be removed without any additional tools

This system is compatible with the S212RL Sterilight Lamp and the QS-212 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VT1-DWS includes:
  • Sterilight Lamp (1): S212RL
  • Sterilight Quartz Sleeve (1): QS-212
  • Sterilight O-Rings (2): 410867


NOTE: 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.


Weight & Dimensions

Approx Length (Inches)

12.5 Inches

Dimensions

15" x 17" x 16" inches

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

2.5 Inches

Features

Visual Power On

Flow Rate

2 Gallons Per Minute (16mJ/cm2 Dose); 1 Gallons Per Minute (30mJ/cm2 Dose); 0.7 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet Size

1/4" quick connect

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Outlet Size

3/8" quick connect Inches

Power

13 Watts

Type

Sterilume - EX (UVC)

Voltage

100-240 V


Viqua

Viqua





The Viqua Copper Series VT1-DWS Ultraviolet Drinking Water System provides a point-of-use water treatment system with both disinfection and filtration. The VT1-DWS is ideal for point of use applications such as under the sink, in a basement or other locations, depending on available space.
Specifications:
  • Inlet Connection: 1/4" quick connect
  • Outlet Connection: 3/8" quick connect
  • This compact unit incorporates Viqua Copper disinfection system and two filter housings, all on the same installation bracket
  • The Viqua VT1 provides point-of-use disinfection with a flow rate of 1 gpm at a 30 mJ/cm² dose (0.7 gpm if a dose of 40 mJ/cm² is required.)
  • This modular system, incorporating the new Copper controller, is ideal for any application requiring a high flow rate in a compact space
  • The VT-1 is manufactured with a polished, 304 stainless steel axial flow reactor
  • Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor and the  connector can be removed without any additional tools

This system is compatible with the S212RL Sterilight Lamp and the QS-212 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VT1-DWS includes:
  • Sterilight Lamp (1): S212RL
  • Sterilight Quartz Sleeve (1): QS-212
  • Sterilight O-Rings (2): 410867


NOTE: 230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.

Weight & Dimensions

Approx Length (Inches)

12.5 Inches

Dimensions

15" x 17" x 16" inches

Details

Ambient Temperature Range

36-104 Degrees Fahrenheit

Body Material

304 Stainless Steel Reactor

Diameter

2.5 Inches

Features

Visual Power On

Flow Rate

2 Gallons Per Minute (16mJ/cm2 Dose); 1 Gallons Per Minute (30mJ/cm2 Dose); 0.7 Gallons Per Minute (40mJ/cm2 Dose)

Frequency

50-60 Hz

Inlet Size

1/4" quick connect

Number Of Lamps

1

Operating Pressure Range

125 max PSI

Outlet Size

3/8" quick connect Inches

Power

13 Watts

Type

Sterilume - EX (UVC)

Voltage

100-240 V
