Veolia Osmonics Desal PW4040F30 10-25 GFD RO Membrane Element Fiberglass

Part Number: 3050051 Alt. Part Number: PW4040F30, PW4040FM

Veolia Osmonics Desal PW4040F30 10-25 GFD RO Membrane Element Fiberglass

Part Number: 3050051 Alt. Part Number: PW4040F30, PW4040FM
Regular price $905.15

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Veolia Osmonics Desal P-Series is a family of ultrafiltration polyethersulfone ultrafiltration membrane elements that are characterized by a molecular weight cut-off of 10,000, and over 96% rejection of Cytochrome-C (13,300 MW protein). PW Elements are used for the pretreatment of process water, post-treatment of ultrapure water, and organics removal.

Specifications:
  • For post treatment of RO and NF
  • Male End Connections
  • Operating Flux: 10-25 GFD
  • Dimensions: 3.9" x 40"
  • Fiberglass Outer Wrap
  • Feed Spacers: 30 mil

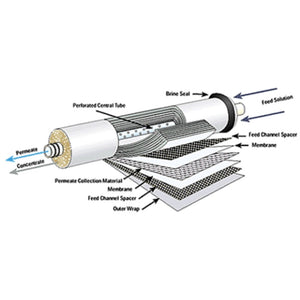

Element Membrane Diagram (not the encapsulated model):

Specifications

    Product Details

    Active Area

    79 sq. ft.

    Chlorine Tolerance

    5000 ppm-hrs

    Cleaning Ph Range

    2-11.5

    Direction

    Outside - In

    Inlet Pressure

    80-135 PSI

    Inner/Outer Wraps

    Fiberglass

    Max Pressure Drop

    12 PSI Differential

    Max Pressure (Psi)

    200psi

    Max Temp (°F)

    122°F

    Membrane Type

    Spiral Wound

    Permeate Tube Diameter

    3/4"

    Ph Range

    4.0-11.0

    Cartridge Style

    Drop-in

    Diameter

    3.9"

    Shipping Dimensions

    Shipping Length

    44.5 in.

    Shipping Width

    5.25 in.

    Shipping Height

    5.5 in.

    Product Weight & Dimensions

    Product Height

    5.5 in.

    Product Length

    44.5 in.

    Product Width

    5.25 in.

    Product Weight (lbs)

    9.7

Downloads

Veolia Osmonics Desal PW4040F30 10-25 GFD RO Membrane Element Fiberglass Manual
