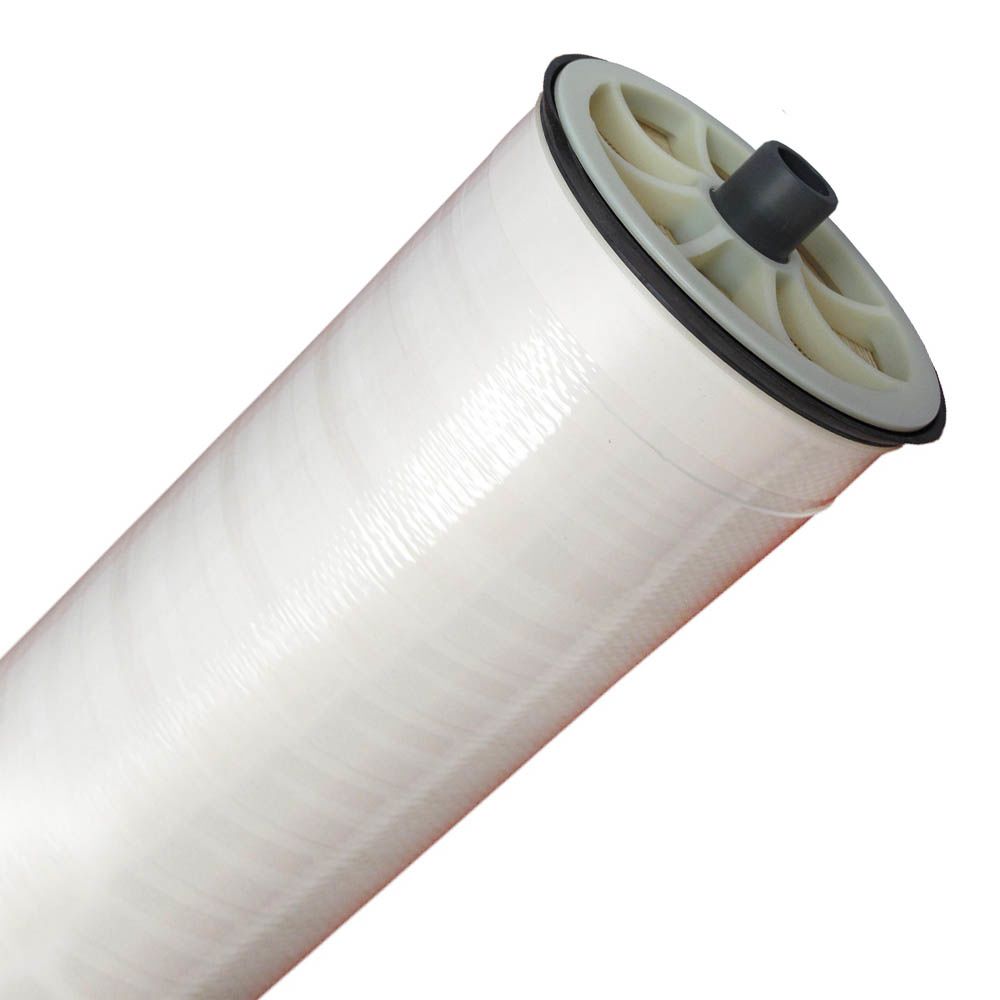

Veolia Osmonics Desal HL4040FM 2400 GPD RO Membrane Element Fiberglass

The Veolia Osmonics Desal HL-Series proprietary thin-film nanofiltration membrane elements are characterized by an approximate molecular weight cut-off of 150-300 daltons for uncharged organic molecules. Divalent and multivalent ion rejection is dependent upon feed concentration and composition. HL Nanofiltration Elements are used for water softening, color removal, and reduction of THM formation potential.

Specifications:

Thin-Film Reverse Osmosis Membrane Element
Flow Rate: 2,400 GPD
Dimensions: 3.9" x 40"
Fiberglass Outer Wrap
Feed OD: 0.75"

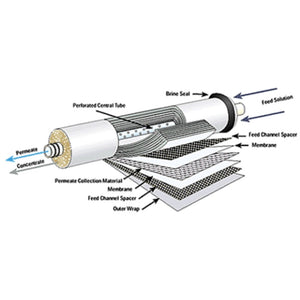

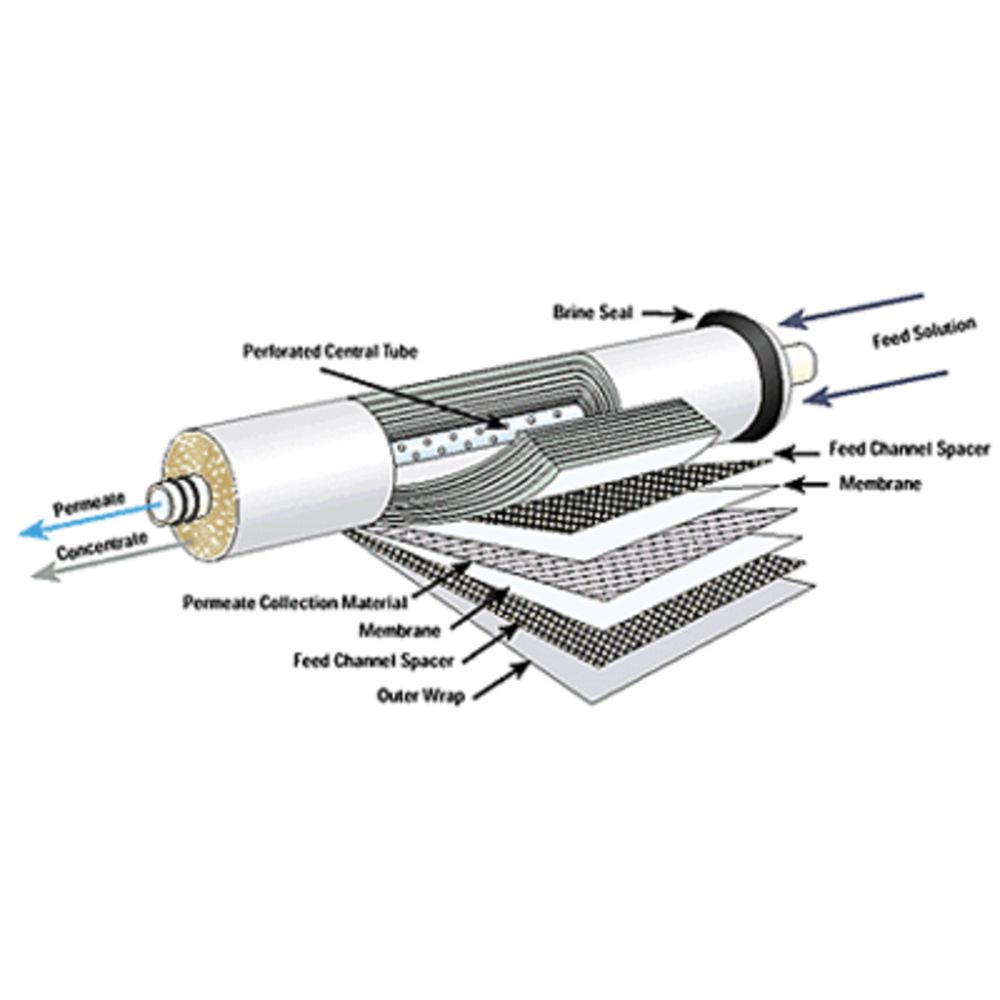

Element Membrane Diagram (not the encapsulated model):

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	89 sq. ft.
Chlorine Tolerance	1,000 ppm-hrs
Cleaning Ph Range	2-10.5
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	70-300 PSI
Inner/Outer Wraps	Fiberglass
Max Feed Silt Density Index	<5 SDI Silt Density Index
Max Feed Water Turbidity	<1 Nephelometric Turbidity Units
Max Pressure Drop	12 PSI Differential
Max Pressure (Psi)	450psi
Max Temp (°F)	122 °F
Membrane Type	Spiral Wound
Permeate Flow Rate	2,400 gpd (9.1)
Permeate Tube Diameter	3/4"
Ph Range	3.0-9.0
Recovery Rate	0.15
Cartridge Style	Drop-in
Diameter	3.9"
Shipping Dimensions
Shipping Length	44.25 in.
Shipping Width	5.25 in.
Shipping Height	5.5 in.
Product Weight & Dimensions
Product Height	5
Product Length	43
Product Width	5
Product Weight (lbs)	8.534
