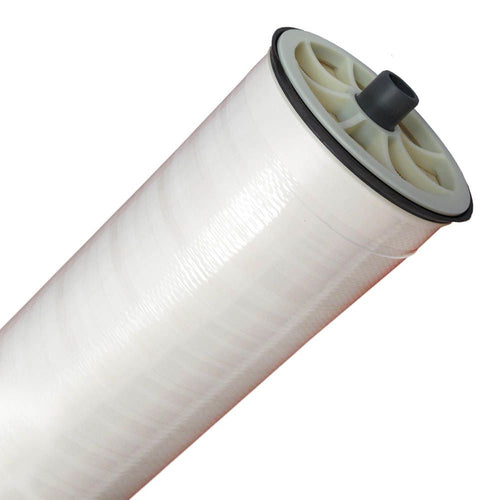

Veolia Osmonics Desal Brackish Water 813-HR(CA) 7500 GPD RO Membrane Element

The Veolia Osmonics Desal A-Series, Thin-Film reverse osmosis membrane elements offer high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are used when high rejection and low operating pressures are desired.

Specifications:

High Flux and Excellent NaCL Rejection
Thin-Film Reverse Osmosis Membrane Element
7500 Gallons Per Day
Dimensions: 8" x 40"
Female End Connections
Net Outer Wrap
28 mil Feed Spacers
Operating Pressures as low as 200 PSIG

Element Membrane Diagram (not the encapsulated model):

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	400 sq. ft.
Application	Brackish Water
Average Nacl Rejection	0.975
Chlorine Tolerance	1 ppm
Cleaning Ph Range	3-8
Direction	Outside - In
Feed Spacer Thickness	28 mil
Feed Water Temperature	77°F
Inlet Pressure	140-400 PSI
Inner/Outer Wraps	Net
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	450psi
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.95
Permeate Flow Rate	7,500 gpd (28.1)
Permeate Tube Diameter	1.139"
Ph Range	5-6.5
Recovery Rate	0.15
Diameter	8.3"
Shipping Dimensions
Shipping Length	40 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	11.5

Veolia Osmonics Desal Brackish Water 813-HR(CA) 7500 GPD RO Membrane Element Manual
