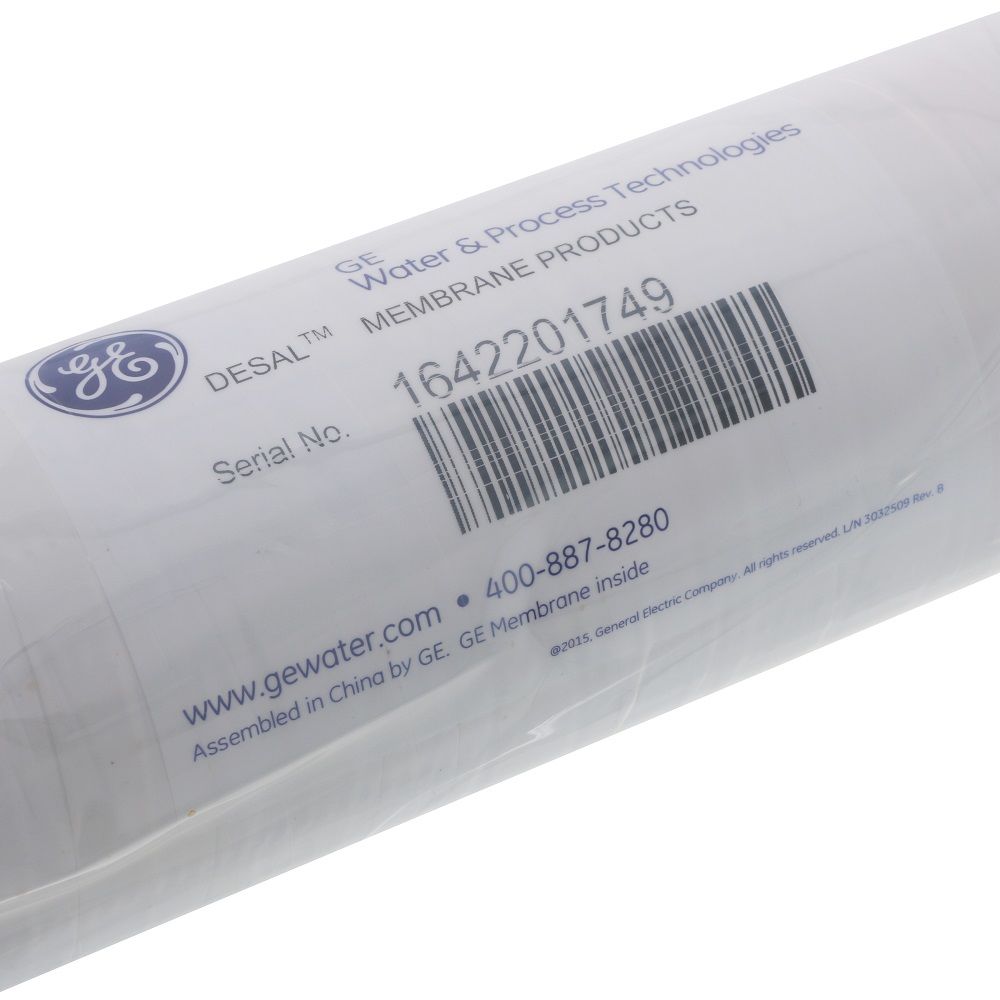

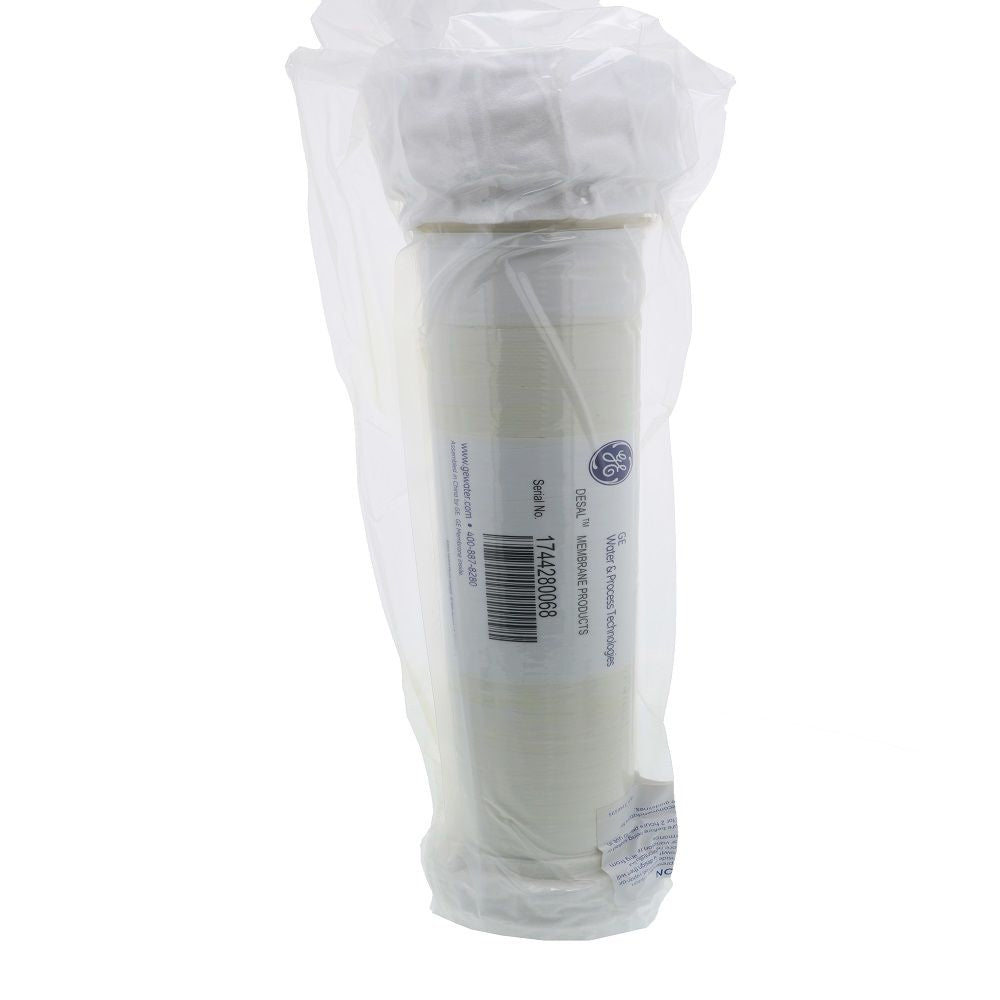

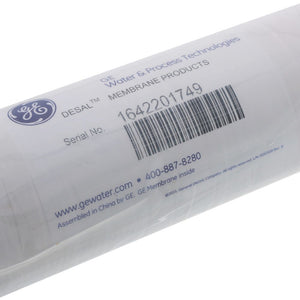

Veolia Osmonics Desal AG4025T 1600 GPD RO Membrane Element

The Veolia Osmonics Desal AG-Series is a family of Thin-Film RO membrane elements that offer high flux and excellent sodium chloride rejection. They are an excellent choice for applications where high rejection and low operating pressures are desired. These elements allow moderate energy savings since good rejection is achieved at operating pressures as low as 200 psig, and are considered a standard in the industry.

Specifications:

High Flux and Excellent NaCL Rejection
Thin-Film Reverse Osmosis Membrane Element
1600 Gallons Per Day
Dimensions: 4" x 25"
Male End Connections
Tape Outer Wrap
28 mil Feed Spacers
Operating Pressures as low as 200 PSIG

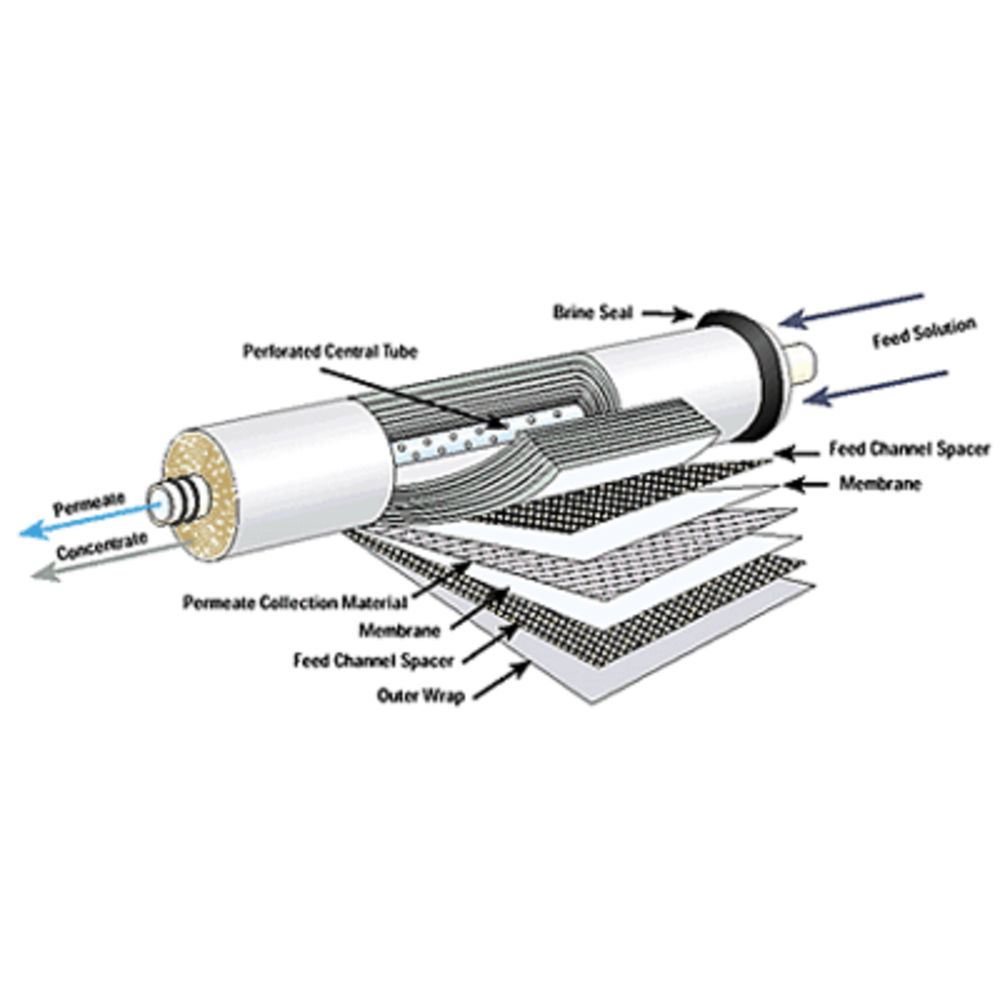

Element Membrane Diagram (not the encapsulated model):

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	60 sq. ft.
Average Nacl Rejection	0.995
Chlorine Tolerance	1,000 ppm-hrs
Cleaning Ph Range	2-11.5
Direction	Outside - In
Feed Spacer Thickness	28 mil
Feed Water Temperature	77°F
Inlet Pressure	200 PSI
Inner/Outer Wraps	Tape
Max Feed Silt Density Index	<5 Silt Density Index
Max Feed Water Turbidity	<1 Nephelometric Turbidity Units
Max Pressure Drop	12 PSI Differential
Max Pressure (Psi)	450psi
Max Temp (°F)	122 °F
Membrane Type	Spiral Wound
Minimum Nacl Rejection	0.99
Permeate Flow Rate	1,600 gpd (6.0)
Permeate Tube Diameter	0.625"
Ph Range	4-11
Recovery Rate	0.15
Cartridge Style	Drop-in
Change Frequency	24 Months
Diameter	3.9"
Shipping Dimensions
Shipping Length	31.125 in.
Shipping Width	5 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	30.25
Product Width	4.5
Product Weight (lbs)	4.582
