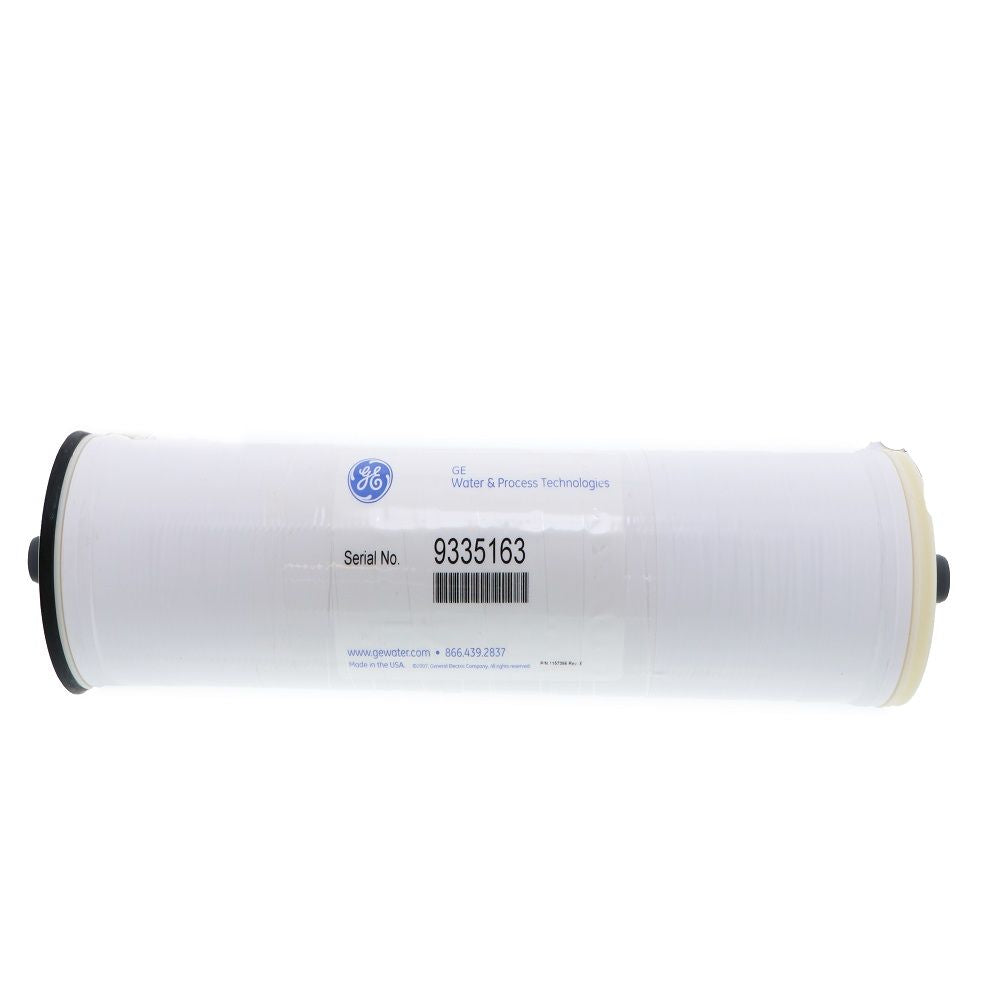

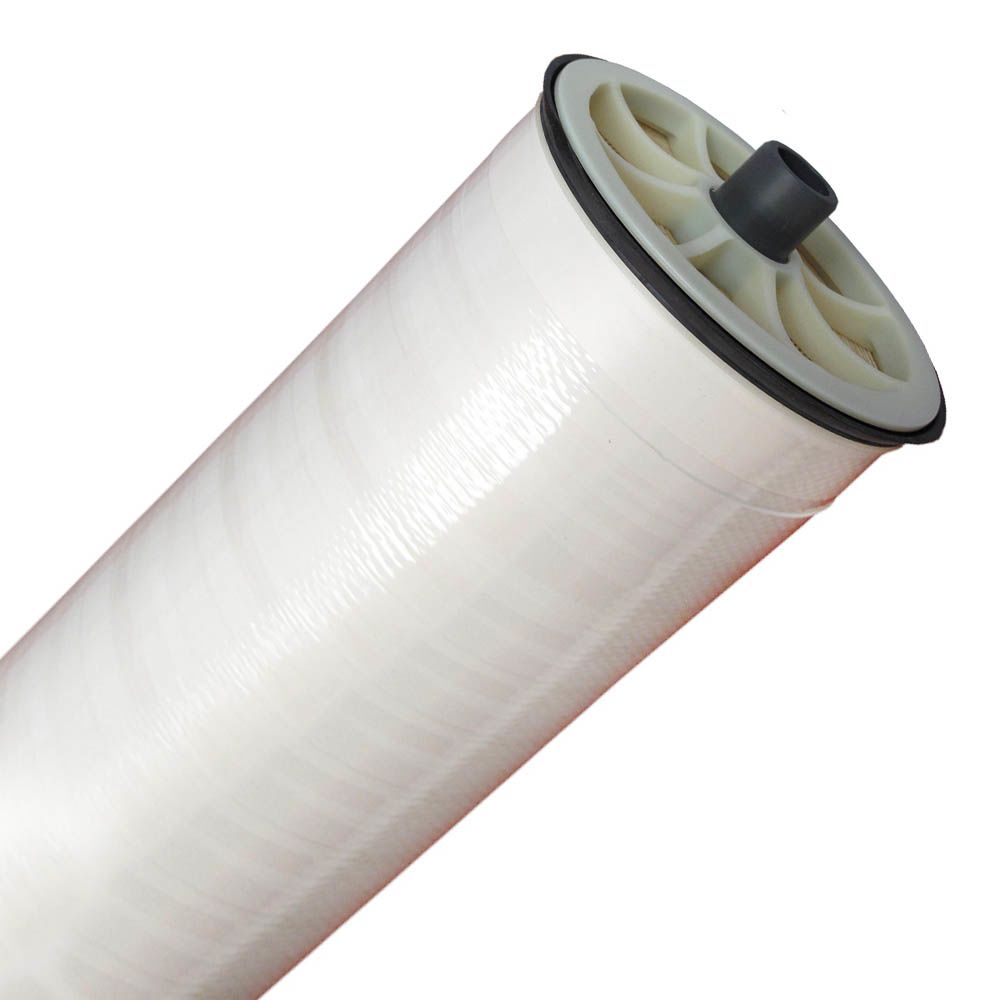

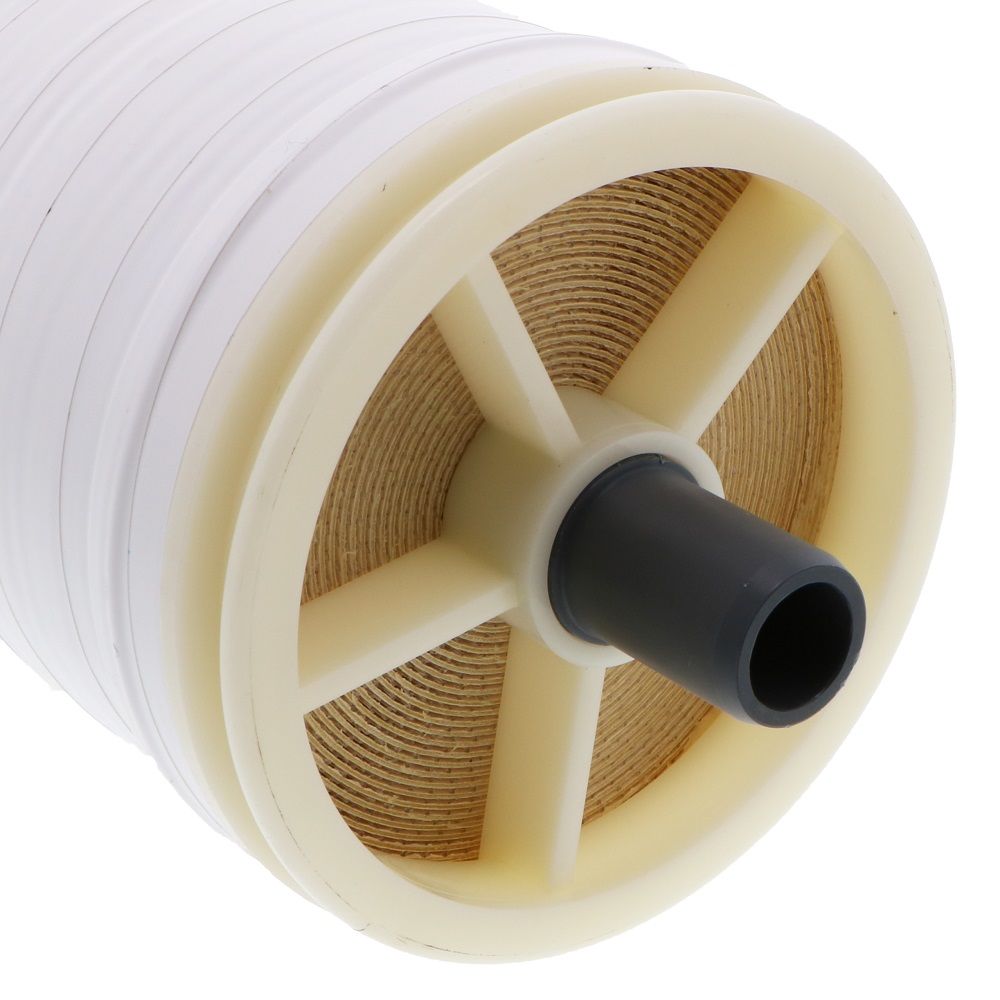

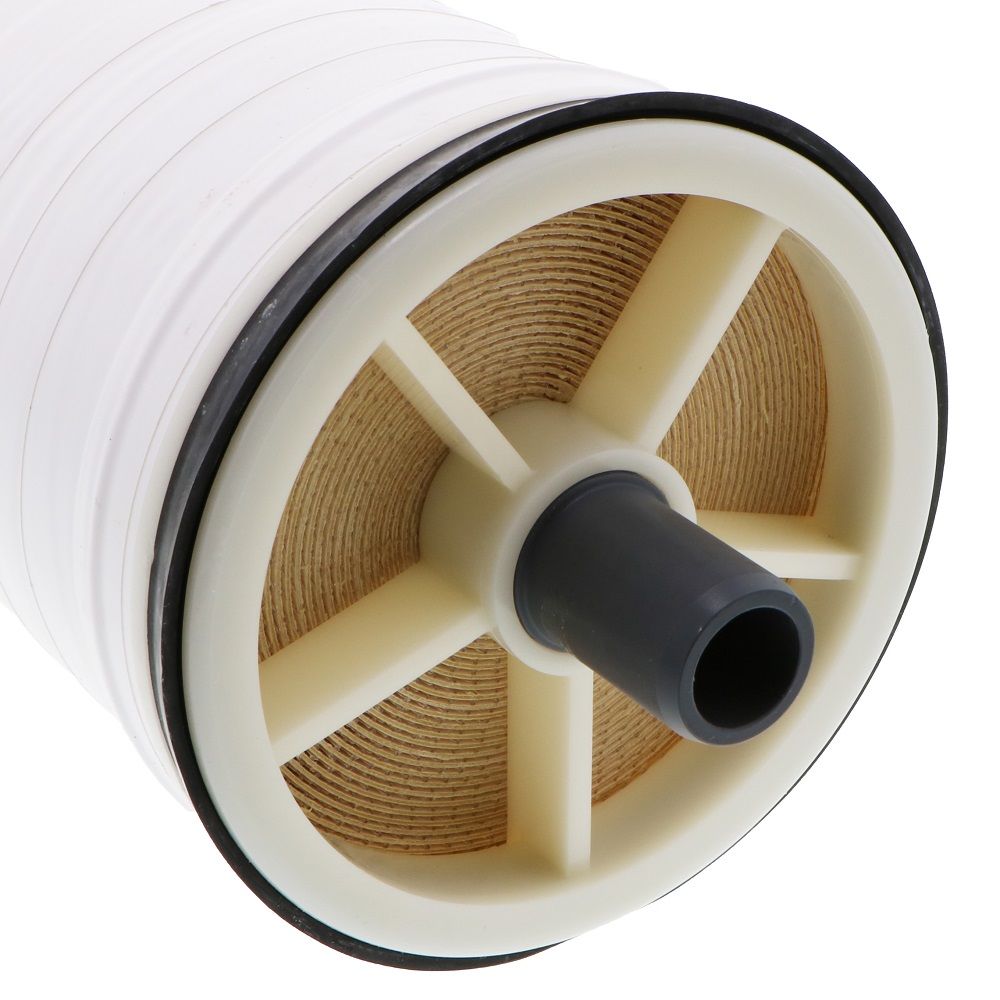

Veolia Osmonics Desal AG4021TM 1050 GPD RO Membrane Element

The Veolia Osmonics Desal A-Series, Thin-Film reverse osmosis membrane elements offer high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are used when high rejection and low operating pressures are desired.

Specifications:

High Flux and Excellent NaCL Rejection
Thin-Flim Reverse Osmosis Membrane Element
1050 Gallons Per Day
Dimensions: 4" x 21"
Male End Connections
Tape Outer Wrap
28 mil Feed Spacers
Operating Pressures as low as 200 PSIG

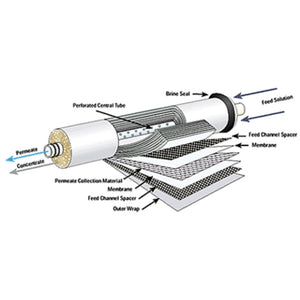

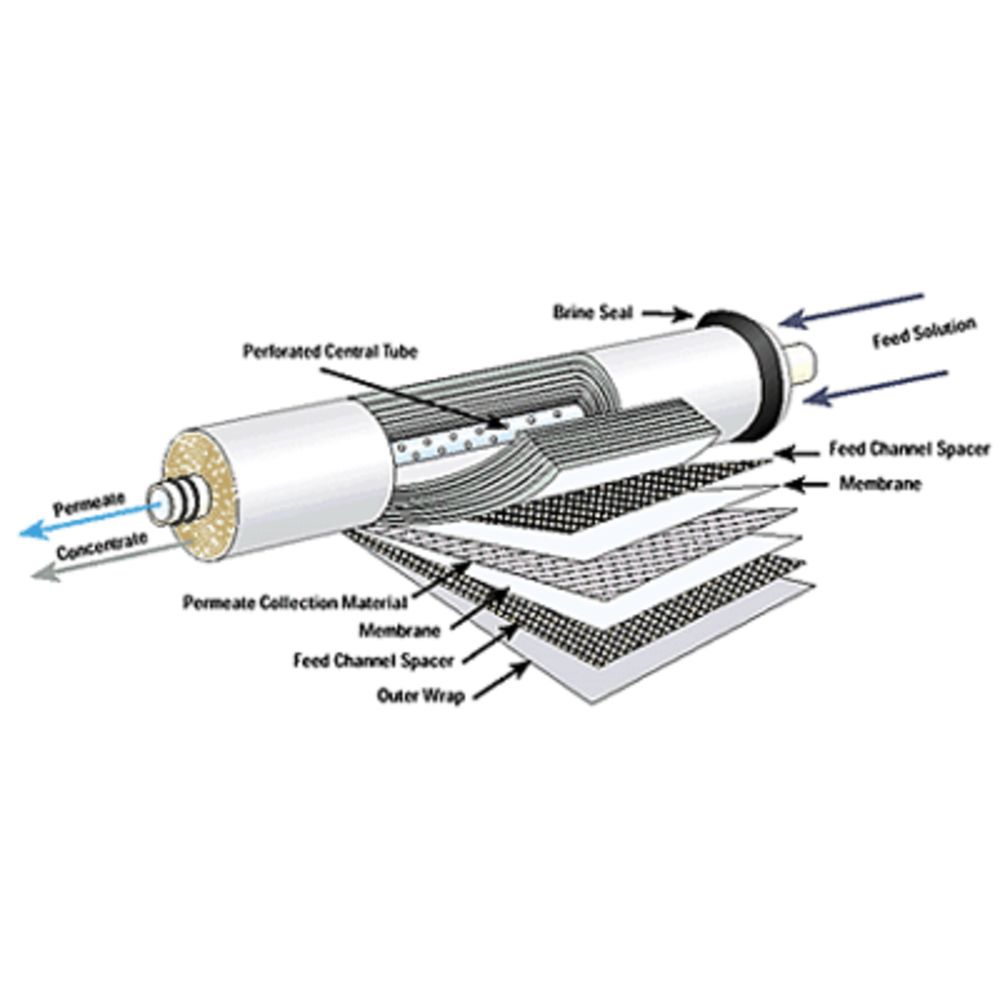

Element Membrane Diagram (not the encapsulated model):

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	42 sq. ft.
Average Nacl Rejection	0.995
Chlorine Tolerance	1,000 ppm-hrs
Cleaning Ph Range	1-12
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	225 PSI
Inner/Outer Wraps	Tape
Max Feed Silt Density Index	<5 Silt Density Index
Max Feed Water Turbidity	<1 Nephelometric Turbidity Units
Max Pressure Drop	6 PSI Differential
Max Pressure (Psi)	400psi
Max Temp (°F)	122 °F
Membrane Type	Spiral Wound
Minimum Nacl Rejection	0.99
Permeate Flow Rate	1050 gpd (3.9)
Permeate Tube Diameter	3/4"
Ph Range	3-10
Recovery Rate	0.15
Diameter	3.88"
Shipping Dimensions
Shipping Length	28.5 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	4
Product Length	21
Product Width	4
Product Weight (lbs)	4.756

Veolia Osmonics Desal AG4021TM 1050 GPD RO Membrane Element Manual
