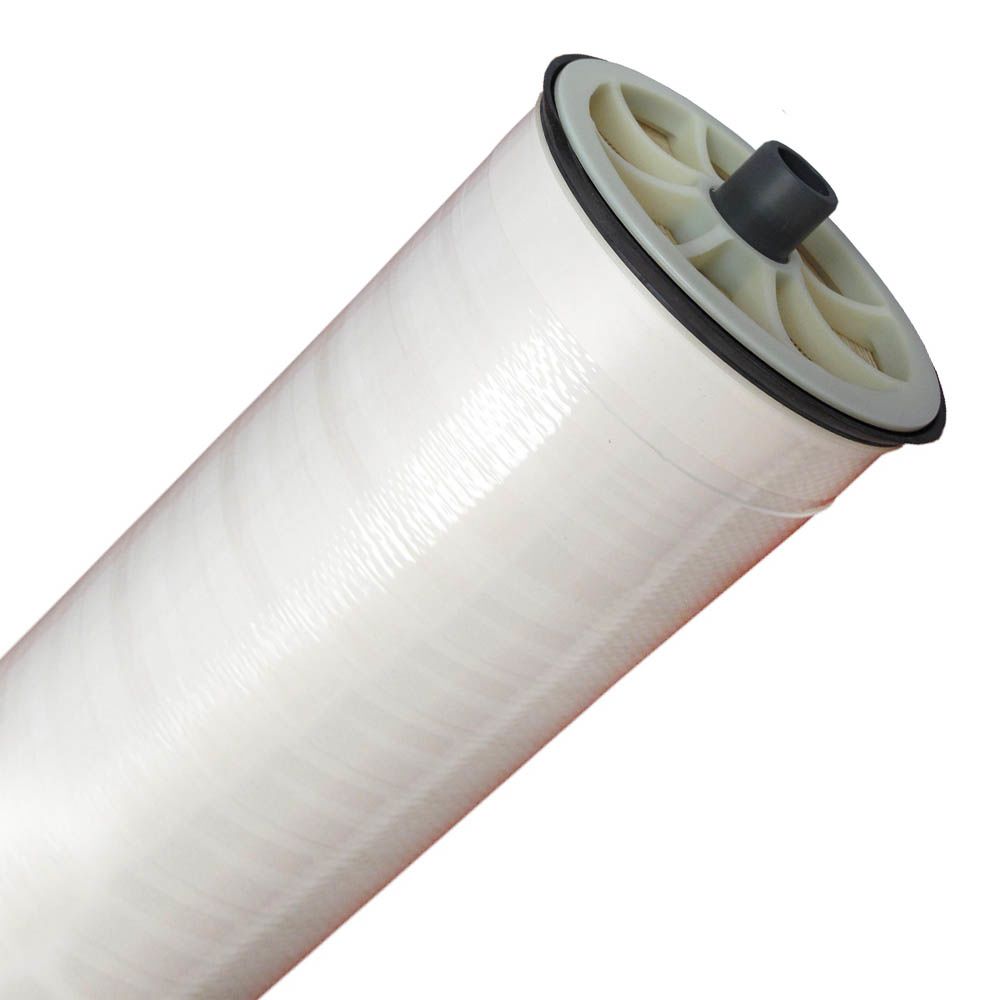

Veolia Osmonics Desal AG-90 2200 GPD RO Membrane Element

Part Number: 3056665
Sold Out

Veolia Osmonics Desal AG-90 2200 GPD RO Membrane Element

Part Number: 3056665
Regular price $266.75

Product not eligible for free shipping

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Veolia Osmonics Desal AG-Series family of proprietary thin-film reverse osmosis membrane is characterized by high flux and high sodium chloride rejection. AG HR brackish water elements are selected when high rejection and operating pressures as low as 200 psi (1,379 kPa) are desired. These elements are recommended for brackish water with salt concentration (TDS) levels between 1,000 and 10,000mg/l or when very high salt rejection of monovalent ions is required.

Specifications:
  • High Flux and Excellent NaCL Rejection
  • Thin-Film Reverse Osmosis Membrane Element
  • 2200 Gallons Per Day
  • Dimensions: 4" x 40"
  • Male End Connections
  • Fiberglass Outer Wrap
  • 28 mil Feed Spacers
  • Operating Pressures as low as 200 PSIG

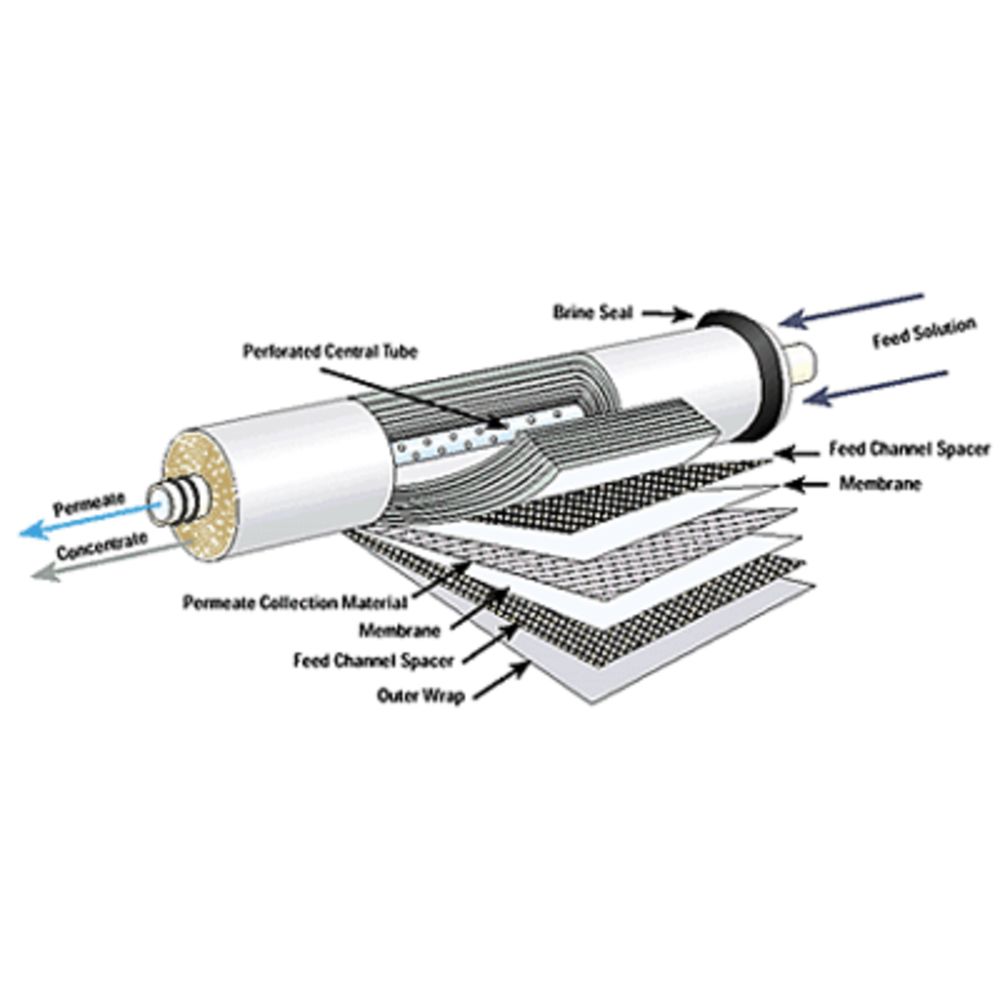

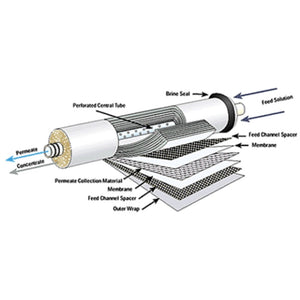

Element Membrane Diagram (not the encapsulated model):

Specifications

  • Product Details
  • Active Area
    90 sq. ft.
  • Average Nacl Rejection
    99
  • Chlorine Tolerance
    1,000 ppm-hrs
  • Cleaning Ph Range
    2.0-11.5
  • Direction
    Outside - In
  • Feed Water Temperature
    77°F
  • Feed Water
    Brackish Water
  • Inlet Pressure
    200 PSI
  • Max Feed Silt Density Index
    <5 Silt Density Index
  • Max Feed Water Turbidity
    <1 Nephelometric Turbidity Units
  • Max Pressure Drop
    12 PSI Differential
  • Membrane Type
    Reverse Osmosis
  • Outer Diameter
    3.9 in
  • Permeate Flow Rate
    2200 gpd (8.3)
  • Permeate Tube Diameter
    0.75 in
  • Recovery Rate
    0.15
  • Shipping Dimensions
  • Shipping Length
    44
  • Shipping Width
    5.25
  • Shipping Height
    5.25

Downloads

Veolia Osmonics Desal AG-90 2200 GPD RO Membrane Element Manual
