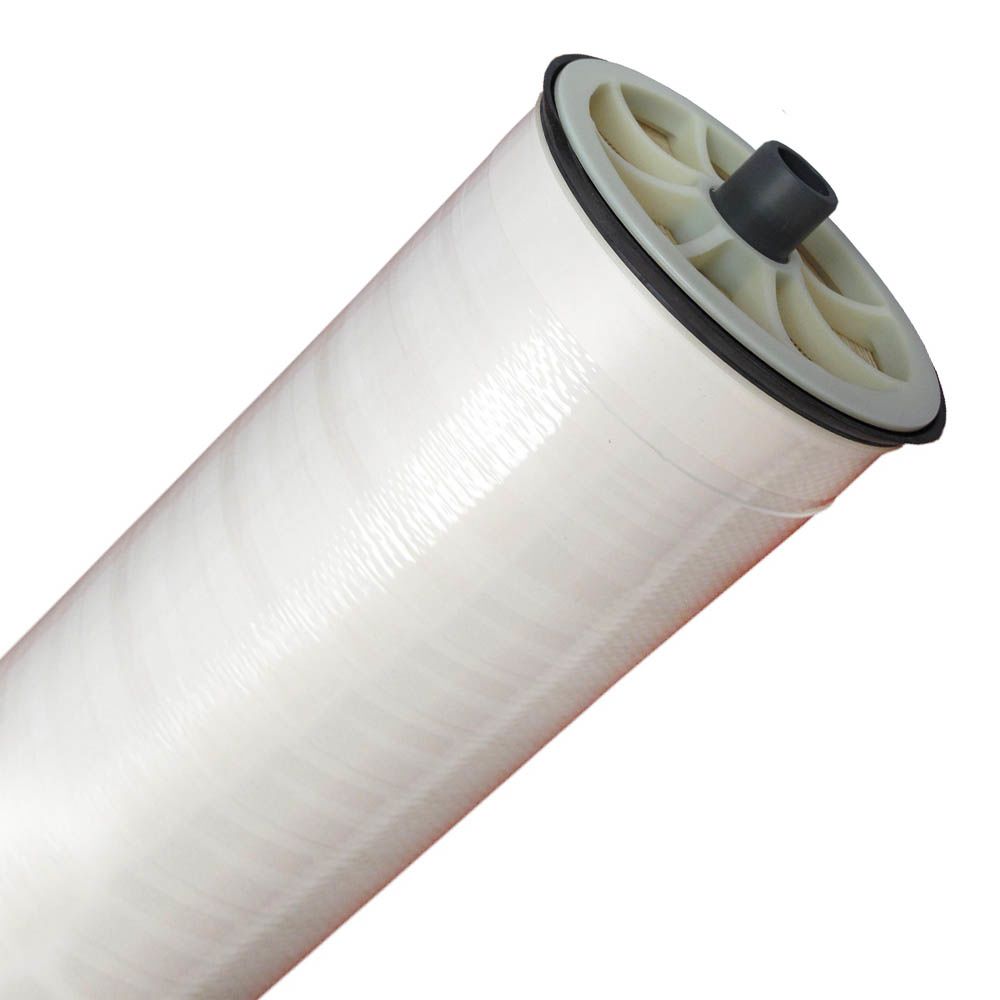

Veolia Osmonics Desal AG-440 11500 GPD RO Membrane Element Fiberglass

The Veolia Osmonics Desal AG-Series family of proprietary thin-film reverse osmosis membrane is characterized by high flux and high sodium chloride rejection. AG HR brackish water elements are selected when high rejection and operating pressures as low as 200 psi (1,379 kPa) are desired. These elements are recommended for brackish water with salt concentration (TDS) levels between 1,000 and 10,000mg/l or when very high salt rejection of monovalent ions is required.

Specifications:

High Flux and Excellent NaCL Rejection
Thin-Film Reverse Osmosis Membrane Element
11500 Gallons Per Day
Dimensions: 8" x 40"
Female End Connections
Fiberglass Outer Wrap
28 mil Feed Spacers
Operating Pressures as low as 200 PSIG

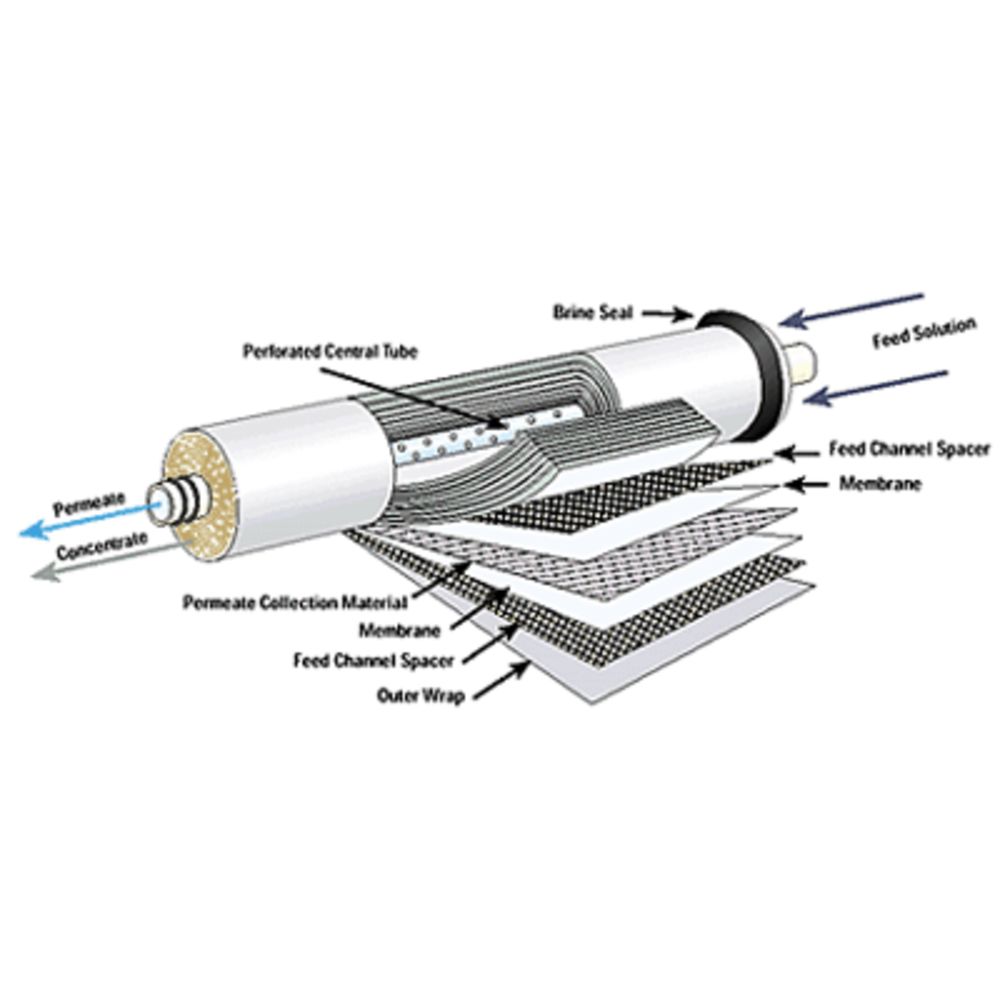

Element Membrane Diagram (not the encapsulated model):

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	440 sq. ft.
Average Nacl Rejection	0.998
Chlorine Tolerance	1,000 ppm-hrs
Cleaning Ph Range	2-11.5
Direction	Outside - In
Feed Spacer Thickness	28 mil
Feed Water Temperature	77°F
Inlet Pressure	200 PSI
Inner/Outer Wraps	Fiberglass
Max Feed Silt Density Index	<5 Silt Density Index
Max Feed Water Turbidity	<1 Nephelometric Turbidity Units
Max Pressure Drop	12 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	122 °F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.993
Permeate Flow Rate	11500 gpd (43.5)
Permeate Tube Diameter	1.125"
Ph Range	4-11
Recovery Rate	0.15
Cartridge Style	Drop-in
Change Frequency	24 Months
Diameter	7.9"
Shipping Dimensions
Shipping Length	40 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	9

Veolia Osmonics Desal AG-440 11500 GPD RO Membrane Element Fiberglass Manual
