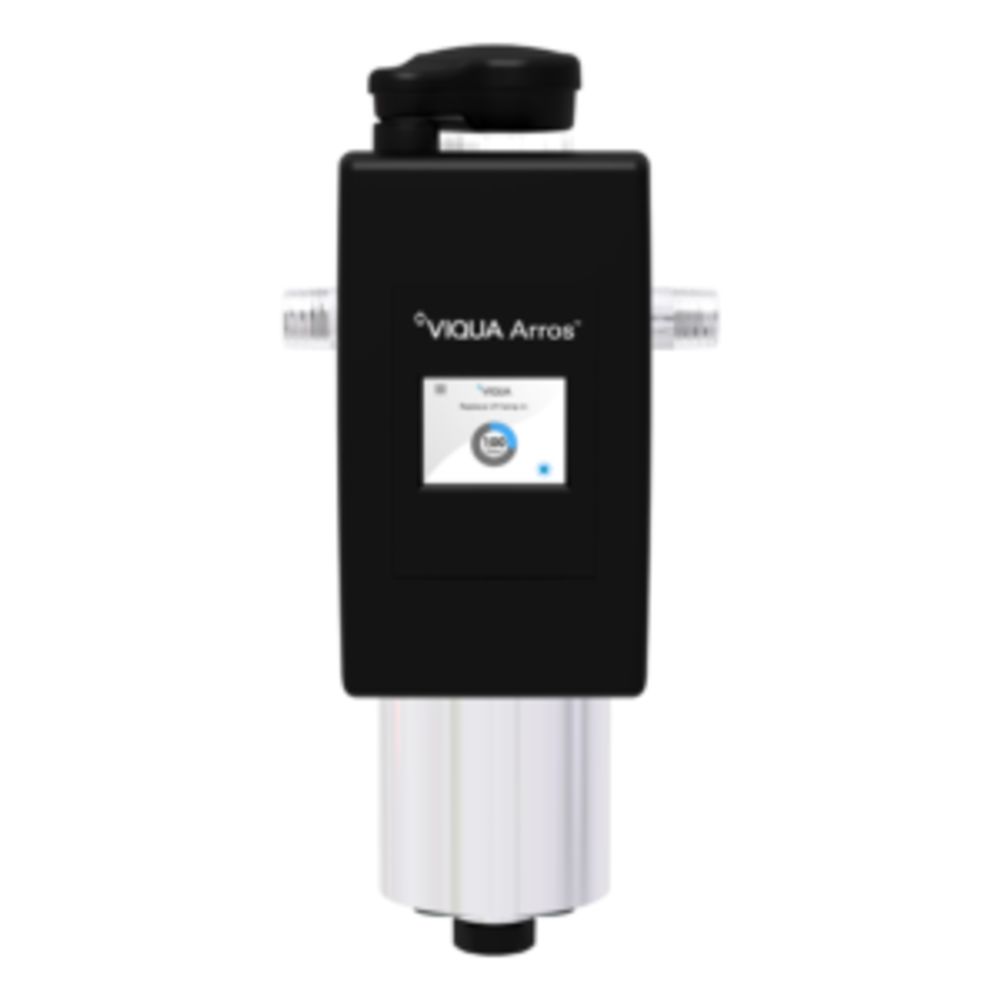

UV System Viqua Arros 9-V 120V 6.4gpm@125psi NSF 55 Class B
Part Number: ARROS9-V
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Product Details
The VIQUA Arros 9-V is a premium residential UV water treatment system designed for efficiency and reliability. This model is NSF 55 Class B certified and offers an effective flow rate of 6.4 GPM, making it an ideal choice for various whole-home and point-of-entry water treatment applications.
Reduced Installation Complexity

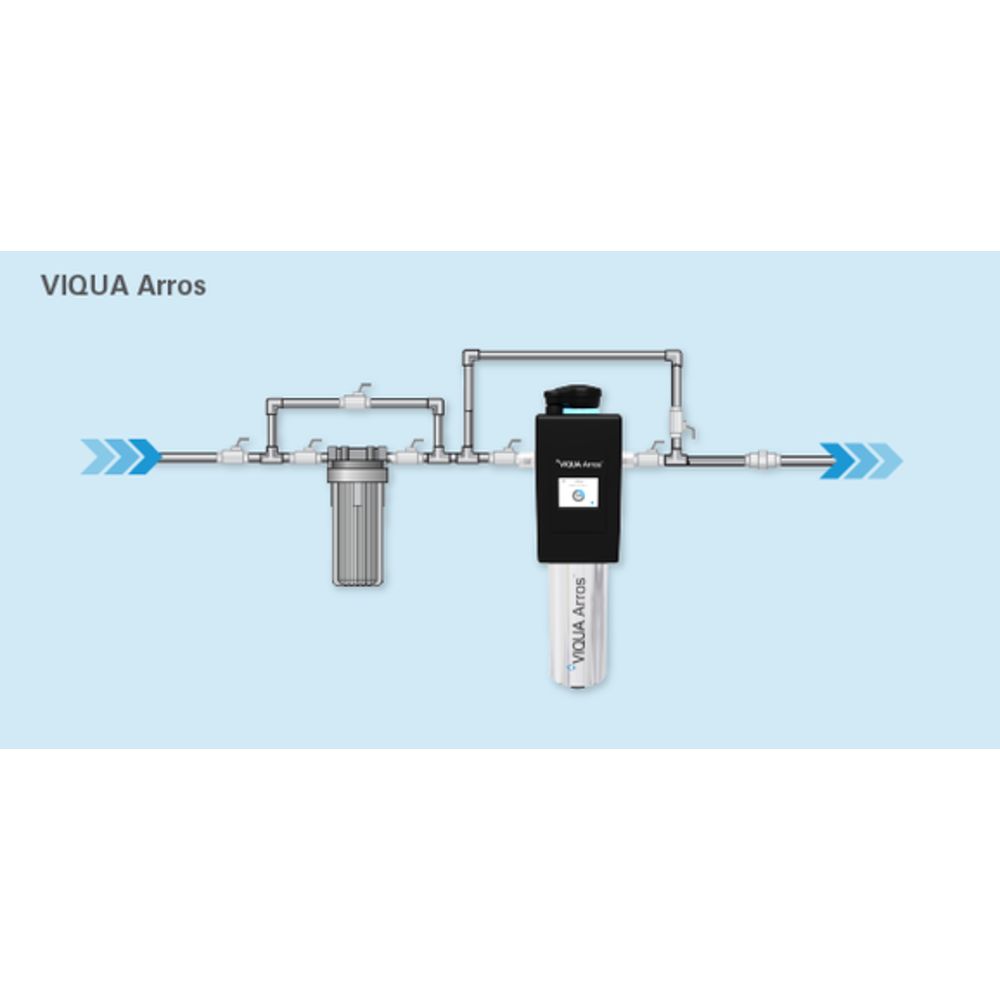

- Tidal™ Chamber Design: Aligns inlet and outlet ports on a single plane, streamlining installation and reducing material use.
- PolyProtect™ Shield: Blocks UV light, allowing direct plumbing to PEX and other polymer materials without compromising system integrity.
- Simplified Mounting: Features an elongated steel bracket for easy and secure system installation.
Ease of Maintenance
- All-in-One Lamp Design: Makes handling and replacing the lamp unit hassle-free.
- Quick Drain Plug: Facilitates easy and clean draining of the system.
- User-Friendly Interface: LCD touchscreen for quick access to replacement part information and dealer contact details.
Optimized Treatment Performance
- Stream™ Technology: Provides accurate in-lamp usage measurement for consistent performance.
- Space-Efficient Design: Improved dose efficiency allows for a more compact UV chamber and lamp, saving installation space.
Features & Specs
- Connection Size: Combo Port: 1 in. MNPT, 3/4 in. FNPT
- Dimensions: 11.2” x 4.0” (28.4 cm x 10.16 cm)
- Flow Rate: 16 mJ/cm² @ 70% UVT: 6.4 GPM (30 lpm) | 1.45 m³/hr
- Power Consumption: 33 W
- Shipping Weight: 12 lbs (5.5 kg)
Application
Ideal for a wide range of residential applications, the VIQUA Arros 9-V system is validated to inactivate heterotrophs, Escherichia coli (E. coli), and fecal coliform, ensuring safe drinking water for your home or cottage.
