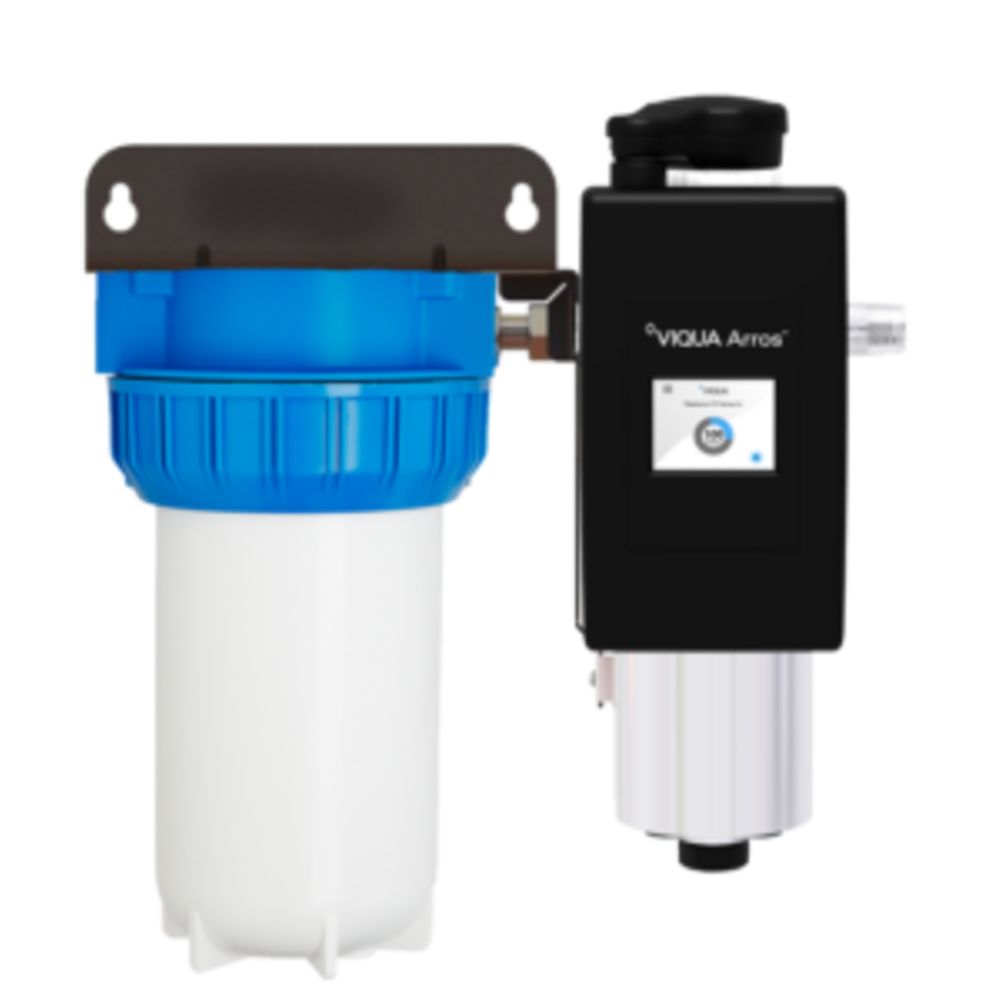

UV System Viqua Arros 9 Integrated Home System 120V 9gpm@125psi w/1x10" Sediment Filter
The VIQUA Arros 9 UV system is a high-quality residential solution for effective whole-home water treatment, offering 9 GPM flow capacity. Engineered with a compact design, it combines advanced UV disinfection with integrated sediment pre-filtration to enhance water quality while simplifying installation. This system efficiently targets harmful microorganisms like Cryptosporidium, Giardia, E. coli, and fecal coliform, providing a safer water supply.
Product Highlights:
- Simplified Installation: The Tidal™ chamber aligns inlet and outlet ports for a streamlined setup. PolyProtect™ UV shielding enables direct plumbing to PEX and other polymer materials, with an elongated steel bracket for secure mounting.
- Low-Maintenance Design: The all-in-one lamp unit features a threaded plug for easy draining, and an LCD touchscreen provides part replacement alerts and dealer contacts.
- Optimized Performance: Stream™ technology measures lamp usage accurately, ensuring precise UV dose efficiency with a compact chamber design.
- Integrated Sediment Filtration: Equipped with a 10" sediment filter in a premium 3-piece housing, it captures common particles, enhancing water clarity and prolonging UV lamp life.
Specifications:
- Connection Size: Inlet: 1" FNPT; Outlet: Combo Port (1" MNPT / ¾" FNPT)
- Dimensions: 16.95″ × 17.5″ × 9.0″ (43.0 cm × 44.5 cm × 22.9 cm)
- Flow Rate: 9 GPM (34.1 LPM) at 30mJ/cm²
- Filter Housing: Single 10″ 3-piece housing
- Power Consumption: 33W
- Weight: 40 lbs (18.1 kg)
Designed for homes, cottages, and OEM applications, the VIQUA Arros 9 provides dependable, validated UV disinfection for improved whole-home water quality.
