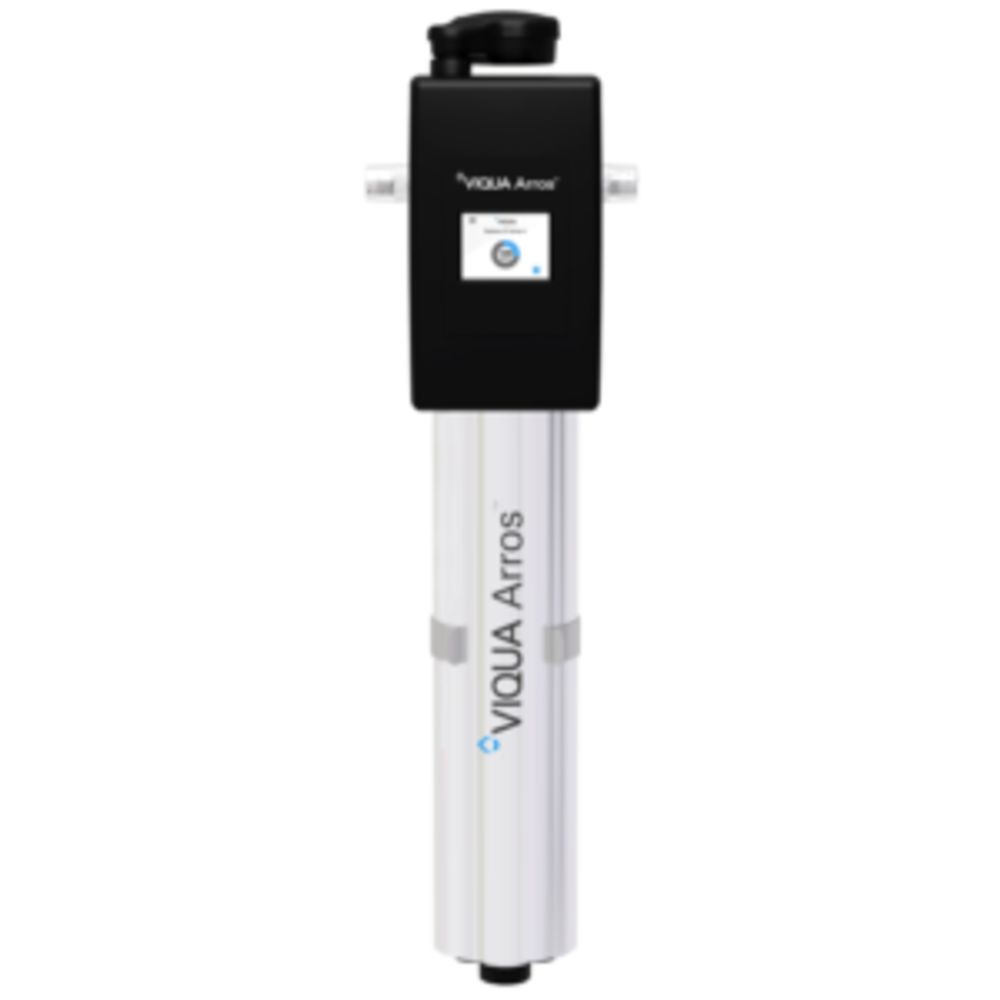

UV System Viqua Arros 22-V 120V 12.9gpm@125psi NSF 55 Class B

Product Details
The VIQUA Arros is a premium residential UV system designed for effective water treatment. Available in 9 GPM, 15 GPM, and 22 GPM configurations, it combines innovative technology with ease of use for reliable performance.

Reduced Installation Complexity

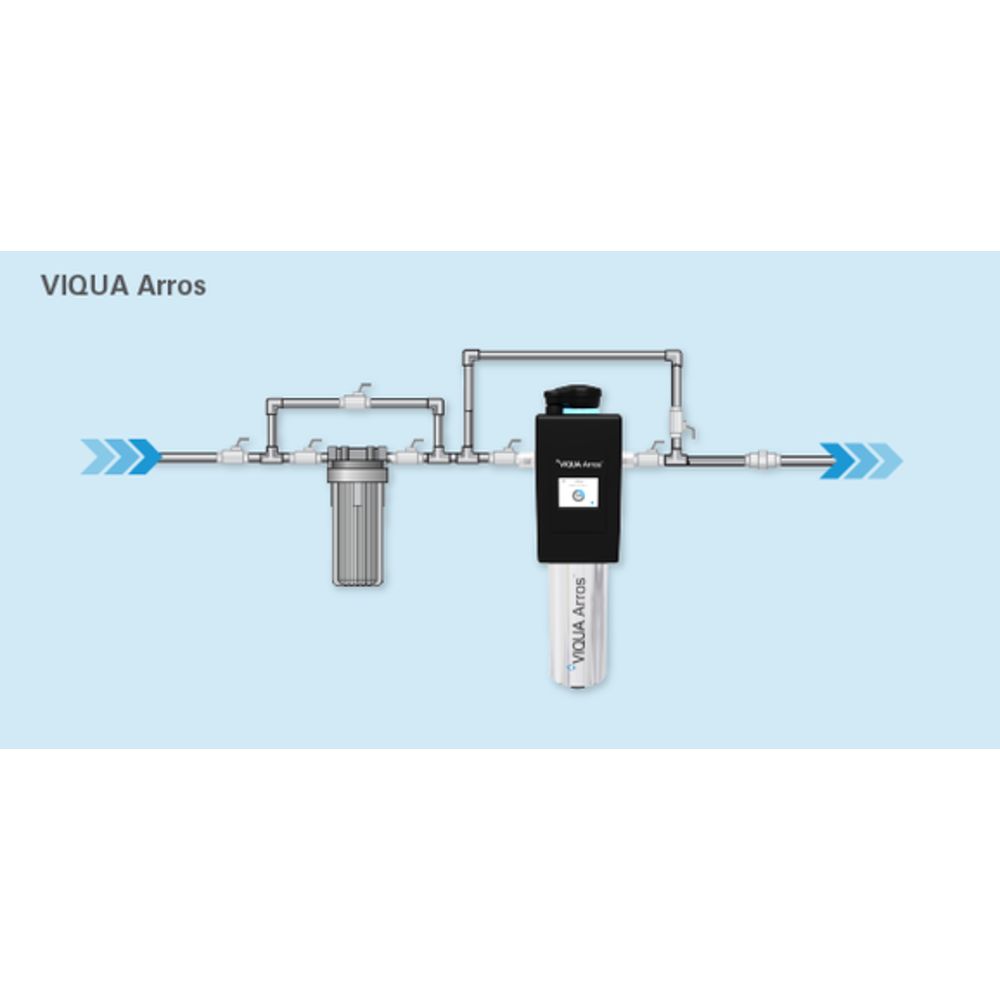

• Tidal™ Chamber Design: Aligns the inlet and outlet ports on a single plane, simplifying installation and reducing material needs.
• PolyProtect™ Shield: Blocks UV light, allowing the system to be plumbed directly to PEX and other polymer materials without risk.
• Simplified Mounting: The elongated steel bracket streamlines system mounting.

Ease of Maintenance

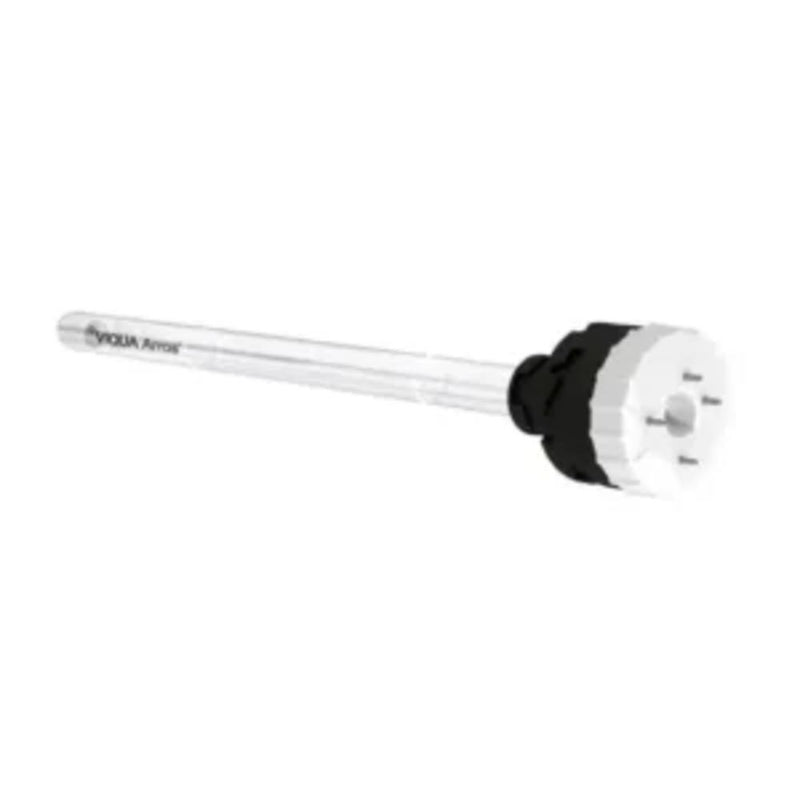

• The all-in-one design of the Arros lamp unit facilitates easy handling and replacement.

Features & Specifications

• Connection Size: Combo Port: 1 in. MNPT, 3/4 in. FNPT
• Dimensions: 22.5” x 4.0” (57.2 cm x 10.16 cm)
• Flow Rate: NSF Class B Certified, 16mJ/cm² @ 70% UVT: 12.9 gpm (70.0 lpm) / 2.93 m³/hr
• Power Consumption: 52 W
• Shipping Weight: 12 lbs (5.5 kg)
• Additional Features:
  • Threaded plug for quick, clean draining.
  • Easy-to-navigate LCD touchscreen for identifying replacement parts and dealer contact information.

Optimized Treatment Performance

• Equipped with Stream™ technology, ensuring precise in-lamp usage measurement and enhanced dose efficiency for a more compact UV chamber and lamp design.

Application
Ideal for a wide range of whole-home, point-of-entry water treatment solutions in residential settings, cottages, or OEM applications. The VIQUA Arros has been validated through microbial testing to effectively inactivate harmful microorganisms, ensuring safe and clean drinking water.
