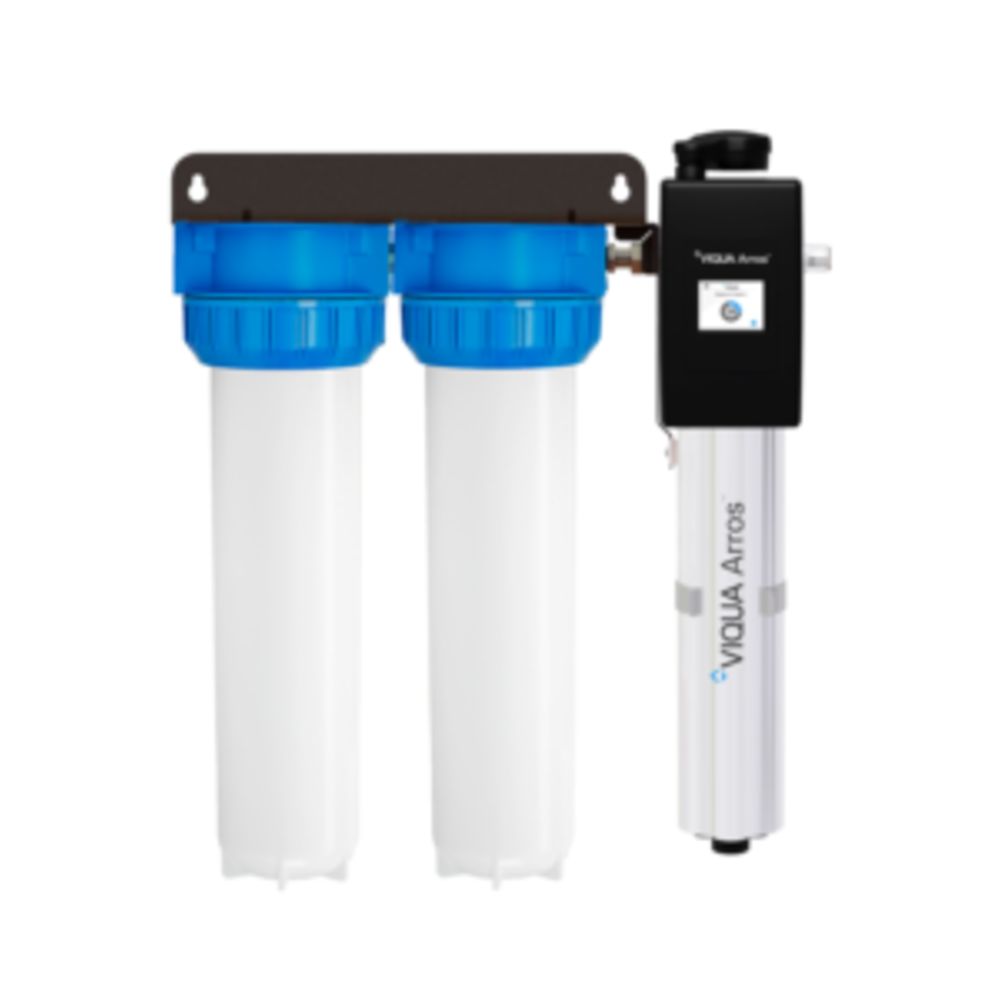

UV System Viqua Arros 22 Integrated Home System 120V 9gpm@125psi w/1x20" Sed Filt & 1x20" Carb Filt

Part Number: ARROS22-IHS22
Your price:

The VIQUA Arros 22 is a high-performance UV water purification system ideal for residential use, available in flow rates of 9, 15, and 22 GPM. This premium model features a compact, innovative design that combines UV disinfection with integrated pre-filtration, offering easy installation and reliable water treatment for whole-home or point-of-entry applications. Equipped with high-output UV lamp technology, it effectively addresses harmful microorganisms like Cryptosporidium, Giardia, E. coli, and fecal coliform.

Product Highlights:

  • Effortless Installation: The Tidal™ chamber design aligns inlet and outlet ports on a single plane, saving installation time and materials. The PolyProtect™ shield enables direct connection to PEX and other polymers, while the elongated steel mounting bracket adds stability.

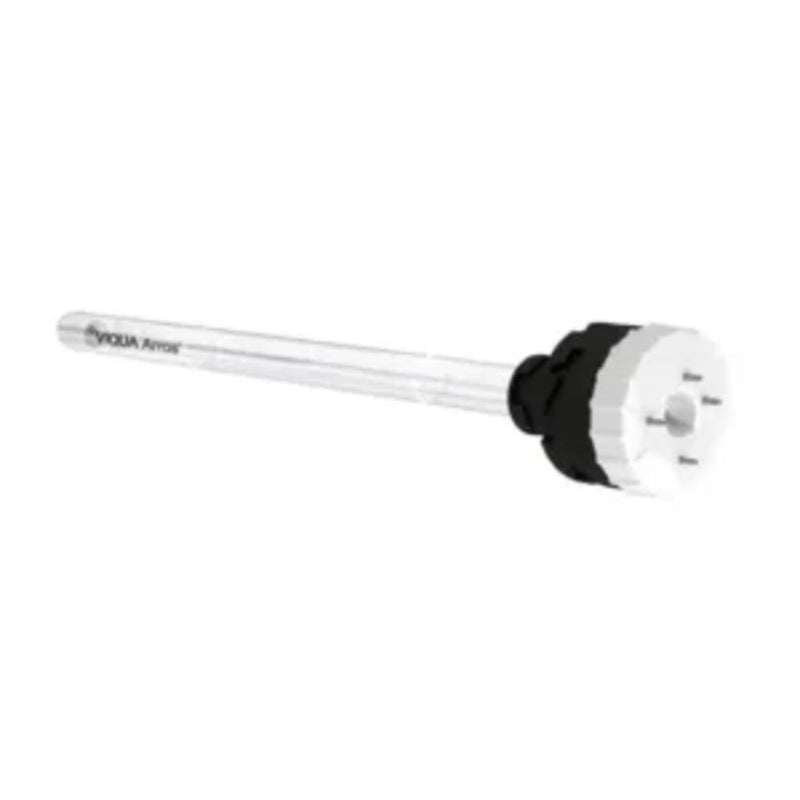

  • User-Friendly Maintenance: An all-in-one UV lamp unit with a threaded plug allows quick draining, while the touchscreen LCD provides part replacement information and dealer contacts.
  • Advanced Treatment Performance: Stream™ technology offers accurate lamp usage measurement, optimizing dose efficiency for compact chamber design.
  • Integrated Pre-filtration: Includes 20" sediment and carbon block filters for removing particles, odors, and color, secured in a premium 3-piece housing for easy replacement.

Specifications:

  • Connection Size: Inlet: 1" FNPT; Outlet: Combo Port (1" MNPT / ¾" FNPT)
  • Dimensions: 24.95″ × 27.5″ × 9.0″ (63.4 cm × 69.9 cm × 22.9 cm)
  • Flow Rate: 15 GPM (56.8 LPM) at 30mJ/cm²
  • Housing: Dual 20″ 3-piece filter housings
  • Power Consumption: 46W
  • Weight: 50 lbs (22.7 kg)

Ideal for homes, cottages, or OEM applications, the VIQUA Arros 22 offers trusted UV disinfection backed by microbial testing for validated water safety.
