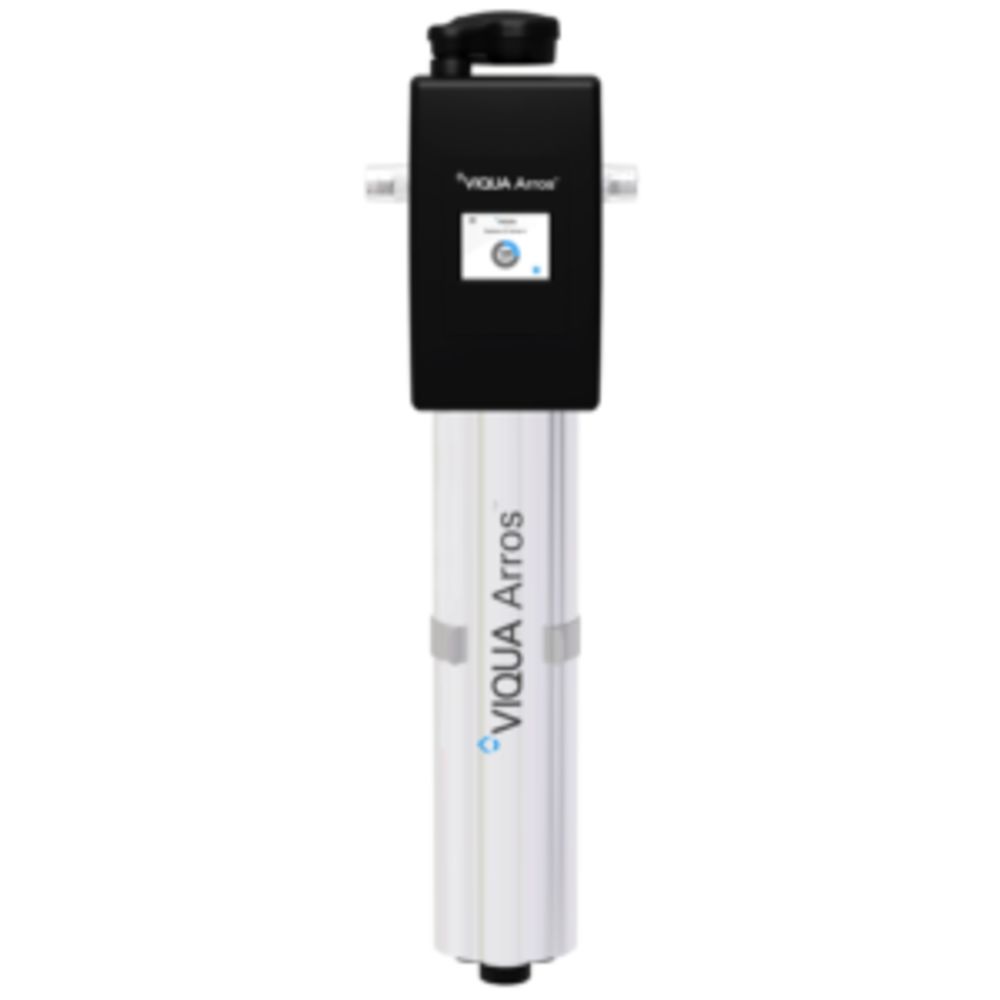

UV System Viqua Arros 22 120V 22gpm@125psi

The VIQUA Arros 22 is the highest-capacity UV system in the Arros line, providing reliable and efficient water treatment at a flow rate of 22 GPM. Built for residential whole-home applications, this system leverages advanced UV technology to inactivate harmful microorganisms, including Cryptosporidium, Giardia, and E. coli. Its user-friendly, compact design makes installation and maintenance straightforward, providing premium UV disinfection for larger households.

Product Highlights:

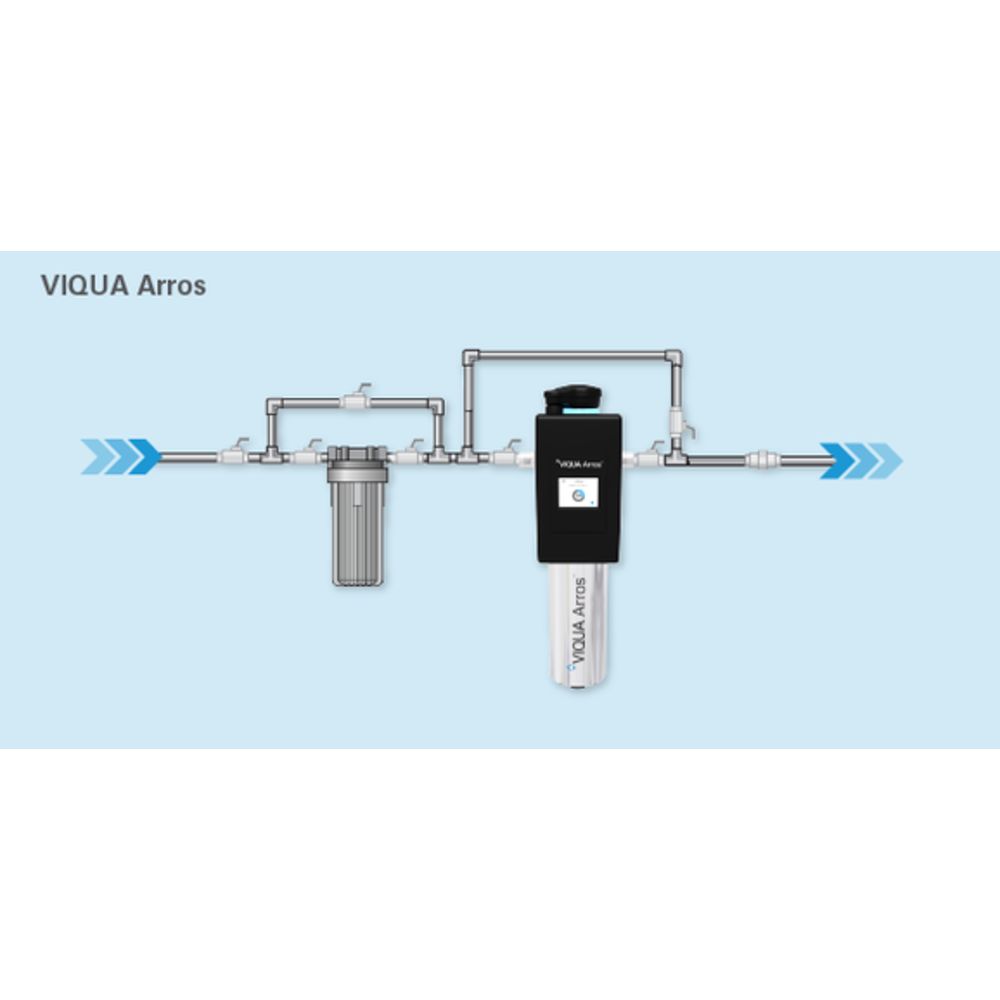

• Simplified Installation: The Tidal™ chamber aligns inlet and outlet ports on a single plane, reducing installation time and material needs. The PolyProtect™ shield allows direct connection to PEX and other polymers, while the elongated steel bracket ensures secure mounting.
• User-Friendly Maintenance: The all-in-one lamp design and threaded plug make handling and draining simple, and the LCD touchscreen provides part replacement details and dealer contacts.
• Enhanced Performance: Equipped with Stream™ technology for precise in-lamp usage measurement and optimized dose efficiency for a more compact chamber.
• Space-Saving Design: With an efficient UV chamber and advanced lamp technology, the Arros 22 delivers high performance in a streamlined package.

Specifications:

• Connection Size: Combo Port: 1" MNPT / ¾" FNPT
• Dimensions: 22.5” x 4.0” (57.2 cm x 10.16 cm)
• Flow Rate: 22 GPM (83.3 LPM) at 30mJ/cm²
• Power Consumption: 60W
• Weight: 18 lbs (8.2 kg)

The VIQUA Arros 22 is ideal for larger homes, cottages, and OEM applications. Microbial testing validates its effectiveness, providing peace of mind and high-quality water throughout the home.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
