Viqua / Trojan

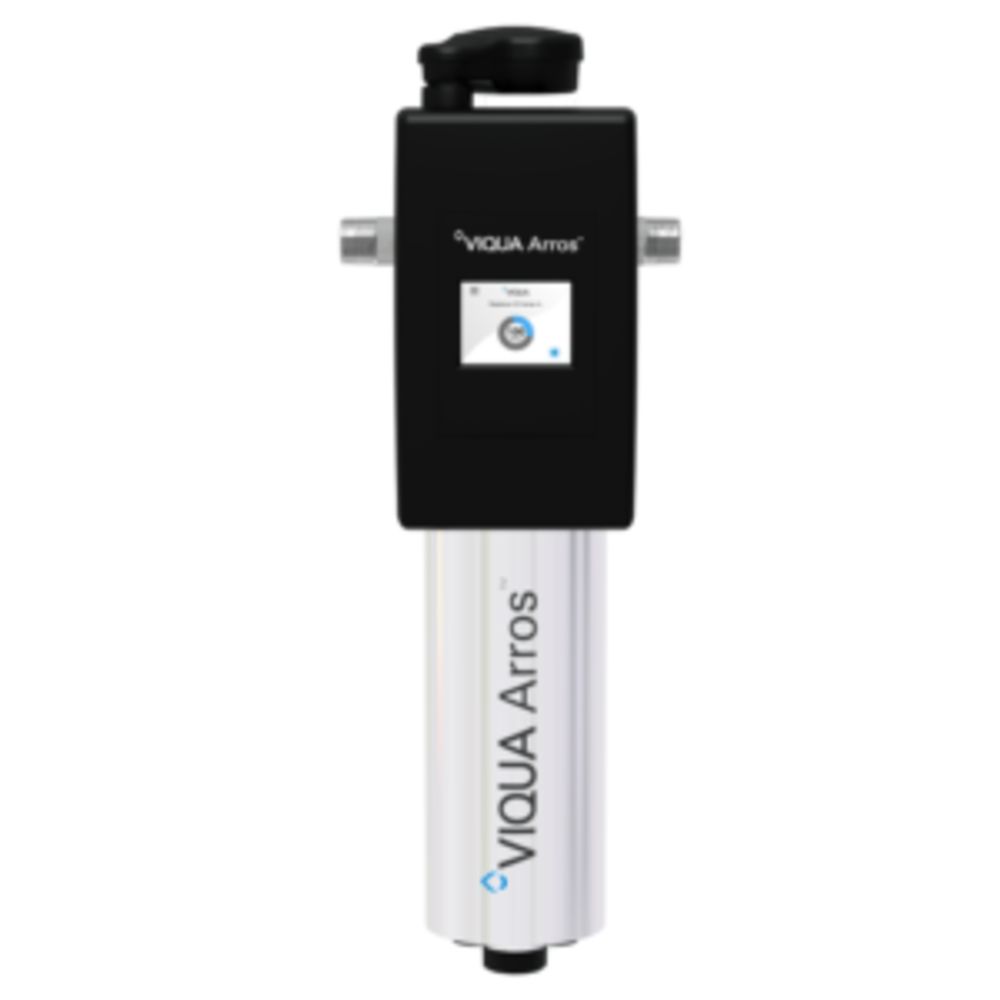

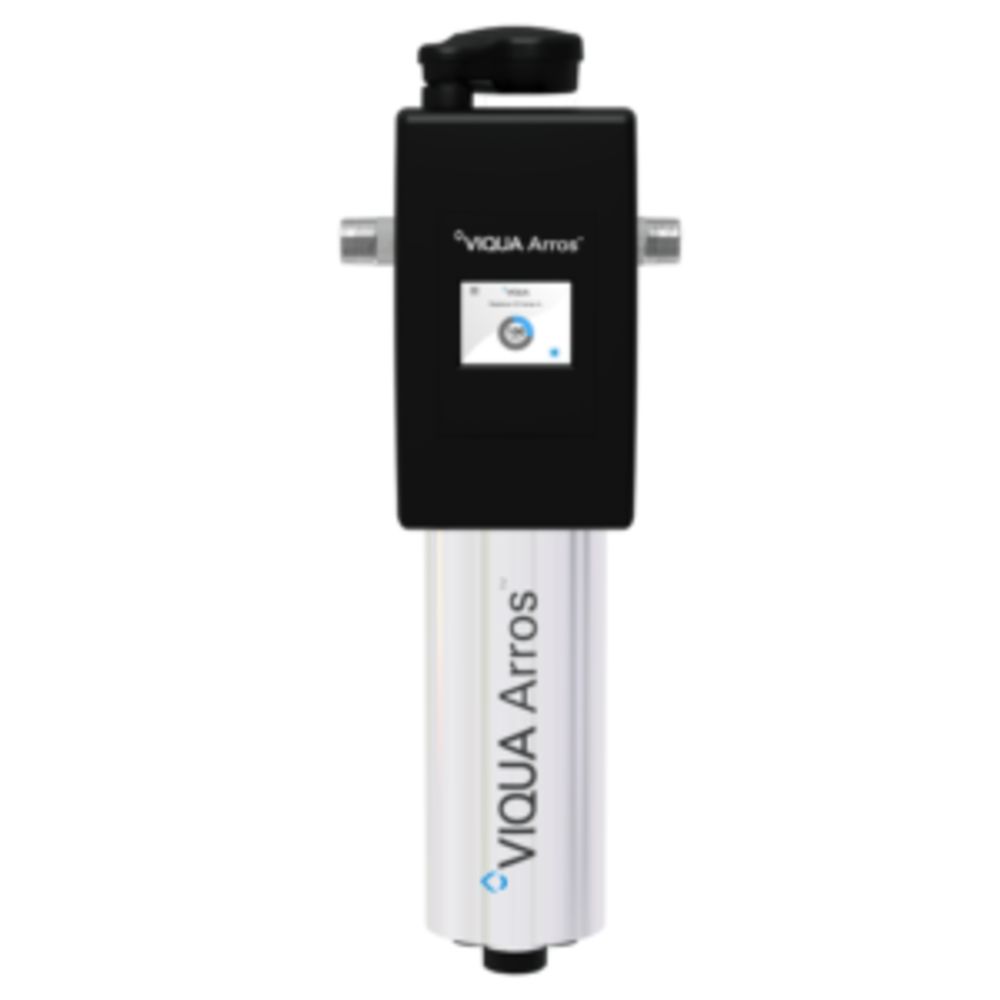

UV System Viqua Arros 15-V 120V 9.4gpm@125psi NSF 55 Class B

Part Number: ARROS15-V
Your price:

Product Details
The VIQUA Arros is a premium residential UV system from VIQUA, available in 9 GPM, 15 GPM, and 22 GPM configurations. It delivers reliable water treatment through advanced technology and design.

Reduced Installation Complexity

  • Tidal™ Chamber Design: Aligns the inlet and outlet ports on a single plane, reducing installation time and material usage.
  • PolyProtect™ Shield: Blocks UV light, enabling direct plumbing to PEX and other polymer materials without concerns.
  • Simplified Mounting: The elongated steel bracket facilitates easier installation.

Ease of Maintenance

  • The all-in-one design of the Arros lamp unit is designed for easier handling and replacement.
  • Quick Draining: Features a threaded plug for fast, clean draining.
  • User-Friendly LCD Touchscreen: Provides easy navigation to identify replacement parts and dealer contact information.

Optimized Treatment Performance

  • Stream™ Technology: Allows for precise measurement of in-lamp usage, enhancing treatment performance.
  • Space Efficient: Improved dose efficiency results in a more compact UV chamber and lamp design.

Application

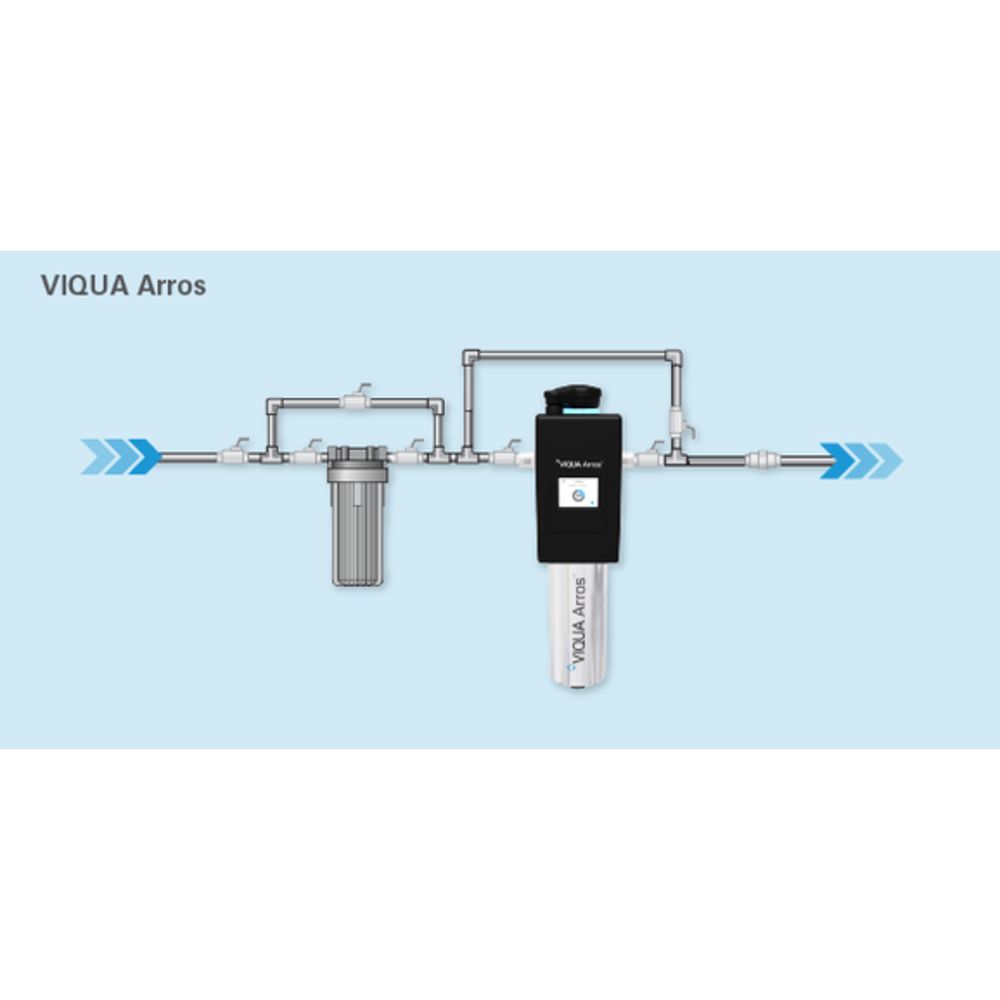

Ideal for a wide range of whole-home, point-of-entry water treatment solutions in residential settings, cottages, or OEM applications. The VIQUA Arros has been validated through microbial testing to effectively inactivate harmful microorganisms, ensuring safe and clean drinking water.

Features & Specifications

  • Connection Size: Combo Port: 1 in. MNPT, 3/4 in. FNPT
  • Dimensions: 16.5” x 4.0” (42.0 cm x 10.16 cm)
  • Flow Rate: NSF Class B Certified, 16mJ/cm² @ 70% UVT: 9.4 gpm (49.2 lpm) / 2.13 m³/hr
  • Power Consumption: 46 W
  • Shipping Weight: 12 lbs (5.5 kg)
