Home / UV Systems & Components / UV Water Treatment Systems / UV System Viqua Arros 15 Integrated Home System 120V 9gpm@125psi w/1x10" Sediment Filter
Viqua / Trojan

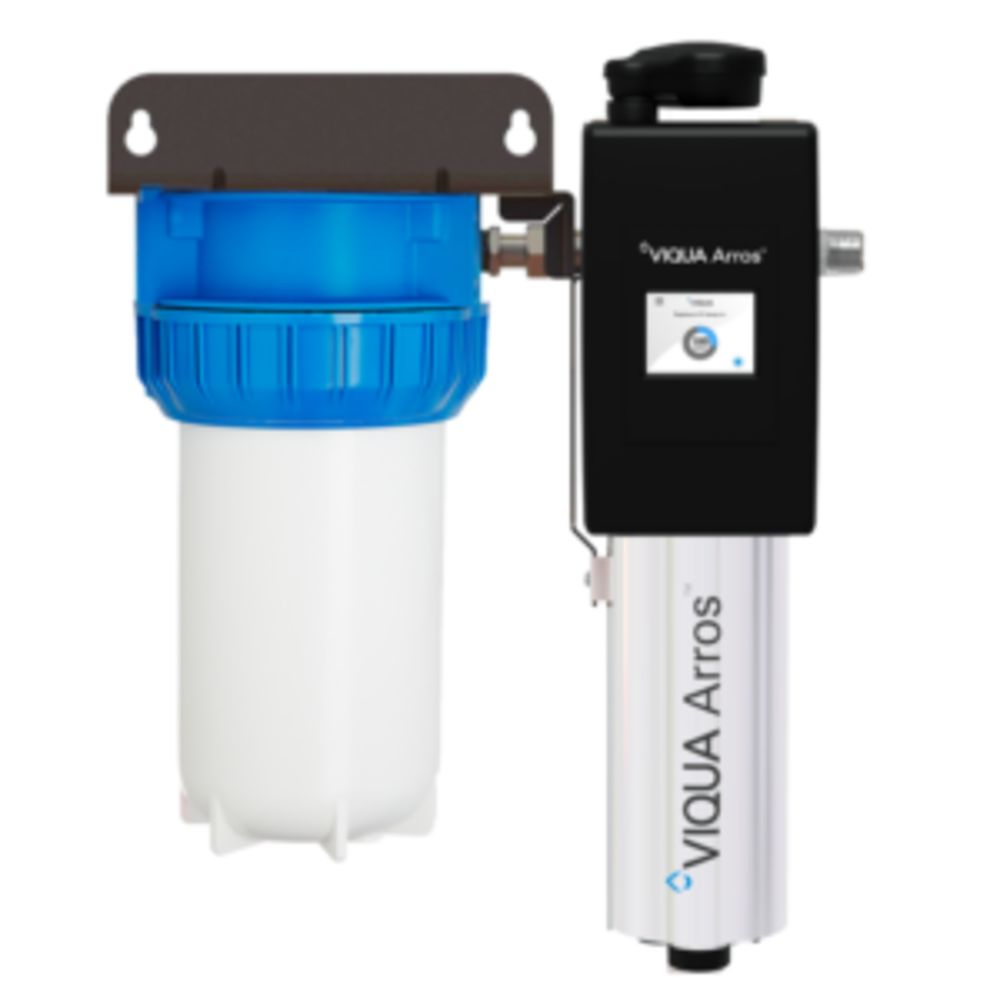

UV System Viqua Arros 15 Integrated Home System 120V 9gpm@125psi w/1x10" Sediment Filter

Part Number: ARROS15-IHS10
Your price:

The VIQUA Arros 15 is a premium UV water treatment system designed for whole-home applications, providing reliable disinfection with a 15 GPM flow rate. Engineered with an innovative chamber design and integrated sediment pre-filtration, the Arros 15 efficiently targets harmful microorganisms, including Cryptosporidium, Giardia, and E. coli. Its compact design and advanced technology simplify installation and ensure consistent water quality.

Product Highlights:

  • Streamlined Installation: Features the Tidal™ chamber, aligning inlet and outlet ports on a single plane for reduced material and time. The PolyProtect™ shield enables safe connection to PEX and other polymers, while the elongated steel bracket ensures easy mounting.
  • Low-Maintenance Design: Includes an all-in-one lamp unit with a quick-drain threaded plug and an LCD touchscreen for easy access to replacement and dealer information.
  • Enhanced Performance: Equipped with Stream™ technology for precise UV dosage and optimized efficiency, resulting in a compact yet powerful UV chamber.

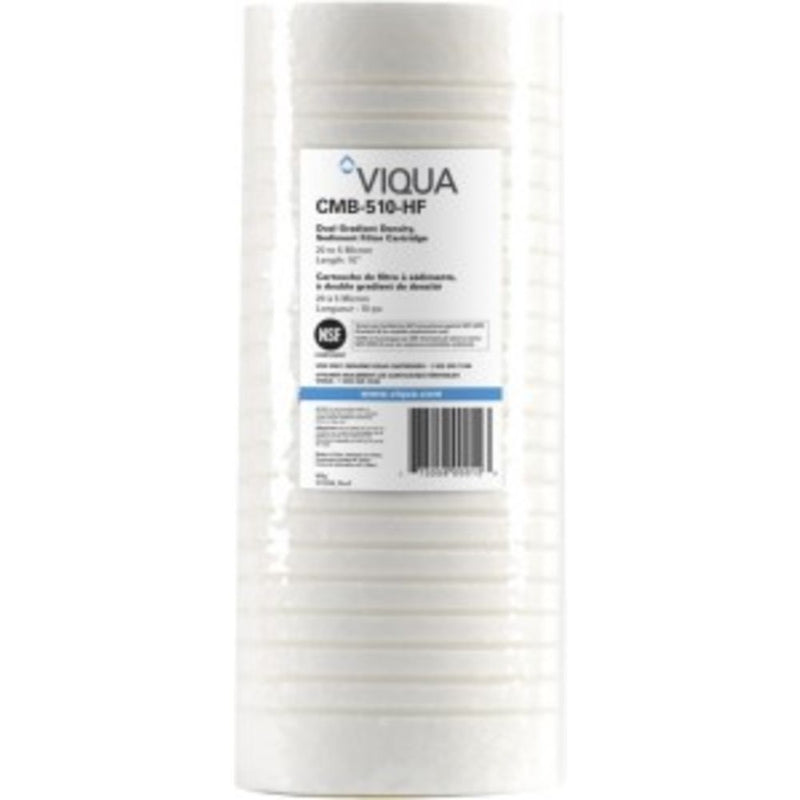

  • Integrated Sediment Filtration: Includes a 10" sediment filter housed in a premium 3-piece casing, capturing common particles to improve water clarity and extend lamp life.

Specifications:

  • Connection Size: Inlet: 1" FNPT; Outlet: Combo Port (1" MNPT / ¾" FNPT)
  • Dimensions: 16.95″ × 20.82″ × 9.0″ (43.0 cm × 52.9 cm × 22.9 cm)
  • Flow Rate: 15 GPM (56.8 LPM) at 30mJ/cm²
  • Filter Housing: Single 10″ 3-piece housing
  • Power Consumption: 46W
  • Weight: 40 lbs (18.1 kg)

Perfect for residential homes, cottages, or OEM applications, the VIQUA Arros 15 UV system provides validated microbial protection and enhanced whole-home water treatment in a compact, user-friendly package.



California residents Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
optional parts
replacement parts
