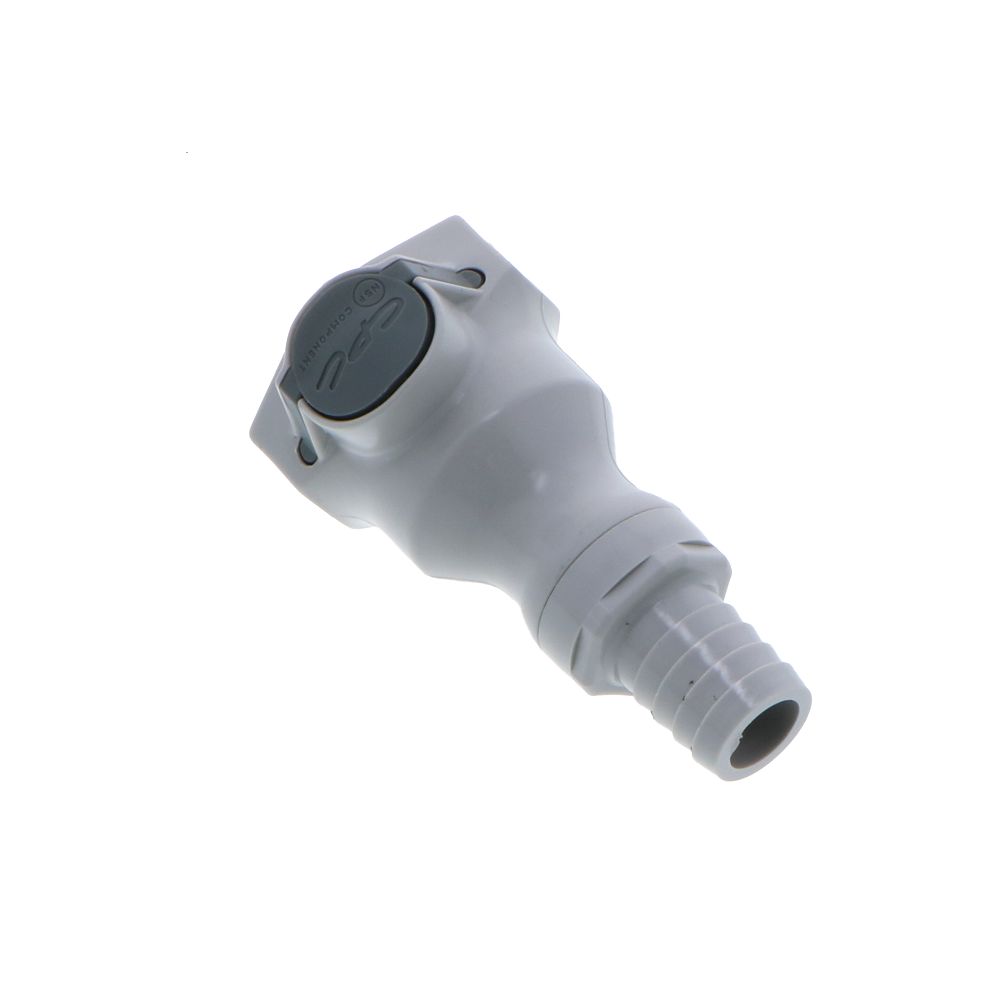

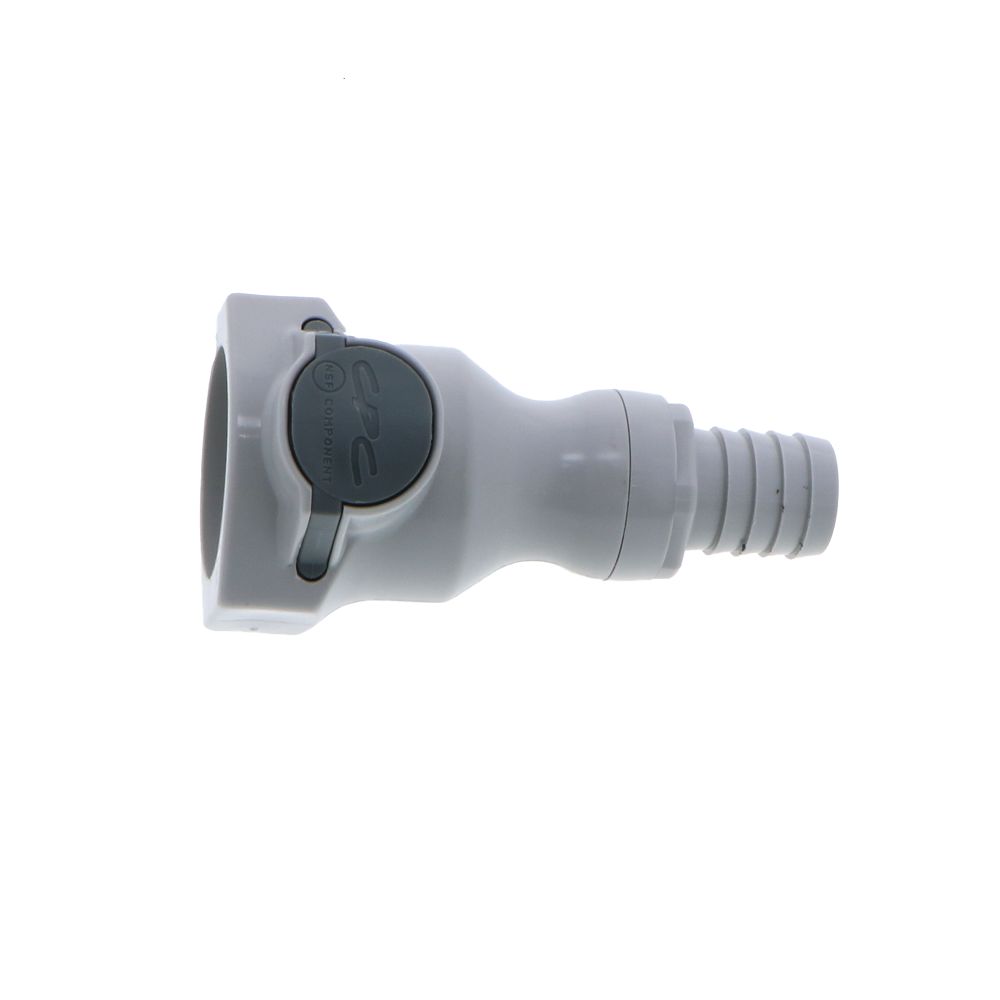

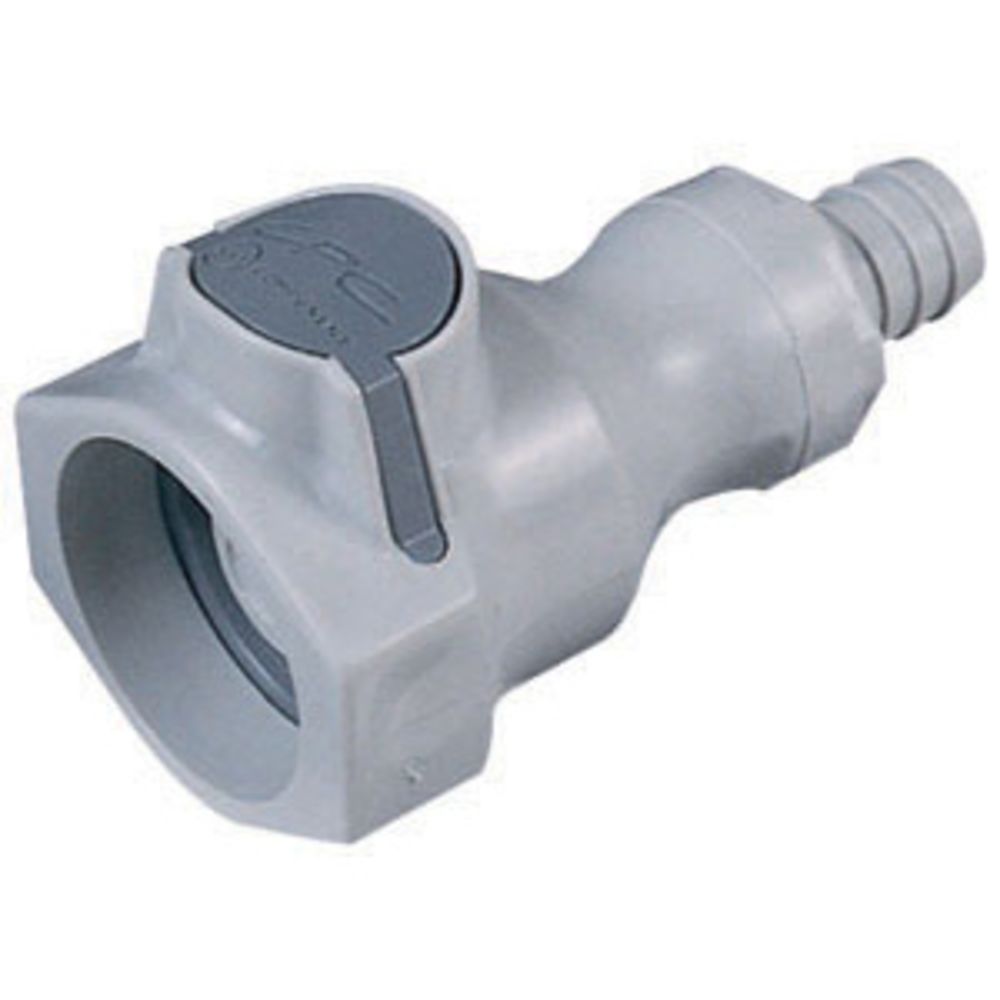

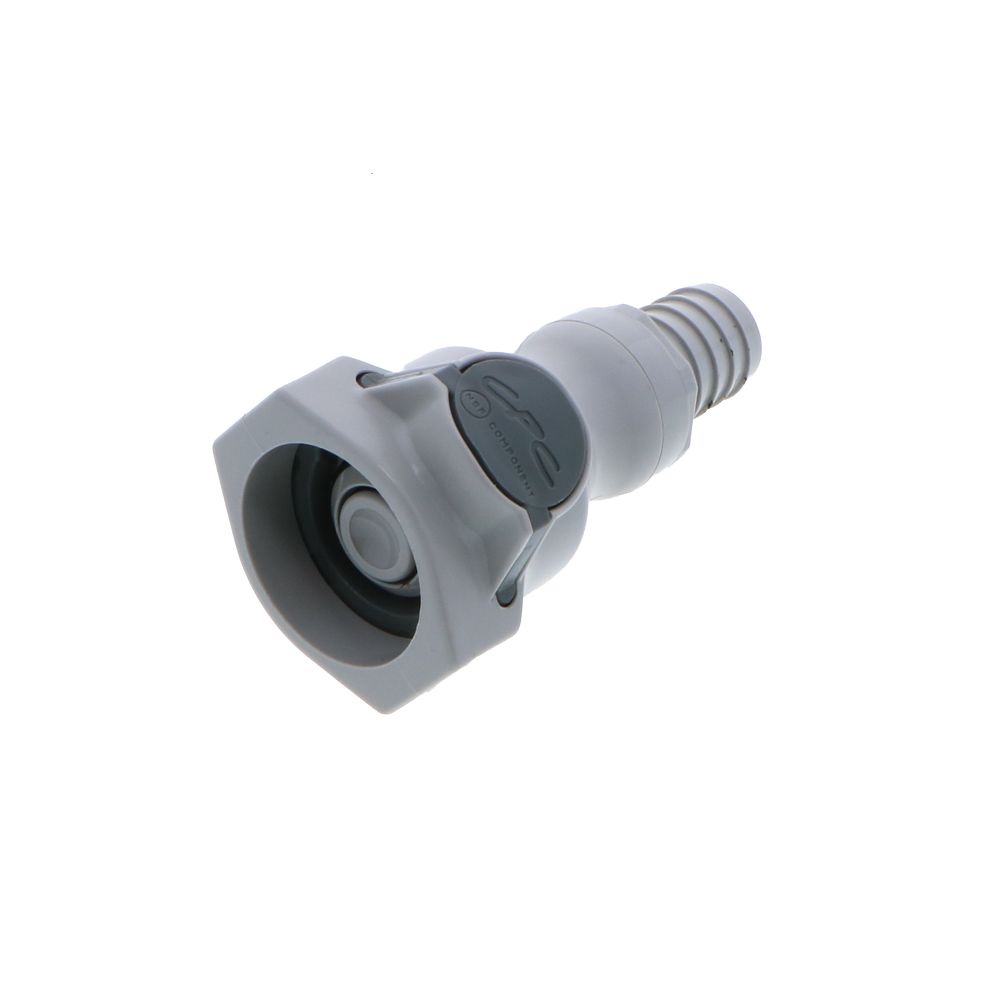

UDC Valved In-Line Hose Barb Coupling Body - 5/8 ID Barb EPDM O-Ring
Part Number: 98100
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications
- Material: Polypropylene
- Color: Gray
- Pressure Range: 20" Hg vacuum to 15 psi (1 bar)
- Mounting Option: Free Floating
- Valve Option: Valved
- Valve Spring: 316 stainless steel
- Temperature Range: 32ºF to 160ºF
- Seal Options: FDA EPDM
- Tubing Size: 5/8" ID
- NSF 169 Listed
- Available in Bags of 5 units
Product Details | |
---|---|
Application | Bag-in-Box |
Barb Size | 5/8" ID |
Body Material | Polypropylene |
Max Pressure (Psi) | 15 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Number Of Seals | 1 |
Seal Material | FDA EPDM |
Series | UDC |
Shape | Straight |
Spring | 316 stainless steel |
Valve Type | Valved |
Color / Finish | Gray |
Origin | USA |
Type | Coupling Body |
Warranty & Certifications | |
Certifications | NSF 169 |
