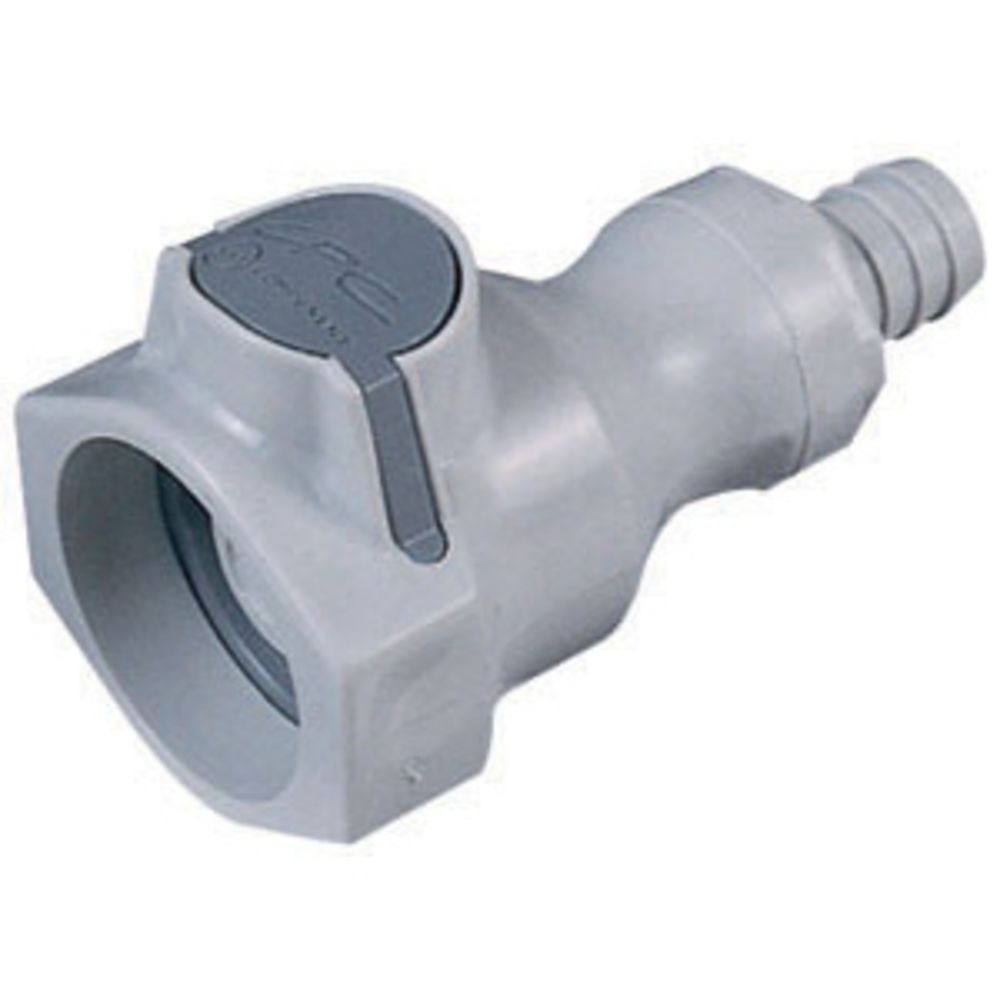

Colder UDC Series Universal Dispensing Couplings provide a universal connection to a 38 mm fitment neck. This allows you to make instant connections to bulk packaging systems including bag-in-box (BIB), flexible and rigid packaging styles. The couplings feature automatic flush face valves to minimize costly or dangerous spillage. The ergonomic design and large, shrouded thumb latch pad of the UDC Series produce a coupling that is easy to grip and simple to operate. UDC Series couplings are NSF-listed and are suitable for dispensing liquids, condiments or other food-based material.
Specifications
Specifications
- Material: Polypropylene
- Color: Gray
- Pressure Range: 20" Hg vacuum to 15 psi (1 bar)
- Mounting Option: Free Floating
- Valve Option: Valved
- Valve Spring: 316 stainless steel
- Temperature Range: 32ºF to 160ºF
- Seal Options: FDA EPDM
- Tubing Size: 3/4" ID
- NSF 169 Listed
- Available in Bags of 5 units
Weight & Dimensions
Length (inches) | 3.25 |
Height (inches) | 3.25 |
Width (inches) | 1.25 |
Weight (lbs) | 0.25 |
Details
Series | UDC |
Max Temp (°F) | 160 |
Max Pressure (Psi) | 15 |
Min Temp (°F) | 32 |
Min Pressure (Psi) | Vacuum |
Barb Size | 3/4" ID |
Application | Bag-in-Box |
Bag Quantity | 5 |
Body Material | Polypropylene |
Color / Finish | Gray |
Mounting Options | Free Floating |
Origin | USA |
Seal Material | FDA EPDM |
Spring | 316 stainless steel |
Valve Type | Valved |
Warranty & Certifications
Certifications | NSF 169 |
Colder UDC Series Universal Dispensing Couplings provide a universal connection to a 38 mm fitment neck. This allows you to make instant connections to bulk packaging systems including bag-in-box (BIB), flexible and rigid packaging styles. The couplings feature automatic flush face valves to minimize costly or dangerous spillage. The ergonomic design and large, shrouded thumb latch pad of the UDC Series produce a coupling that is easy to grip and simple to operate. UDC Series couplings are NSF-listed and are suitable for dispensing liquids, condiments or other food-based material.
Specifications
- Material: Polypropylene
- Color: Gray
- Pressure Range: 20" Hg vacuum to 15 psi (1 bar)
- Mounting Option: Free Floating
- Valve Option: Valved
- Valve Spring: 316 stainless steel
- Temperature Range: 32ºF to 160ºF
- Seal Options: FDA EPDM
- Tubing Size: 3/4" ID
- NSF 169 Listed
- Available in Bags of 5 units
Weight & Dimensions
Length (inches) | 3.25 |
Height (inches) | 3.25 |
Width (inches) | 1.25 |
Weight (lbs) | 0.25 |
Details
Series | UDC |
Max Temp (°F) | 160 |
Max Pressure (Psi) | 15 |
Min Temp (°F) | 32 |
Min Pressure (Psi) | Vacuum |
Barb Size | 3/4" ID |
Application | Bag-in-Box |
Bag Quantity | 5 |
Body Material | Polypropylene |
Color / Finish | Gray |
Mounting Options | Free Floating |
Origin | USA |
Seal Material | FDA EPDM |
Spring | 316 stainless steel |
Valve Type | Valved |
Warranty & Certifications
Certifications | NSF 169 |
