Fresh Water Systems

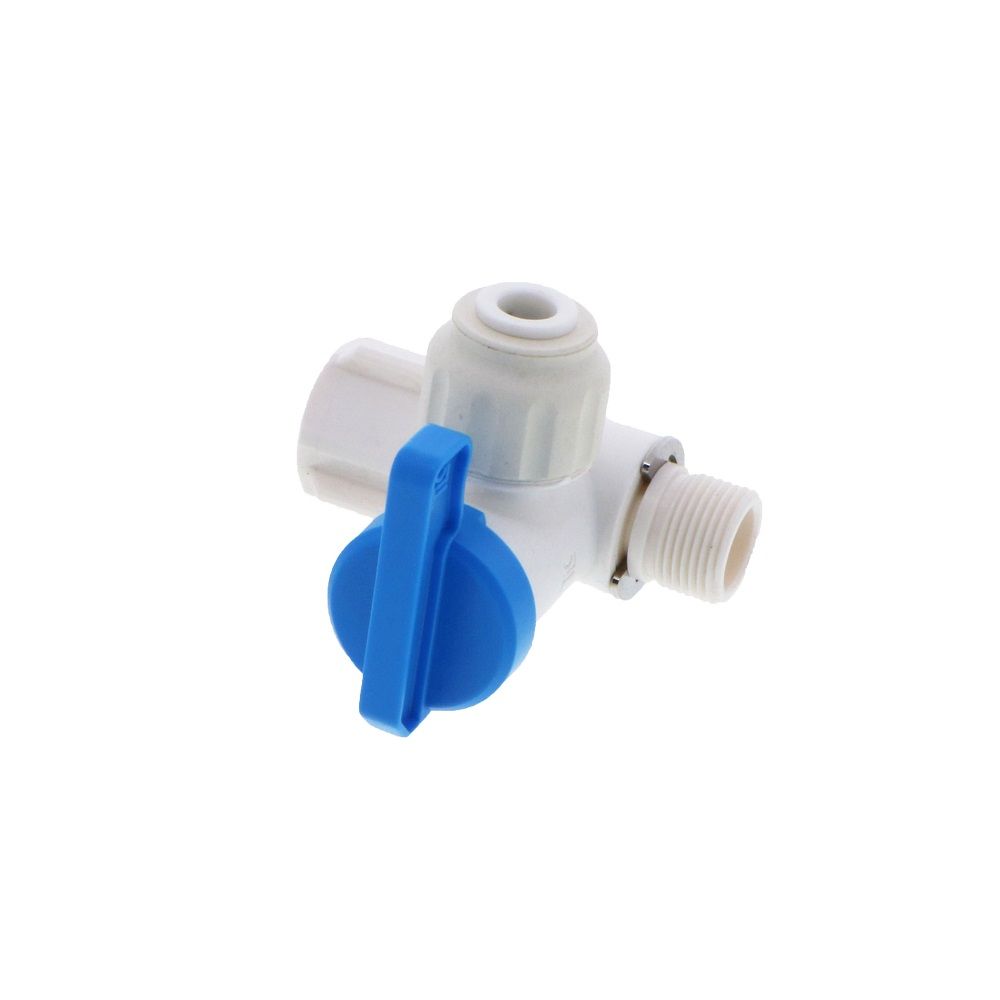

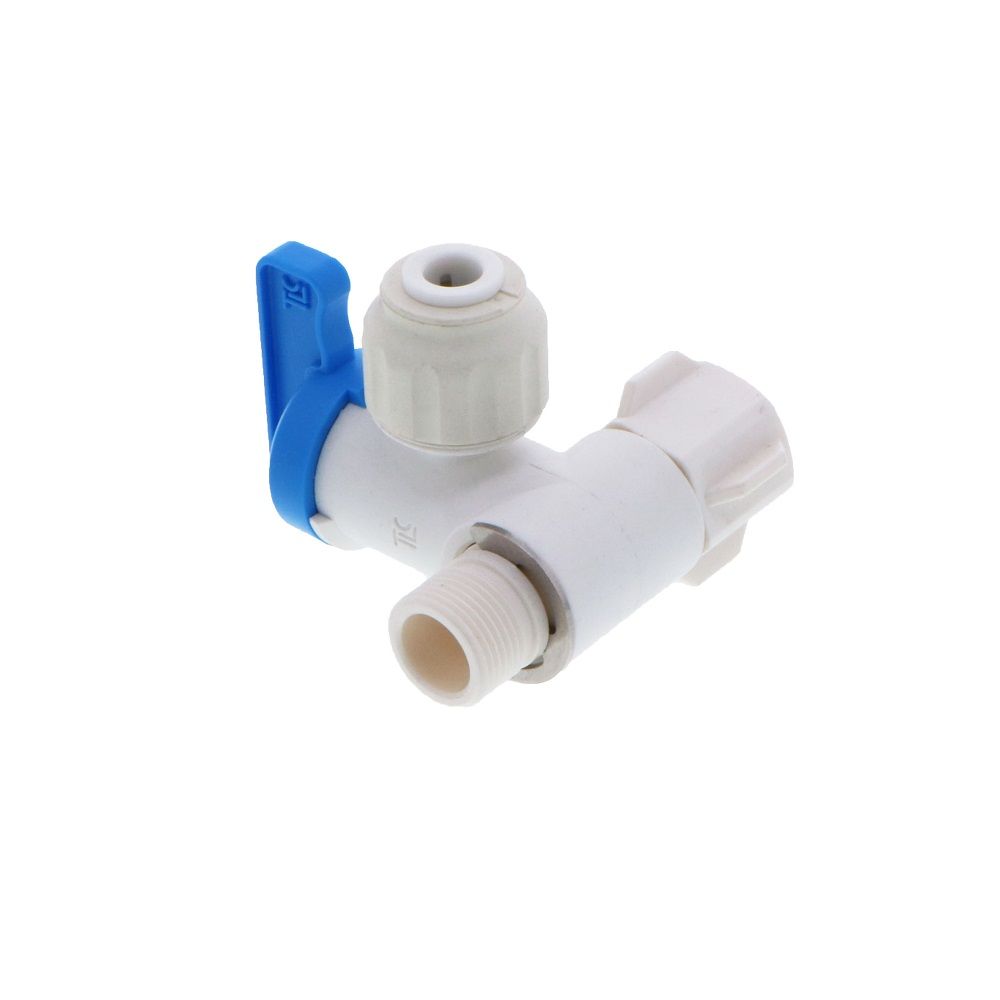

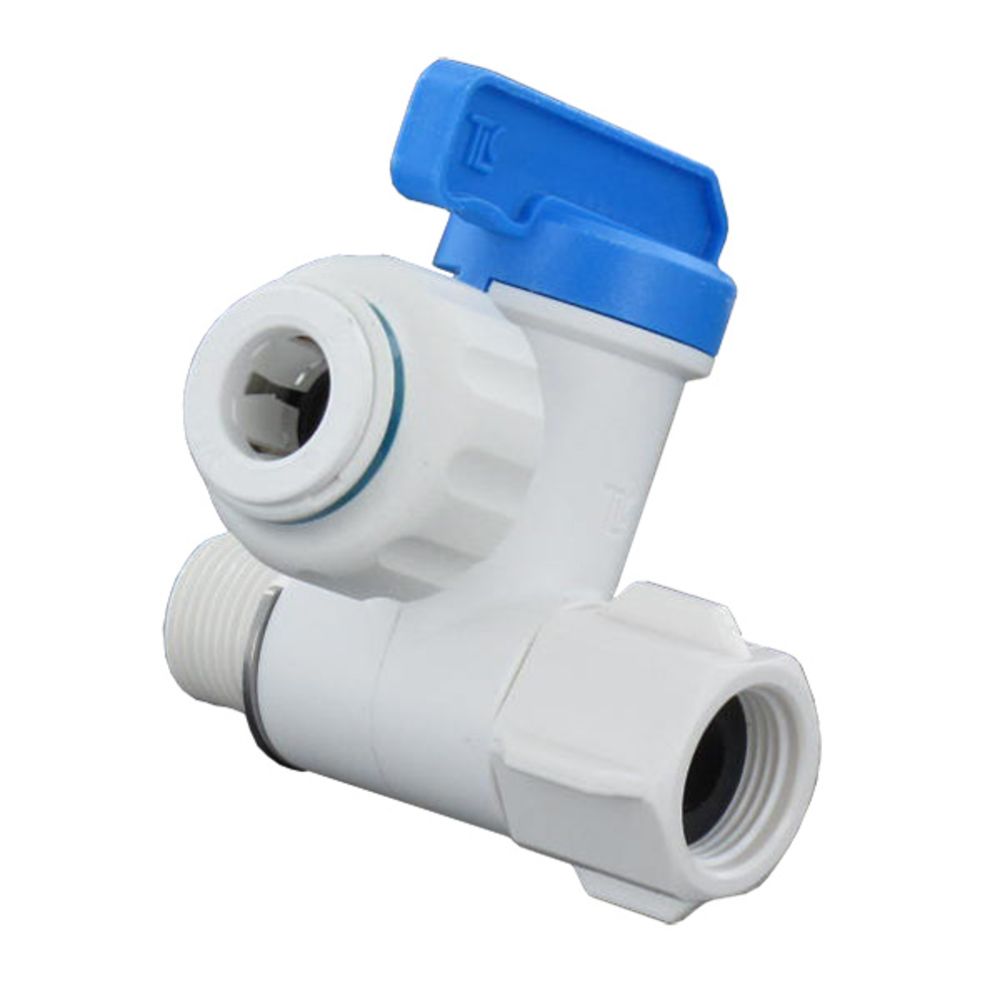

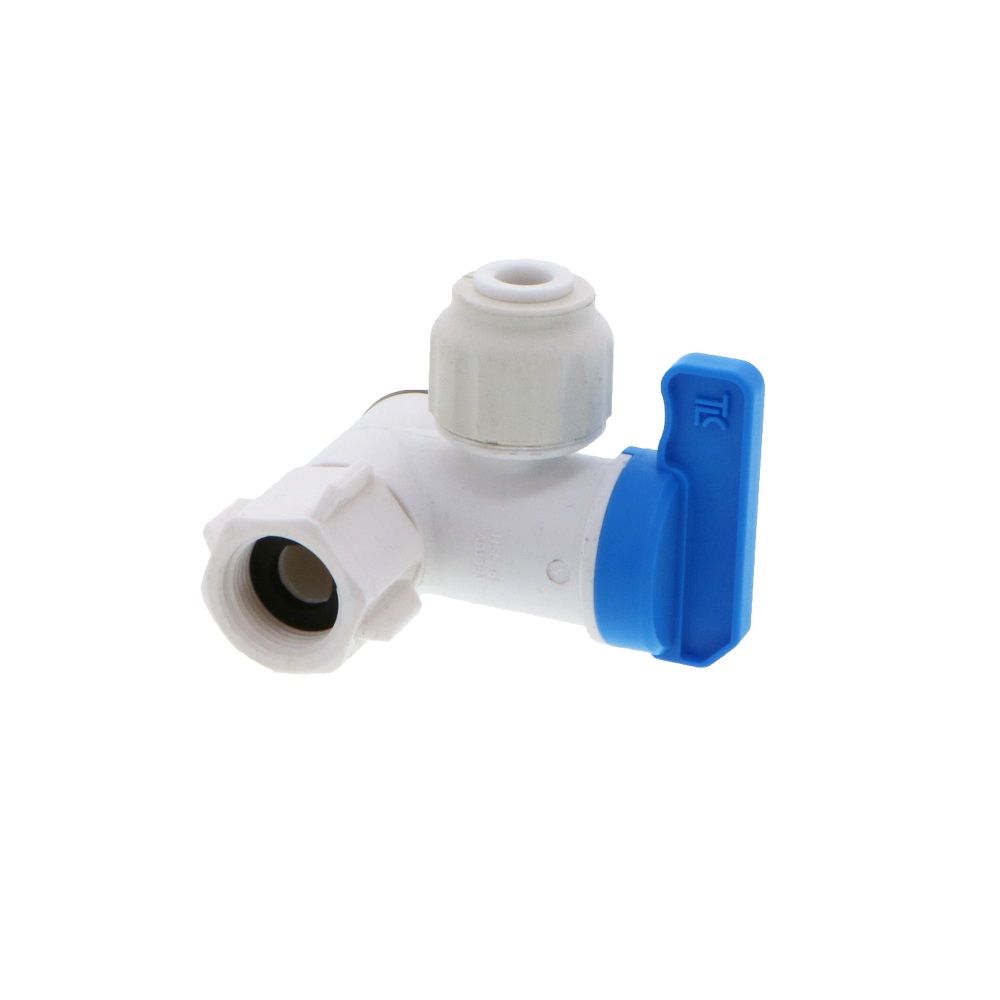

Twistloc AVA-6753CP Angle Stop Adapter Valve 3/8 x 3/8 x 1/4

Part Number: AVA-6753CP

In Stock

out of stock

In Stock

$7.99

Features:
  • 3/8" Male Compression Connection
  • 3/8" Female Compression Connection
  • 1/4" OD JG Connection
  • Polypropylene Body
  • Polysulfone Shaft
  • EPDM O-Rings
  • Stainless Steel Gripper
  • 145 Max. Working Pressure @ 68° F
  • 58 Max. Working Pressure @ 140° F
  • Lead Free
  • Made with same quality materials required by NSF-61

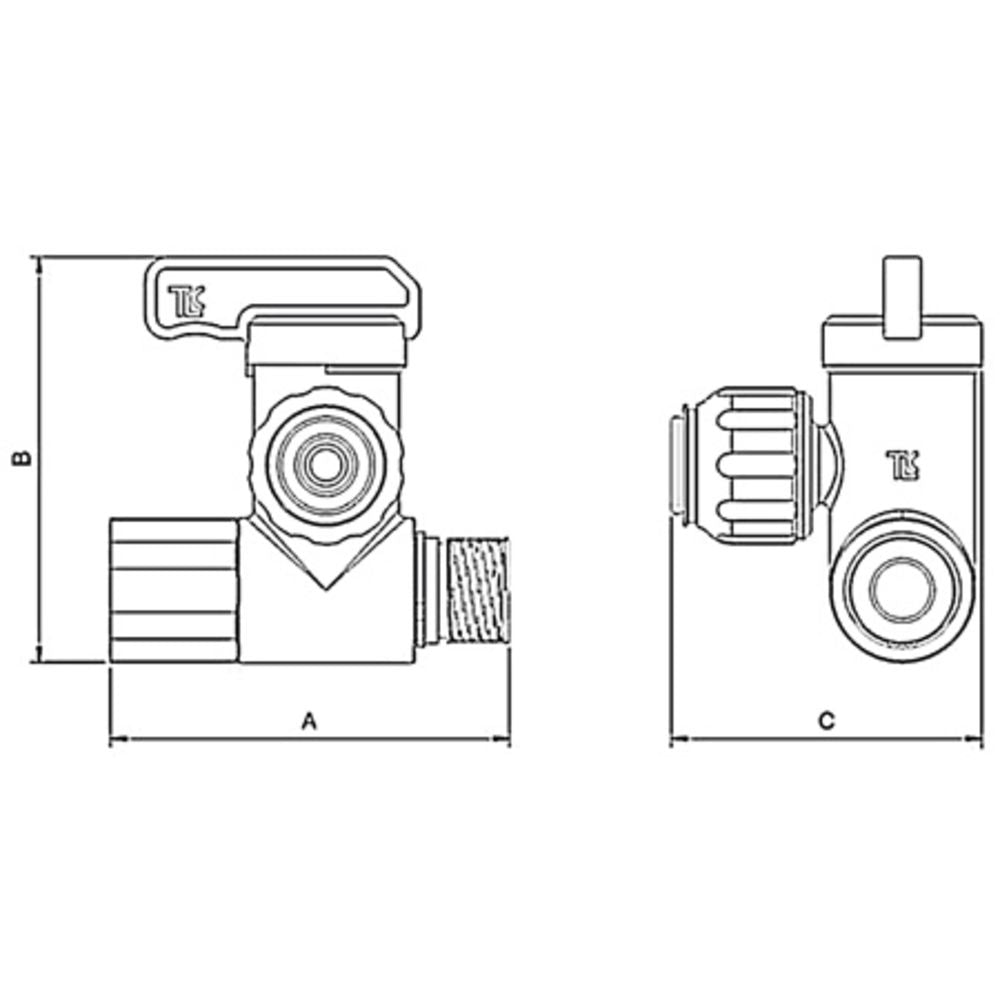

Part# A B C
AVA-6753CP 2.11" 2.16" 1.64"


Weight & Dimensions

Weight (lbs)

0.2

Details

Application

Water Supply

Body Material

Polypropylene

Color / Finish

White

Inlet/Outlet Connection

3/8" FPT; 3/8" MPT

Max Pressure (Psi)

145

Max Temp (°F)

140

Min Pressure (Psi)

58

Min Temp (°F)

68

O-Rings

EPDM

Push-In Size

1/4" OD

Size

3/8"

Warranty & Certifications

Certifications

NSF-61


Twistloc




Features:
  • 3/8" Male Compression Connection
  • 3/8" Female Compression Connection
  • 1/4" OD JG Connection
  • Polypropylene Body
  • Polysulfone Shaft
  • EPDM O-Rings
  • Stainless Steel Gripper
  • 145 Max. Working Pressure @ 68° F
  • 58 Max. Working Pressure @ 140° F
  • Lead Free
  • Made with same quality materials required by NSF-61



Part# A B C
AVA-6753CP 2.11" 2.16" 1.64"

Weight & Dimensions

Weight (lbs)

0.2

Details

Application

Water Supply

Body Material

Polypropylene

Color / Finish

White

Inlet/Outlet Connection

3/8" FPT; 3/8" MPT

Max Pressure (Psi)

145

Max Temp (°F)

140

Min Pressure (Psi)

58

Min Temp (°F)

68

O-Rings

EPDM

Push-In Size

1/4" OD

Size

3/8"

Warranty & Certifications

Certifications

NSF-61
