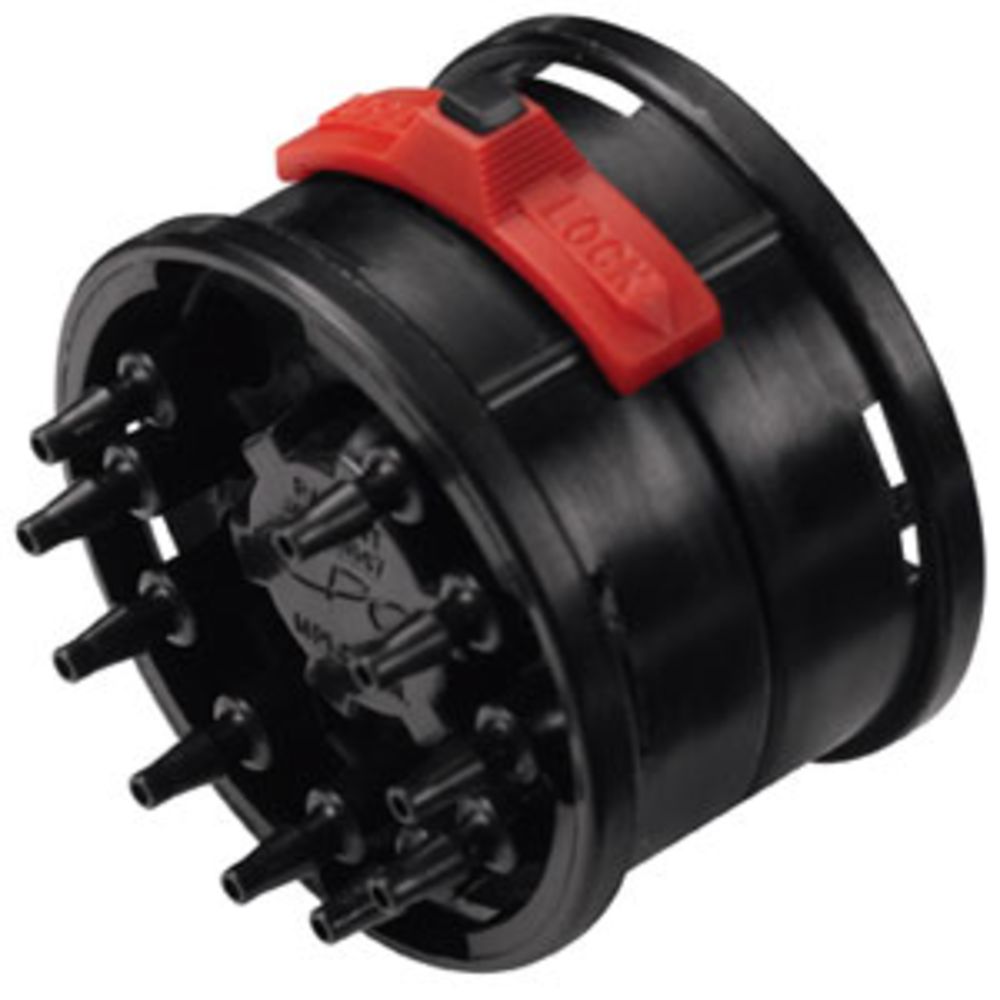

The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.
Specifications:
Specifications:
- Material: Acetal
- Material Finish: Molded Black
- Color: White
- Valve Option: Non-Valved
- Mounting Option: Free Floating
- Pressure Range: Vacuum to 100psi, 6.9 bar per line
- Temperature Range: -40°F to 180°F
Details
Series | Tentube |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 100 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Barb Size | 3mm ID |
Application | Water |
Bag Quantity | 5 |
Body Material | Acetal Copolymer |
Color / Finish | Black |
Mounting Options | Free Floating |
Nut / Fitting Material | Acetal |
Seal Material | Buna-N |
Valve Type | Non-Valved |
The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.
Specifications:
- Material: Acetal
- Material Finish: Molded Black
- Color: White
- Valve Option: Non-Valved
- Mounting Option: Free Floating
- Pressure Range: Vacuum to 100psi, 6.9 bar per line
- Temperature Range: -40°F to 180°F
Details
Series | Tentube |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 100 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Barb Size | 3mm ID |
Application | Water |
Bag Quantity | 5 |
Body Material | Acetal Copolymer |
Color / Finish | Black |
Mounting Options | Free Floating |
Nut / Fitting Material | Acetal |
Seal Material | Buna-N |
Valve Type | Non-Valved |
