Colder Products

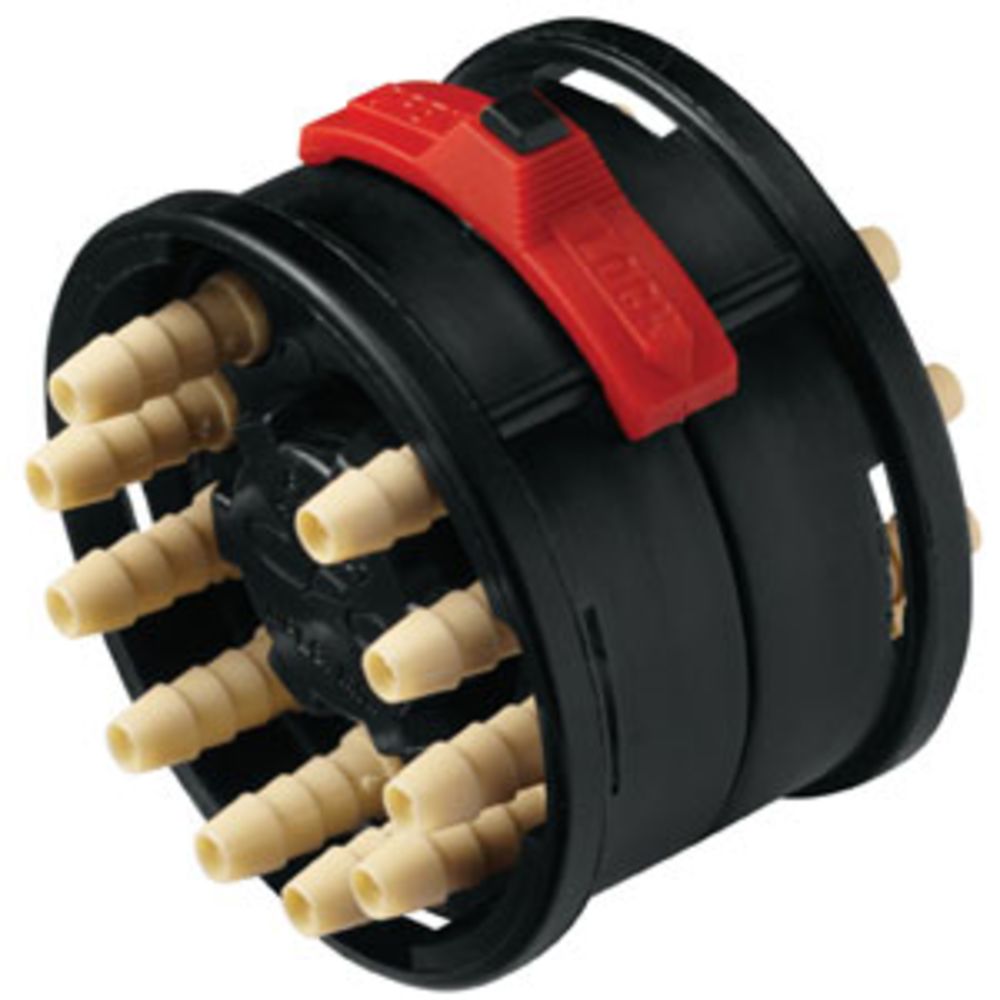

TT100212 Non-Valved Hose Barb Tentube Assembly 1/8 ID Barb

Part Number: TT100212

In Stock

out of stock

In Stock

$46.43

The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.

Specifications:
  • Material: Polypropylene
  • Material Finish: Almond
  • Color: White with blue pads
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 100psi, 6.9 bar per line
  • Temperature Range: 32°F to 180°F




Details

Series

Tentube

Max Temp (°F)

180

Max Pressure (Psi)

100

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Barb Size

1/8" ID

Application

Water

Bag Quantity

5

Body Material

Polypropylene

Color / Finish

Black

Mounting Options

Free Floating

Nut / Fitting Material

Polypropylene, Acetal

Seal Material

EPDM

Valve Type

Non-Valved


TT100212




The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.

Specifications:
  • Material: Polypropylene
  • Material Finish: Almond
  • Color: White with blue pads
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 100psi, 6.9 bar per line
  • Temperature Range: 32°F to 180°F



Details

Series

Tentube

Max Temp (°F)

180

Max Pressure (Psi)

100

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Barb Size

1/8" ID

Application

Water

Bag Quantity

5

Body Material

Polypropylene

Color / Finish

Black

Mounting Options

Free Floating

Nut / Fitting Material

Polypropylene, Acetal

Seal Material

EPDM

Valve Type

Non-Valved

Documentation
TT100212
