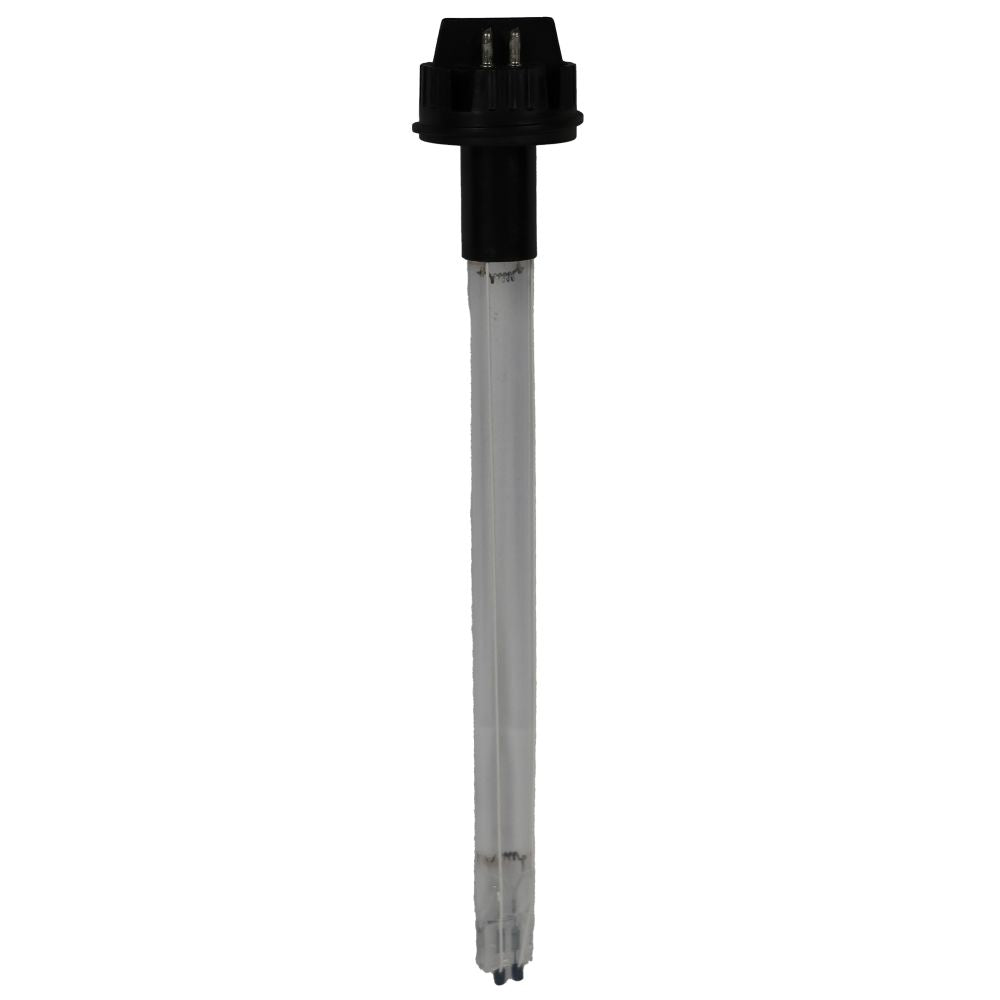

The Trojan 602804 Lamp is an original replacement UV bulb for use with Trojan UVMax B/B4 water disinfection systems. When you buy a Genuine Trojan 602804 UV lamp you can be assured of the performance, safety, and warranty of your system.
Specifications:
Specifications:
- Genuine Trojan UV Lamp for UVMax B/B4 systems
- 2 O-rings included with lamp
- Long-life coated for stability, longer life and increased efficiency with bulb life up to up to 9,000 hours

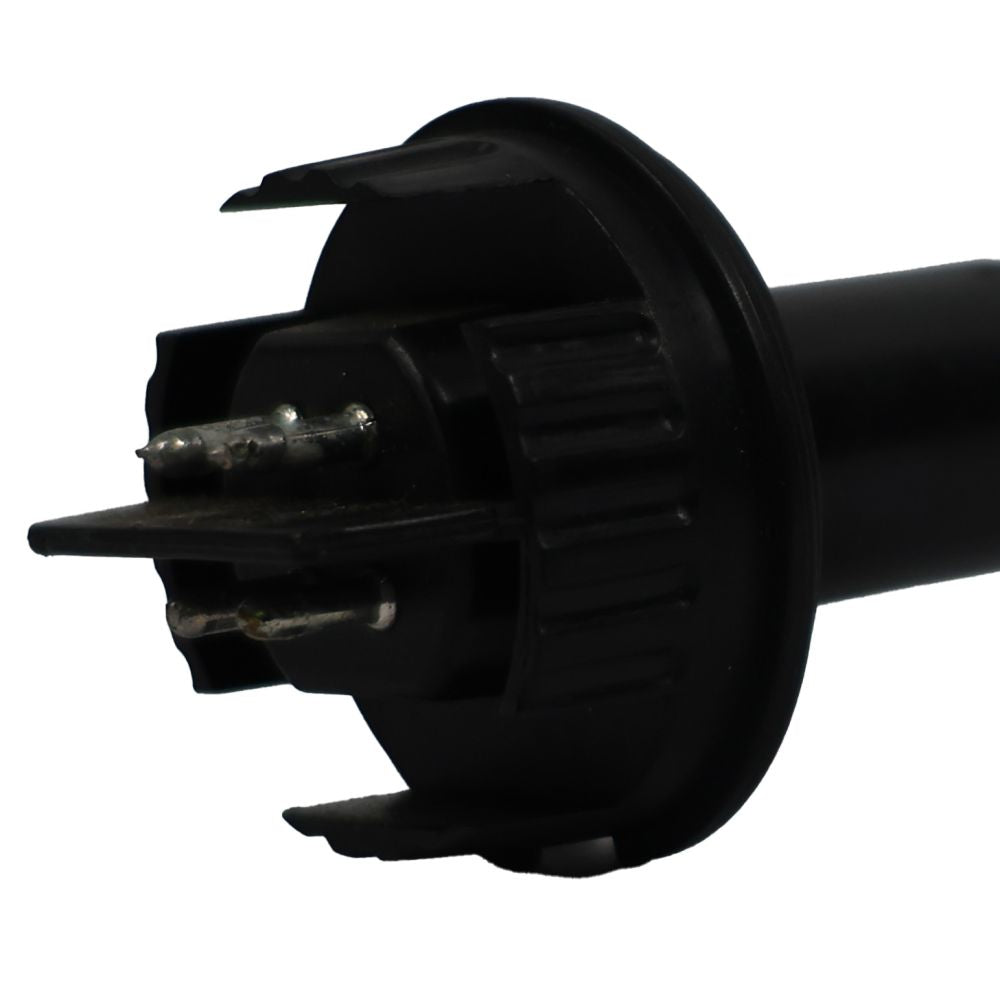

- Low pressure high output lamp with a black base
- Environmentally friendly, with less than 10mg of mercury; 70% less than most other commercially available UV lamps

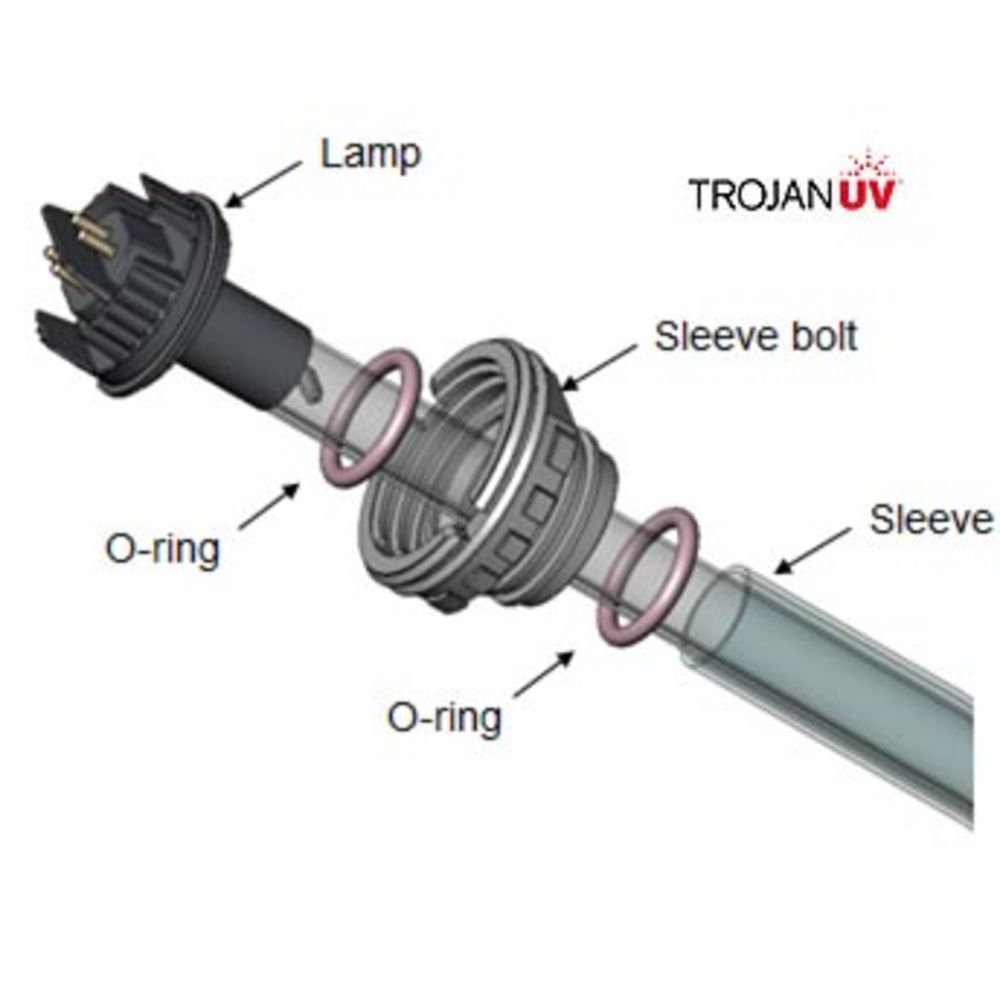

| Trojan UV Lamp 602804 Replacement Diagram: |
| Replacing your 602804 UV Lamp is easy, all Trojan UV lamps install with an easy quarter-turn to a positive stop to prevent over tightening. |
 |
Weight & Dimensions
Weight (lbs) | 4.9 |
Details
Application | Germicidal (254nm), Preheat |
Capacity | 9,000 Hours |

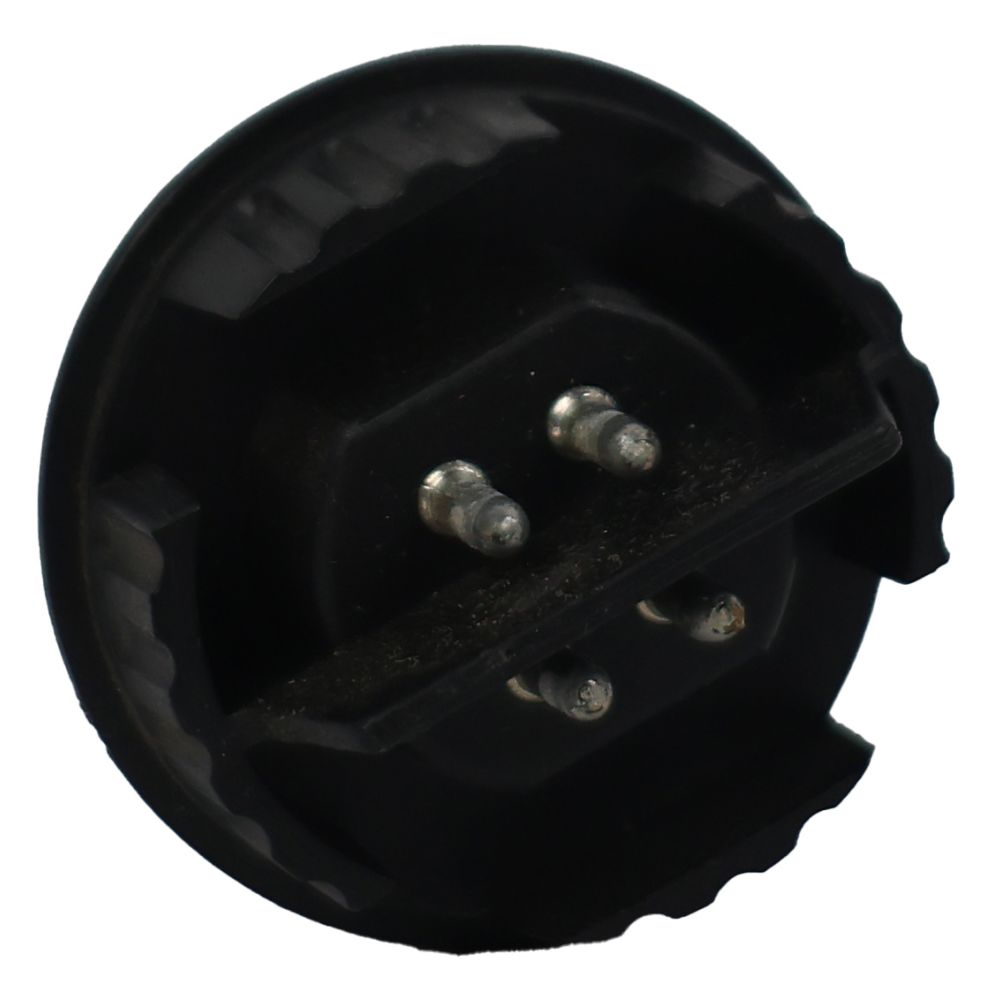

Pin Configuration | 4 Pin |
Power | 27 W |
Change Frequency | 9,000 Hours |
The Trojan 602804 Lamp is an original replacement UV bulb for use with Trojan UVMax B/B4 water disinfection systems. When you buy a Genuine Trojan 602804 UV lamp you can be assured of the performance, safety, and warranty of your system.
Specifications:
- Genuine Trojan UV Lamp for UVMax B/B4 systems
- 2 O-rings included with lamp
- Long-life coated for stability, longer life and increased efficiency with bulb life up to up to 9,000 hours
- Low pressure high output lamp with a black base
- Environmentally friendly, with less than 10mg of mercury; 70% less than most other commercially available UV lamps
| Trojan UV Lamp 602804 Replacement Diagram: |
| Replacing your 602804 UV Lamp is easy, all Trojan UV lamps install with an easy quarter-turn to a positive stop to prevent over tightening. |
|
Weight & Dimensions
Weight (lbs) | 4.9 |
Details
Application | Germicidal (254nm), Preheat |
Capacity | 9,000 Hours |
Pin Configuration | 4 Pin |
Power | 27 W |
Change Frequency | 9,000 Hours |
